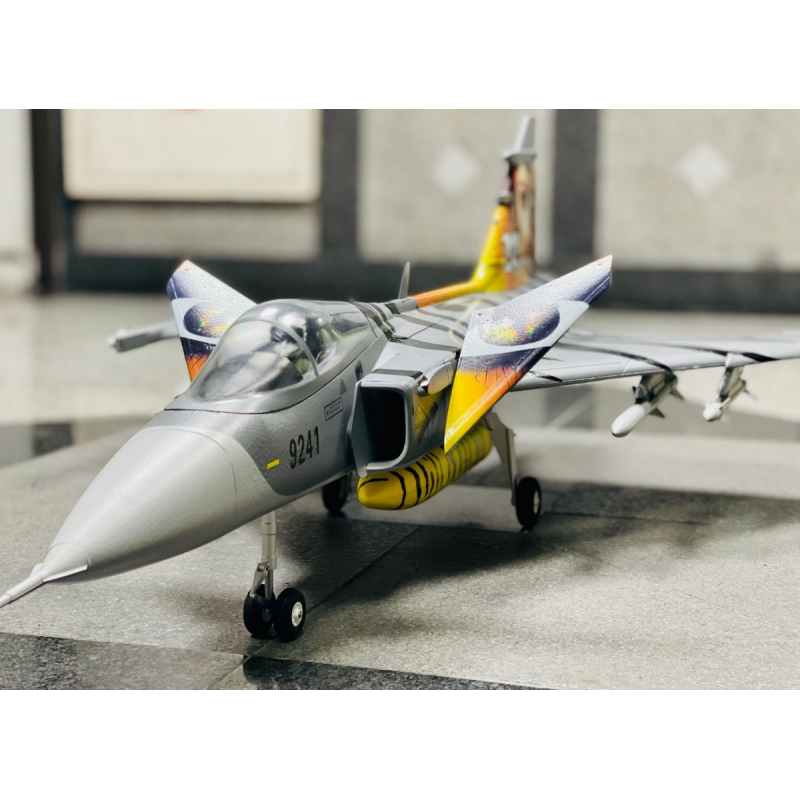

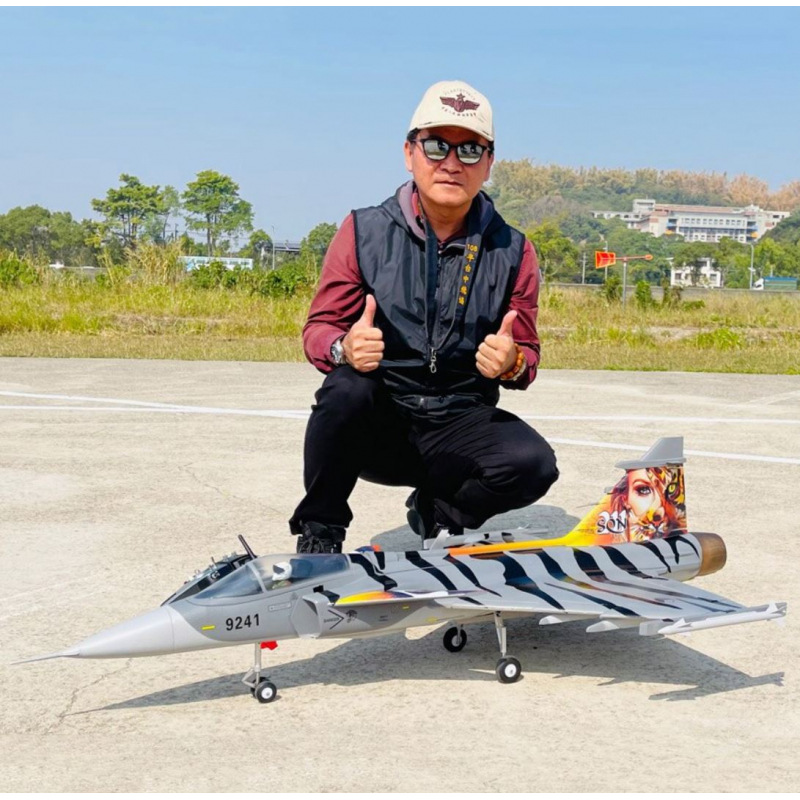

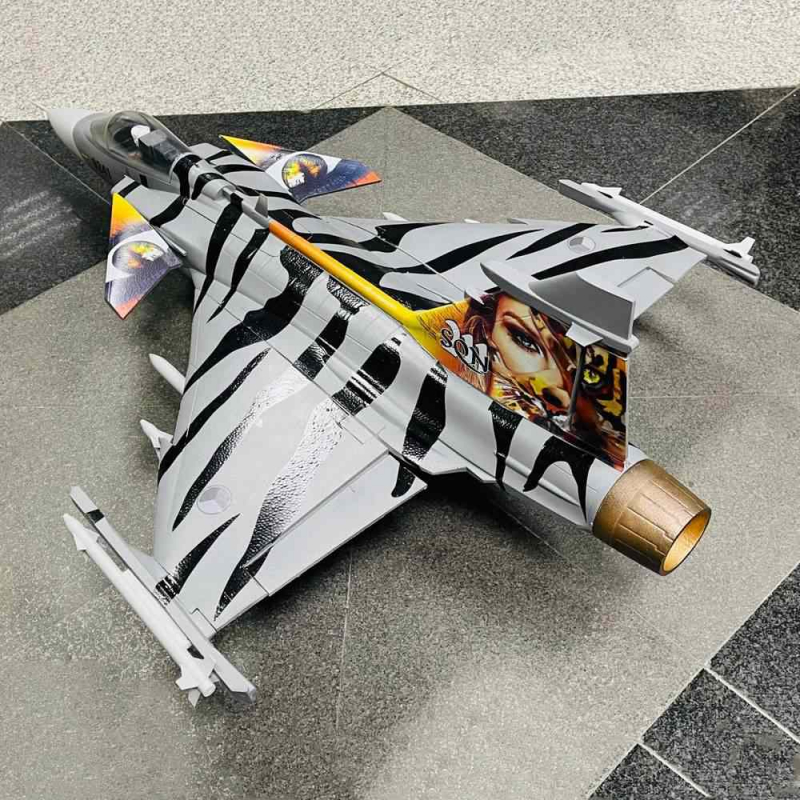

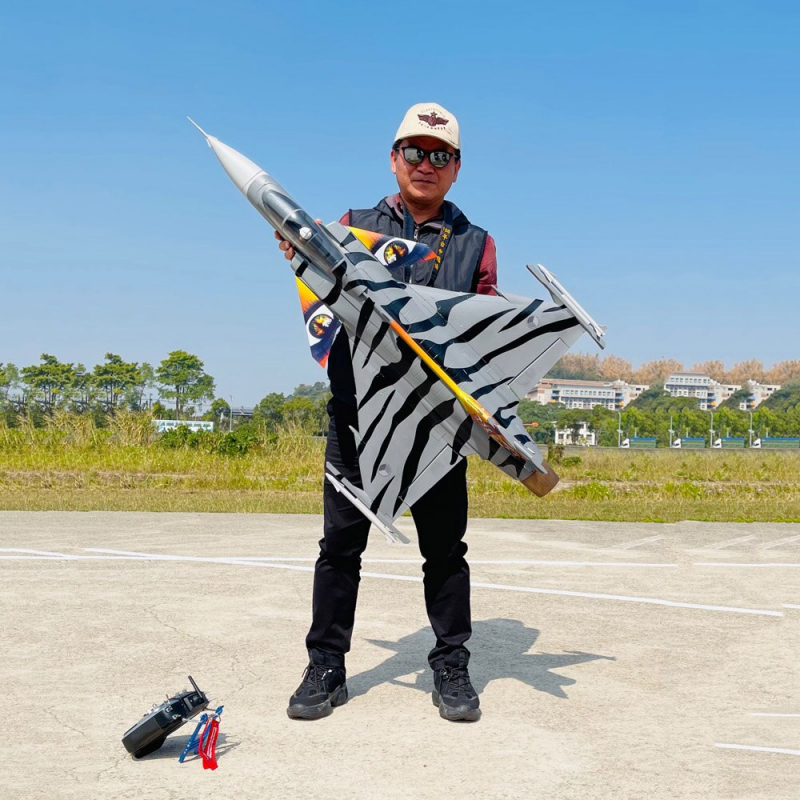

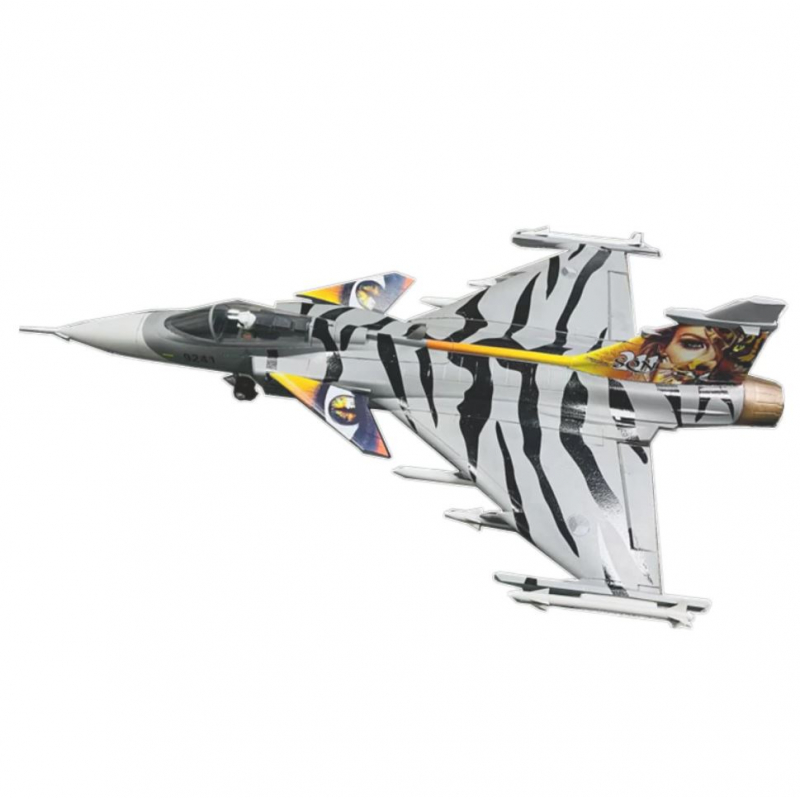

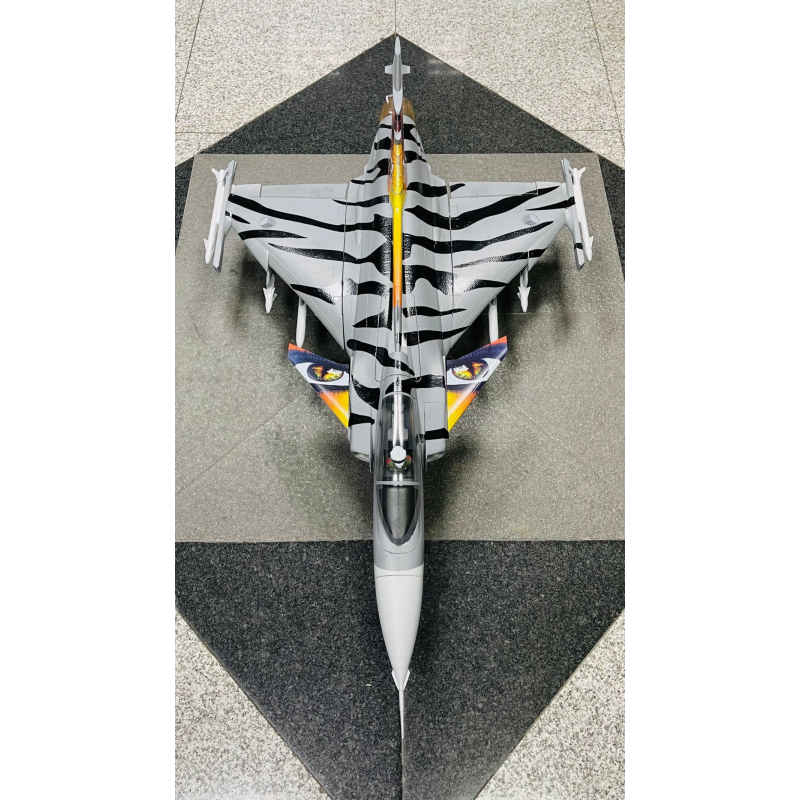

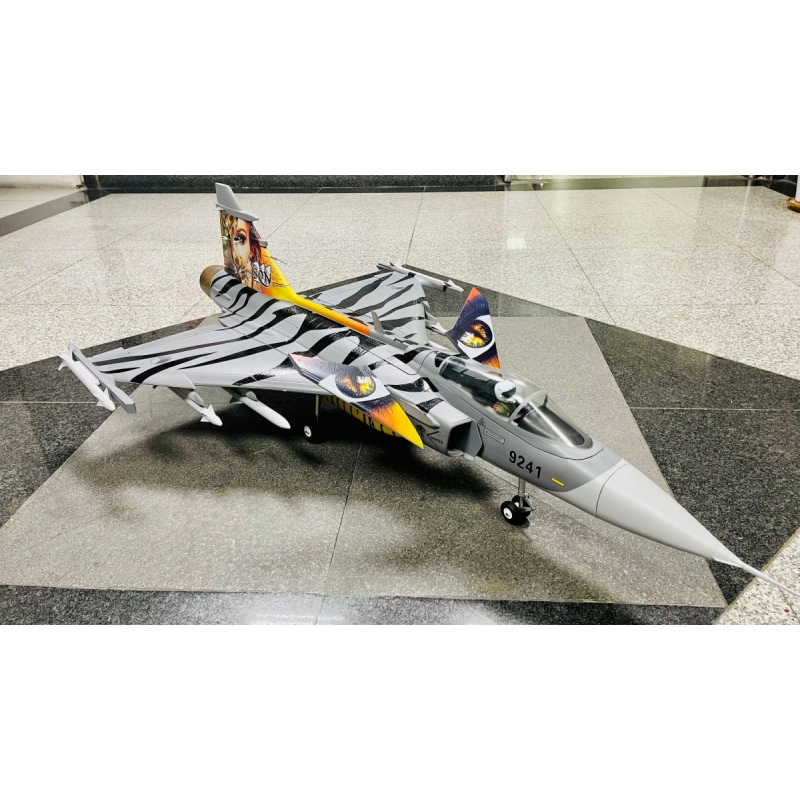

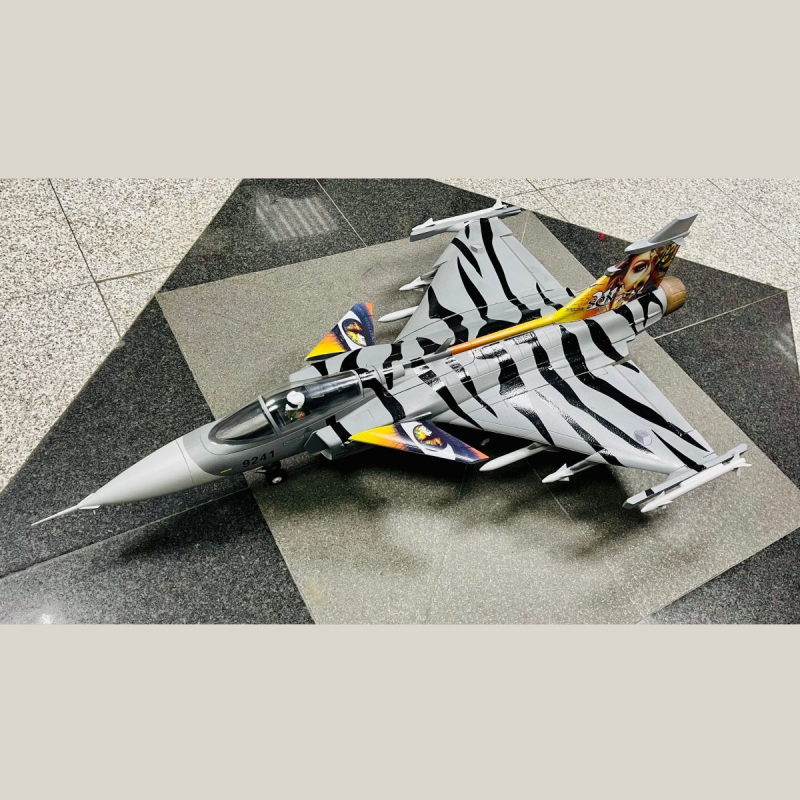

JAS-39 Gripen 70mm from FlyFlans Models

Details

The Flyfans JAS-39 Gripen features a 70mm turbine and Inrunner motor combo combined with an 80A controller to achieve fantastic performance with virtually instantaneous throttle response!

The JAS 39 Gripen ("griffin") is a fourth generation multirole aircraft developed by Sweden in the 1980s. Commissioned in 1996 in the Swedish Air Force, it was exported to Hungary, the Czech Republic, South Africa South, in Thailand and Brazil.

  • Constructed of durable EPO flex foam
  • 70mm EDF FMS Pro system with high-RPM brushless inrunner motor and 80A Hobbywing ESC deliver fantastic performance with virtually instantaneous throttle response
  • Large battery compartment for many battery options and setup configurations (fits 3300~4200mAh)
  • Main wings, nose, and pitot tube are completely detachable for storage and transportation
  • Fully functional canards
  • Mainly glueless assembly

Description from TurbinesRC

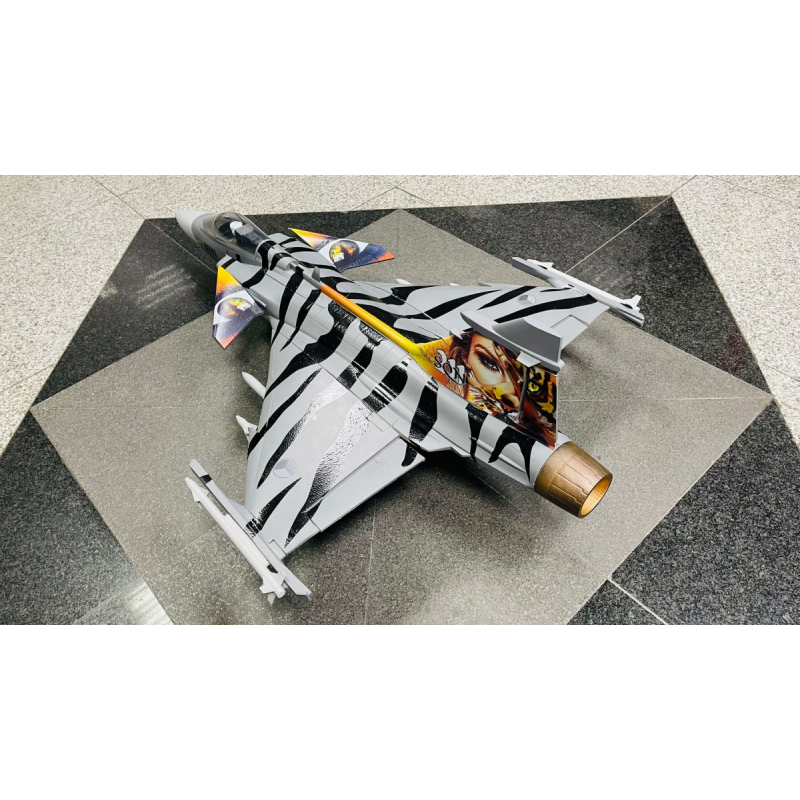

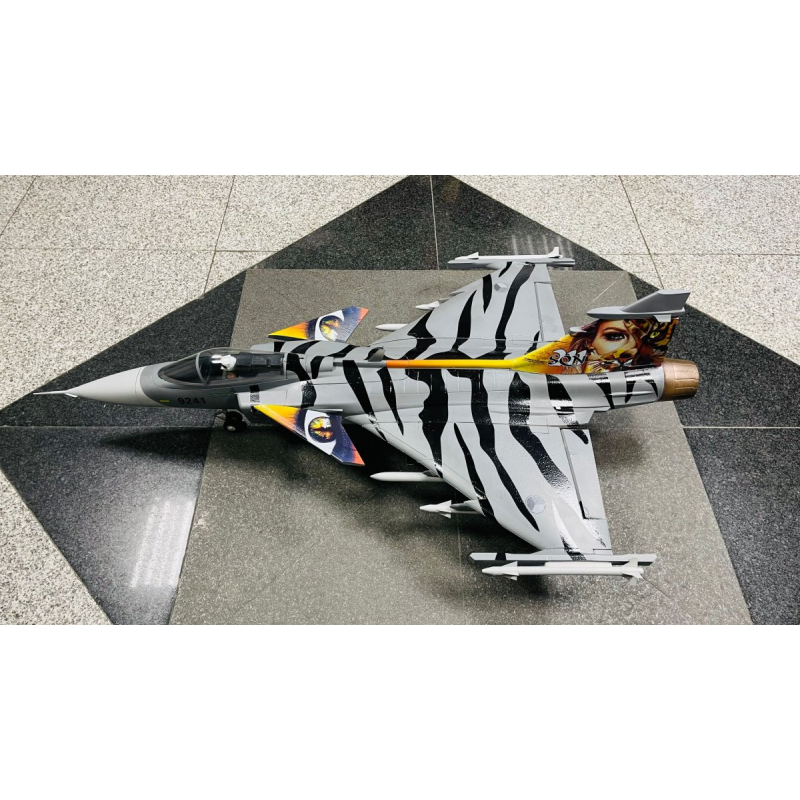

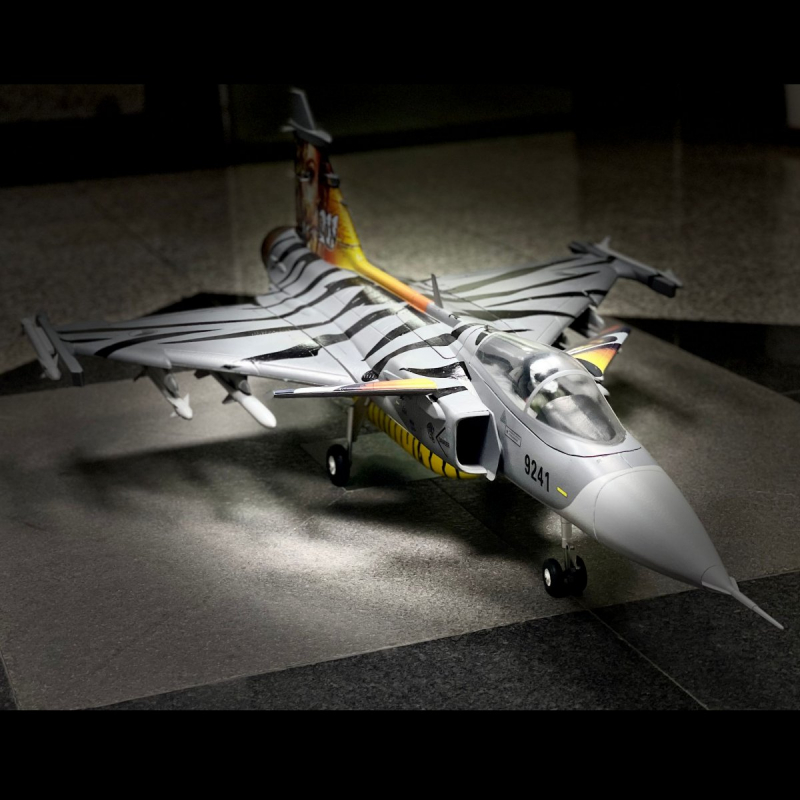

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the JAS-39 Gripen 70mm in particular but at least we know they do distribute FlyFlans Models.

Where to buy

France
Turbines RC
check web site
Ship to: Worldwide
USA
Banana Hobby
check web site
Ship to: Worldwide

Wingspan: 765mm (30.1 in)
Length: 1345mm (53 in)

Weight: 2100 g (4.6 lbs)
Wingspan 765mm / 30.1in
Length 1345mm / 53in
Flying weight around 2100g (4.6 lb)
CG (Center of Gravity) Check manual
Servos 6x 9 gr metal gear
EDF Diameter Class (mm): 70
Blades: 12
Power System Brushless 3060-KV1900
Motor Type: In-Runner
Electronic Speed Control 80A Hobbywing
Battery Type LiPo-Accu
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 3.300 mAh, 4.200 mAh
Surfaces Ailerons, Elevator, Rudder, Flaps, Canards
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Material EPO Foam

Content

  • FlyFans JAS-39 Gripen 70mm EDF JET PNP
  • 1x FMS PRO EDF: 70mm 12-blades
  • 1x Motor: Brushless Inrunner 3060-KV1900
  • 1x ESC: Hobbywing 80A
  • 6x Servos 9g metal
  • 6x Missiles (detachable)
  • 1x Fuel Tank (detachable)
  • 1x Pilot
  • Electronic aluminium retractable main gear
  • Suspended Struts

Required

  • 6-Channel radio transmitter
  • 6-Channel receiver
  • 6-Cell 22.2V 3300-4200mAh LiPo battery
  • 6-Cell compatible battery charger
  • Glue

Variants

FLF-JAS39
JAS-39 Gripen 70mm (Grey)
