Banshee from Freewing Model

Details

The Freewing Banshee 64mm EDF Jet is the perfect introductory model for those seeking to break into the thrilling world of foam Electric-Ducted Fan jets. Made with industry-standard and durable EPO foam, the Banshee comes with a 12-blade EDF with a robust 2840-2850Kv outrunner brushless motor for captivating aerial adventures.

The Banshee's streamlined shape penetrates through the skies with minimal resistance while the 4s power system delivers an exhilarating thrust-to-weight ratio. The Banshee’s modular structural design uses plastic joints and screws to facilitate simple assembly, maintenance, and repair, a welcomed departure from the tedious and adhesive assembly of models from years past.

Enjoy the Banshee’s low wing loading for increased performance at lower speeds. With the installed flaps the jet can handle slower landings and shorter takeoffs with ease. The ESC has a reverse thrust function that slows the jet upon landing, dramatically reducing the landing rollout. If you do not wish to utilize the fixed landing gear, the Banshee excels as a capable hand-tosser/belly lander. Take to the skies with this excellent jet that both novice and experienced pilots alike will equally enjoy.

Features:

  • 40 Amp V2 Electronic Speed Control with reverse thrust functionality
  • Flaps are included for slower flight, landings and quicker takeoffs
  • All-New ESC with Thrust Reverse Function
  • Comes with 12-Blade EDF with 2840-2850Kv Outrunner Brushless Motor
  • 4S LiPo capability for High Performance Flight (not included)

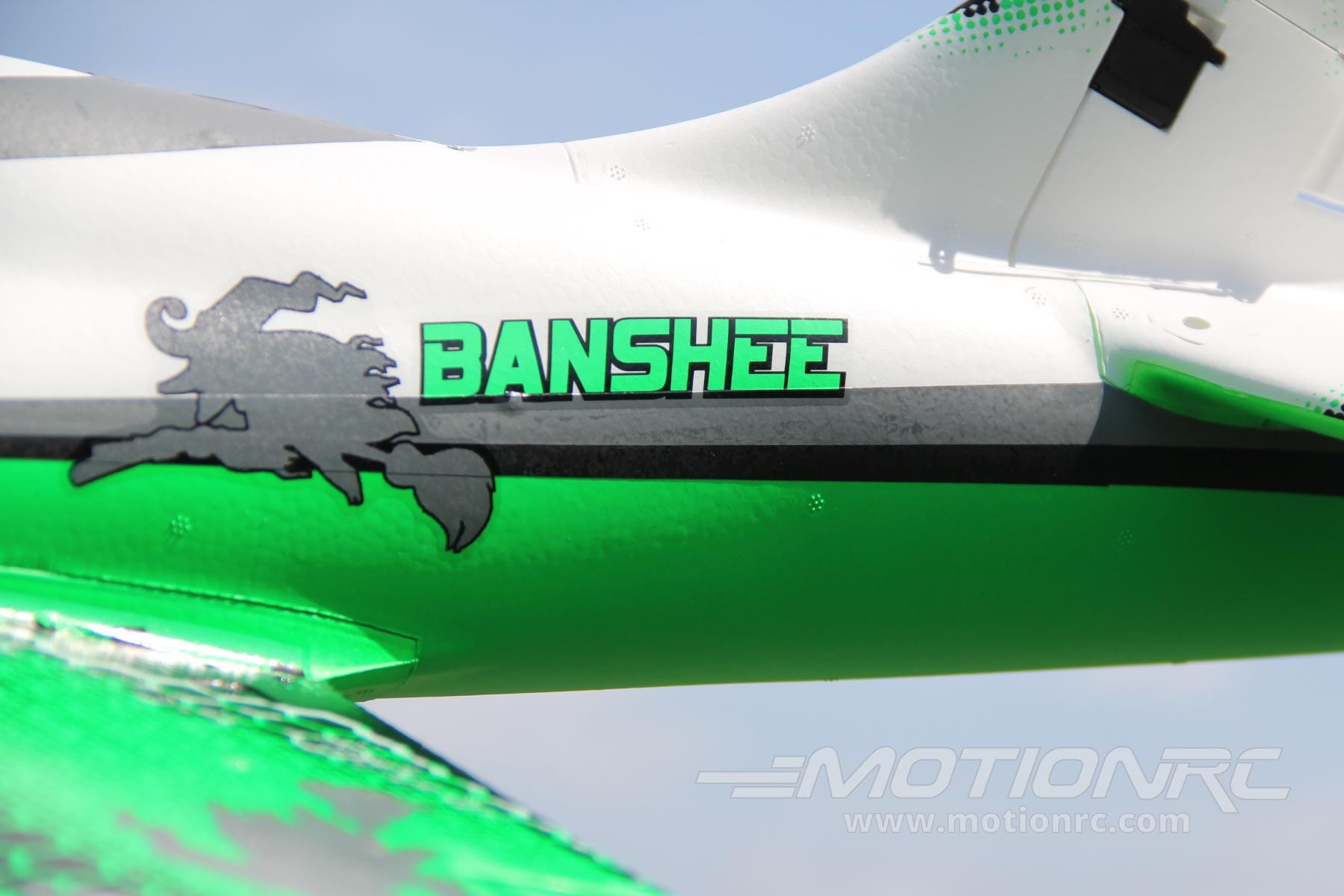

  • Scale details including painted pilot and cockpit, panel lines and landing gear
  • 8x 9g digital servos come pre-installed

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Banshee in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Hong-Kong
RC-Castle
check web site
Ship to: Worldwide

Wingspan: 900mm (35.4 in)
Length: 950mm (37.4 in)

Weight: 780 g (1.7 lbs)
Wingspan 900mm / 35.4in
Length 950mm / 37.4in
Weight 780g (without battery)
CG (Center of Gravity) 64mm from the leading edge of the wing root
Power System 2840-2850Kv Outrunner Brushless Motor
Speed Control 40A, internal SBEC with XT60 Connector
Propeller / EDF 64mm 12-Blade EDF
Servos
  • 9g digital reverse gear with 300mm lead : nose steering - MD31093R-300
  • 9g digital standard metal gear with 400mm lead : ailerons, flaps - MD31092-400
  • 9g digital standard metal gear with 600mm lead : left elevator, rudder - MD31092-600
  • 9g digital reverse gear with 600mm lead : right elevator

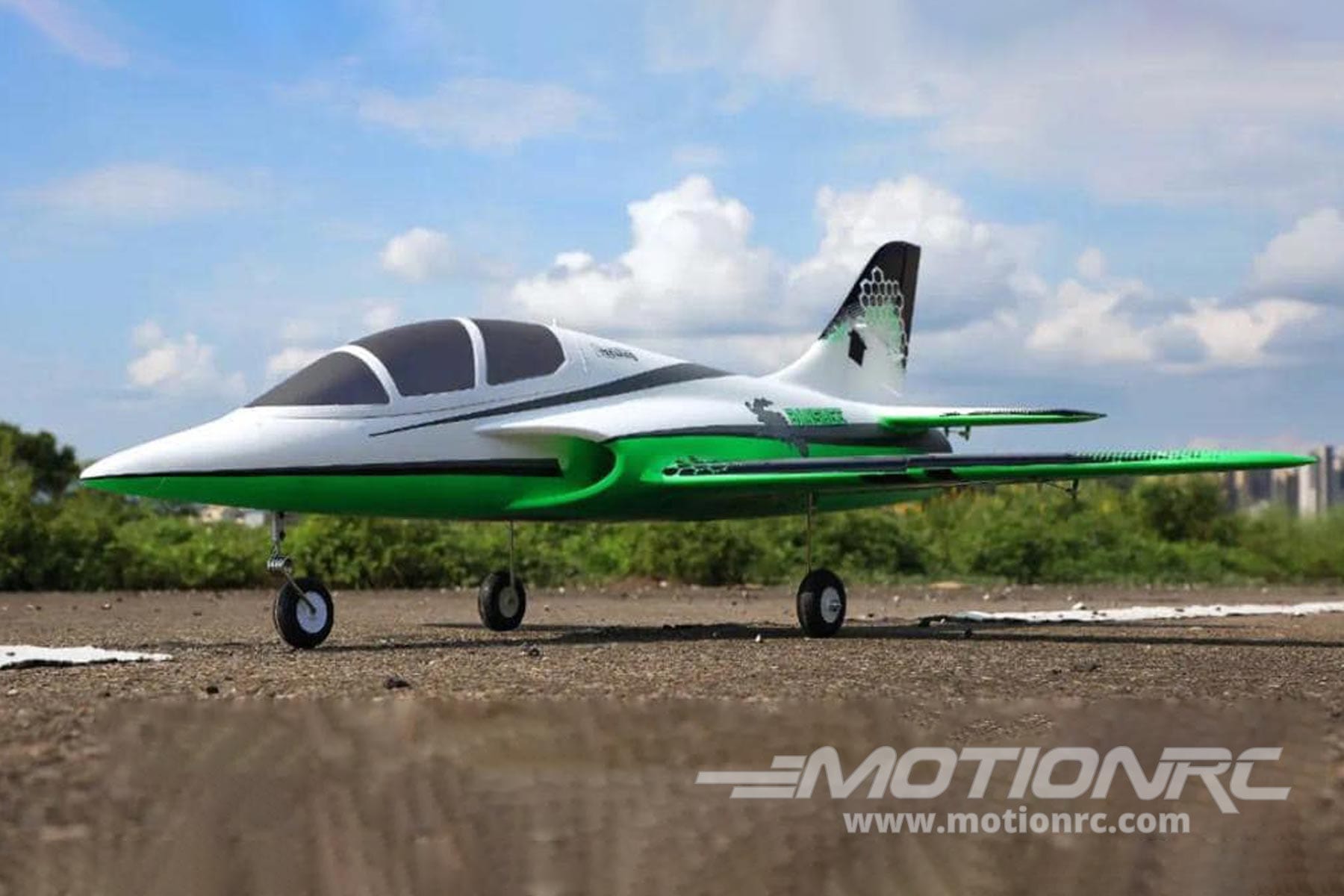

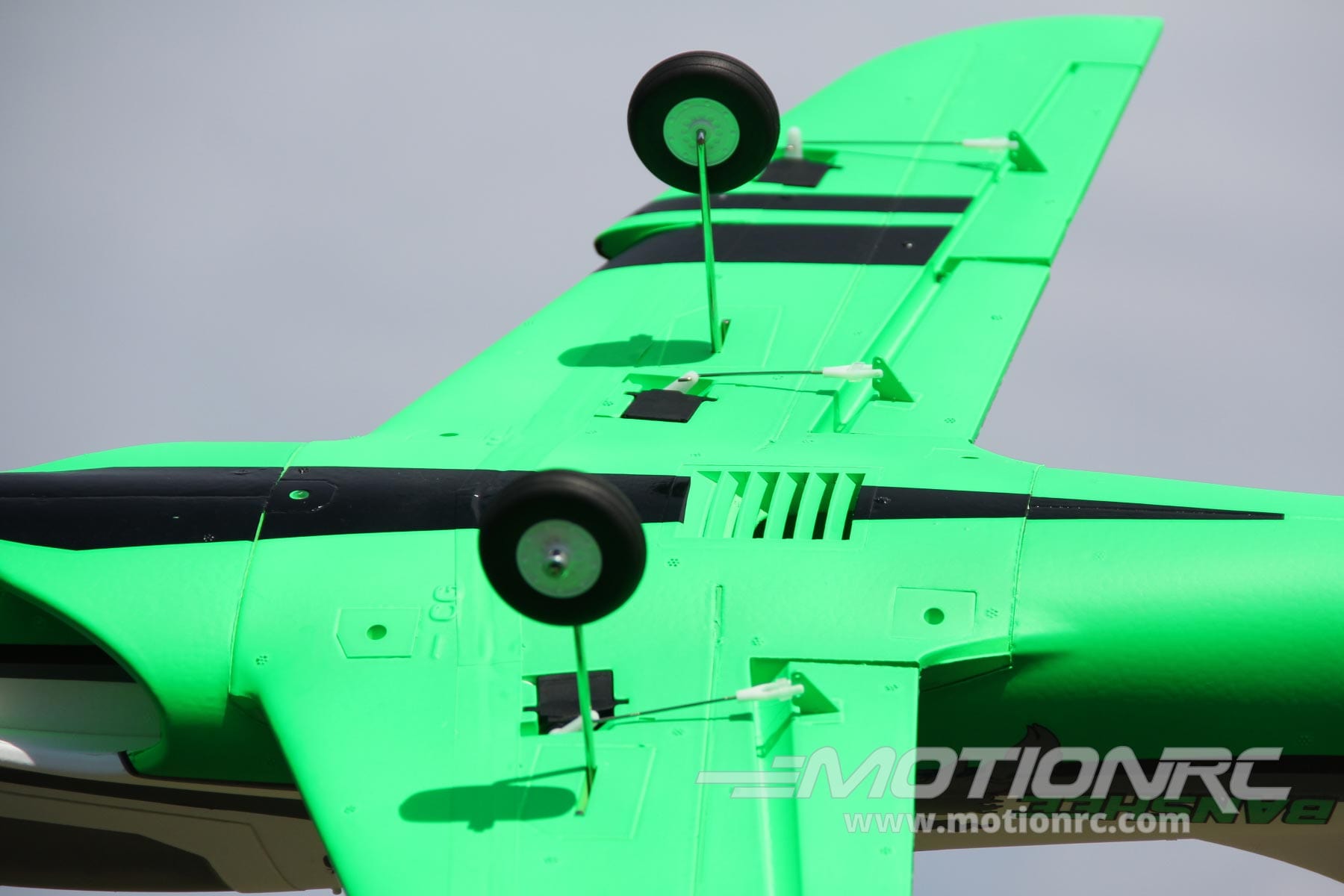

Landing Gear Fixed main landing gear, steerable nose gear.
Required Battery 4S 14.8V 2200mAh with XT60 Connector
Hinge Type Nylon hinges on all control surfaces
Material EPO Foam

Variants

FJ11211P
Banshee (Green White)
