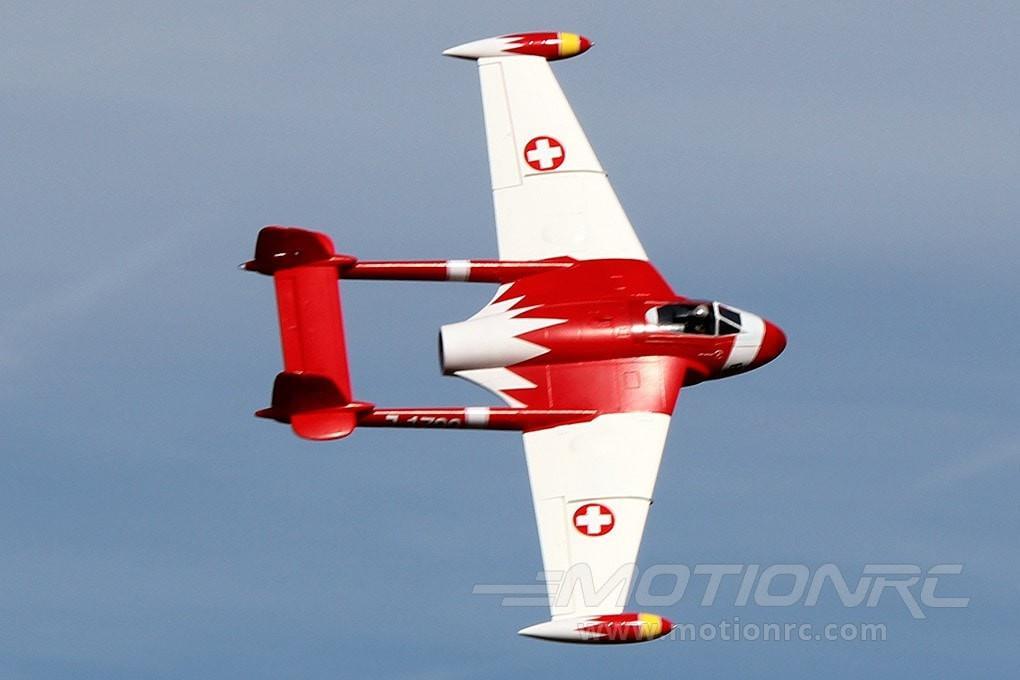

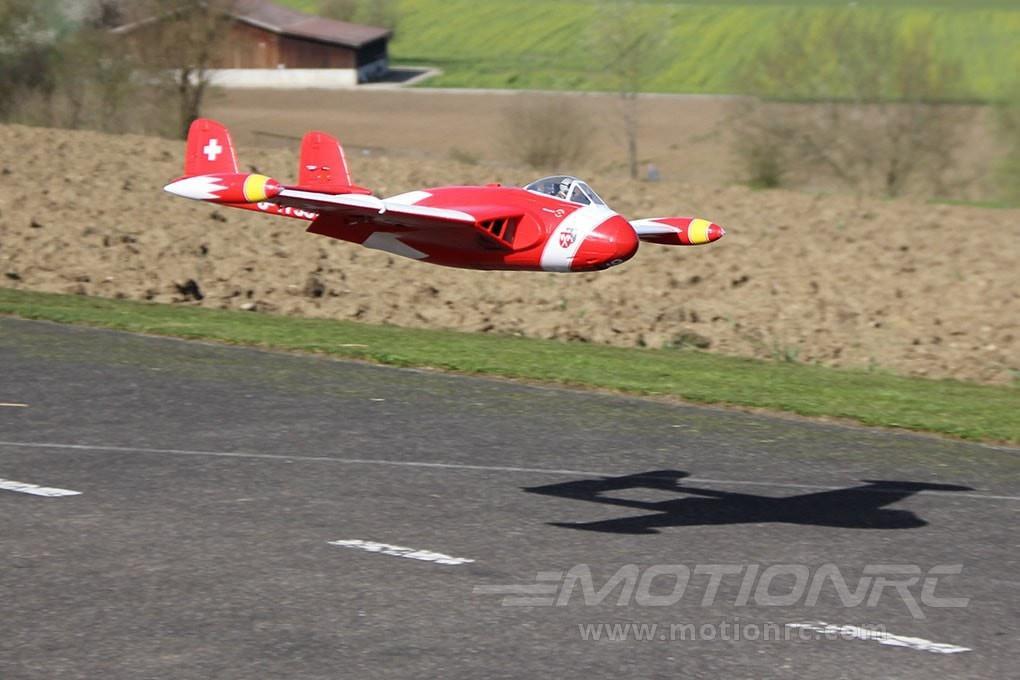

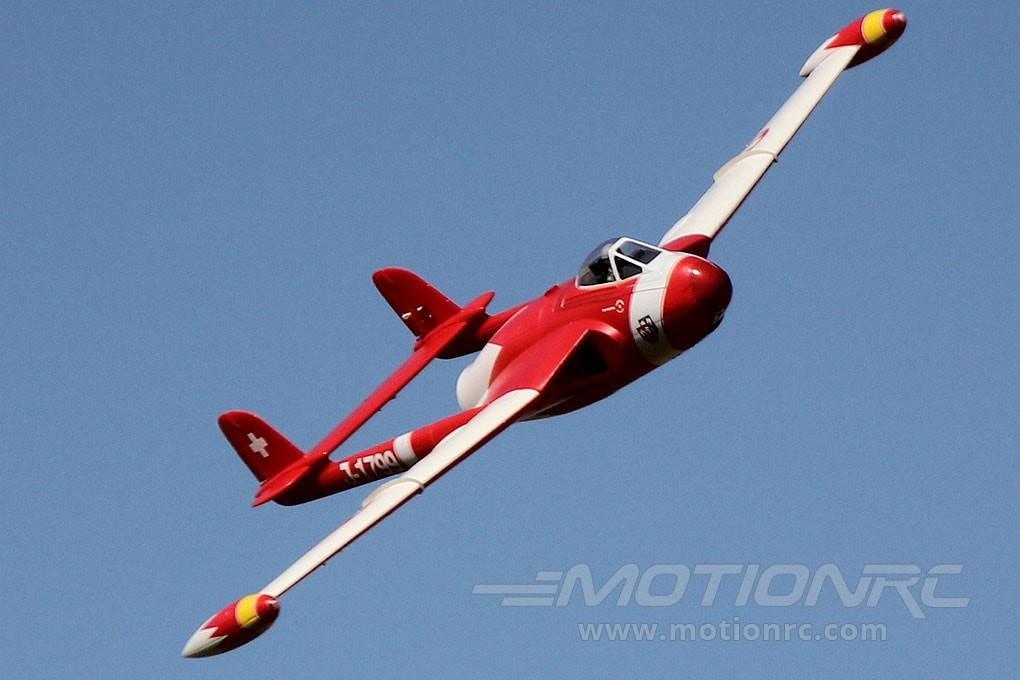

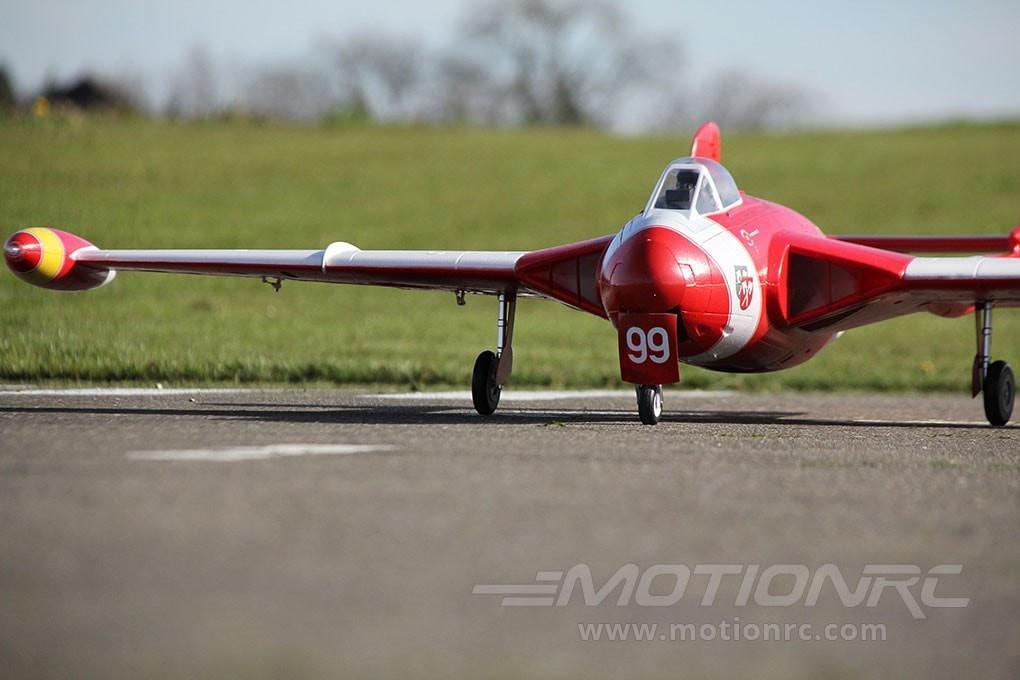

De Havilland DH-112 Venom V2 from Freewing Model

Details

This is the new version 2 (V2) of Freewing's Venom EDF Jet with Swiss red livery. This upgraded version has significant upgrades to the airframe. The Venom V2 now includes an increased number of carbon wing spares for rigidity, strengthening of the overall tail section, and a complete redesign of the horizontal and vertical stabilizer sections for improved performance and scale appearance.

Features

  • New - stronger tail section, with revised rudder and elevator.
  • New - Increased carbon spar count and EPO foam construction provide the perfect balance between strength and flexibility.
  • Incredible scale details including hand painted pilots, scale canopy, shock absorbing landing gear, sequenced landing doors, and stunning Swiss Air Force graphics package.
  • Large, nearly 5 foot, wingspan provides incredible scale detail and easy to see even at high speeds.
  • Bright LED navigation lights for enhanced realism and dawn/dusk maneuvers.
  • Electronic retractable landing gear with aluminum shock absorbing struts and sequenced gear doors.
  • Full function flaps allow shorter take-off distances and slow, scale landings.
  • Nylon hinges on all control surfaces (superior to foam hinges).

Pictures

Manual

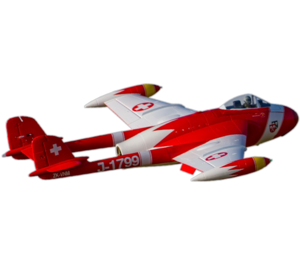

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the De Havilland DH-112 Venom V2 in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide

Wingspan: 1500mm (59.1 in)
Length: 1100mm (43.3 in)

Weight: 2500 g (5.5 lbs)
Wingspan 1500mm / 59in
Length 1100mm / 43.3in
Flying Weight 2500g / 88.2oz
CG (Center of Gravity) See Manual
Power System 3748-1650KV motor (recommended)
Electronic Speed Control 130A, 8A UBEC with EC5 connector (recommended)
Propeller / EDF 90mm 12-Blade EDF (recommended)
Servos 9 x 9g high speed servos (recommended)
Landing Gear Nose and main gear have electronic retracts with shock-absorbing aluminum struts
Required Battery 6S 22.2V 3600-4000mAh 40C LiPo with EC5 connector (recommended)

Variants

RJ30231K
De Havilland DH-112 Venom V2 (Red White)
