Eurofighter Typhoon 6S 90mm V2 from Freewing Model

Details

The Freewing Eurofighter is one of the most unique EDF jets in both looks and function, and now it's available in this all new 6S version for 2023 and beyond. This is not a retool of the old version. This is a 100% new Eurofighter. There were two big goals for this model. This model had to be fast and it had to be significantly more scale than the old version from years ago. In order to achieve speed and efficiency, a 100% new power system was created for this plane.

The new version of the Eurofighter now includes a new 3668-1960Kv brushless inrunner motor with 100% new 12-blade EDF unit and 120A ESC with 8A/BEC for superior performance and sound. The new Eurofighter includes a thrust reversing function to slow the plane on shorter runways as well as an airbrake which will aid in high alpha maneuvers as well as slowing the plane down after landing.

Features:

  • Completely redesigned mold from front to back
  • Completely new 12-blade factory-balanced EDF combined with 3668-1960Kv brushless inrunner motor produces top end EDF jet performance and realistic jet turbine sound
  • 120 Amp OEM Hobbywing ESC with 8A UBEC
  • Thrust Reversing function for shorter landings
  • Functional scale air brake for high alpha and help with shorter runways
  • Scale weapon set and pylons (10 total) included
  • Flight surfaces are controlled with 9g and 17g digital metal gear servos for precise movement, strength and long life
  • Bright LED landing and navigation lights for enhanced realism and dawn/dusk maneuvers
  • Electronic retractable landing gear with CNC shock-absorbing struts and metal trunnions
  • Scale, sequenced gear doors provide added realism and improved aerodynamics
  • Upgraded pushrod clevis and metal ball head connectors provide a robust connection between servo and control surface and eliminate "play"
  • Nylon hinges on all control surfaces (superior to foam hinges)

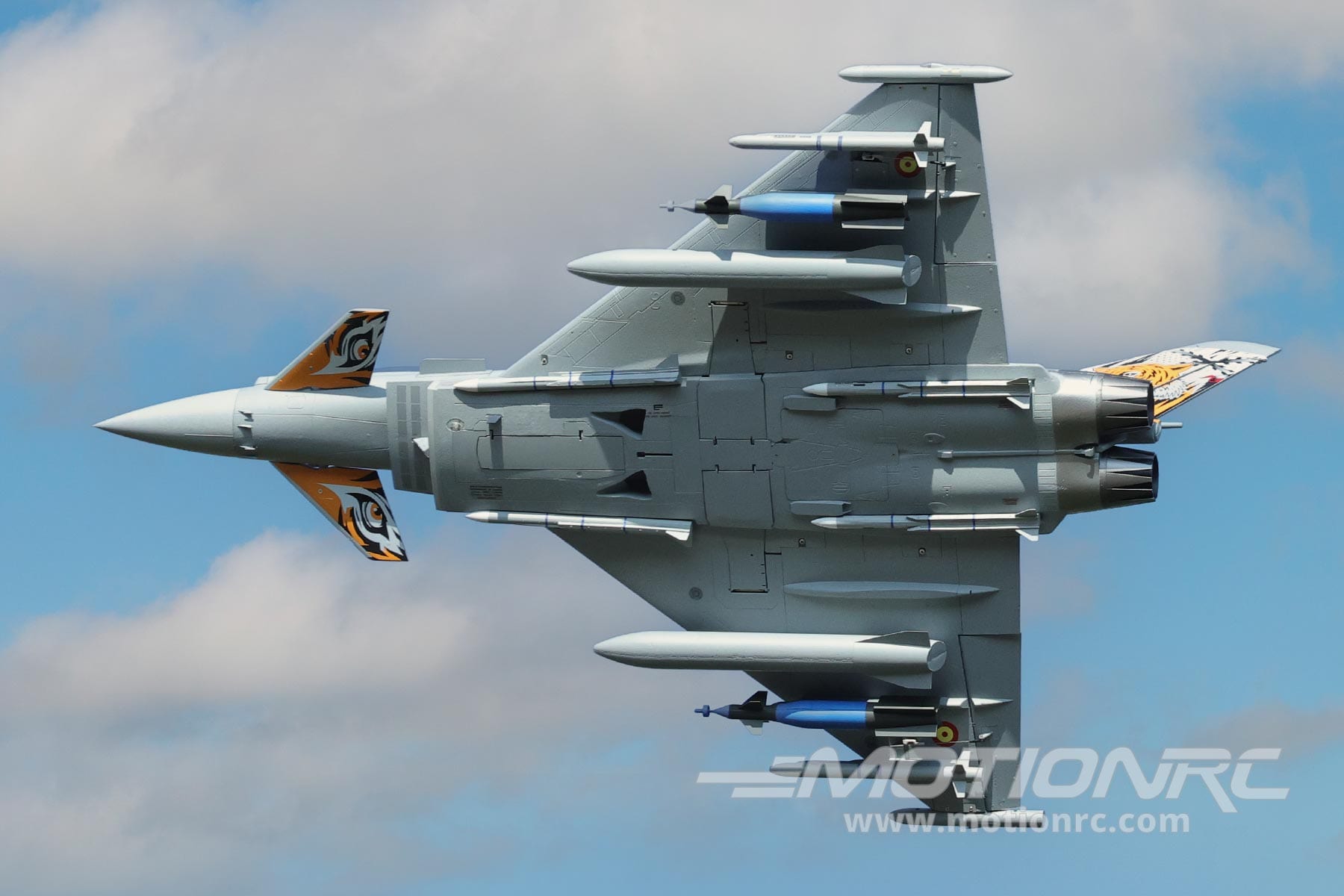

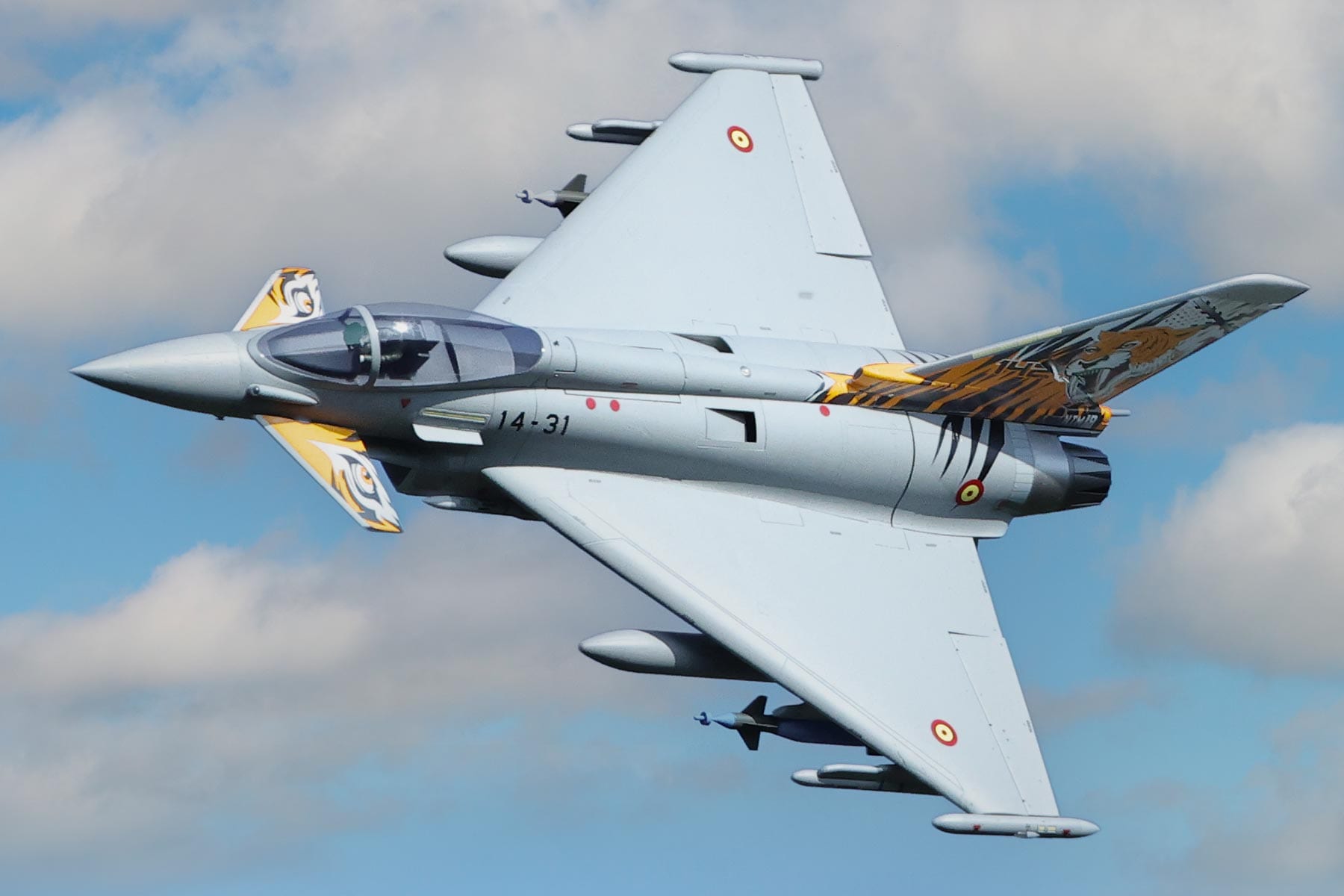

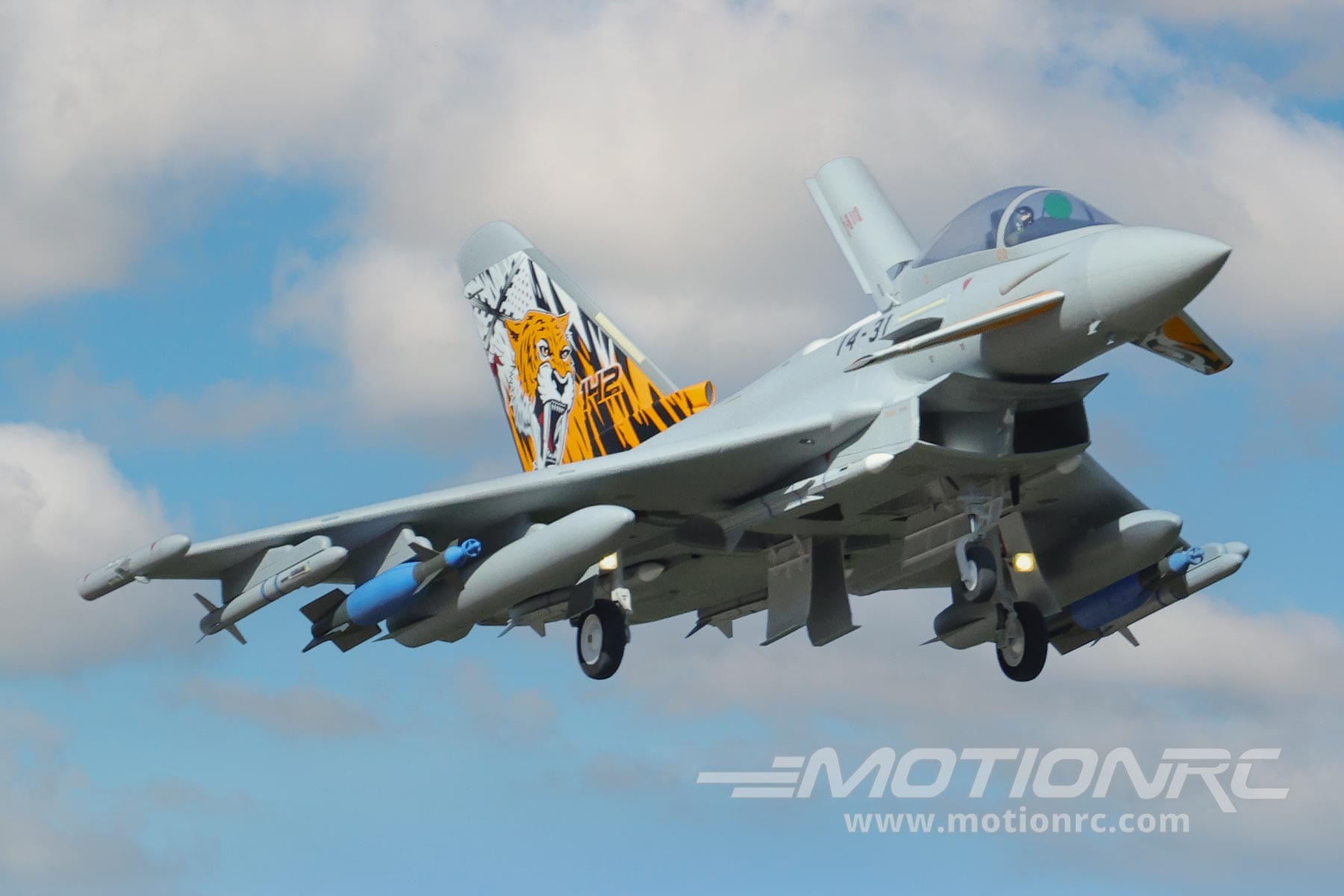

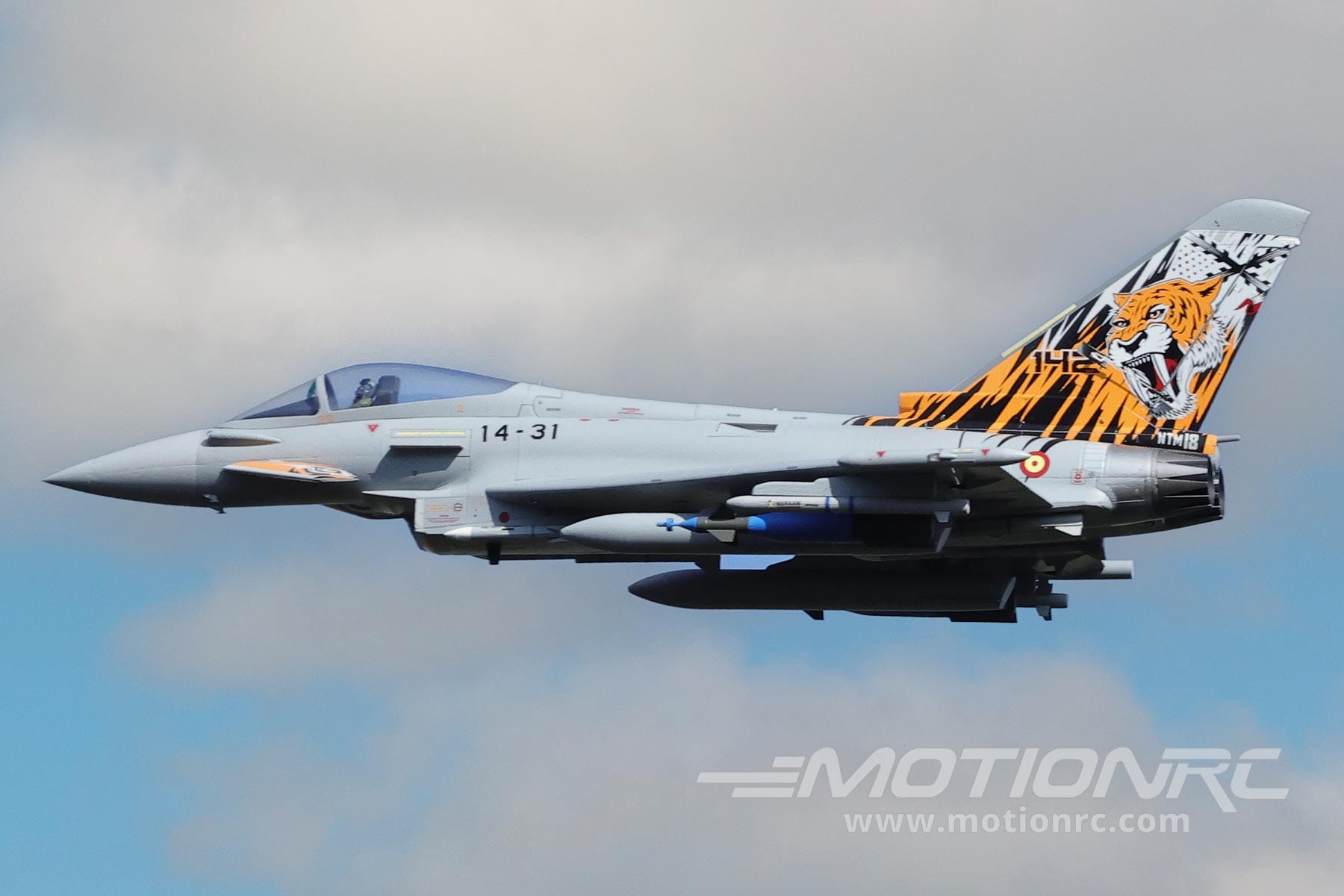

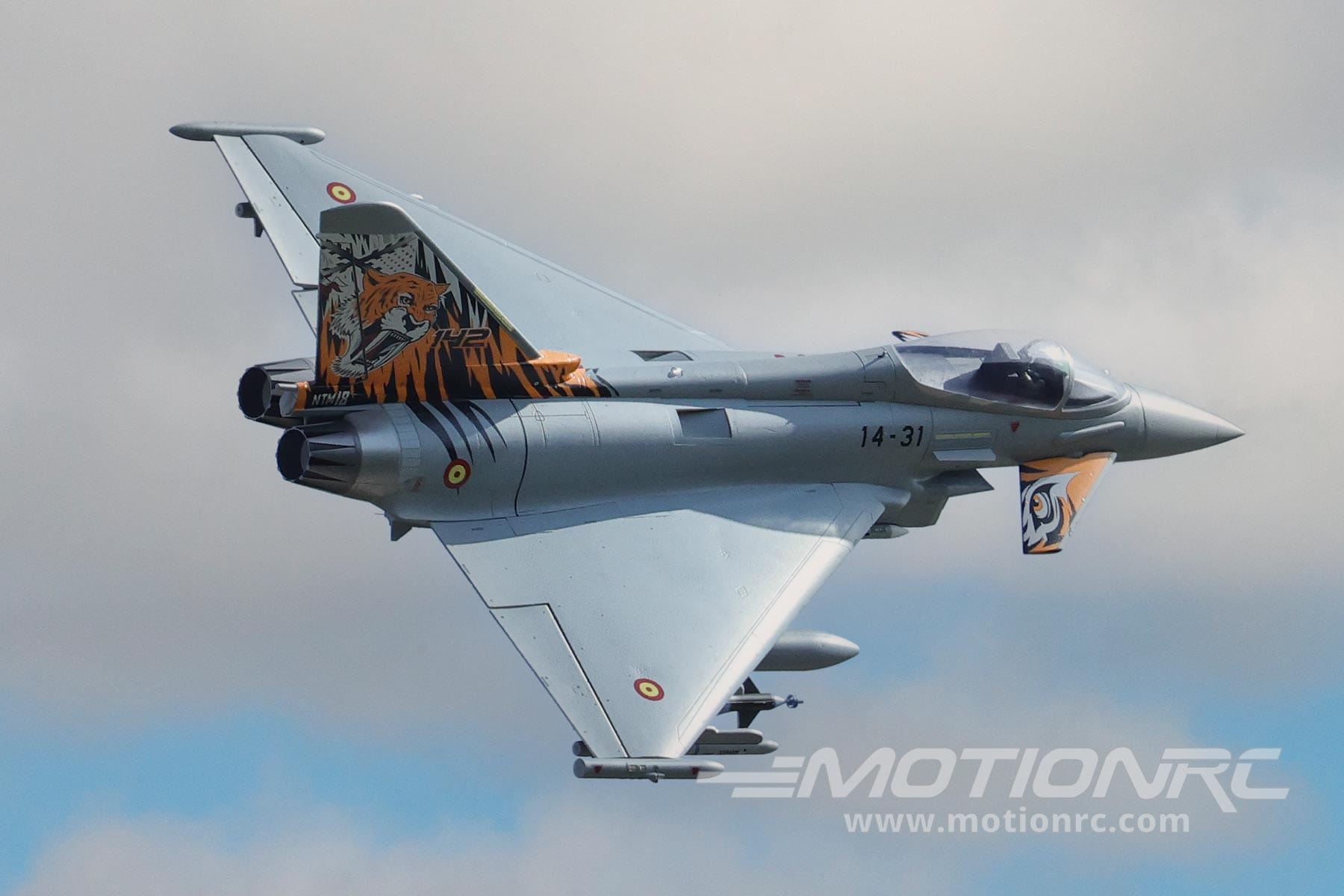

Pictures

Manual

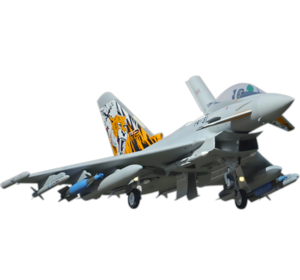

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1030mm (40.6 in)
Length: 1450mm (57.1 in)

Weight: 3230 g (7.1 lbs)
Wingspan 1030mm / 40.5in
Length 1450mm / 57in
Empty Weight 3230g
CG (Center of Gravity) 215mm from the leading edge of the wing's root
Power System 3668-1960Kv Brushless Inrunner Motor (included)
Electronic Speed Control 120A with 8A/BEC (included)
Propeller / EDF 12-Blade EDF (included)
Servos

9g digital hybrid gear servo with 200mm lead : nose gear steering, landing gear door - MD31093-200

9g digital gear servo with 400mm lead : left canard, right canard - MD31092-400

9g digital hybrid gear servo with 500mm lead : rear cabin door left - MD31093-500

9g digital hybrid reverse gear servo with 500mm lead : rear cabin door right - MD31093R-800

17g digital metal gear servo with 100mm lead : rudder - MD31172-100

17g digital metal gear servo with 300mm lead : left aileron, right aileron - MD31172-300

Landing Gear Electronic, CNC retractable scale gear
Required Battery 6 Cell 22.2V 5000-6000 mAh LiPo Battery (required)
Hinge Type Nylon
Material EPO Foam
