F-14 Tomcat Twin 64mm from Freewing Model

Details

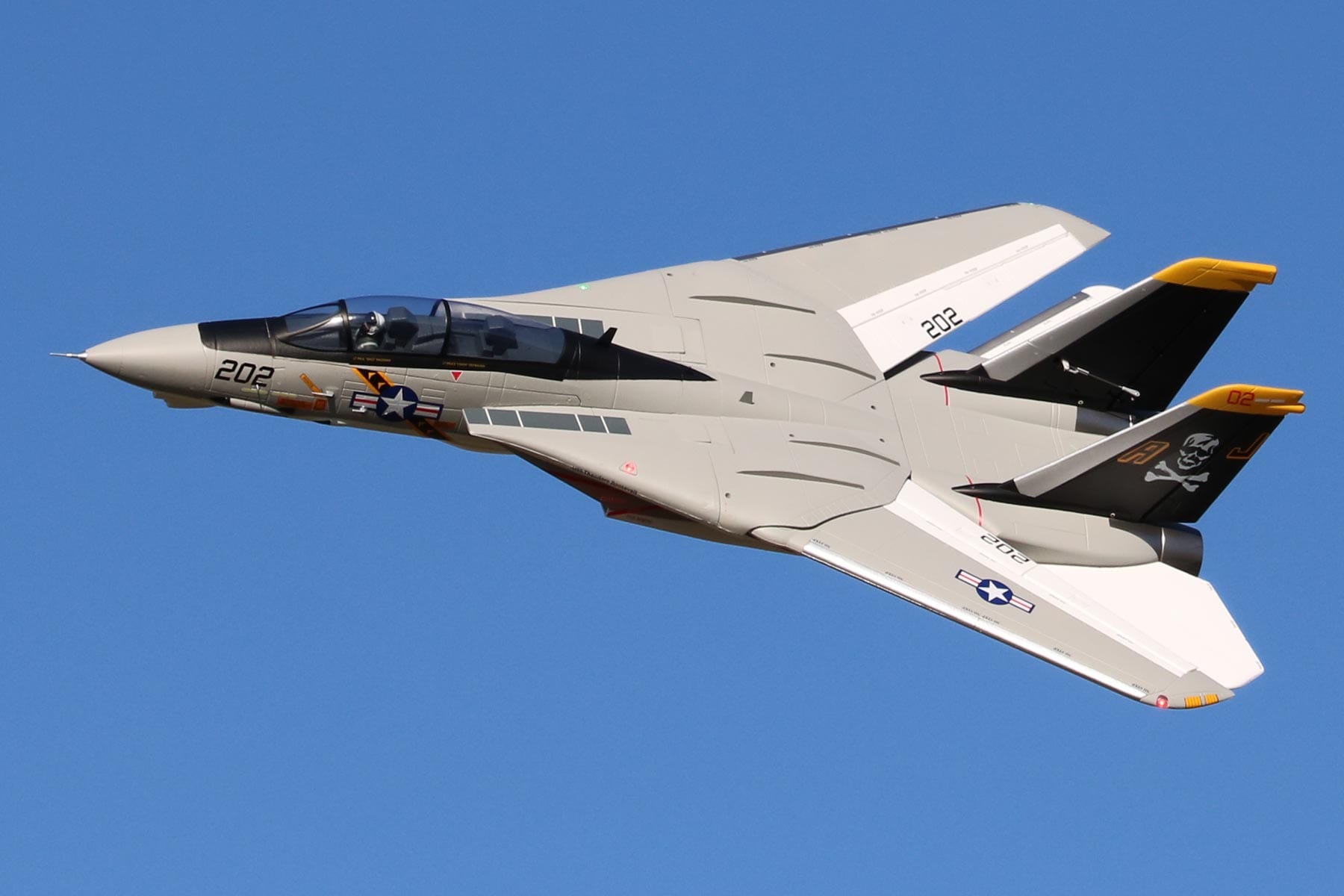

Easily one of the most iconic jets in history, we’re excited to bring the new, officially licensed, Freewing F-14 Tomcat to market in a twin 64mm EDF size. Featuring sweeping wings, retractable landing gear, full flying stabilizers and a livery based on the Jolly Rogers F-14’s, this jet is sure to bring iconic Tomcat performance and scale detail to flying sites across the world.

While no scale detail has been spared from this plane, what you are really going to love is the way this plane flies. This plane has loads of power and a much lighter wing loading than typical planes of this size with this amount of detail. Normally, a plethora of scale details leads to a plane that feels heavy and slow. Despite details like plastic lined air intakes, detailed landing gear, full nose gear doors, pylons and weapons, LED lights, scale exhaust nozzles, antennas, pitot tubes, and more, this plane does not fly heavy. The wing loading is amazingly light for a plane with this amount of detail. This leads to easier landings. The landing gear helps with ultra smooth landings and the reverse thrust ESC helps slow you down (requires an extra channel to use reverse thrust). While flying, you will find the vertical is also fantastic. This truly lives up to the F-14 legend.

Features:

  • Fully functional sweeping wings with rigid aluminum wing structure
  • 2x 12 Blade factory-balanced 64mm EDFs with 2x 2949-2500Kv inrunner motors
  • 2x 60A ESC’s with thrust reversing
  • E20 Integrated controller with 3/6-axis gyro
  • Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
  • Full-flying horizontal stabilizers
  • 6x Daylight bright LED lights
  • Scale details included such as antennas, pitot tubes, missiles and missile pods
  • Nylon hinges on all control surfaces
  • Removable, magnetic nose cone for convenient transport and replacement

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1250mm (49.2 in)
Length: 1217mm (47.9 in)

Weight: 2555 g (5.6 lbs)
Wingspan 1250mm / 49.2in (extended)
Length 1217mm / 47.9in
Weight 2555g / 90oz (without battery)
Power System 2 x 2949-2500Kv brushless inrunner motors
Speed Control 2 x 60A with Thrust Reversing and joint EC5 Connector
Propeller / EDF 64mm 12-Blade EDF
Servos
  • 9g digital hybrid metal gear standard with 100mm lead : left rudder, right rudder
  • 23g metal gear standard with 200mm lead : left wing sweep
  • 23g metal gear reverse with 200mm lead : right wing sweep
  • 9g digital hybrid metal gear standard with 400mm lead : left flap, right flap
  • 9g digital hybrid metal gear standard with 500mm lead : left aileron, right aileron
  • 9g digital hybrid metal gear standard with 600mm lead : nose gear
  • 17g digital hybrid metal gear standard with 600mm lead : left elevator, right elevator
  • 9g plastic reverse with 700mm lead : nose gear door
Landing Gear CNC-machined, shock absorbing, retractable landing gear
Required Battery 6S 22.2V 4000mAh to 5000mAh LiPo with EC5 connector (required)
Required Radio 7-9 Channels (9 required for thrust reversing & gyro)
Rud/Flp/Ail/Light Yes/Yes/Yes/Yes
Hinge Type Nylon
Material EPO Foam
