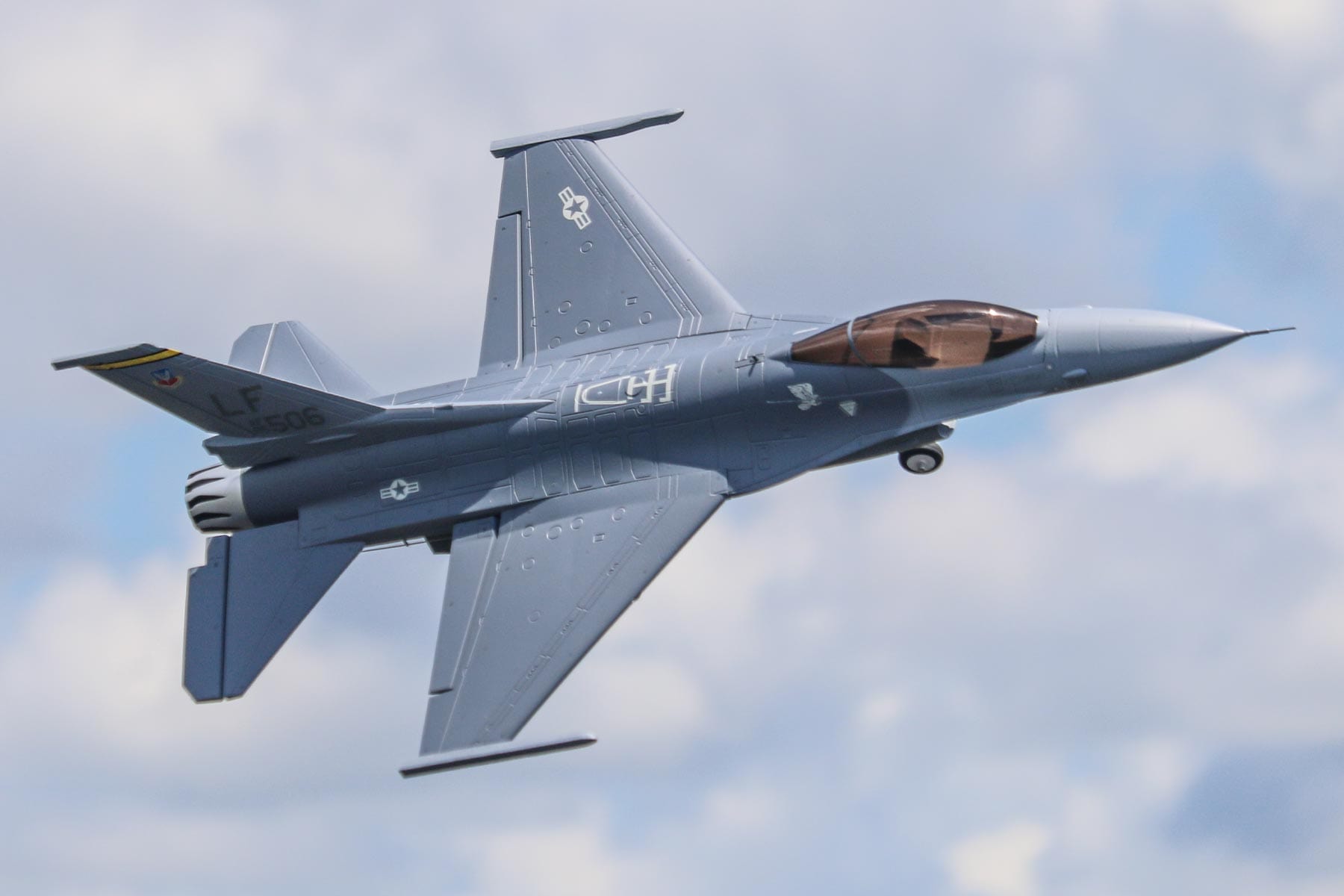

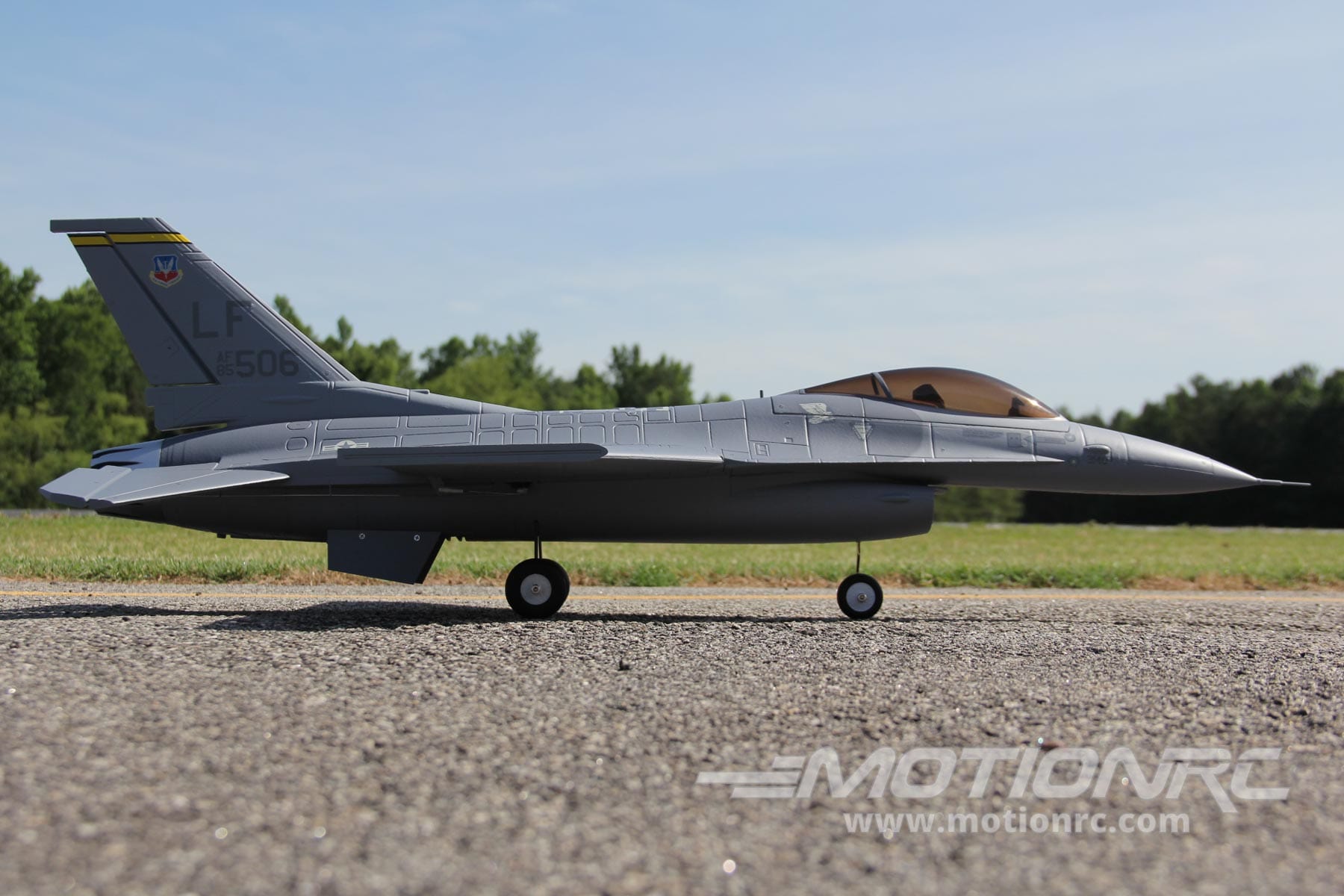

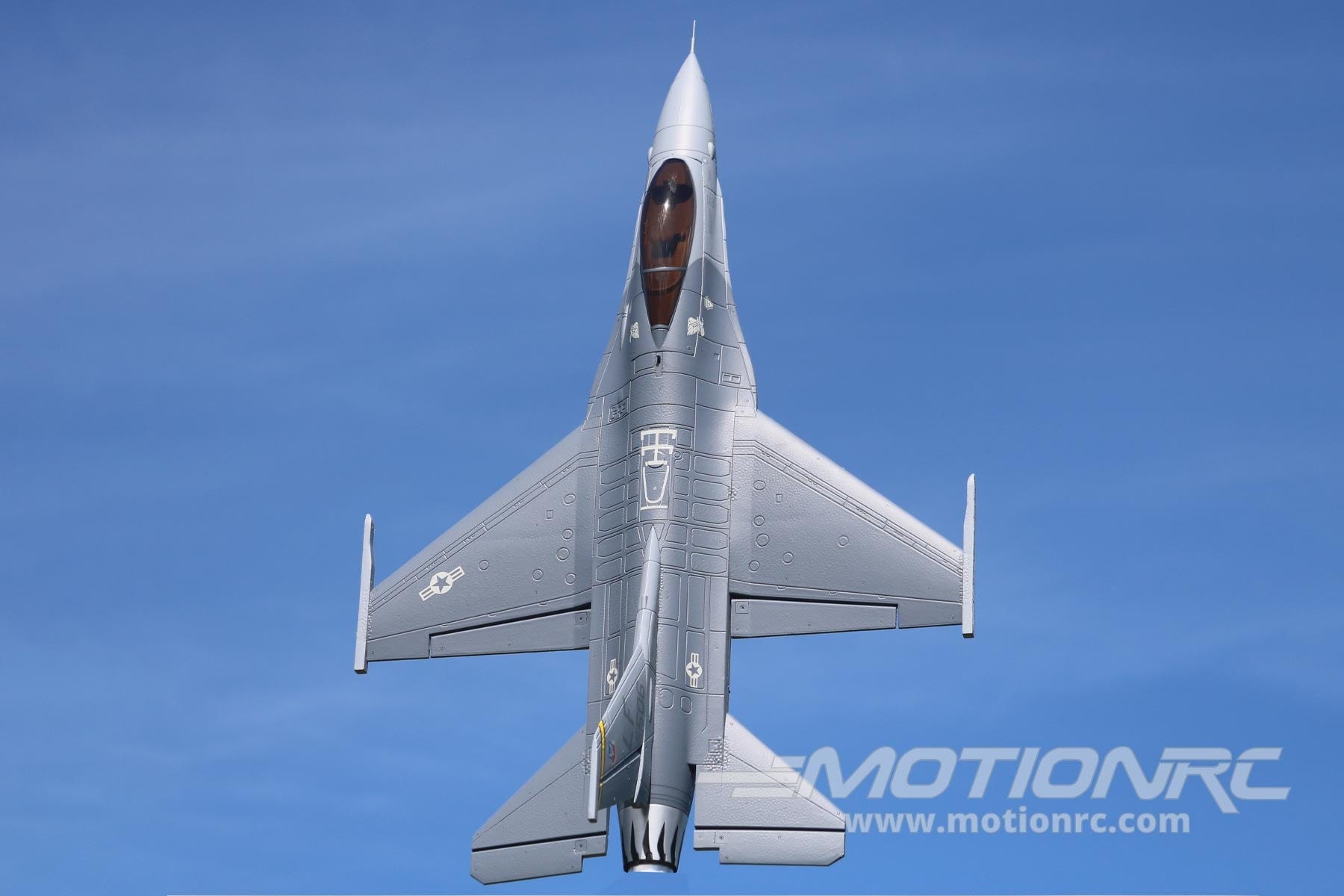

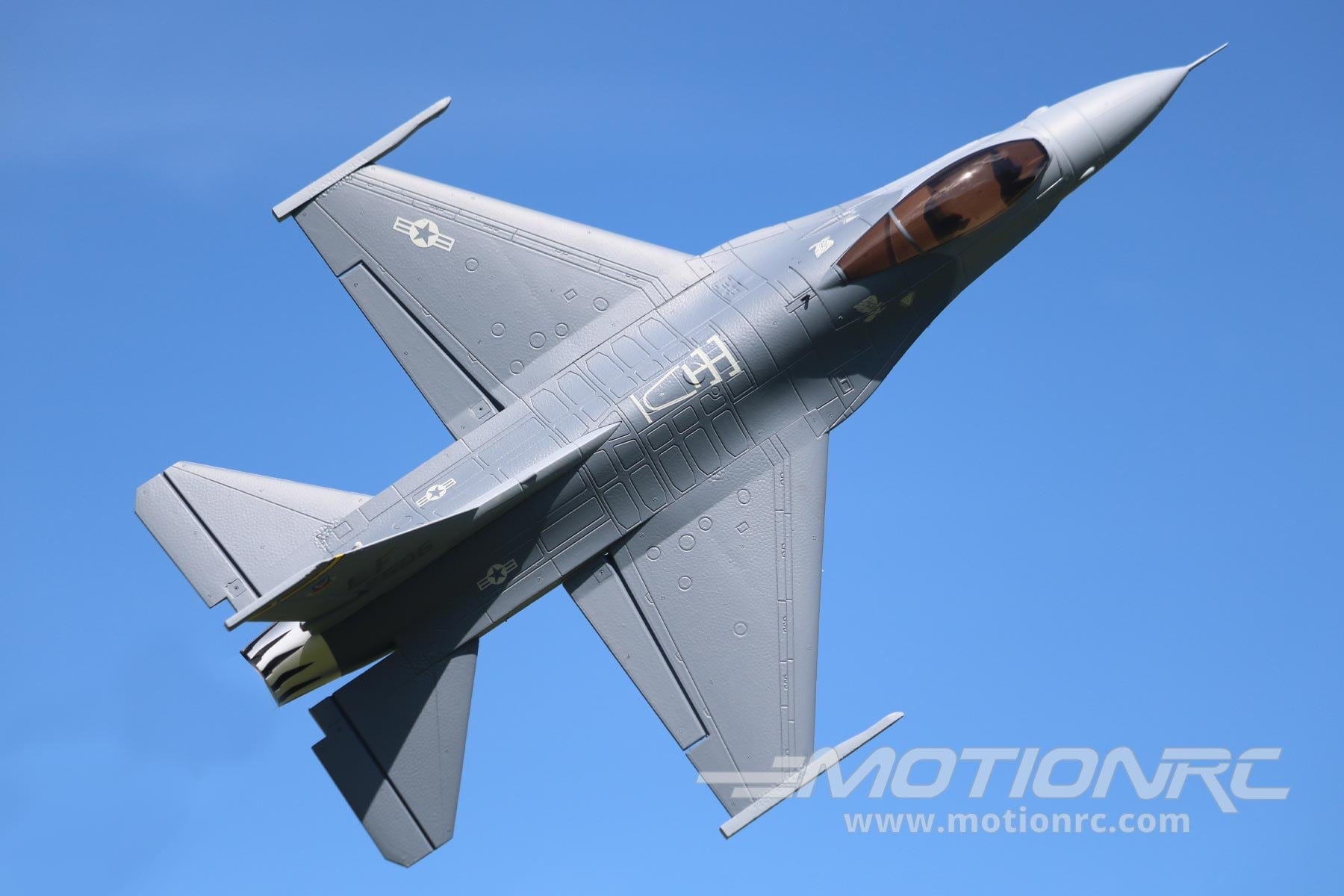

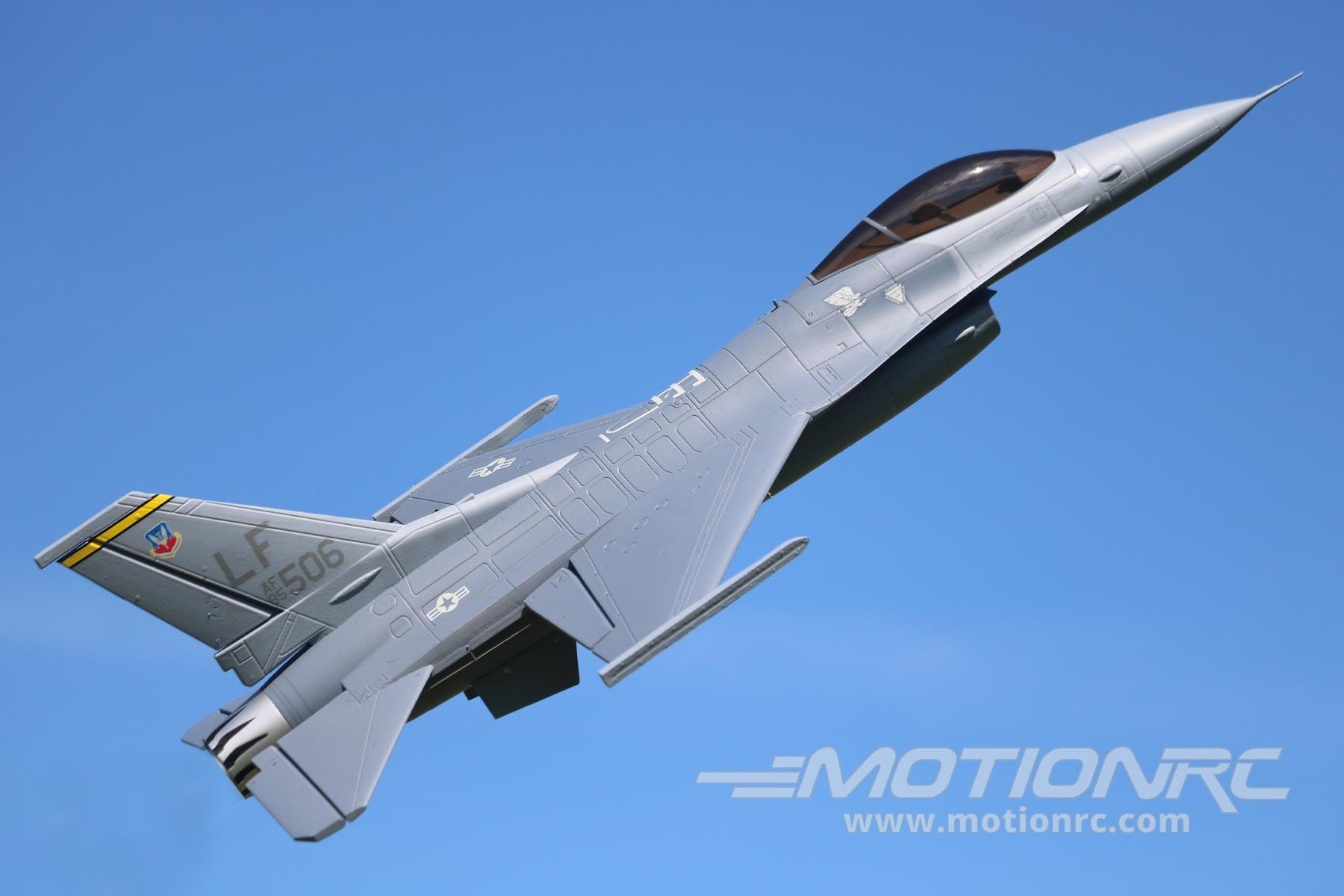

F-16 Falcon from Freewing Model

Details

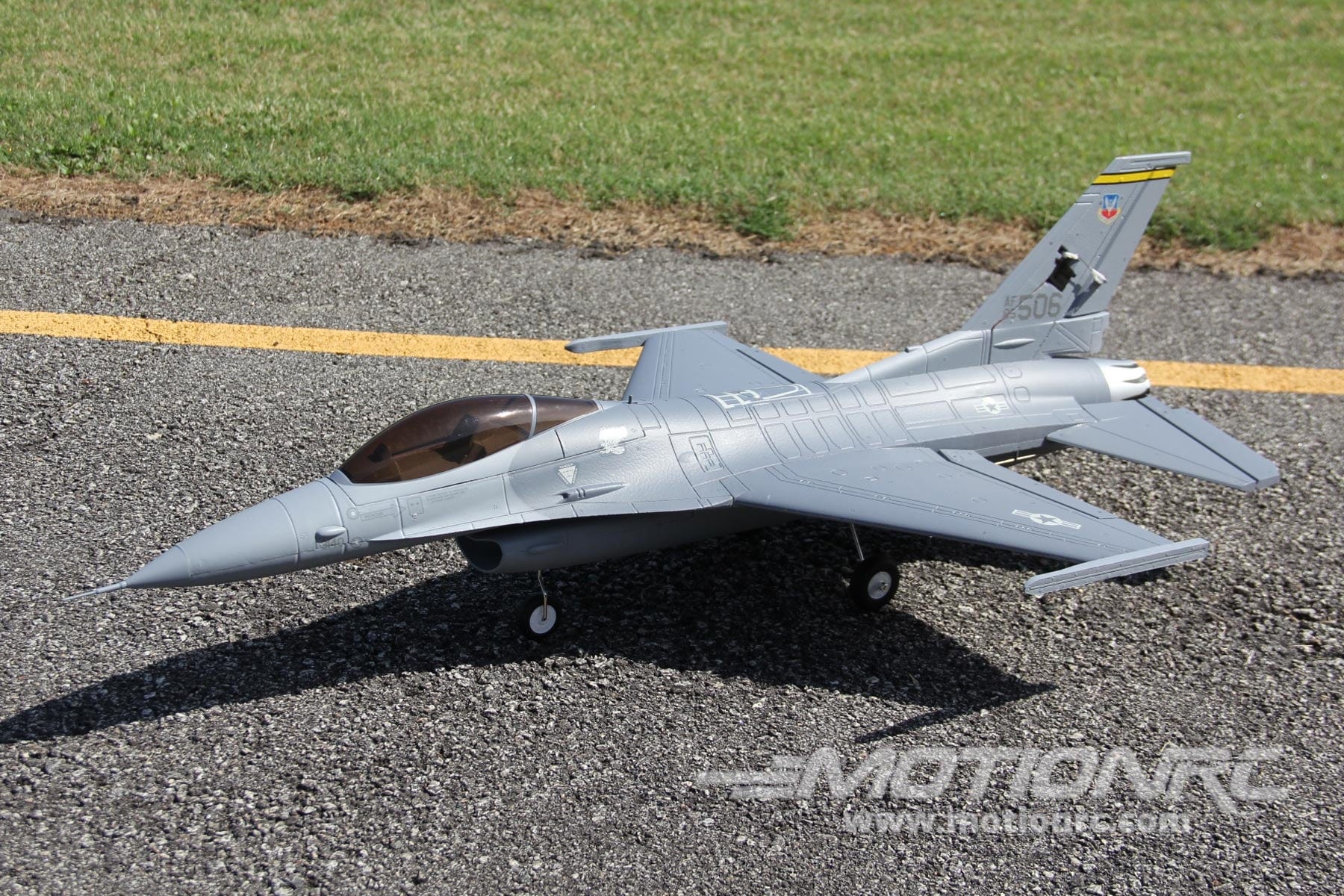

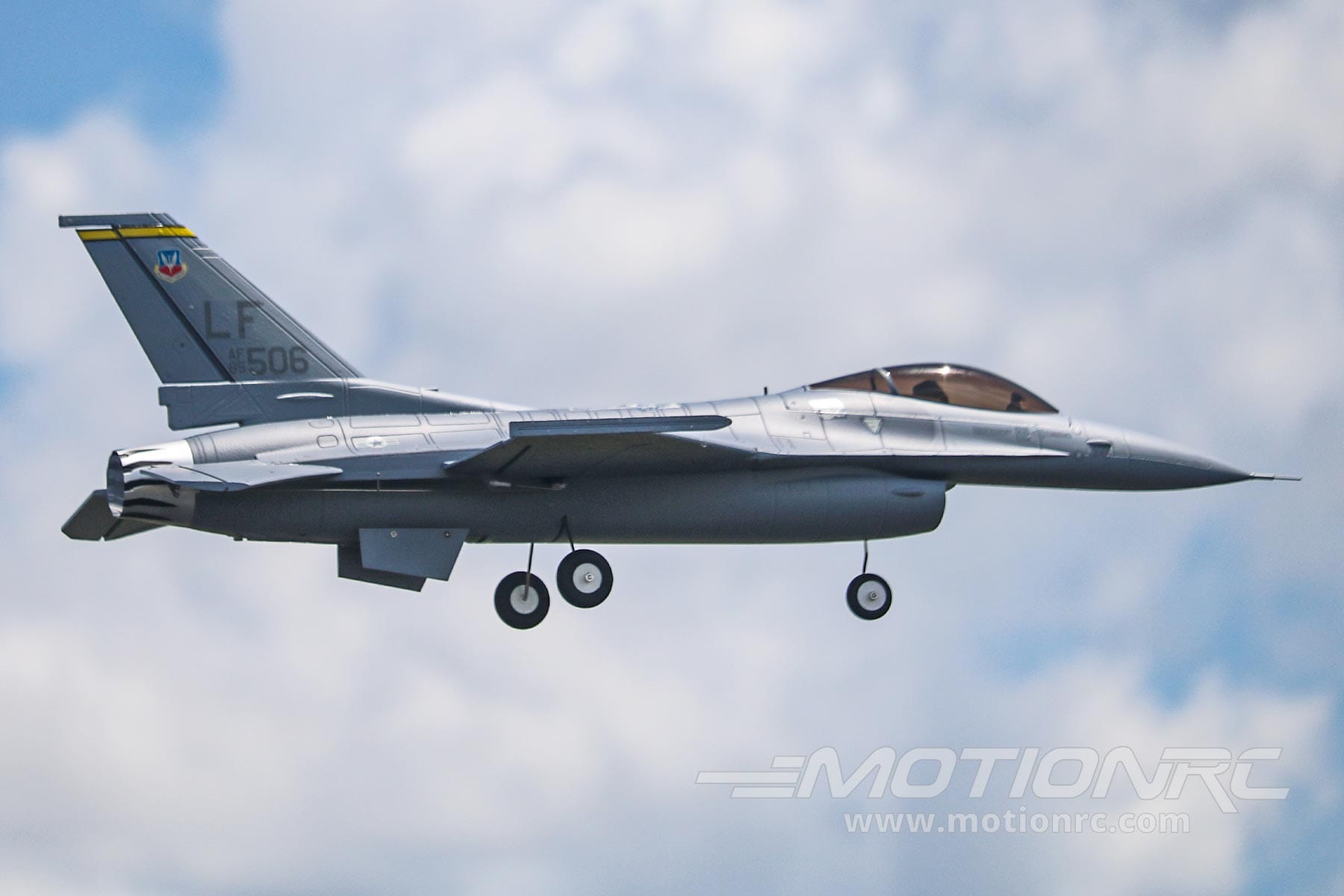

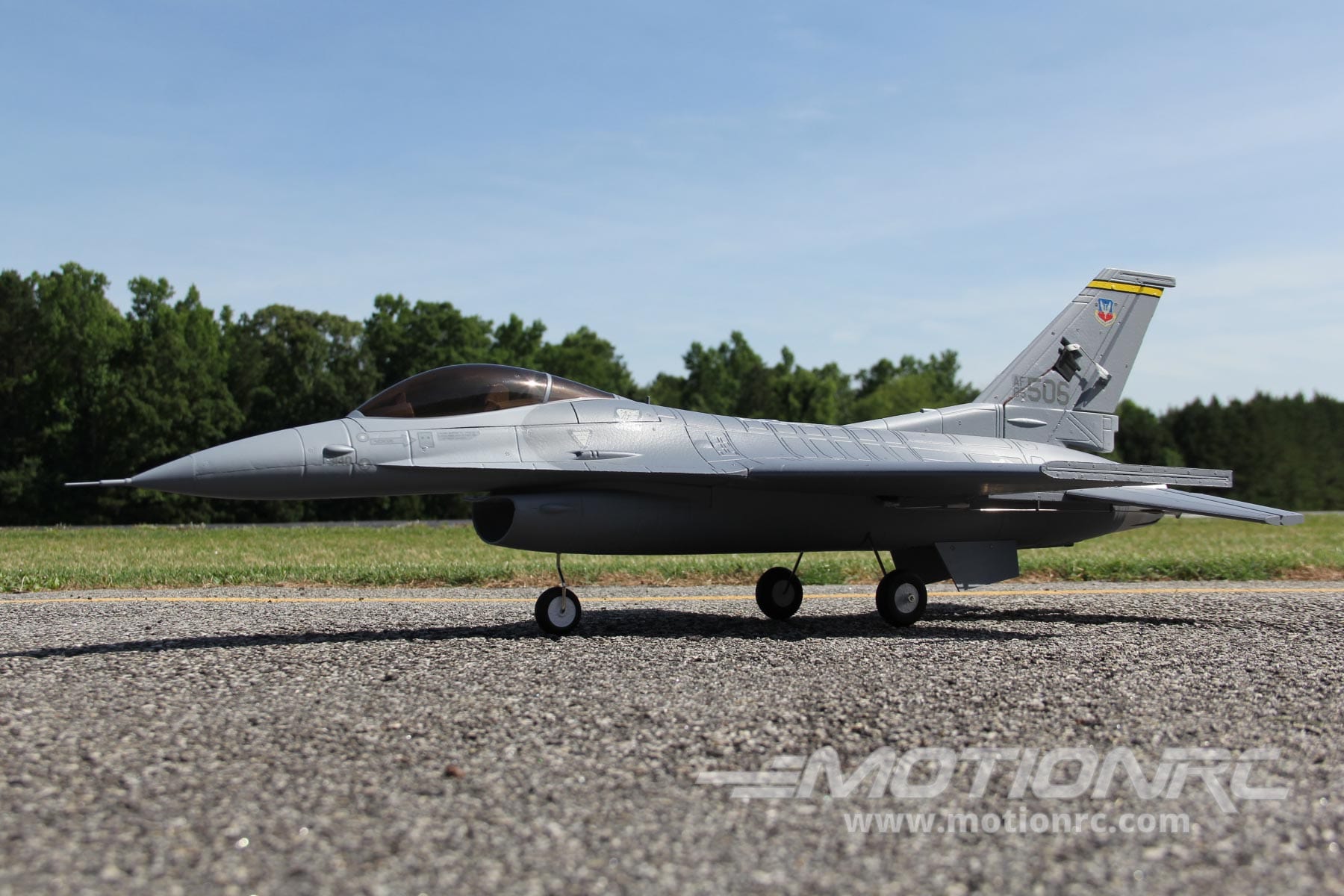

The mighty F-16 has finally come to Freewing's 64mm class of EDF jets. The clean lines, classic profile, and scale details are all captured in this exceptional 64mm EDF Jet F-16C Fighting Falcon from Freewing Models. Simplicity and durability were major design factors with this model. The airframe has been refined with a simplified control and gear structure that reduces the overall weight and wing load. The ailerons and elevators are joined by two servos for a flying delta configuration. An updated V2 40A ESC includes a reverse thrust function to help slow the jet on the landing roll out. Quality electronic components come pre-installed so you can be in the air in less then one hour.

Features:

  • 40 Amp V2 Electronic Speed Control has reverse thrust functionality
  • Ailerons and elevators are joined by two servos for a flying delta configuration
  • Comes with 12-Blade EDF with 2836-3300Kv Brushless Motor
  • 4S LiPo capability for High Performance Flight

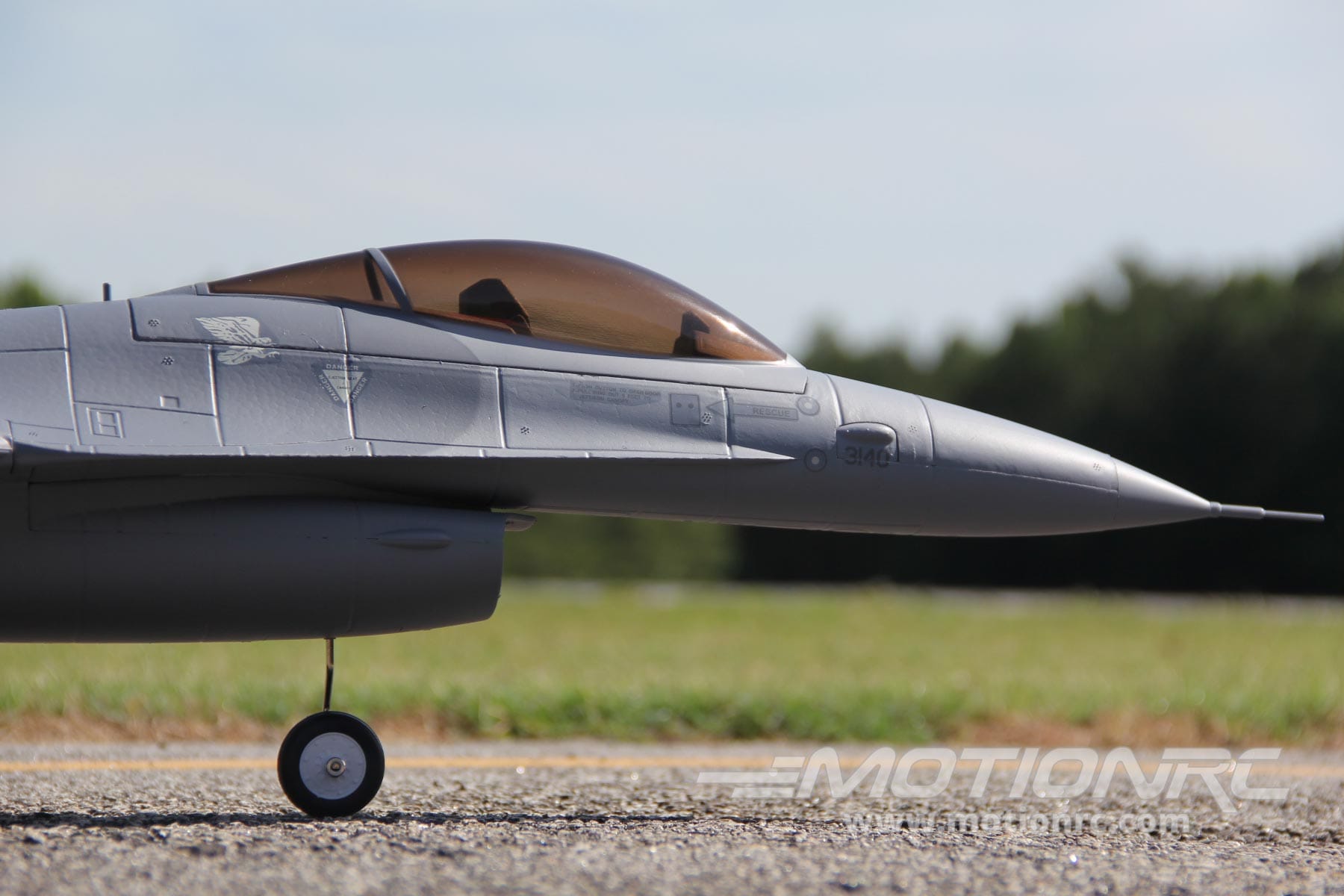

  • Scale details including painted pilot and cockpit, panel lines and landing gear
  • 3x 9g digital gear servos come pre-installed

Description and Images from MotionRC

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 680mm (26.8 in)
Length: 1050mm (41.3 in)

Weight: 730 g (1.6 lbs)
Model Scale 1/15 Scale
Wingspan 680mm / 26.8in
Length 1050mm / 41.3in
Flying Weight 730g (without battery)
CG (Center of Gravity) 81mm from the leading edge of the wing root
Power System 2836-3300Kv Brushless Motor
Speed Control 40A, internal SBEC with XT60 Connector
Propeller / EDF 64mm 12-Blade EDF
Servos
  • 9g digital reverse gear with 100mm lead : nose steering - MD31091R-100
  • 9g digital standard gear with 100mm lead : ailerons, elevators - MD31091-100
  • 9g digital standard gear with 600mm lead : rudder - MD31091-600

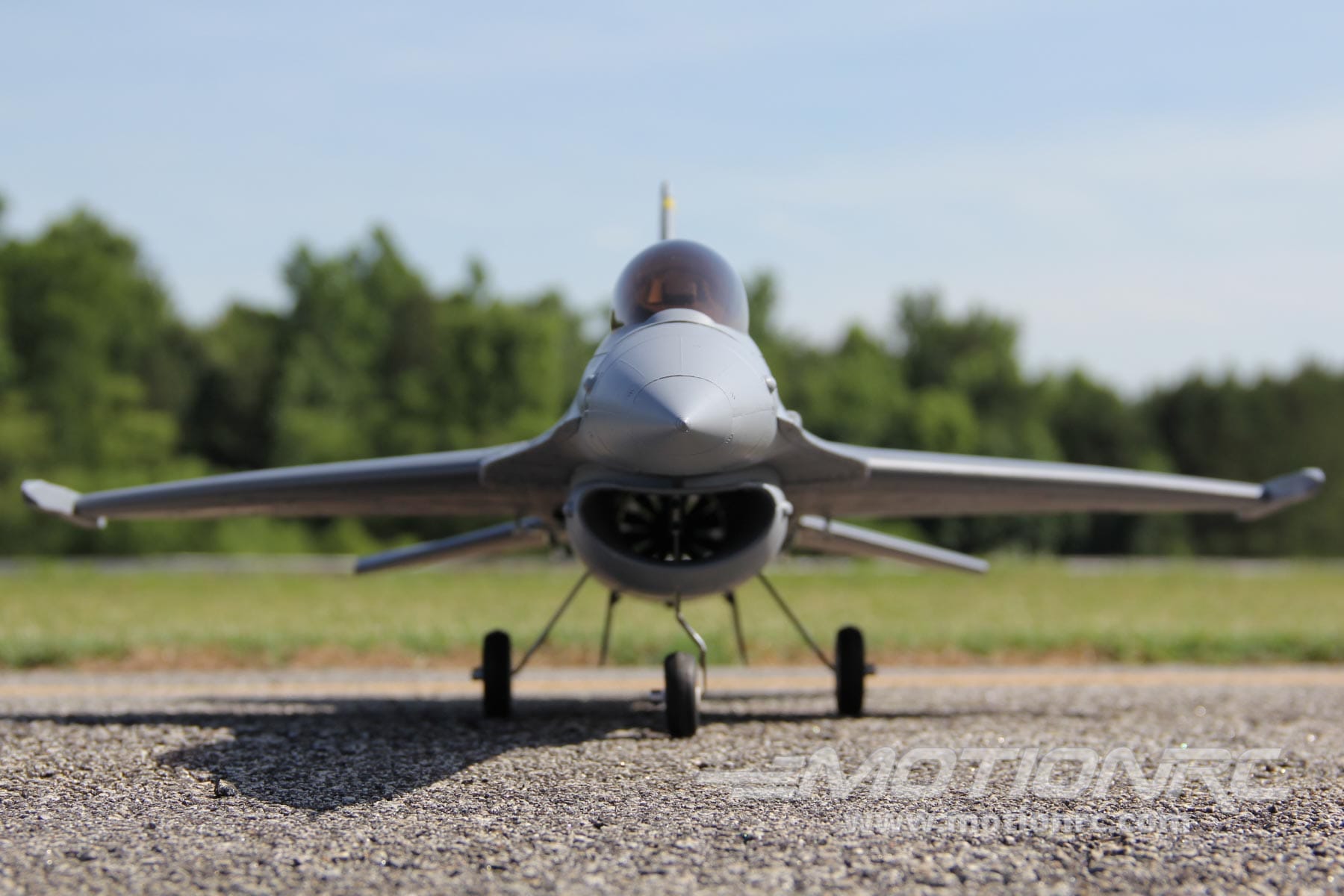

Landing Gear Fixed main landing gear, steerable nose gear.

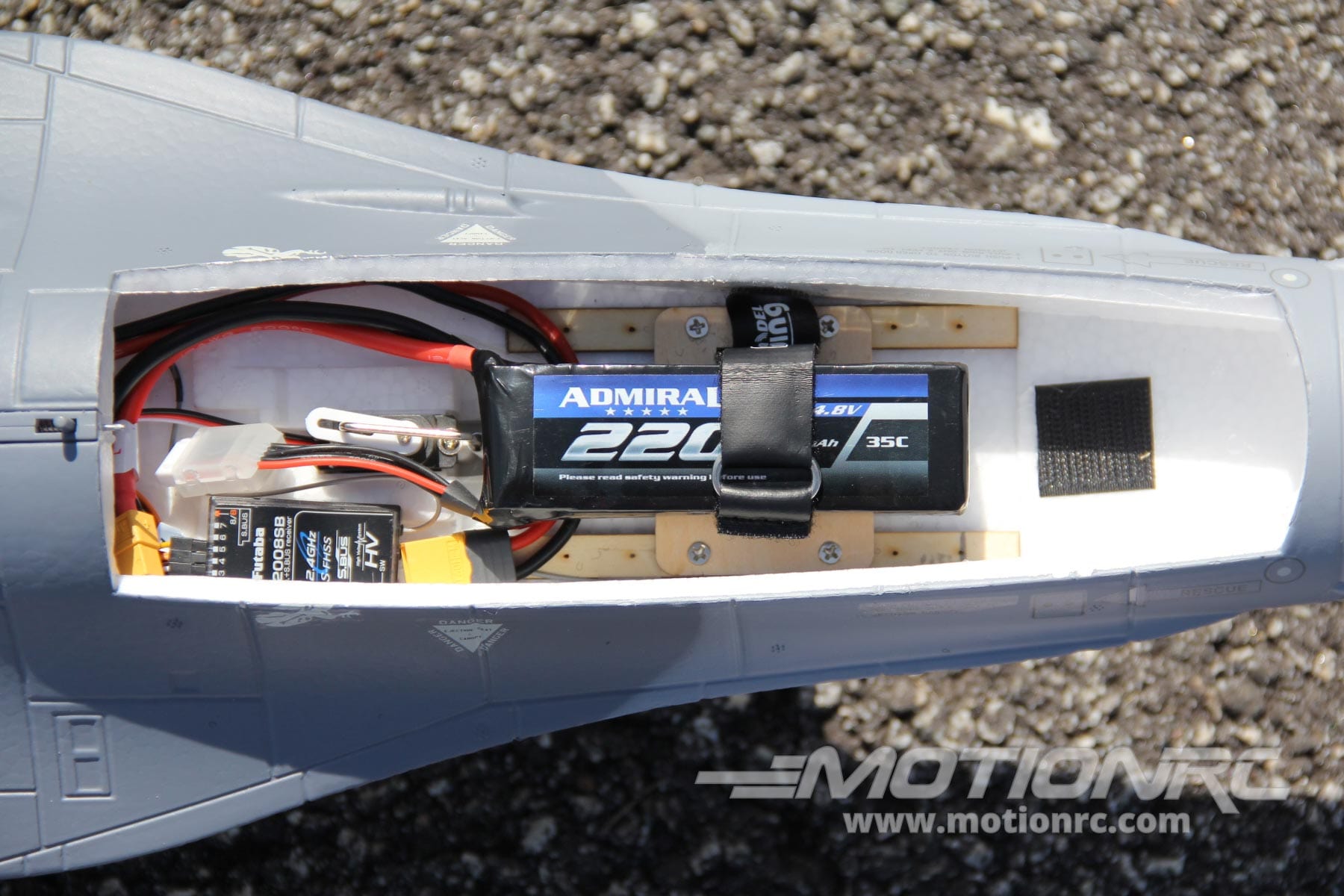

Required Battery 4S 14.8V 2200mAh with XT60 Connector
Required Radio 4 Channel 2.4ghz radio
Hinge Type Nylon hinges on all control surfaces
Material EPO Foam
