F-22 Raptor 90 mm from Freewing Model

Details

The F-22 Raptor is the world’s first Fifth Generation fighter, and its technology and performance continue to set the standard against which all other fighter jets are judged. The Freewing F-22 is a flying RC replica of this innovative fighter jet. Boasting both the lowest stall speed and one of the highest top speeds among all of Freewing’s jets, this super scale F-22 is capable of executing maneuvers most other EDFs can only dream of –our design team considers it a Performer and a Trainer in one!

The Freewing F-22 is available in two PNP versions. The Standard version features a 90mm EDF with an all-new 9 blade single piece impeller, 3748-1750Kv outrunner brushless motor and 130A ESC. The Deluxe 8S version features a 90mm 12 blade impeller mounted to a powerful 4075-1390Kv inrunner brushless motor and 150A HV ESC. The F-22’s maximum level airspeed exceeds 170KPH / 106MPH and 190KPH / 119MPH between the Standard and Deluxe versions, respectively.

Overall, the Freewing 90mm F-22 is a very approachable flyer and suitable for pilots moving up to their first 90mm jet from a smaller 70mm or 80mm jet. For pilots already familiar with the handling of a 90mm jet, the Freewing F-22 offers the potential to master an expanded set of realistic maneuvers.

Features:

  • Model officially licensed by Lockheed Martin
  • Exceptional low speed stability and high speed agility
  • Realistic Scale Maneuver capability includes Cobra, Mongo Flip, J-Turn, Descending Spiral, Hover, etc
  • Efficient, balanced, powerful 12-Blade EDF power system with coveted realistic "woosh" jet sound
  • Has the lowest stall speed and one of the highest top speeds among all of Freewing’s jets
  • Large battery bay to easily fit either 6S or 8S battery (for appropriate 6S or 8S Power System)
  • Materials include EPO foam, aluminum, carbon fiber, steel, nylon, plastic, and wood for maximum durability
  • Features a mixture of sharp panel lines, graduated paintwork, and realistic decals for maximum realism
  • MultiShade™ livery incorporating paint and decals with over 12 different colors and subtle shading in metallic, satin, and matte finishes
  • Servos are housed within plastic trays for easy removal and servicing
  • Cockpit is lined with thin plastic to resist heat damage
  • Grass-capable suspension landing gear and sequenced nose gear doors with magnet assist
  • Main wings disconnect conveniently with a flexible ribbon wire cable, which smartly reduces the load exerted on the actual electronic connections
  • Magnetic nose cone encased in molded plastic with raised surface details can be removed easily to reduce the model’s length during transport to your flying field
  • MFCB for wire organization and future expansion-potential with LEDs and optional accessories
  • Widened gear stance and larger-than-scale grass-appropriate wheels greatly improve ground handling on short grass runways
  • Ball Bearing-supported horizontal stabilators
  • Screw-assembly for all flying surfaces
  • Capable of Expert-level maneuvers as well as smooth, stable slow flight for less-experienced jet flyers

Description and Pictures from MotionRC

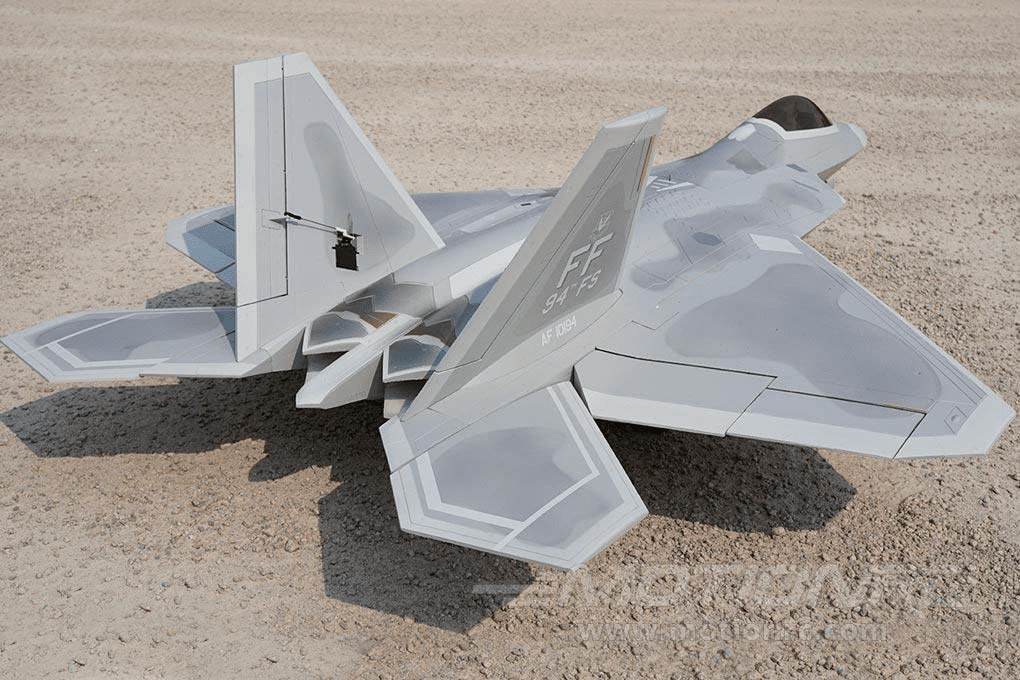

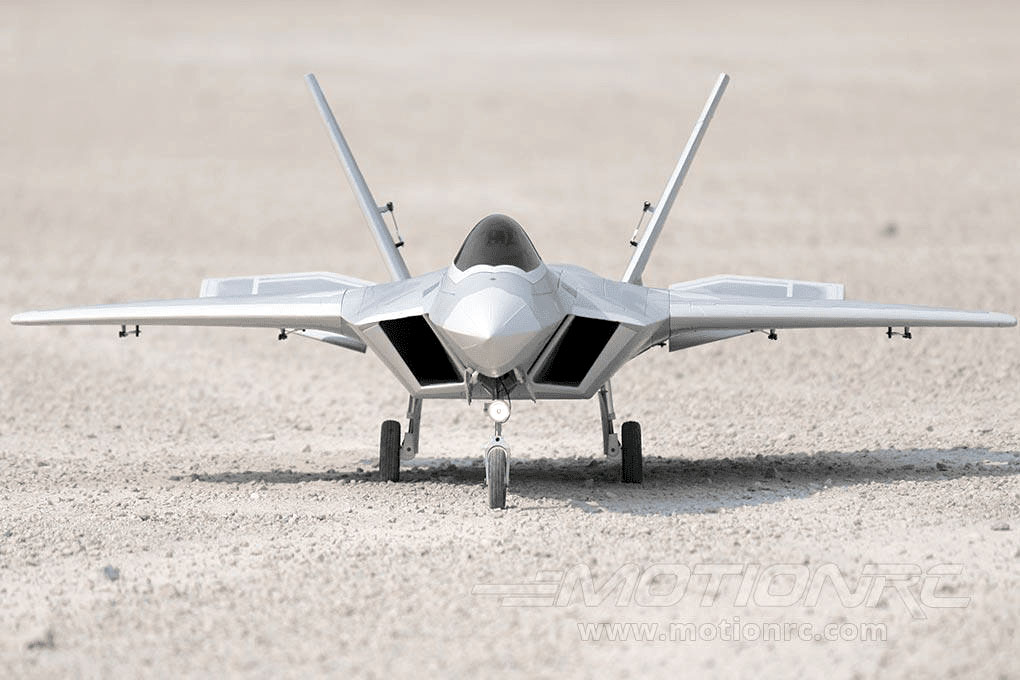

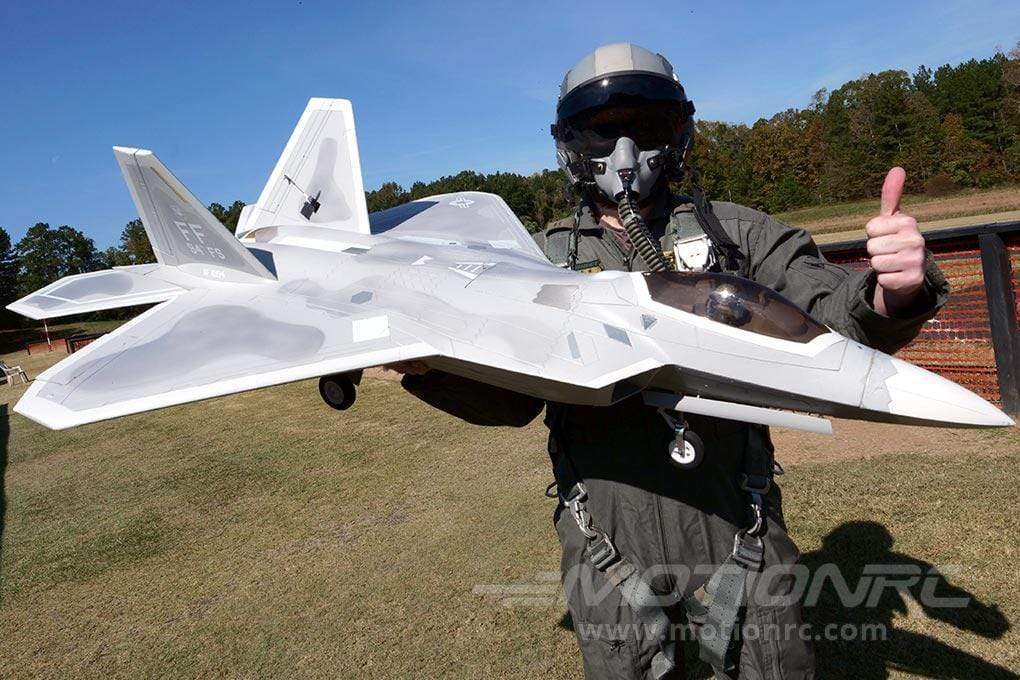

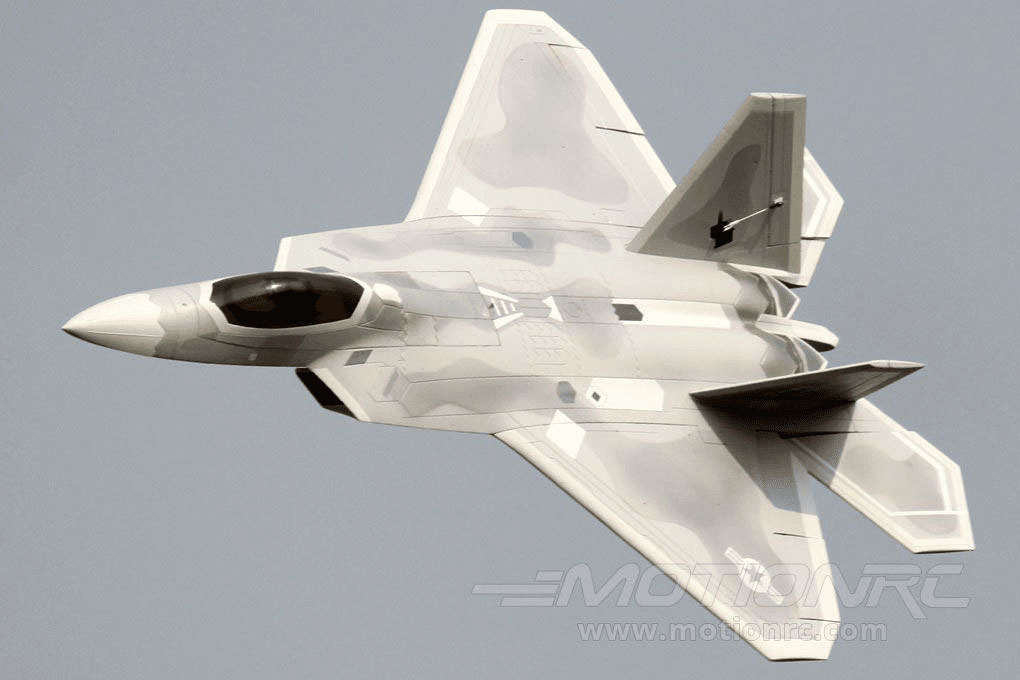

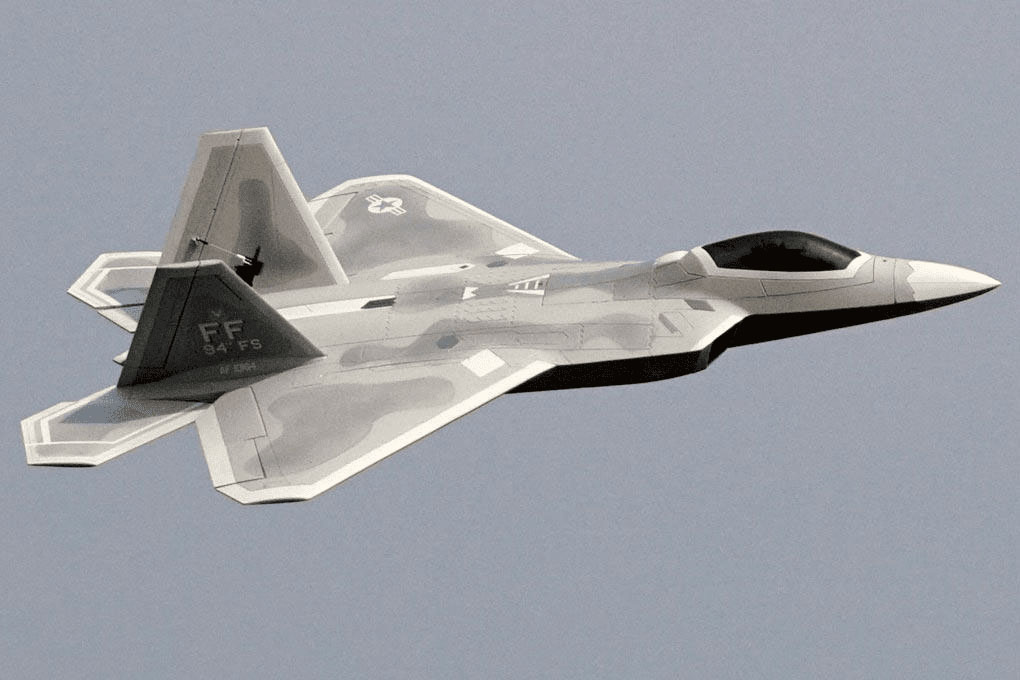

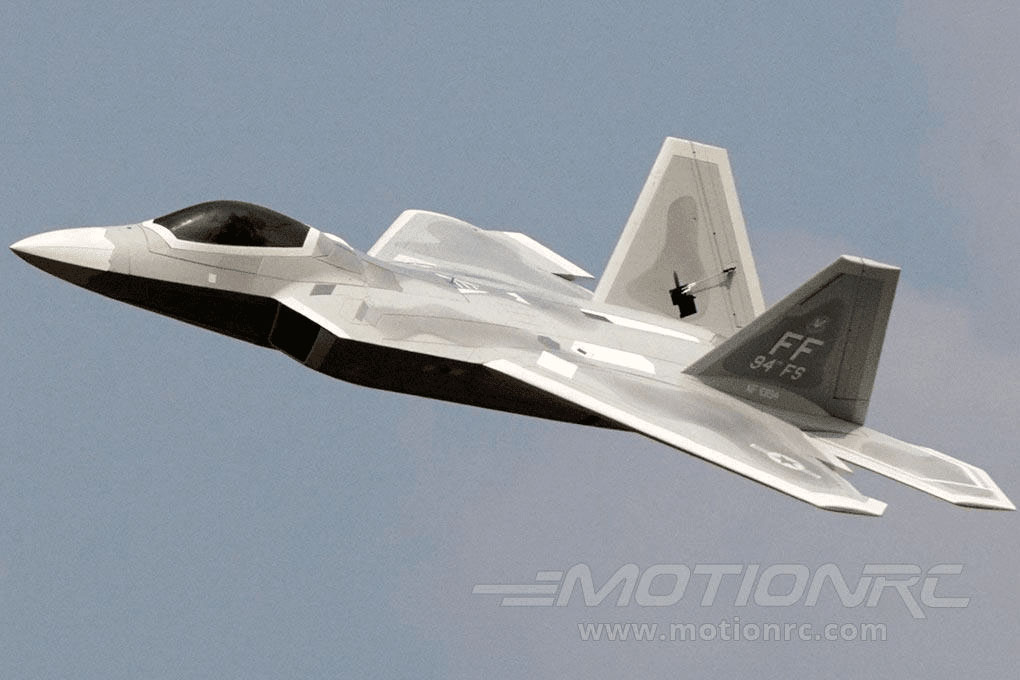

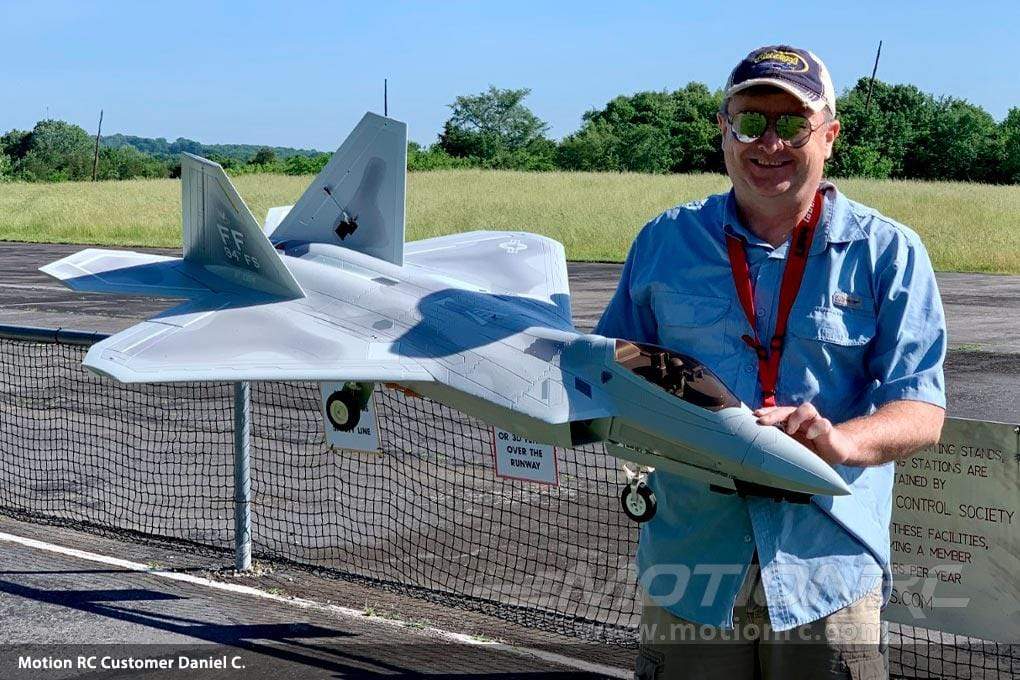

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F-22 Raptor 90 mm in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Hong-Kong
RC-Castle
check web site
Ship to: Worldwide

Wingspan: 1060mm (41.7 in)
Length: 1500mm (59.1 in)

Weight: 2960 g (6.5 lbs)
Model Scale 1 : 13 Scale
Wingspan 1060mm / 41.73in
Length 1500mm /59.05in
Empty Weight 2960g / 104.41oz (w/o battery)
CG (Center of Gravity) 150mm (5.9") from the leading edge of the wing at the root
Power System 8S 4075-1390Kv Inrunner Brushless Motor
Electronic Speed Control 150A, EC5 Connector
Propeller / EDF 90mm 12-Blade EDF
Servos
  • 9g hybrid digital standard with 300mm lead : nose gear steering - MD31093-300
  • 9g hybrid digital standard with 400mm lead : nose gear door - MD31093-400
  • 17g metal gear digital standard with 100mm lead : left rudder, right rudder - MD31172-100
  • 23g metal gear digital reverse 100mm lead : right elevator - MD31231R-100
  • 23g metal gear digital standard 100mm lead : left elevator - MD31231-100
  • 17g metal gear digital standard with 200mm lead : left flap, right flap - MD31172-200
  • 17g metal gear digital standard with 300mm lead : left aileron, right aileron - MD31172-300
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6 Cell 22.2V 5000 mAh LiPo and 2 Cell 7.4V 5000 mAh LiPo batteries with EC5 connector in series
- OR -
Two 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector
Hinge Type Nylon Reinforced
Material EPO Foam

Variants

FJ31321P
F-22 Raptor 90 mm (Grey Camo)
