F-5 Tiger II Camo 80mm from Freewing Model

Details

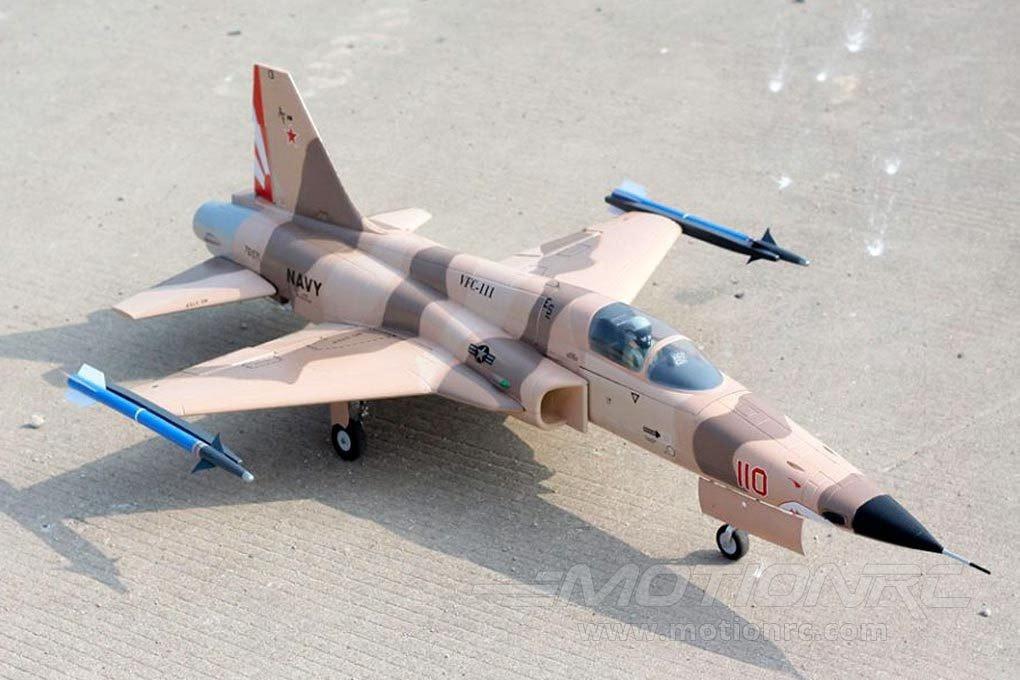

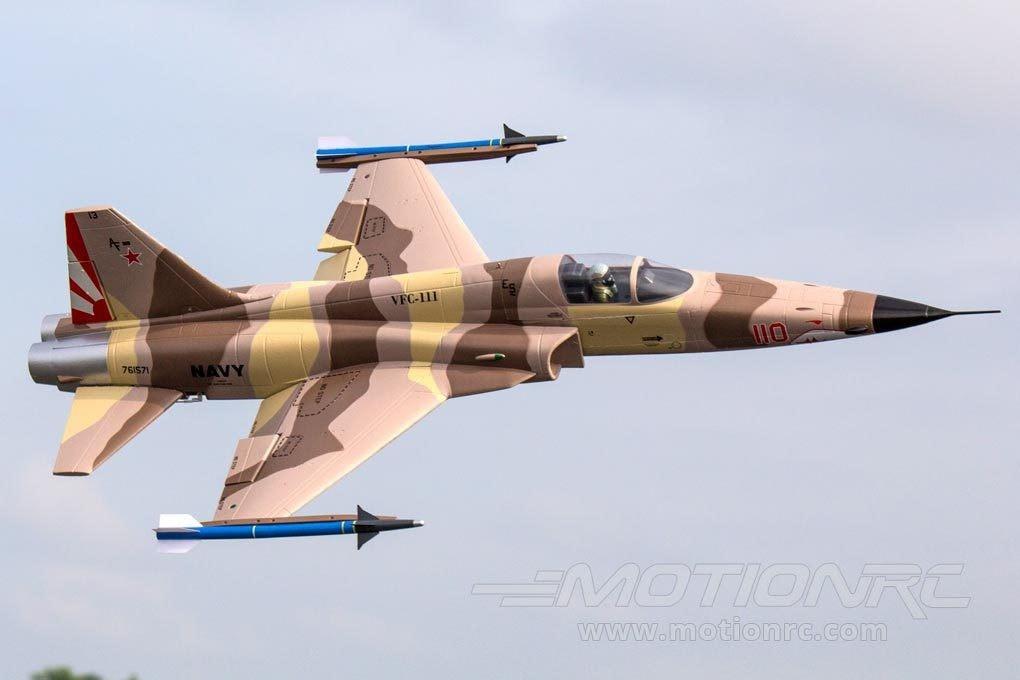

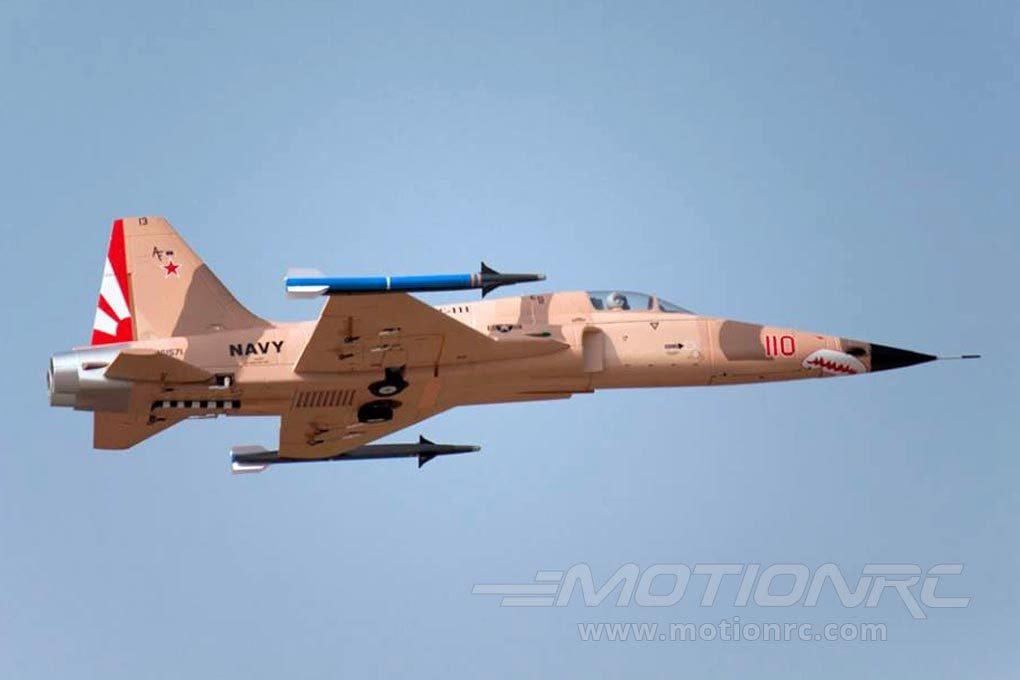

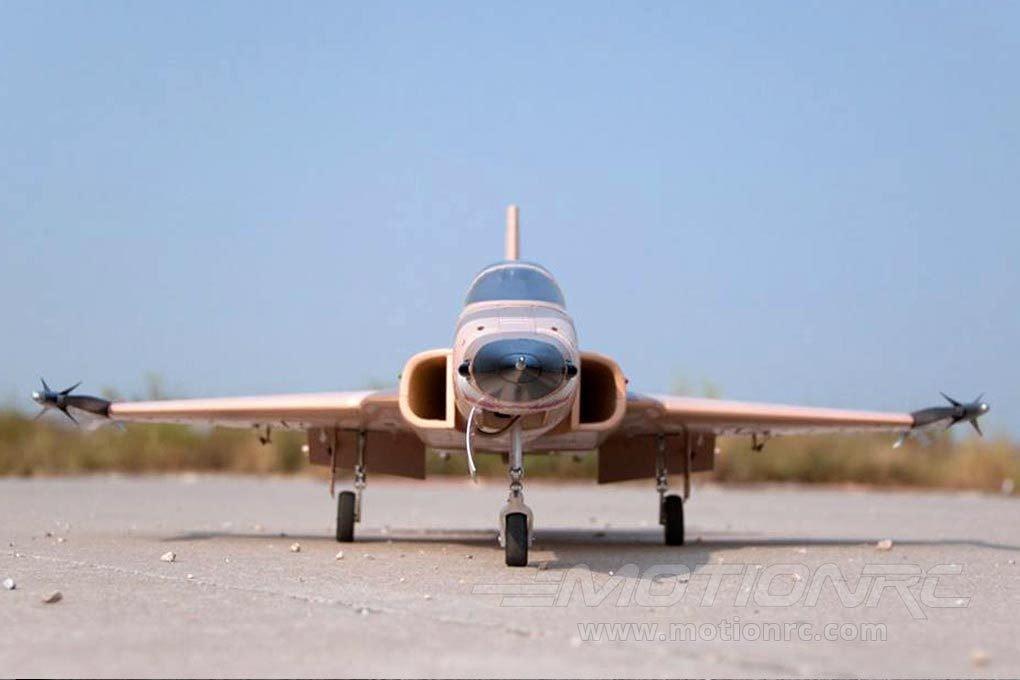

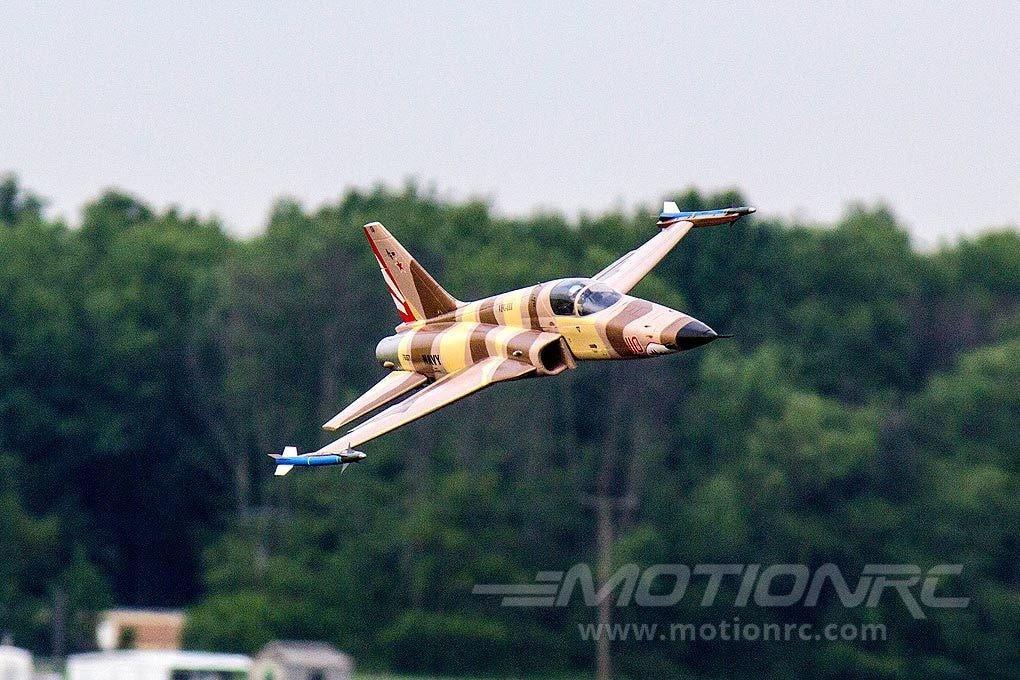

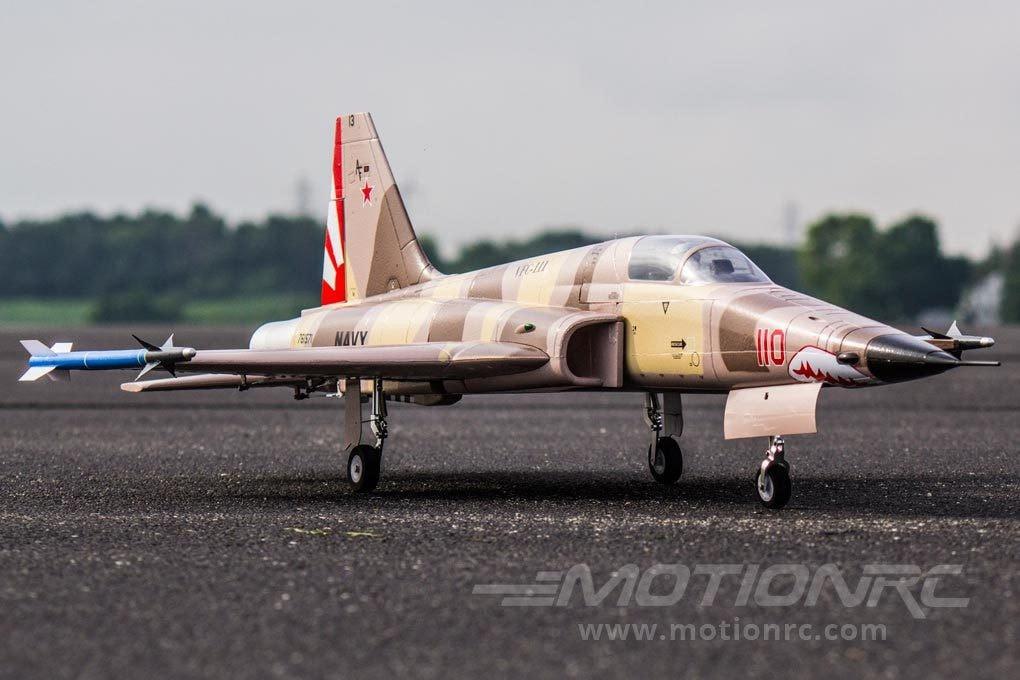

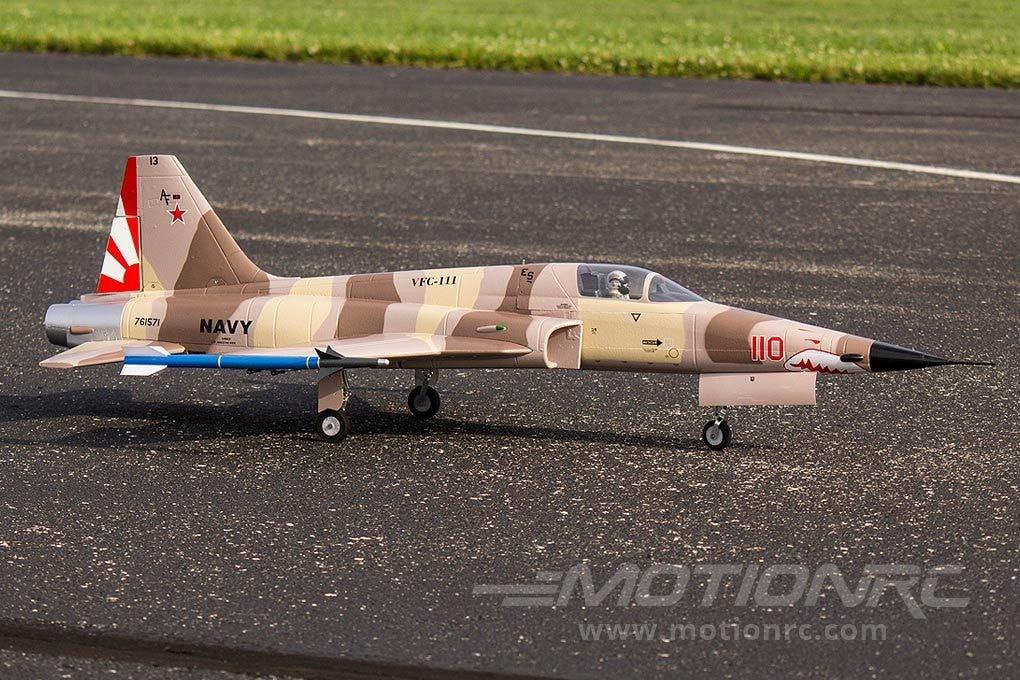

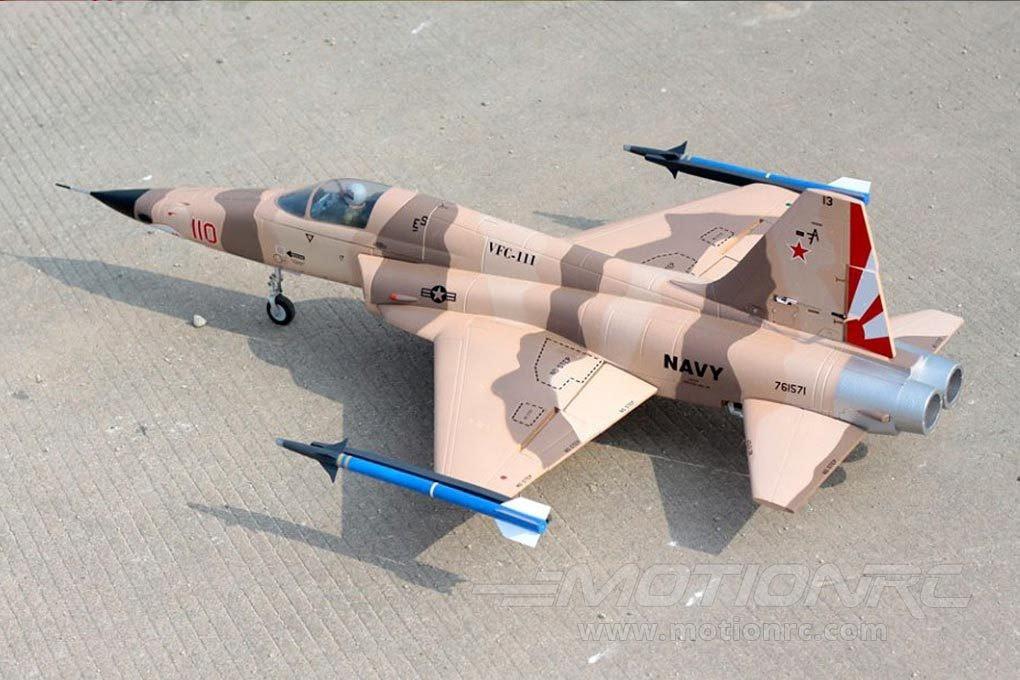

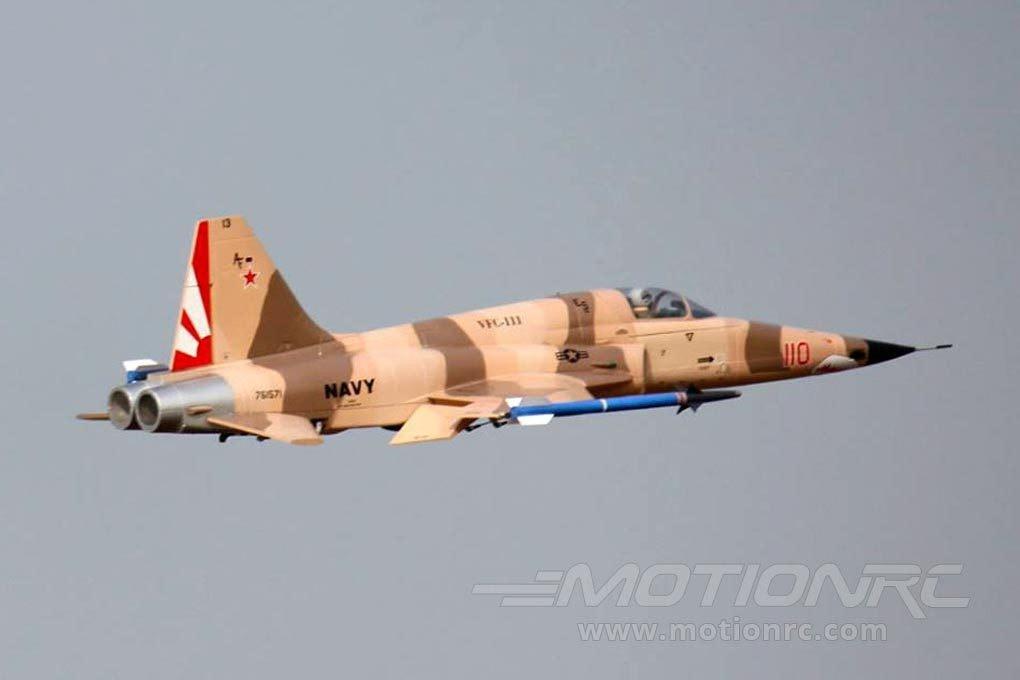

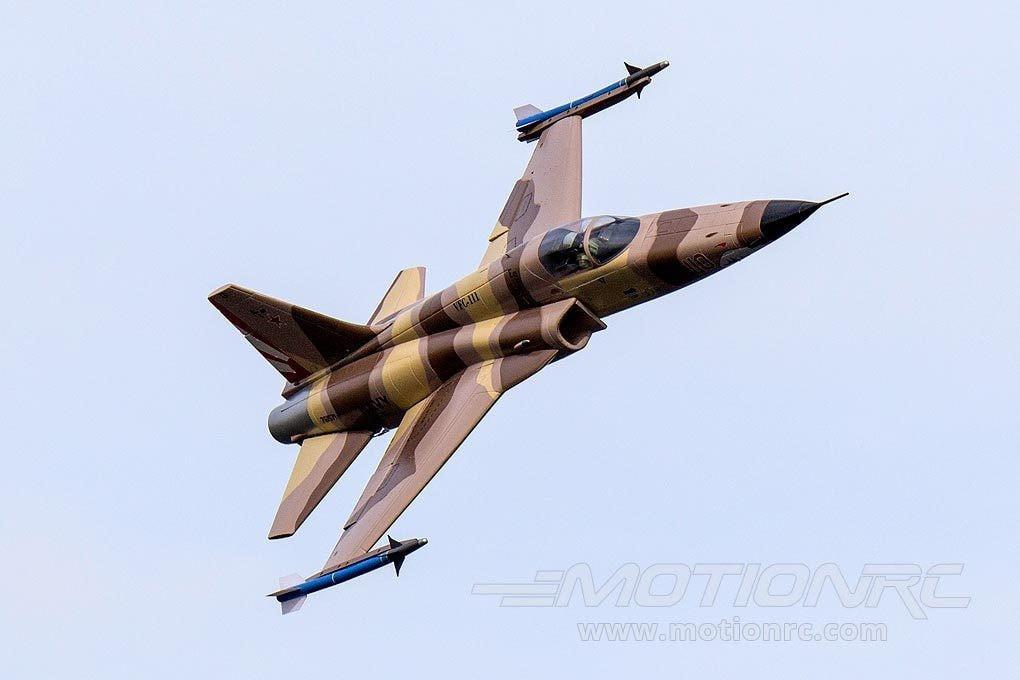

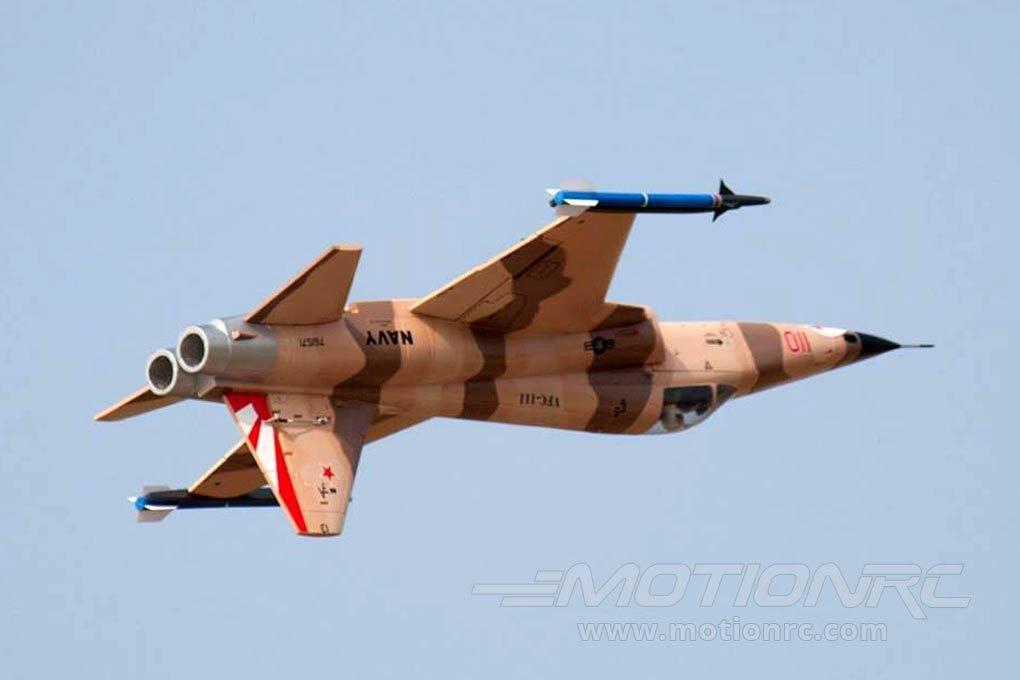

This iconic F-5 Tiger II RC airplane proudly wears the livery of the CAG’s jet of the VFC-111 “Sun Downers”, an adversary training squadron in Key West, Florida. Freewing’s rendition incorporates a thicker airfoil to enhance the lifting body design of the original F-5, imparting the stability of an RC model with the standoff scale looks of the real jet. This exciting F-5 model provides speed and scale agility in a stable platform that also looks great!

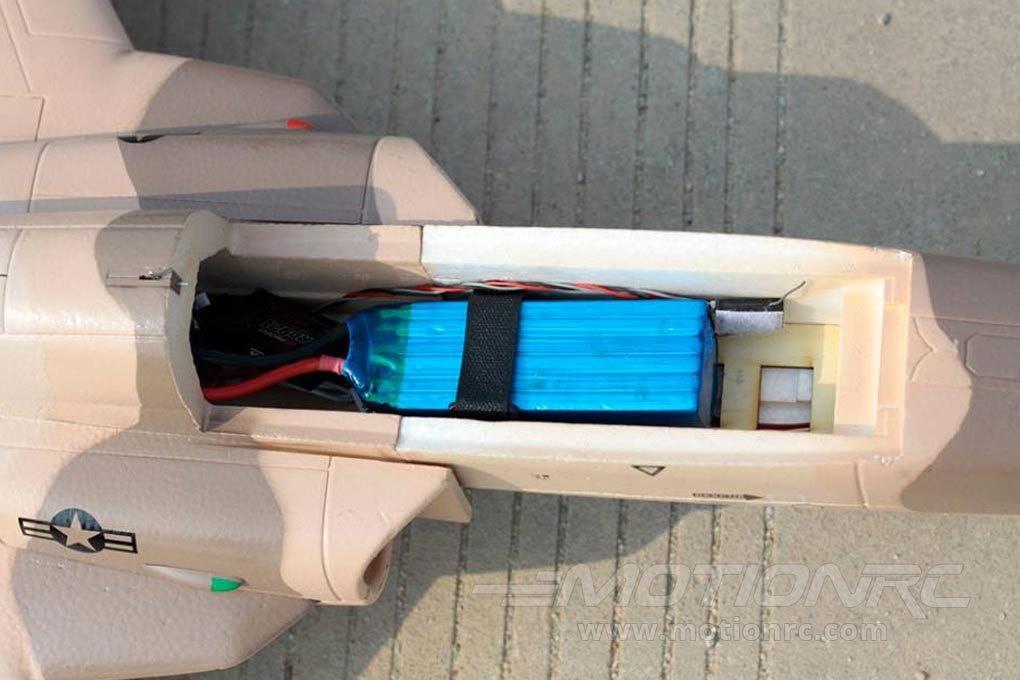

Freewing's 80mm F-5 Tiger II is the perfect size for easy transport without the need for disassembly. Optimized to fly our common Admiral 6s 4000mAh or 5000mAh lipo battery with an EC5 connector, the Freewing F-5’s pre-installed electronics and control hardware minimizes assembly time to about one hour.

Features:

  • Model officially licensed by Northrop Grumman
  • 12 Blade factory balanced EDF with metal housing and 3530-1680KV brushless outrunner motor produces realistic jet turbine sound
  • Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant
  • Super scale details include hand painted, scale-sized pilot and full instrument panel

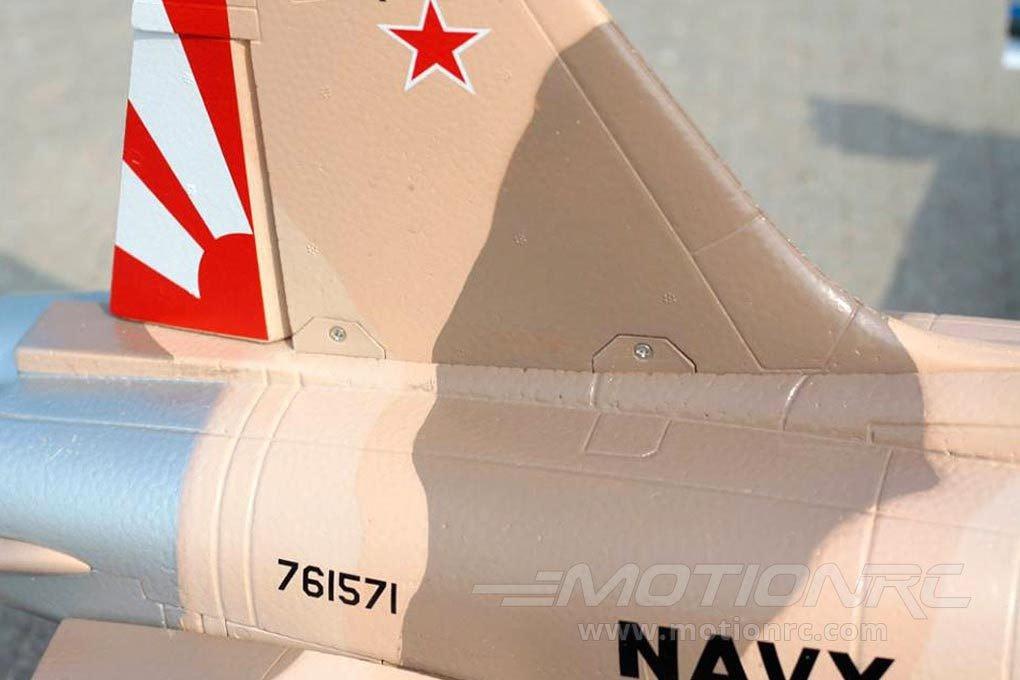

  • Proudly displaying the livery of the CAG’s jet of the VFC-111 “Sun Downers”
  • 80 Amp Hobbywing ESC with 5A BEC

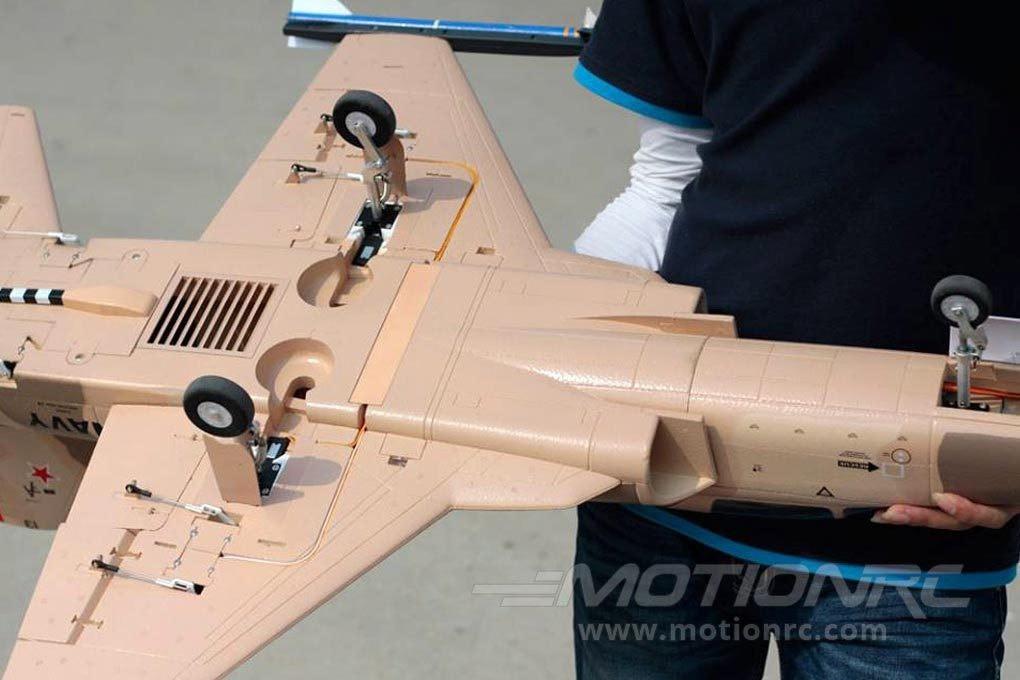

  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground maneuverability
  • Spring operated nose gear door
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Gapless flap hinges
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
  • Removable wings and stabilizers for convenient transport

Description and pictures from MotionRC

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 800mm (31.5 in)
Length: 1250mm (49.2 in)

Weight: 2200 g (4.9 lbs)
Wingspan 800mm / 31.49in
Length 1250mm / 49.21in
Flying Weight 2200g / 78oz
CG (Center of Gravity) Please refer to the manual
Power System 3530-1750Kv Brushless Outrunner Motor
Electronic Speed Control 80A ESC, 5A BEC, EC5 Connector
Propeller / EDF 80mm Metal EDF with 12 Blade Fan
Servos
  • 9g hybrid gear standard with 100mm lead : elevator left - MD31093-100
  • 9g hybrid gear reverse with 100mm lead : elevator right - MD31093R-100
  • 9g hybrid gear standard with 200mm lead : rudder - MD31093-200
  • 9g hybrid gear standard with 300mm lead : right flap, left aileron, right aileron - MD31093-300
  • 9g hybrid gear standard with 400mm lead : nose steering - MD31093-400
  • 9g hybrid gear reverse with 300mm lead : left flap - MD31093R-300
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 4000mAh-5000mAh LiPo (required)
