F-86 Sabre from Freewing Model

Details

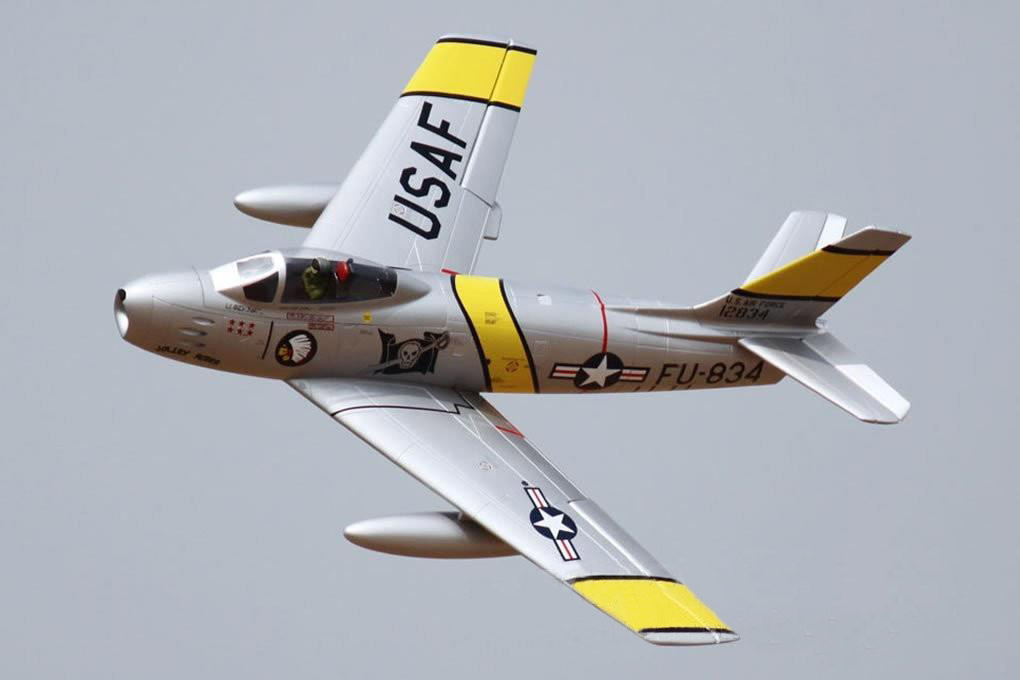

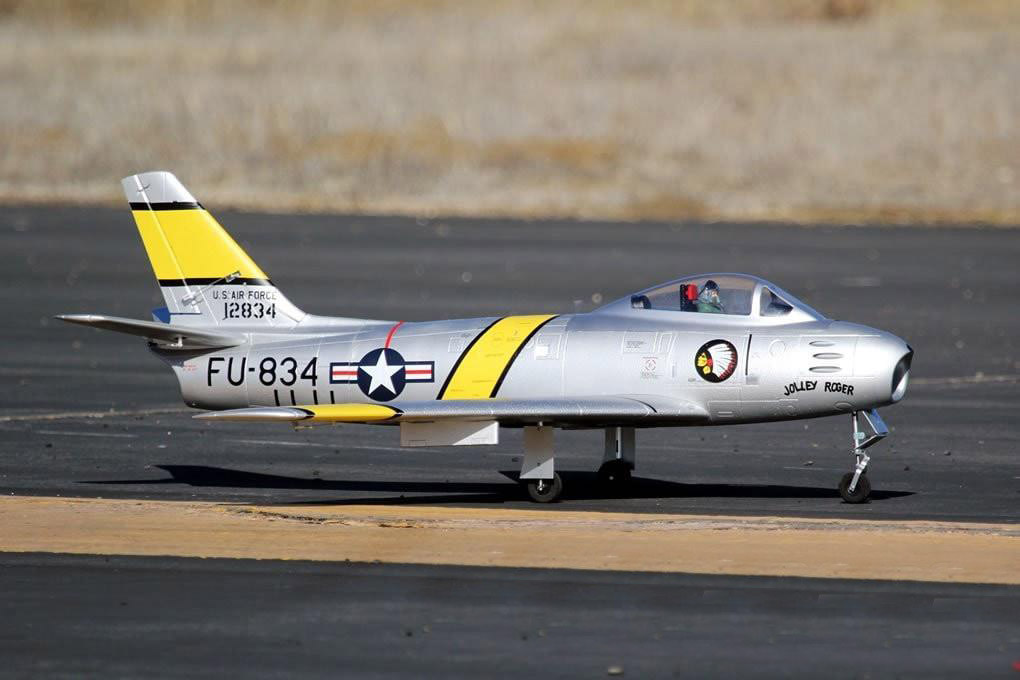

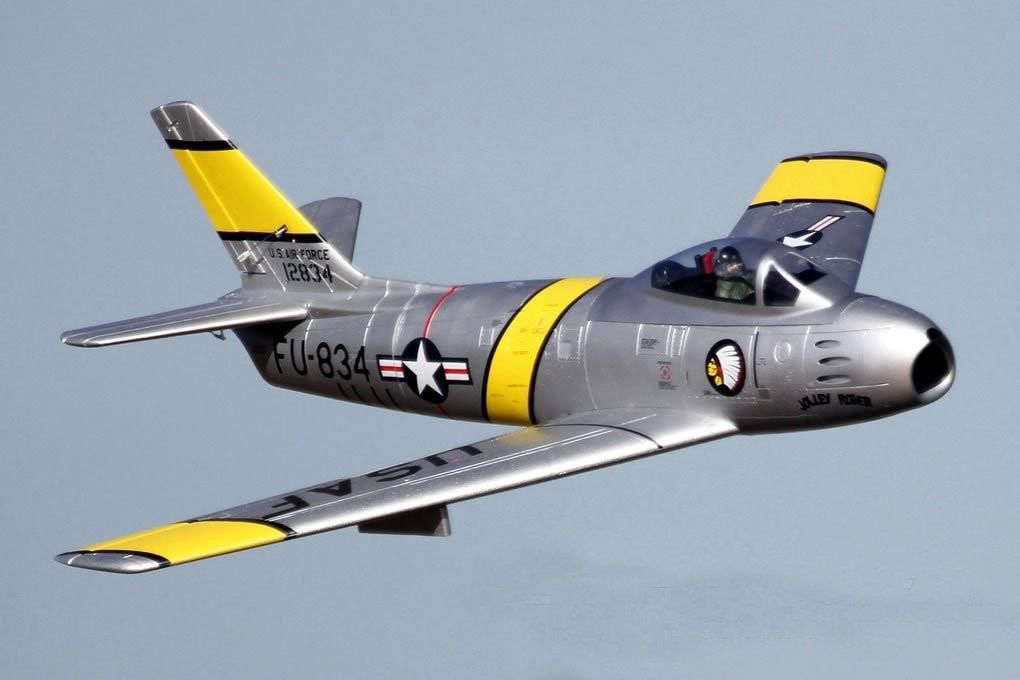

The Freewing 80mm EDF F-86 Sabre is modeled after the North American F-86F that was flown by USAF Ace Captain Clifford D. Jolley. Captain Jolley, call sign "Jolley Roger", flew in the 4th Fighter Interceptor Wing of the 335th Fighter Interceptor Squadron (Chiefs) during the Korean War and is credited with seven confirmed enemy victories. Such a famous plane deserves a scale model which lives up to legend of Captain Jolley, and Freewing has delivered with the 80mm EDF F-86.

The first thing you will notice about the Freewing F-86 is it's scale appearance and accurate proportions. You won't find a non-scale, over-sized intake on this jet; Freewing has created this famous jet in perfect proportions while not sacrificing performance. Speaking of performance, the Freewing F-86 uses the new 80mm 12-blade EDF with metal housing combined with a powerful 1680kV motor to produce nearly 6 pounds of thrust for awesome speed and incredible maneuverability.

The sound produced from the 12 blade EDF is sure to turn heads at the flying field. While 5 and 6 blade EDFs produce a high pitched whining sound, the 12 blade EDF with metal housing produces the "whoosh" and air crushing sound similar to a gas turbine jet. Additional upgraded features include an 80A Hobbywing ESC, 9g precision servos, electronic retracts with full metal shock absorbing struts, scale drop down flaps, and magnetically removable drop tanks. Keep Captain Jolley's legend alive, own the Freewing 80mm EDF F-86 Sabre Fighter Jet.

Features

  • 12 Blade factory balanced EDF with metal housing combined with 3530-1680kV brushless outrunner motor produces realistic jet turbine sound
  • Composite fan blades combined with metal EDF housing make the F86 AMA compliant (the fan blades themselves are NOT metal, so there are no flying restrictions)
  • Super scale details include hand painted pilots, scale drop tanks, machine gun turrets, airfoil panel lines, and super detailed USAF "Jolley Roger" graphics package
  • 80 Amp Hobbywing ESC with 5A BEC

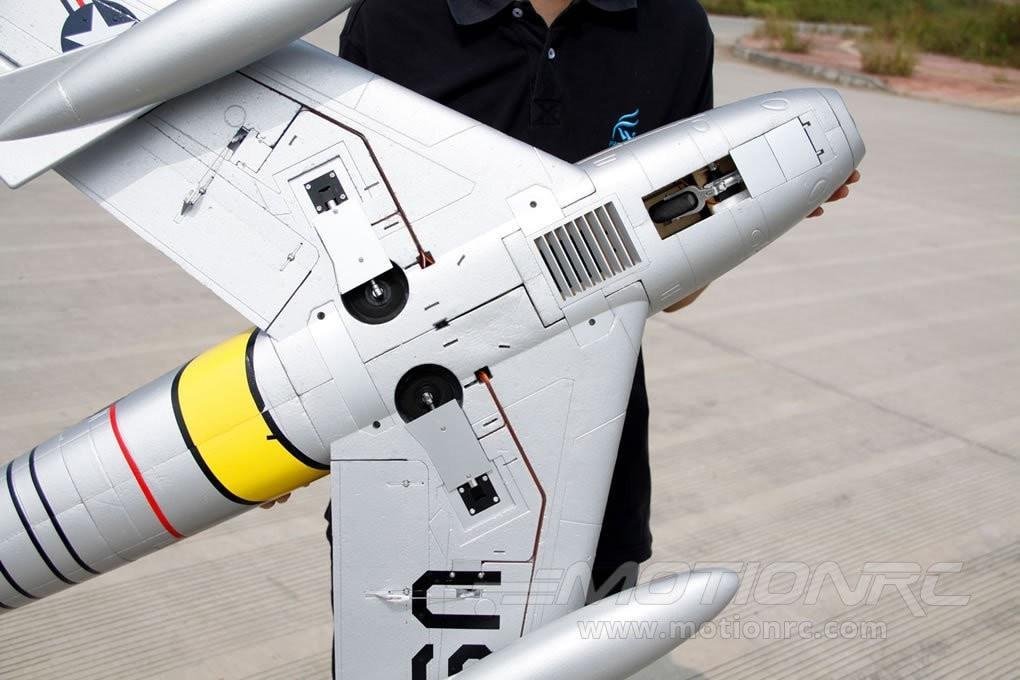

  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground maneuverability
  • Full function drop down flaps allow shorter take-off distances and slow, scale landings
  • Independently controlled elevators allow perfect trim and more responsive climb and descent capability
  • Drop tanks are connected via rare earth magnets to allow easy attachment and detactment
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience.

Pictures

Manual

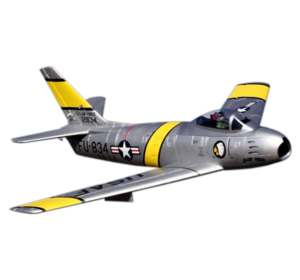

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1200mm (47.2 in)
Length: 1200mm (47.2 in)

Weight: 2300 g (5.1 lbs)
Wingspan 1200mm / 47.2in
Length 1200mm / 47.2in
Flying Weight 2300g / 81.1oz
CG (Center of Gravity) check manual
Power System 3530-1680kV Brushless Outrunner Motor
Electronic Speed Control 80A ESC, 5A BEC, EC5 Connector
Propeller / EDF 80mm Metal EDF with 12 Blade Fan
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Required Battery 6S 22.2V 4000mAh-4500mAh (4500 40C or 4000 60C) LiPo
