F/A-18E Tophatters from Freewing Model

Details

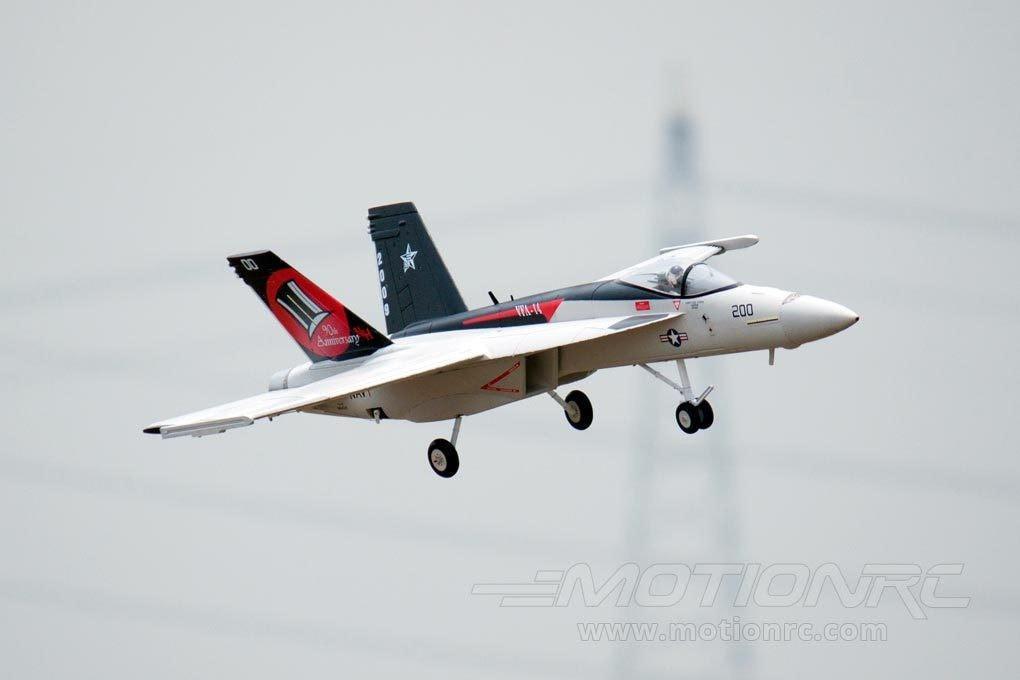

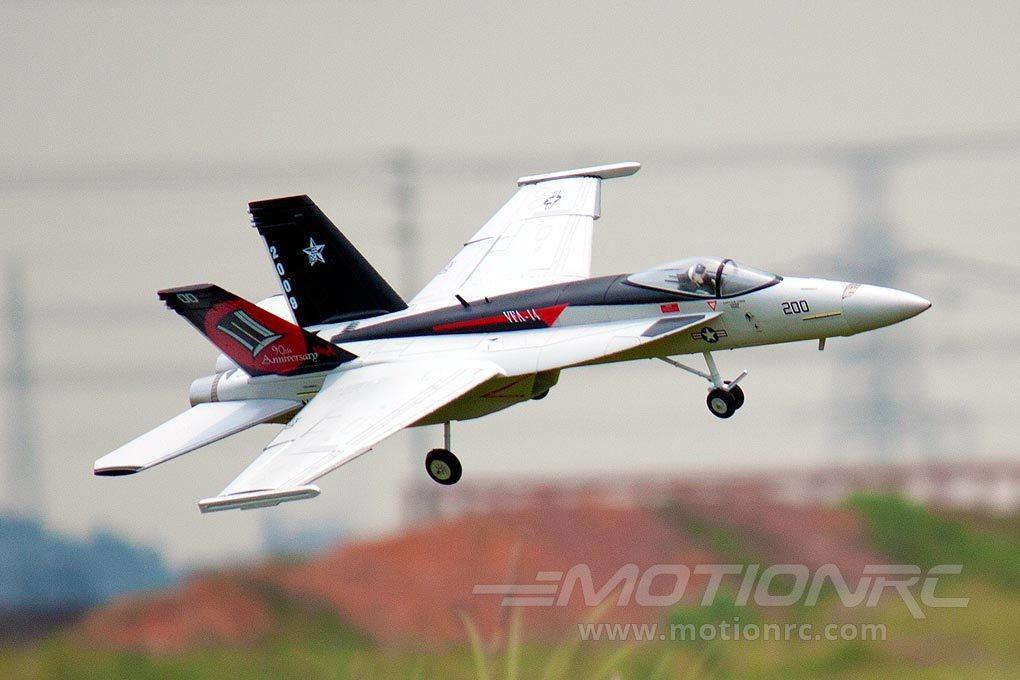

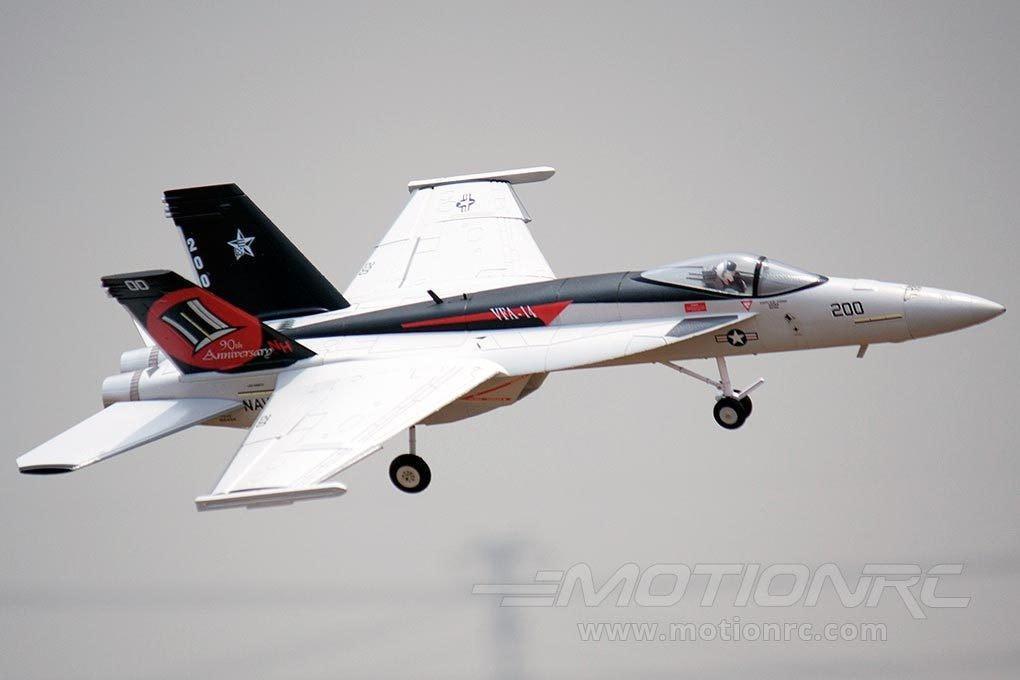

The Boeing F/A-18 Hornet is a twin-engine supersonic, all-weather carrier-capable multirole combat jet, designed as both a fighter and attack aircraft (F/A designation for Fighter/Attack). Designed by McDonnell Douglas and Northrop, the F/A-18 was derived from the latter's YF-17 in the 1970s for use by the United States Navy and Marine Corps. The Hornet is also used by the air forces of several other nations. The U.S. Navy's Flight Demonstration Squadron, the Blue Angels, has used the Hornet since 1986. The clean lines, stealth profile, and scale details are all captured in this exceptional 64mm EDF Jet from Freewing Models. Simplicity and durability were major design factors with this model. All airfoil surfaces (main wings, and elevators) are attached to the fuselage using a new modular joiner system which improves strength and allows easy parts replacement. Quality electronic components come pre-installed so you can be in the air in less then one hour.

Features:

  • Includes a powerful 3300KV motor, 64mm 12-blade EDF fan unit, 40 Amp Electronic Speed Control, and 4S LiPo capability for High Performance Flight

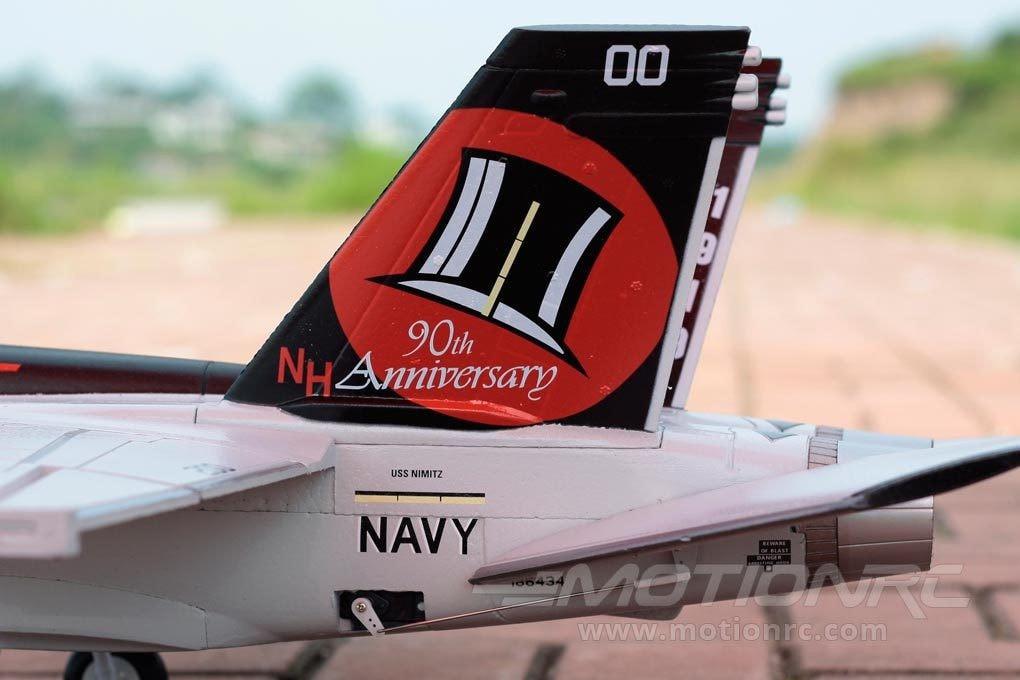

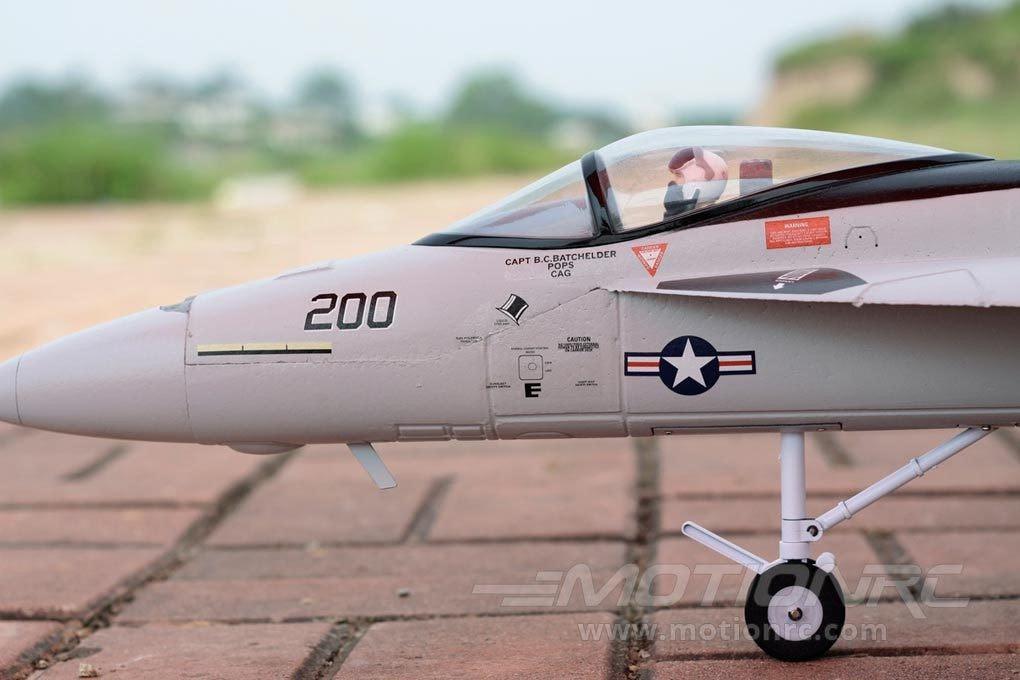

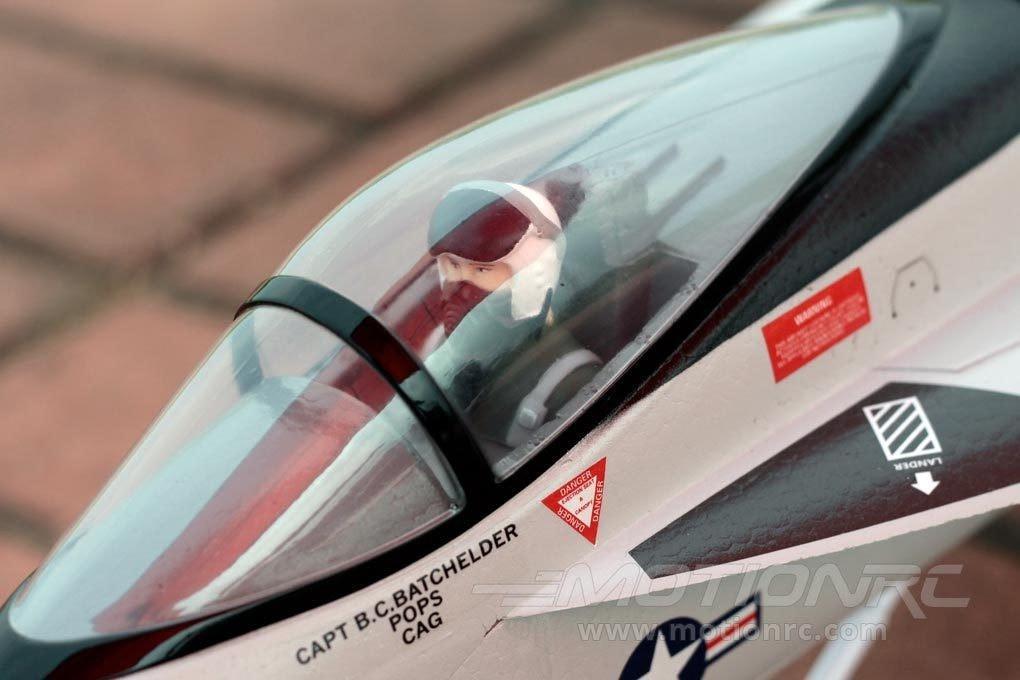

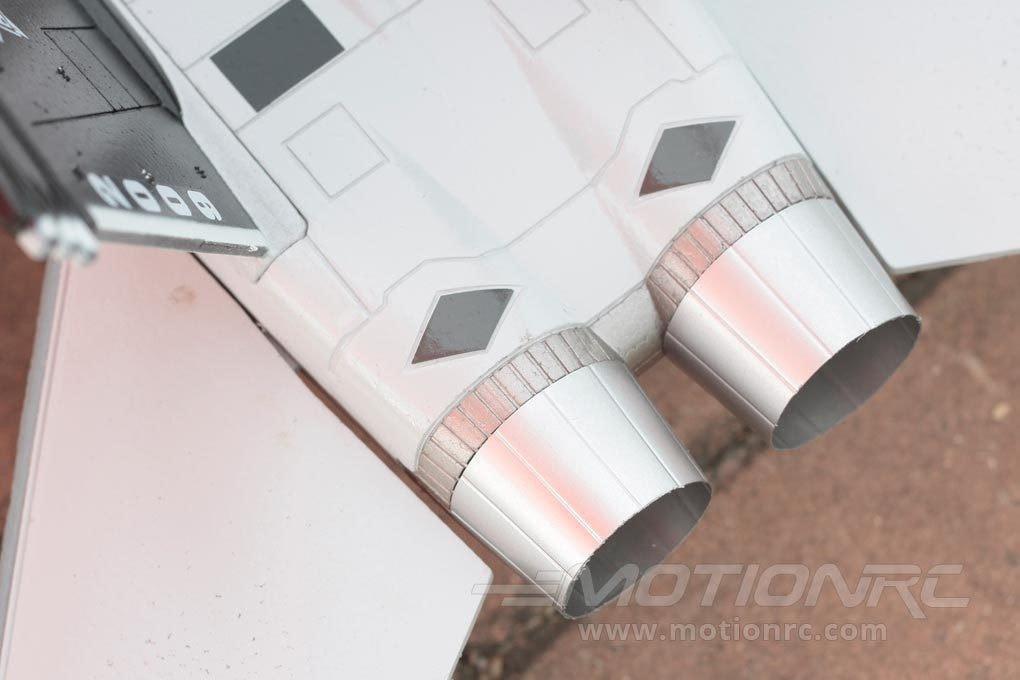

  • Scale details including the Navy's "Tophatters" livery, painted pilot and cockpit, panel lines and landing gear
  • 5x 9g servos come pre-installed

Description and pictures from MotionRC

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 760mm (29.9 in)
Length: 1030mm (40.6 in)

Weight: 1000 g (2.2 lbs)
Wingspan 760mm / 29.92in
Length 1030mm / 40.5in
Flying Weight 1000g
Power System Brushless 2836-3300kV Outrunner Motor
Speed Control 40A, internal SBEC with XT60 Connector
Propeller / EDF 64mm 12-Blade EDF

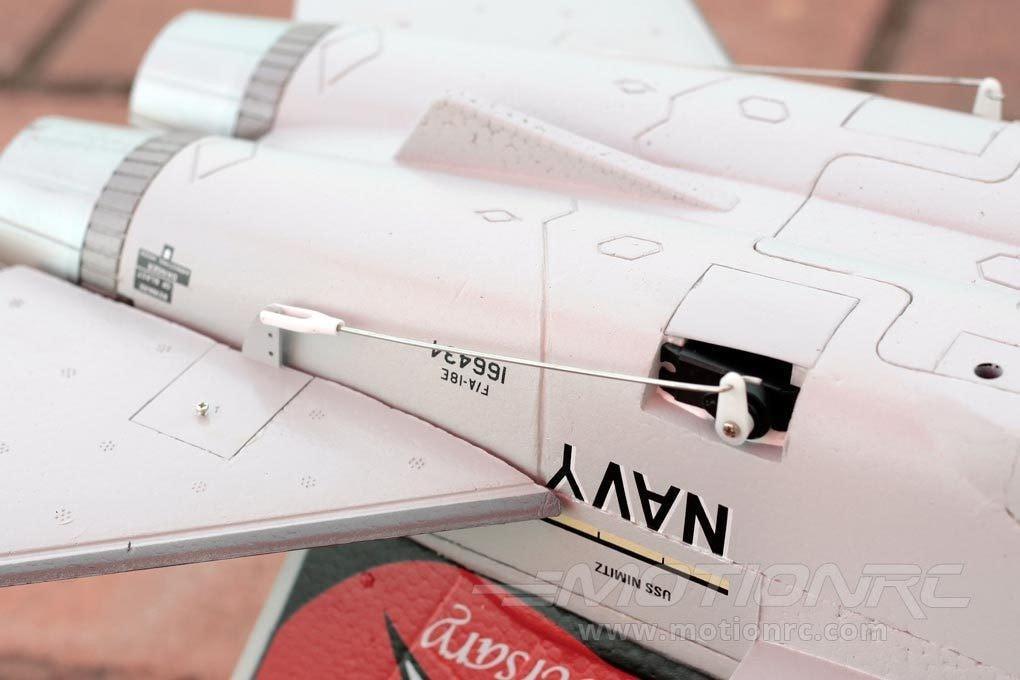

Servos 9g hybrid gear standard with 100mm lead : left elevator
9g hybrid gear reverse with 100mm lead : right elevator
9g hybrid gear standard with 300mm lead : nose gear steering, left aileron, right aileron

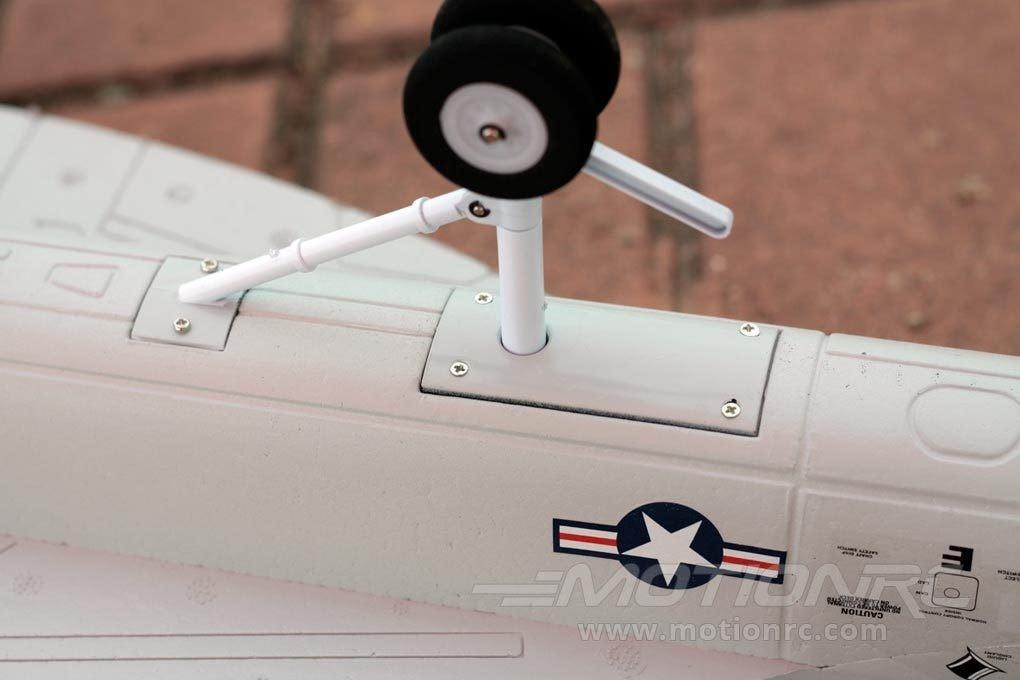

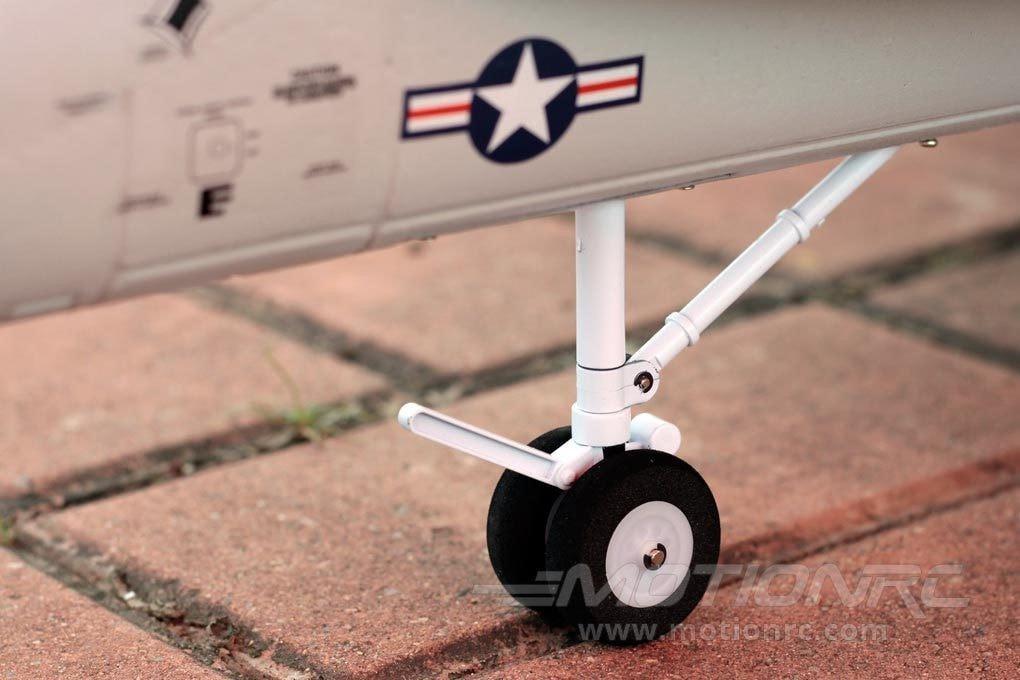

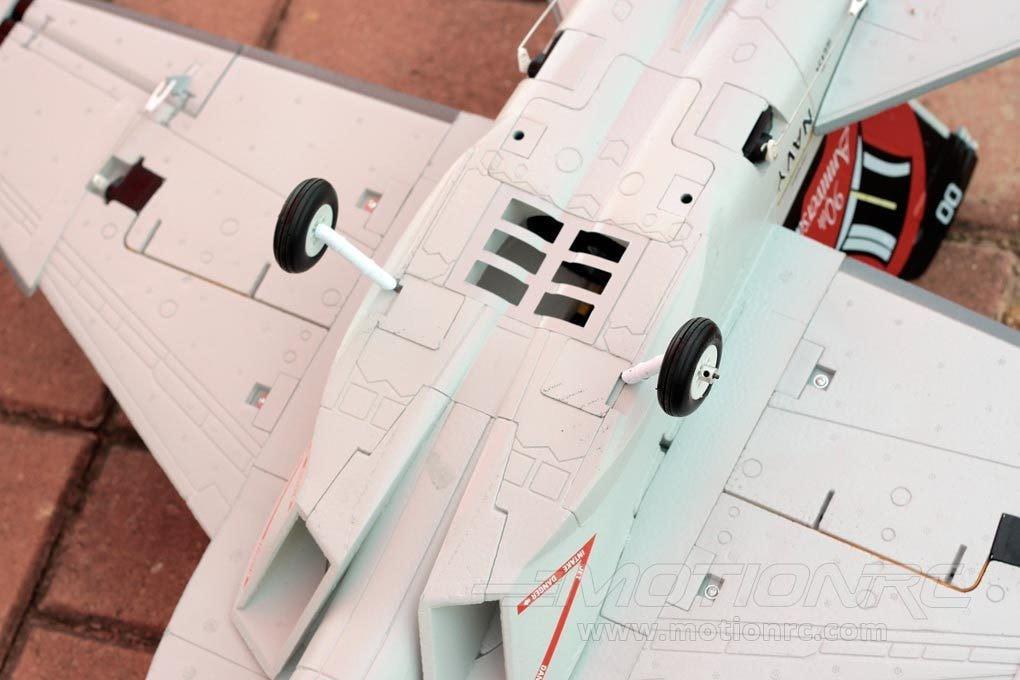

Landing Gear Fixed main landing gear, steerable nose gear.
Required Battery 4S 14.8V 2200mAh with XT60 Connector
