Hawk T1 Red Arrow from Freewing Model

Details

The Freewing 70mm Hawk T1 features a powerful 12 bladed EDF power system for satisfying speed, vertical performance, and realistic sound, and gives sport jet handling similar to the Avanti and Stinger 90. Since the T-45 is a modified version of the BAe Hawk, we scaled down our Freewing 90mm T-45 Hawk from 2015 then reworked it to be simpler, faster, and with a lighter wing loading with superior all around handling.

With your supplied 6Ss 2700mAh-4000mAh LiPo battery, the 6S power system can achieve a top speed of approximately 160kph / 100mph. Retractable landing gear, flaps, and a wide gear stance make the aircraft well suited for beginner to intermediate jet pilots flying off of pavement or very well manicured grass runways. An optional suspension strut set is available if more shock absorption is desired. A large battery bay provides easy access to your battery, receiver, and an optional gyro stabilizer.

To enhance visibility, the Freewing 70mm Hawk T1 also features the signature bright white nose light of the real aircraft, and sports bright red and green wingtip lights as well. This is the only Freewing 70mm Class aircraft to include pre-installed lighting!

Building upon the popularity of the Freewing 70mm F-16, the Freewing 70mm Hawk T1 adds the new feature of LED lighting and the benefit of a wider wing and wider gear stance than the F-16. Overall, the Hawk makes a perfect “first 70mm EDF”, and its common size 6S 4000mAh battery can be used in many other aircraft. Stable and predictable at both slow and high speeds, the Freewing Hawk T1 cruises confidently at 50% throttle, giving pilots time to enjoy the profile of this iconic jet as it flies by. We also love this Hawk because it flies like a smaller Freewing Avanti –one of the world’s most popular foam EDFs! With a similar planform as the Avanti, proficient pilots can push the Hawk to perform many acrobatic maneuvers with precision and confidence.

Features


  • Durable EPO Foam and Reinforced Construction
  • Realistic Shape and Detailing
  • “DayBright” LEDs (White Nose, Red Port side Wingtip, Green Starboard side Wingtip)
  • Electric Retractable Landing Gear
  • Flaps
  • 12 Blade EDF Fan For Realistic Sound
  • Removable Main Wing for Easy Transport
  • Minimal Assembly
  • Optional Suspension Strut Set (Sold Separately)

Pictures

Manual

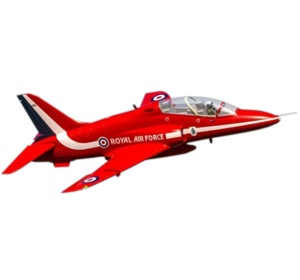

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1020mm (40.2 in)
Length: 1221mm (48.1 in)

Weight: 1450 g (3.2 lbs)
Wingspan 1020mm / 40.16in
Length 1221mm / 48.1in
Weight 1450g / 51.14oz (w/o battery)
CG (Center of Gravity) 162mm from the leading edge of the intakes
Power System 3048-2300kV Brushless Outrunner Motor
Electronic Speed Control 80A, EC5 Connector
Propeller / EDF 70mm 12-Blade EDF
Landing Gear Full electronic retractable nose and main landing gear
Required Battery 6S 22.2V 4000 - 5000mAh LiPo with EC5 connector (required)
Required Radio 6 Channel (required)
