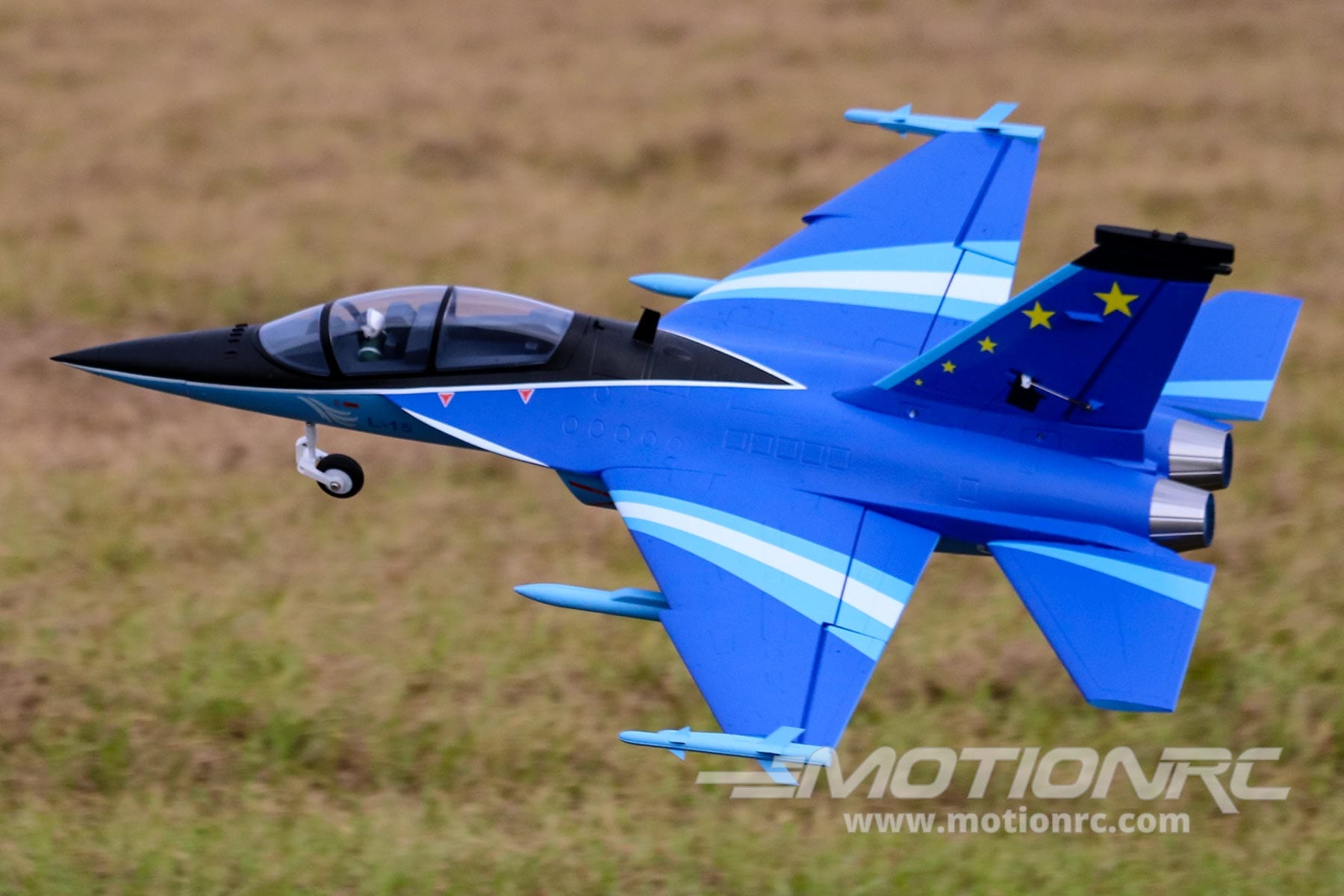

L-15 JL-10 Falcon 4S from Freewing Model

Details

This is the 4S version of the 64mm L-15. This model comes with a brushless 2840-2850Kv outrunner motor and a 40A Brushless ESC with Thrust Reversing (XT60 connector). The landing gear is fixed (non-shock absorbing). The 4S version accepts a 1800 - 2600 mAh 4S 14.8V LiPo battery.

The Hongdu L-15 Falcon, also known as the JL-10, is a supersonic trainer and light combat aircraft developed by Hongdu Aviation Industry Corporation (HAIC). It is utilized by the People's Liberation Army Air Force (PLAAF) as a lead-in fighter trainer (LIFT).

The overall planform, scale shape and details of the L-15 are expertly captured in this 64mm EDF Jet from Freewing. The scale armament utilizes Freewing’s latest sliding attachment method, making it a breeze to install or remove these scale details, and with its overall simplistic design, you can be flying in as little as 30 minutes with the PNP version.

Features:

  • Freewing EG01 3/6 Axis Gyro
  • 12-Blade EDF with 2840-2850Kv Brushless Motor
  • 40 Amp Electronic Speed Controller with Thrust Reversing
  • 4S LiPo capability for high performance flight
  • Scale details, including armament, pilot and landing gear
  • Full flying horizontal stabilizers
  • Complete aileron, flap, elevator, rudder and nose gear control
  • 8x 9g servos pre-installed

Pictures and Description from MotionRC

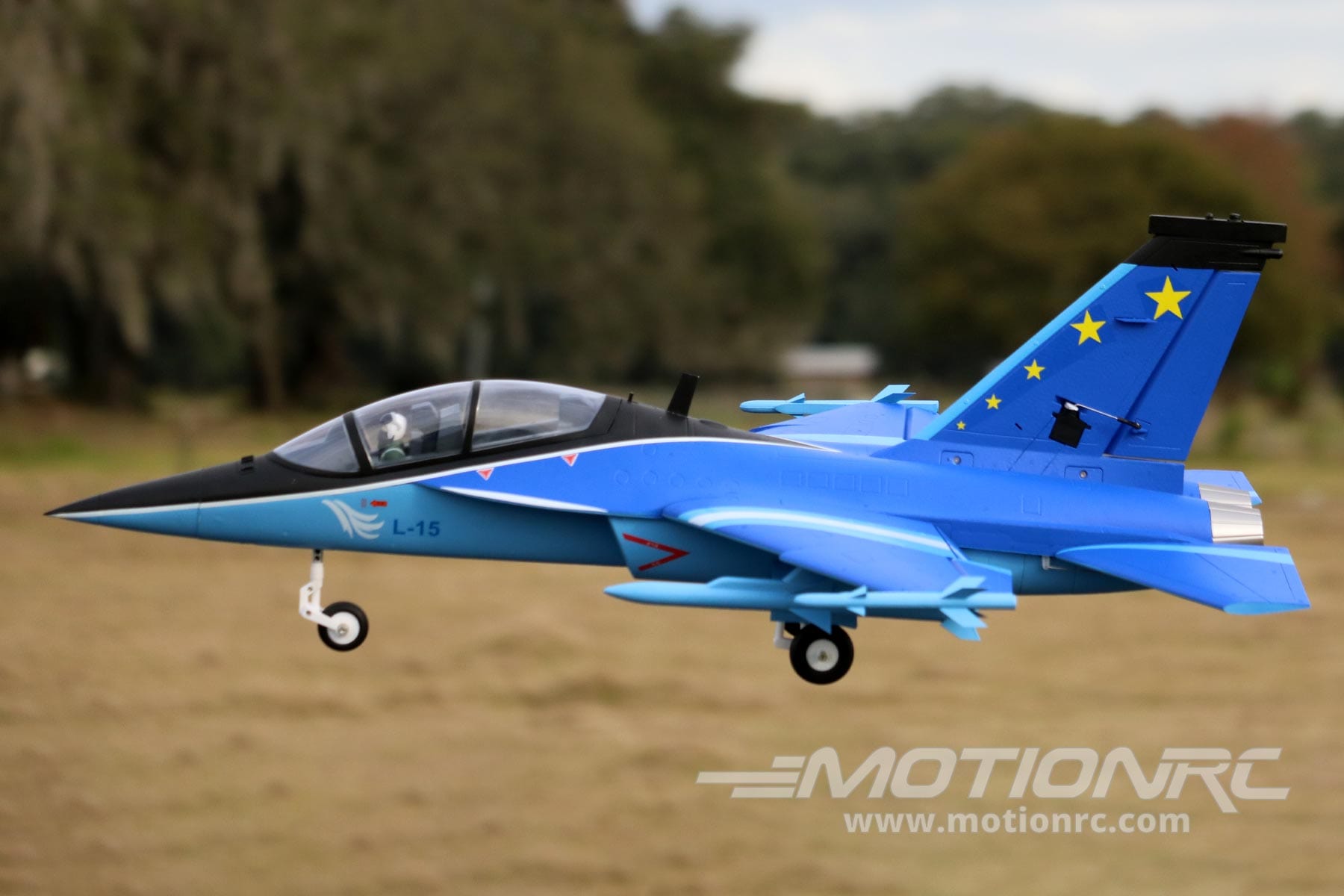

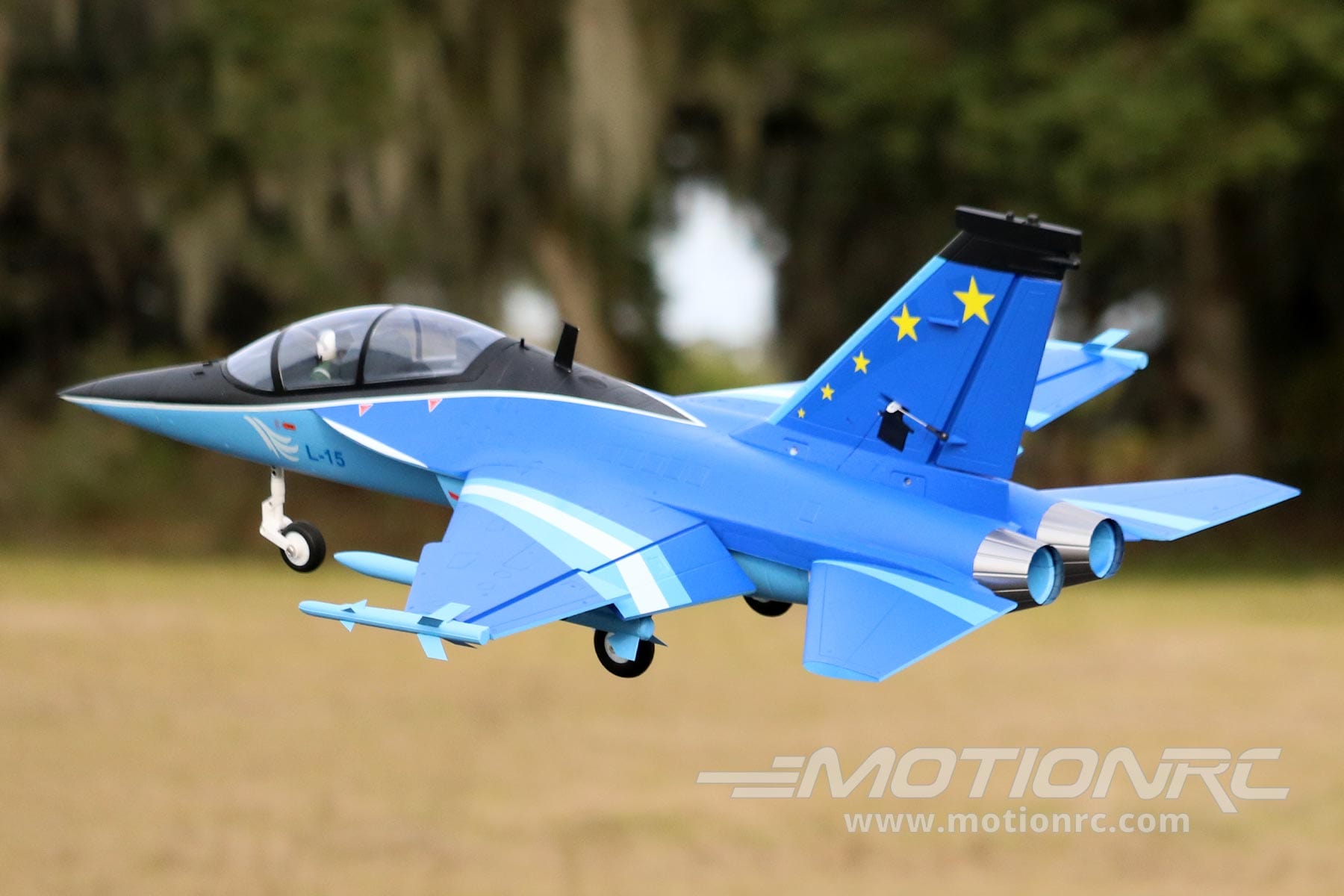

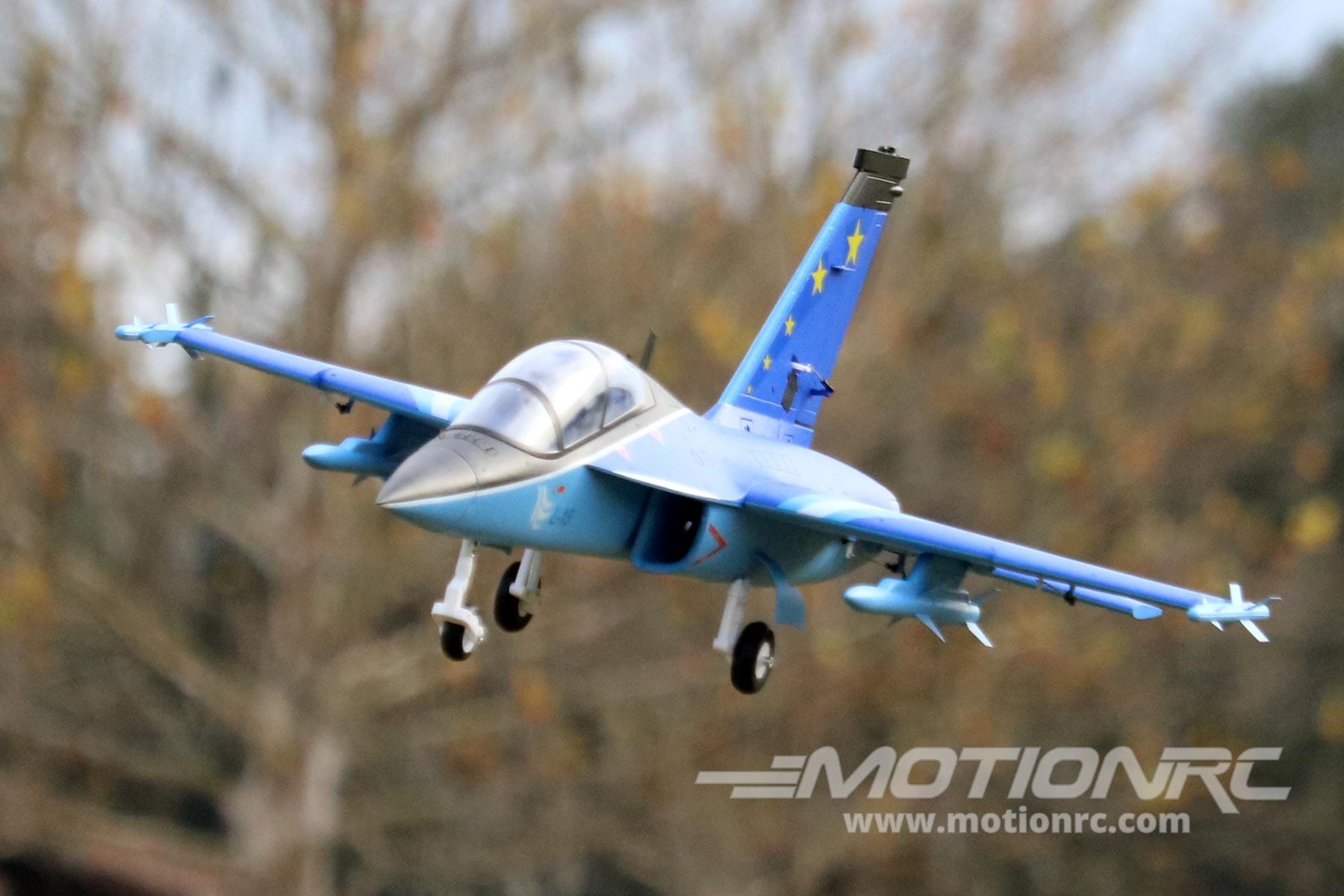

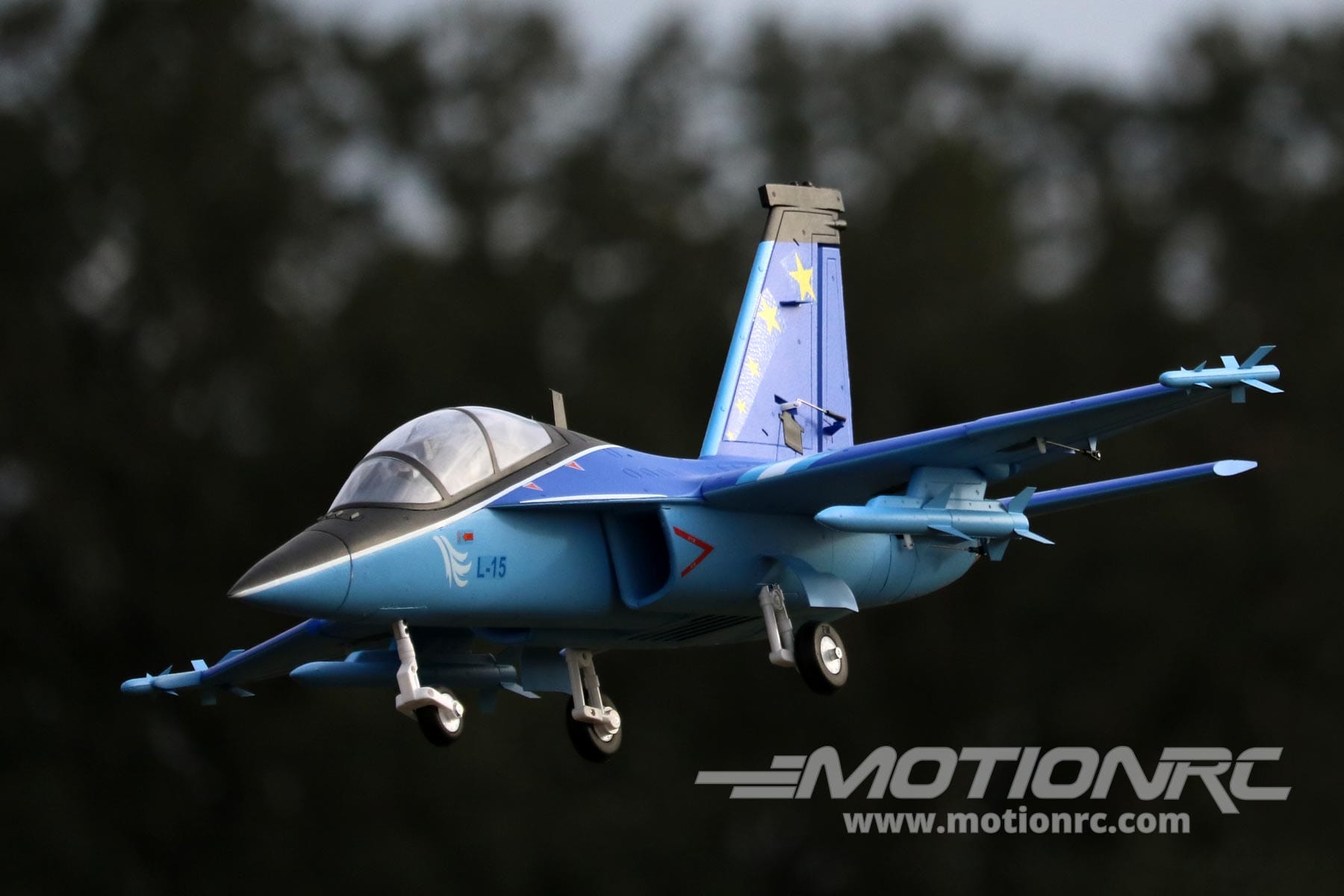

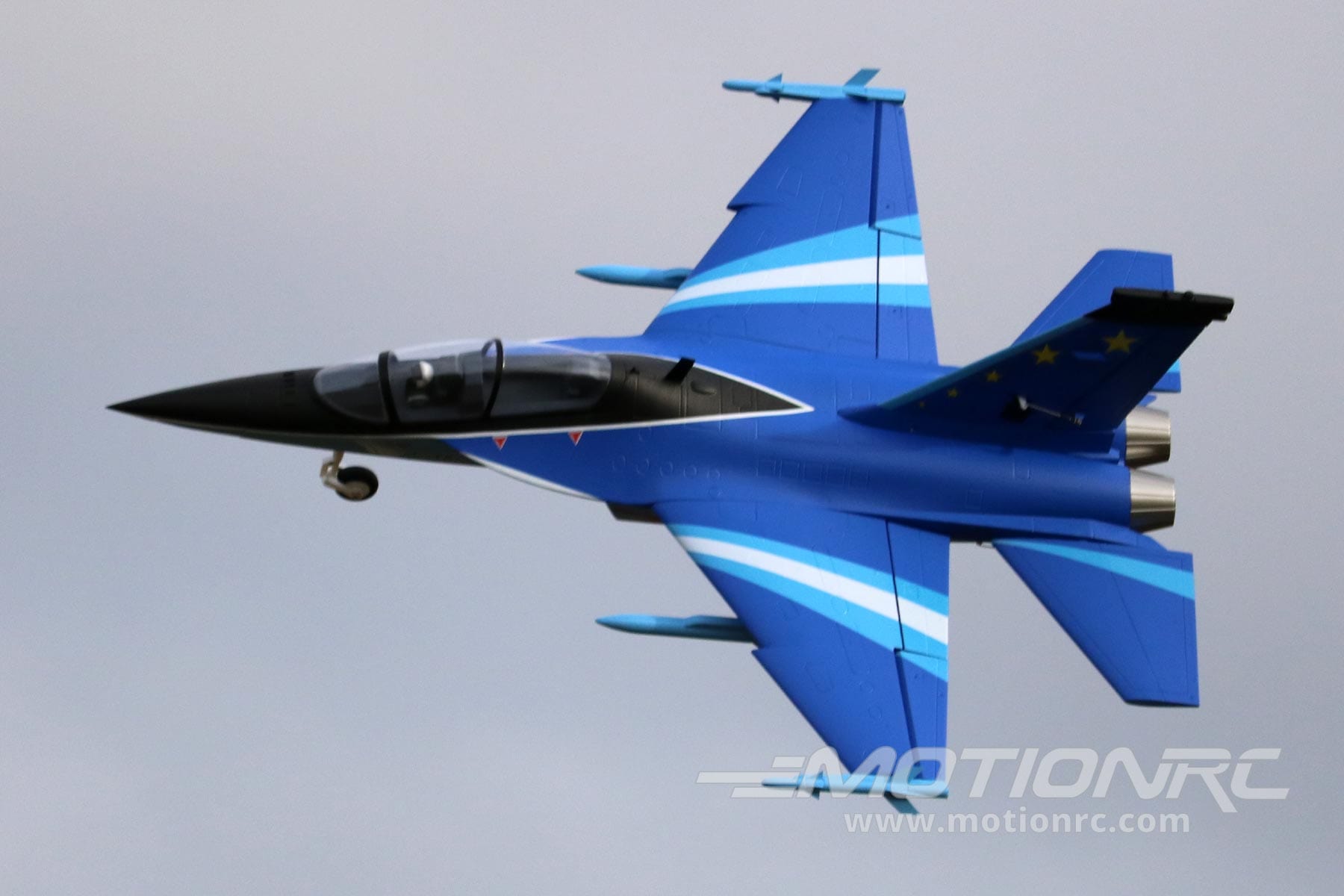

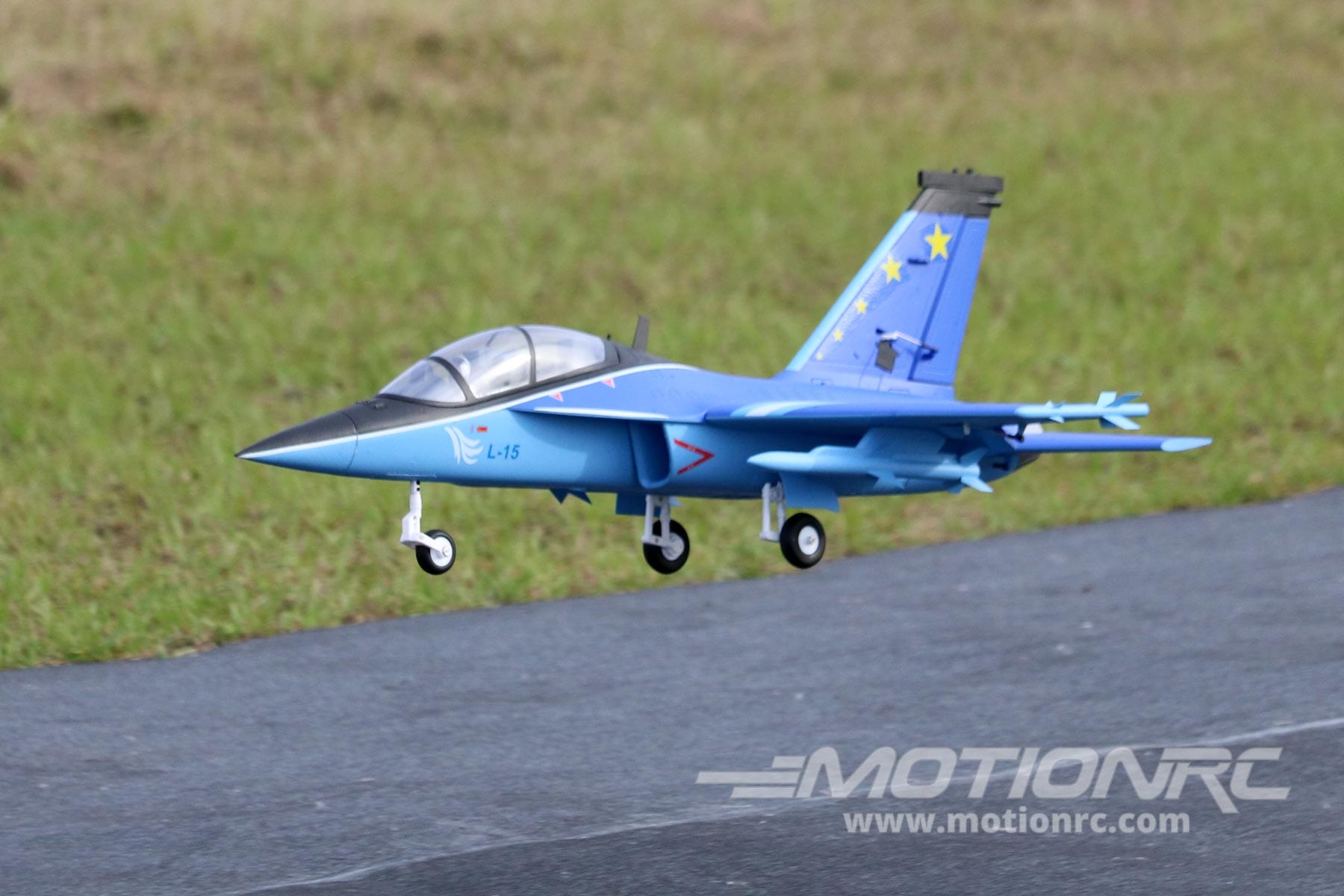

Pictures

Manual

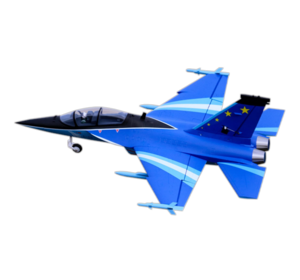

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 760mm (29.9 in)
Length: 970mm (38.2 in)

Weight: 910 g (2 lbs)
Wingspan 760mm / 29.9in
Length 970mm / 38.2in
Weight 910g / 32.09oz
Power System 2840-2850Kv brushless outrunner motor
Speed Control 40A, Thrust Reverse, XT60 Connector
Propeller / EDF 64mm 12-Blade EDF
Servos
  • 9g plastic standard with 100mm lead : left flap, left elevator, rudder - MD31091-100
  • 9g plastic reverse with 100mm lead : right flap, right elevator, nose steering - MD31091R-100
  • 9g plastic standard with 200mm lead : left aileron, right aileron - MD31093-200
Landing Gear Fixed, wire gear with overmolded plastic scale details
Required Battery 4S 14.8V 1600mAh to 2600Ah LiPo with XT60 connector (required)
Required Radio 8 Channel radio
Rdr/Flp/Ail Yes/Yes/Yes
Lights No
Hinge Type Nylon hinges on all control surfaces
