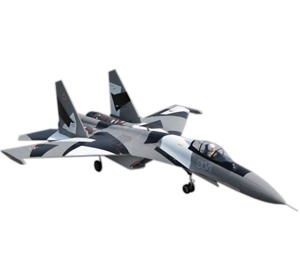

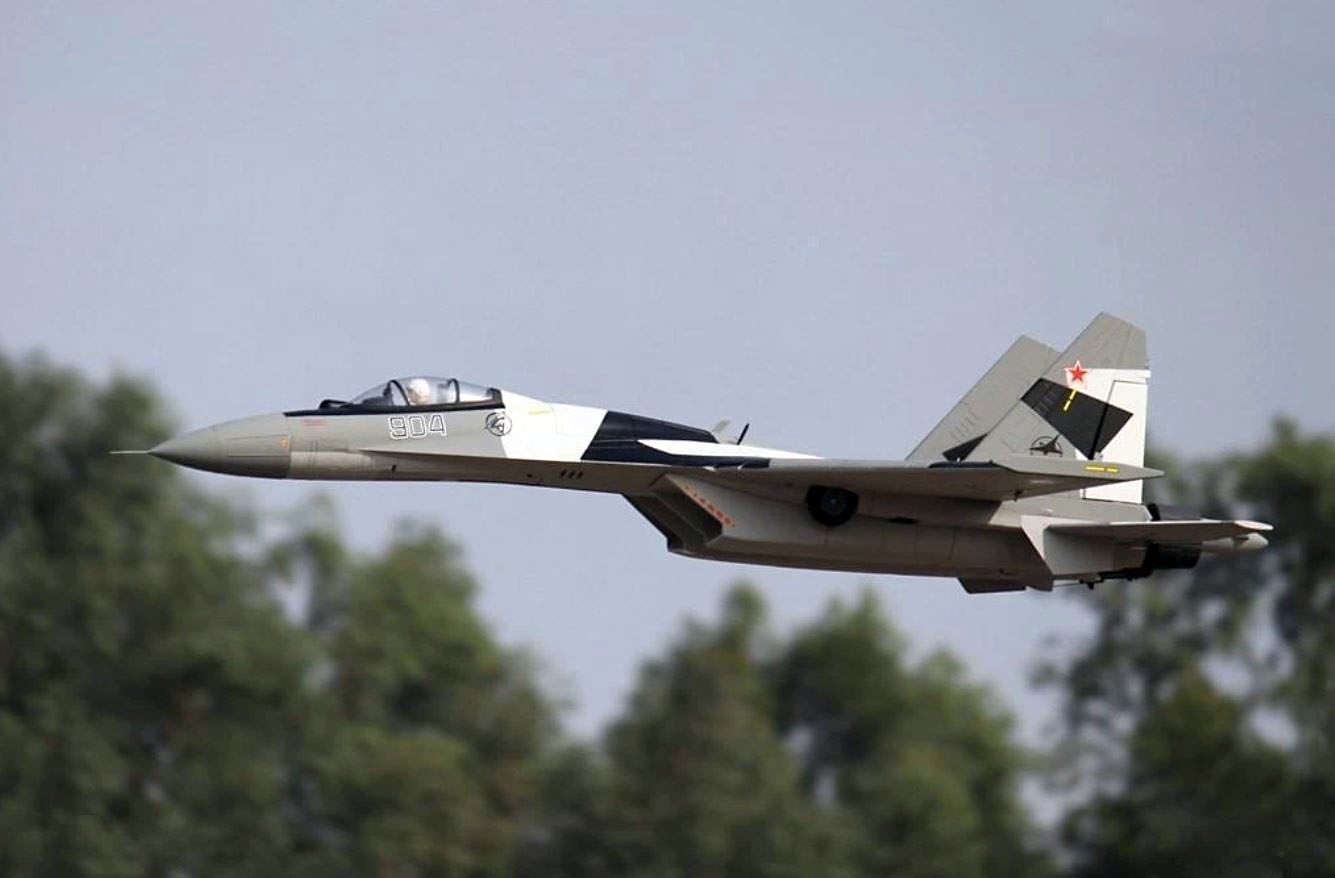

SU-35 Flanker-E from Freewing Model

Details

This 3D version of the Freewing SU-35 has more thrust (3000g) than the regular version. The ESC has now been upgraded to dual 60A Hobbywing ESC as of July 2013. The size of the Freewing SU-35 is an amazing site to behold. This plane is one of the largest, most sophisticated, foam EDF jets made. Whether you like scale flight or outlandish maneuvers, the Freewing SU-35 can do it all. We think the Freewing SU-35 is one of the most entertaining EDF jets out there. The specs alone are amazing. The SU-35 is built from EPS foam and has nylon hinged control surfaces, shock absorbing landing gear, dual motors, dual ESC, dual 70mm EDF fans, and runs on a 6 cell LiPo battery. We are not sure what else to ask for in an EDF jet.

Features:

  • Dual Hobbywing 60A ESC
  • EC5 ESC Connector
  • 12 Blade EDF Fans
  • Dual 70mm electronic ducted fans (EDF)
  • 360 degree vectored thrust for incredible maneuvers (hover, flip turns, etc.)
  • Durable shock absorbing landing gear
  • Nylon hinges on all control surfaces (superior to foam hinges
  • Brushless motor, ESC and servos installed

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the SU-35 Flanker-E in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA

Wingspan: 1080mm (42.5 in)
Length: 1630mm (64.2 in)

Weight: 2600 g (5.7 lbs)
Wingspan 1080mm / 42.5in
Length 1630mm / 64in
Flying Weight 2600g
Power System 2x Brushless 3048-2150KV
Speed Control 2x 60A Hobbywing, EC5 connector
Propeller / EDF 2x 70mm EDF
Servos 9g standard with 100mm lead : vector 3, rudder
9g standard with 550mm lead : nose gear door
9g reverse with 300mm lead : vector 2
9g standard with 300mm lead : nose gear steering, left aileron, right aileron, vector 1
17g metal gear standard with 300mm lead : right elevator
17g metal gear reverse with 300mm lead : left elevator
Required Battery 6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector

Variants

FJ30311P
SU-35 Flanker-E (Grey Camo)
