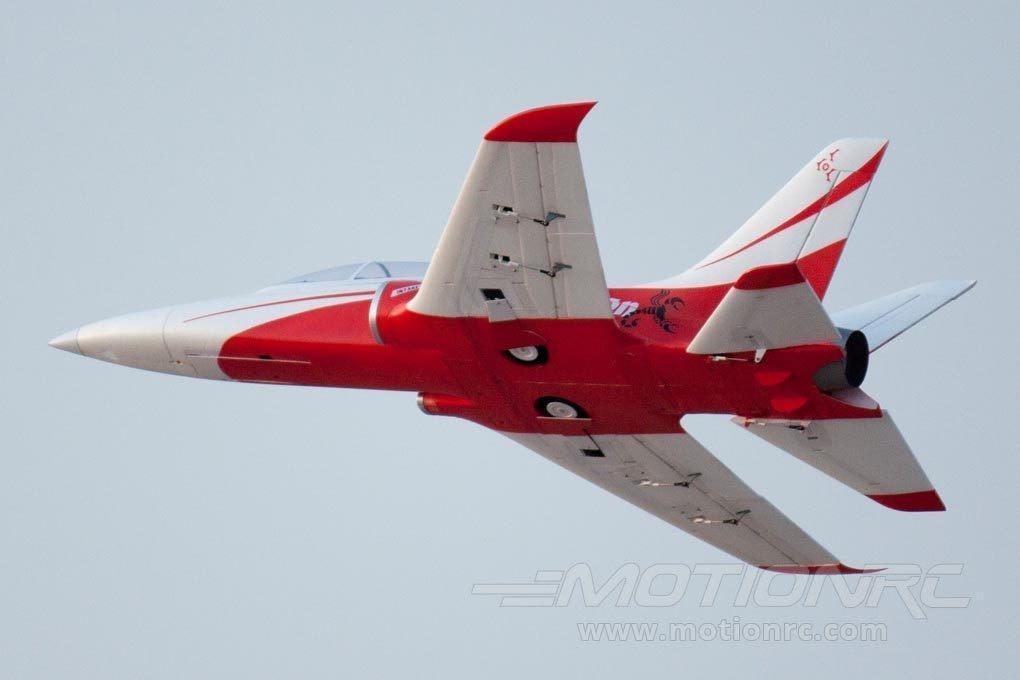

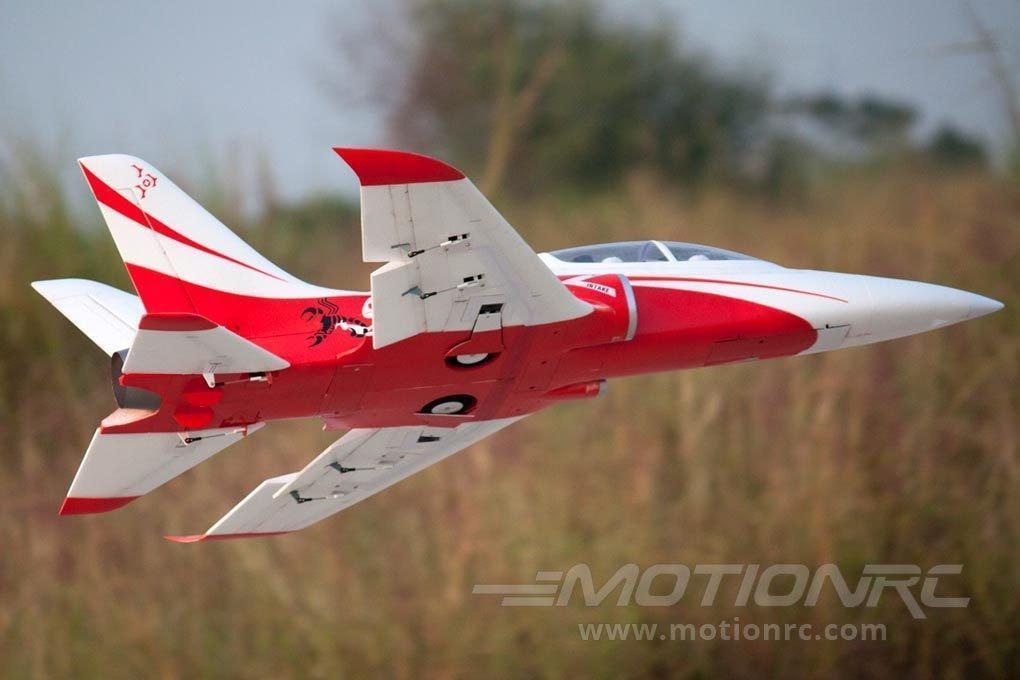

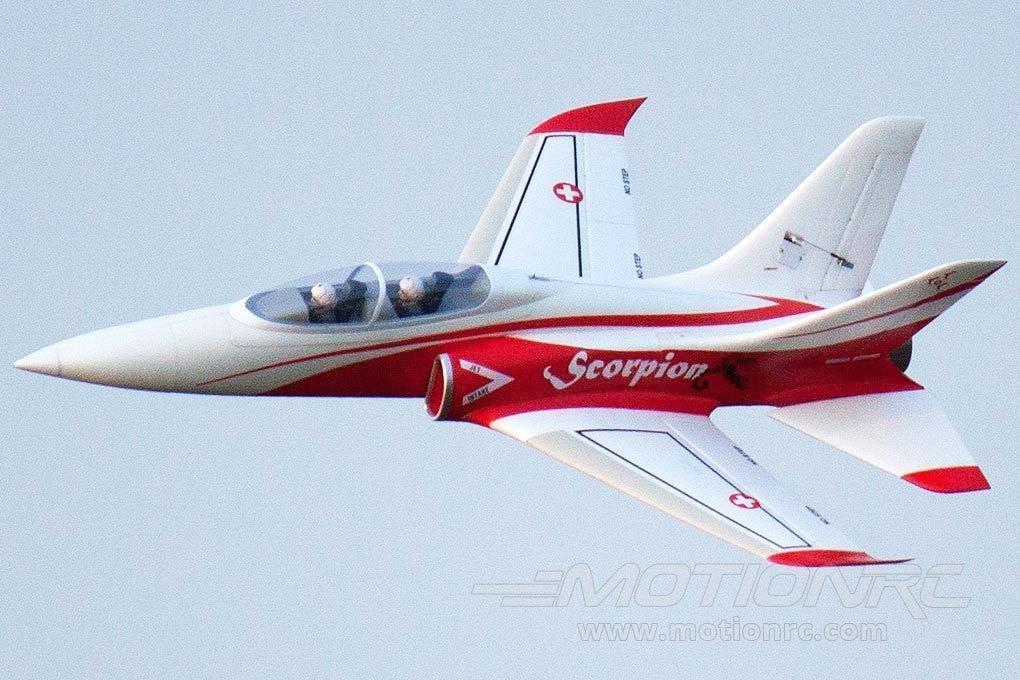

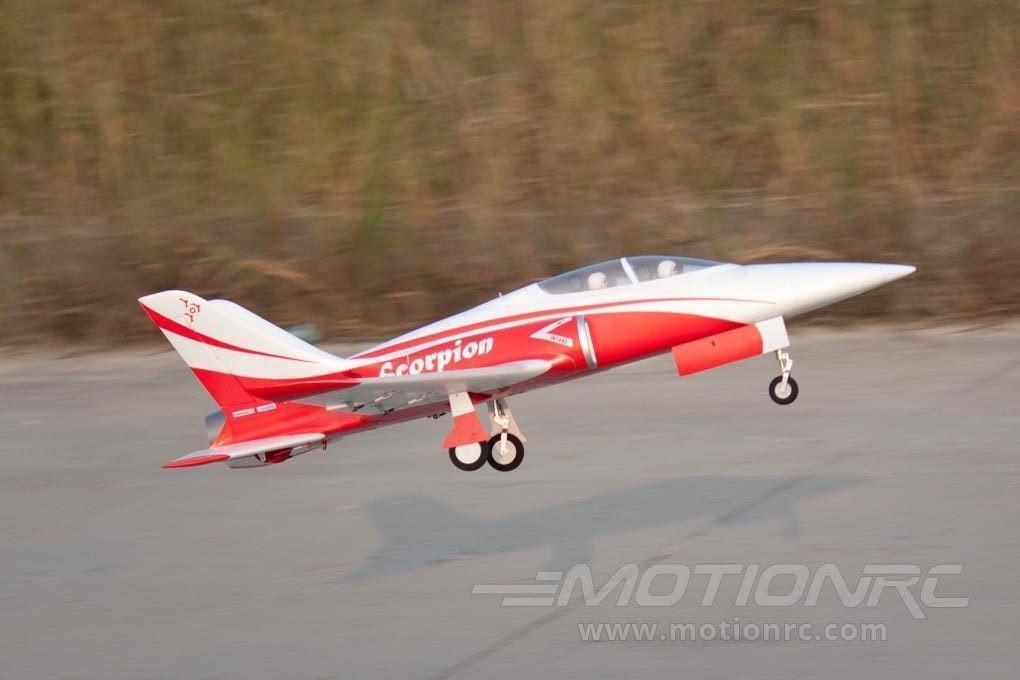

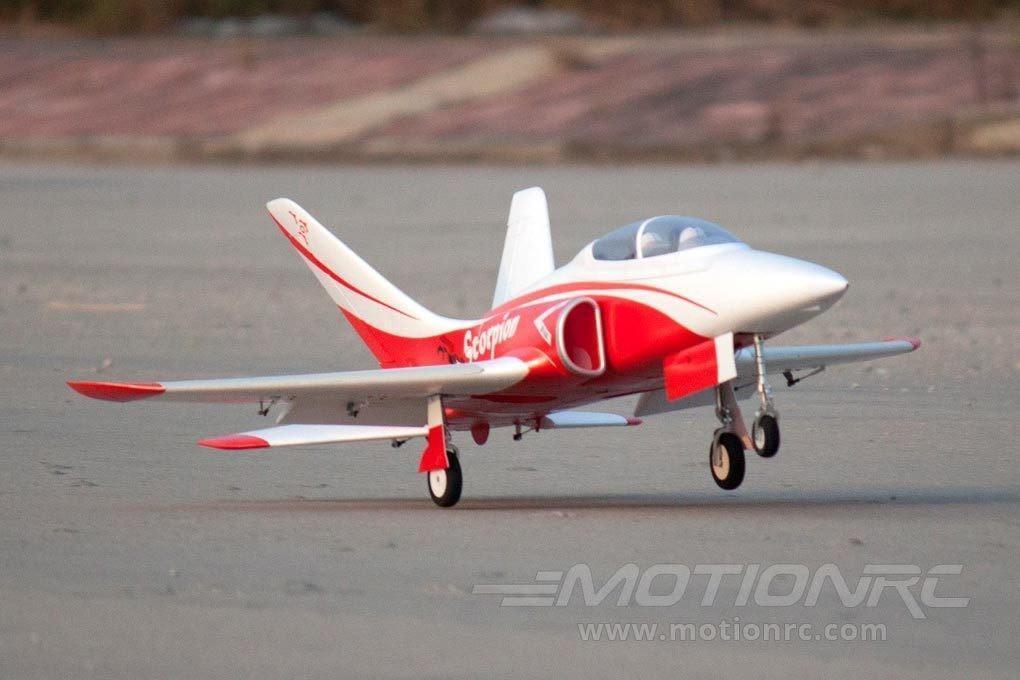

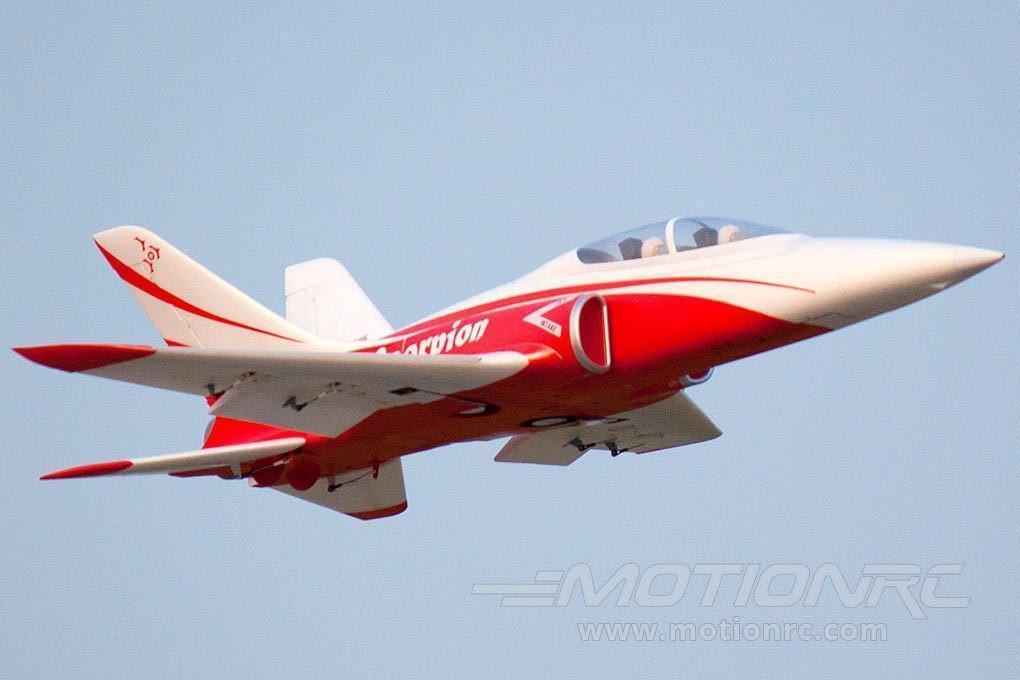

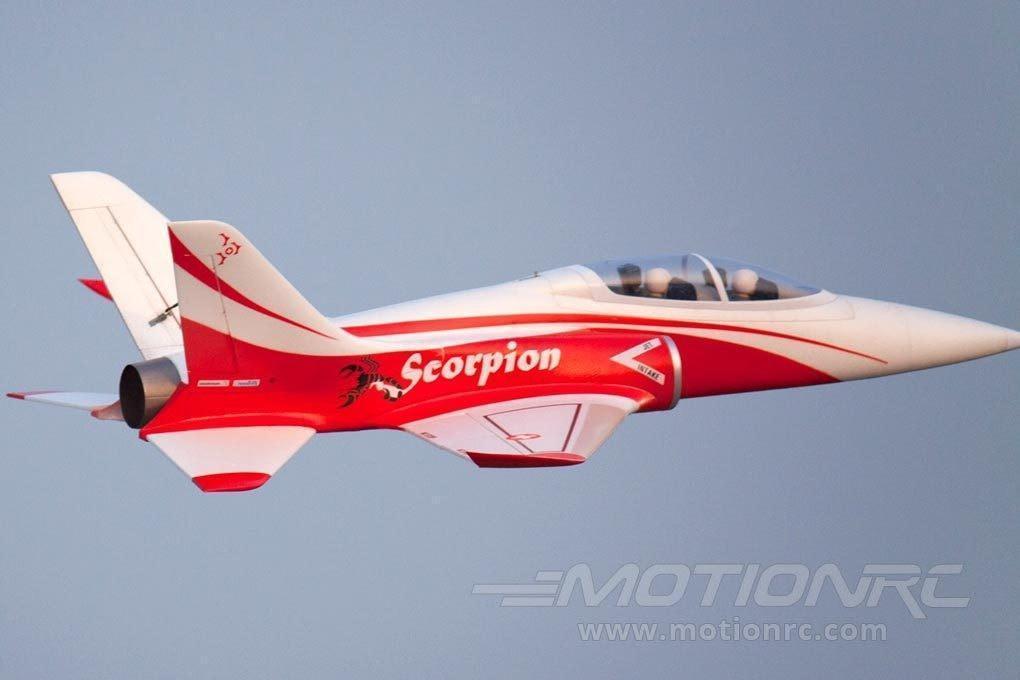

Super Scorpion from Freewing Model

Details

Freewing partnered with Aviation Design, the original creators of the Super Scorpion, to scale down their large turbine-powered fiberglass jet into a compact electric powered 80mm EDF foam variant. The same exciting sport jet characteristics of the original Super Scorpion all remain: stable acrobatic maneuvers at all speeds including four point rolls and tall Cuban 8's, a predictable and gentle stall behavior, agile flight characteristics, slow full flap passes and landings, and more! Pilots can experience the performance handling of a purpose-built sport acrobatic jet in a unique design which is sure to turn heads at your local flying field.

Freewing's 80mm Super Scorpion is the perfect size for easy transport yet still containing the thrust of a 6s 80mm 12 blade power system. The rigid, carbon fiber reinforced wings are removable with screws, as are the unique vertical stabilizers, and full flying horizontal stabilizers. Metal gear servos on the elevator ensures positive control. The Super Scorpion also uses the larger Stinger 90-sized nose retract and trailing link struts all around for durable grass field operation. Plastic main gear doors and a spring-hinged full coverage nose gear door minimizes drag. A smartly designed NACA duct in the bottom of the nosecone draws air into the battery compartment to cool the battery.

For pilots who have flown other aircraft in Freewing's 80mm Jet Series, the Super Scorpion blends the stability of the F-86 Sabre in an agile package slightly slower than the Mirage 2000. While the Super Scorpion has a wider fuselage than the Mirage, we appreciated the Super Scorpion's larger battery bay to accommodate our Admiral 6s 4000, 4500, or 5000 mAh-sized battery packs. The Super Scorpion is designed for intermediate to advanced EDF pilots.

Features:

  • 2 Blade factory balanced EDF with metal housing and 3530-1750KV brushless outrunner motor produces realistic jet turbine sound
  • Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant
  • Super scale details include hand painted, scale-sized pilots and full instrument panel
  • Super Scorpion graphics in easily visible red/white Swiss Scheme
  • Official insignia decal of Aviation Design, the innovative creators of the Super Scorpion
  • 80 Amp Hobbywing ESC with 5A BEC
  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground maneuverability
  • Spring operated nose gear door
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
  • Removable wings and vertical stabilizers for convenient transport

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 970mm (38.2 in)
Length: 1150mm (45.3 in)

Weight: 2300 g (5.1 lbs)
Wingspan 970mm / 38.1in
Length 1150mm / 45.27in
Flying weight 2300g / 81.13oz
CG (Center of Gravity) 160-170mm from the leading edge of the intakes
Servos 1x 9 gr metal gear inversed, 1x 17 gr metal gear, 1x 17 gr metal gear inverse, 6x 9 gr metal gear
EDF Diameter Class 80
Blades 12
Turbine shroud Metal
EDF Rotor Synthetic
Power System 3530-1750kV Brushless Outrunner
Motor Type: Out-Runner
Electronic Speed Control 80A Hobbywing - 5A UBEC
Battery Cells 6s - 22.2v
Battery Capacity (mAh) 4.000 mAh, 5.000 mAh
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Material EPO Foam, Carbon reinforcements
