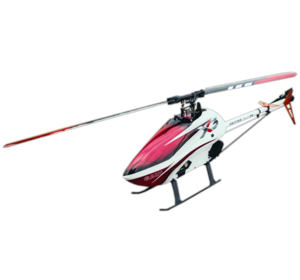

X3 from GAUI

Details

Released in August 2013, the X3 (size 450) remains in the continuity of the X series and Gaui enters the great battle of the 450 classes with this brand new product. With a 6mm main shaft, a 5mm blade root shaft and, most importantly, a 4mm anti-torque shaft, strength is provided and allows for longer blade sizes, such as the latest Edge in 353mm. Equipped as standard with a Gaui flybarless rotor, the design ensures an extremely fast and precise response of the machine, while remaining smooth in flight.

The transmission is based on that of the X7 and X4, so, cardan system with flat anti-torque crown, a system that has already proven itself on all terrains and that we are happy to find on this small size.

Gaui offers the X3 in a basic kit version, and in a kit version delivered with a metal anti-torque, here, the model with metal anti-torque

To keep a nice look and to have a fast flight efficiency, Gaui keeps the "Formula" bubble concept.

The body is designed "à la Gaui", therefore, very resistant and allows from the start to choose between a "classic" motorization in 3S (11.1V) or 6S (22.2V) according to the type of flight desired. The main ring gear is placed on a metal plate to ensure solidity and the main ring gear/motor pinion are mounted in helical.

Contrary to what we are used to see, the battery is housed in the body, so an extreme protection in case of crash and an easy handling.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the X3 in particular but at least we know they do distribute GAUI.

Wingspan: 808mm (31.8 in)
Length: 808mm (31.8 in)

Weight: 465 g (16.4 oz)
  • Main rotation diameter: 738 ~ 808mm
  • Main blade length: with 315~360mm main blades
  • Tail rotation diameter: 164mm
  • Total weight: 465g ±3% (kit with canopy,w/o all electronics, blades and batteries.)
  • Flight time: 3~4 minutes (3D flight 3S 2100mAh or 6S 1100mAh)
  • LiPo Battery size: 110 x 34 x 34mm (3S & 6S)
  • Motor Drive Gear: 9T~13T
  • Main Drive Gear: 131T
  • Autorotation Tail Drive Gear: 61T
  • Tail Drive Gear: 14T
