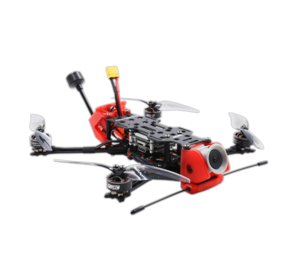

Crocodile Baby 4 from GEP RC

Details

The most distinguished 4 inch Micro Long Range quadcopter,With superb light-weight design frame and more than 28 Minutes flight time,GEPRC Crocodile Baby 4inch is launching right now,It was just a complete out-of-body experience. There are three versions:DJI HD VTX,Analog VTX 5.8G 600MW and 4K HD recording camera version.Pilots can choose whichever based on their likings.

Crocodile Baby 4 inch is the lightest 4-inch Micro Long Range FPV at present.The minimum takeoff weight is within 250g,which conforms to FAA rules.If you are looking for a FPV that can fly around 30 minutes,Crocodile Baby 4 inch is powerful and flexible flight.it will satisfy all your needs.

Crocodile Baby 4 inch is the preferred choice for Micro Long Range flight.The High efficiency power system,New Produced GEPRC 1404 2750kv motor and Gemfan 4024 propeller,Using the latest GEP-20A-F4 AIO flight control system, and combine with DJI HD picture transmission system,It is very stable flight and providing a feeling of “easy control” that inspires confidence, especially among novice.In the hands of a skilled pilots, the Crocodile Baby can bring extreme awesome experience as well.Extensive testing ensures that frame and system hold up in any environment,It can work well and get better flight efficiency.If equipped with GEPRC Lion VTC6 3000mAh battery,flight time is more than 28 minutes.

Crocodile Baby 4 inch independently designed GPS module, added GPS function.When signal losing or VTX out of control,It can be start the rescue mode of betaflight (in emergency,The FPV fly back to the approximate position of the base,If the signal is get again,Be sure to operate the FPV to landing manually.) ,The Rescue mode won’t landing automatically.Crocodile baby integrates GEPRC Finder. If the FPV lost and disconnects the battery power,the beeper of GEPRC Finder will making the sound constantly.

Crocodile Baby 4 inch is assembled and debugged by GEPRC TEAM,Improved performance and the flight performance of the whole FPV always superior in Micro Long Range FPV flight.



Pictures

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Crocodile Baby 4 in particular but at least we know they do distribute GEP RC.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 200mm (7.9 in)
Length: 300mm (11.8 in)

Weight: 150 g (5.3 oz)
  • Frame:GEP-CB4
  • Wheelbase:174mm
  • The thickness of the top plate:1.5mm
  • The thickness of the bottom plate:2.0mm
  • The thickness of the arms plate:2.5mm
  • XT30 Connector
  • Weight: 150g
  • Dimensions: 300 x 200 x 100 mm

Flight Controller System:GEP-20A-F4

  • MCU:STM32F411
  • IMU:MPU6000(SPI)
  • Type-C USB interface
  • OSD:BetaFlight OSD w/ AT7456E chip
  • Integrated LC Filter
  • Firmware target:GEPRCF411
  • Power input:4S LiPo
  • VTX:CADDX VISTA HD
  • Props:Gemfan 4024
  • Antenna:GEPRC Momoda 5.8g LHCP

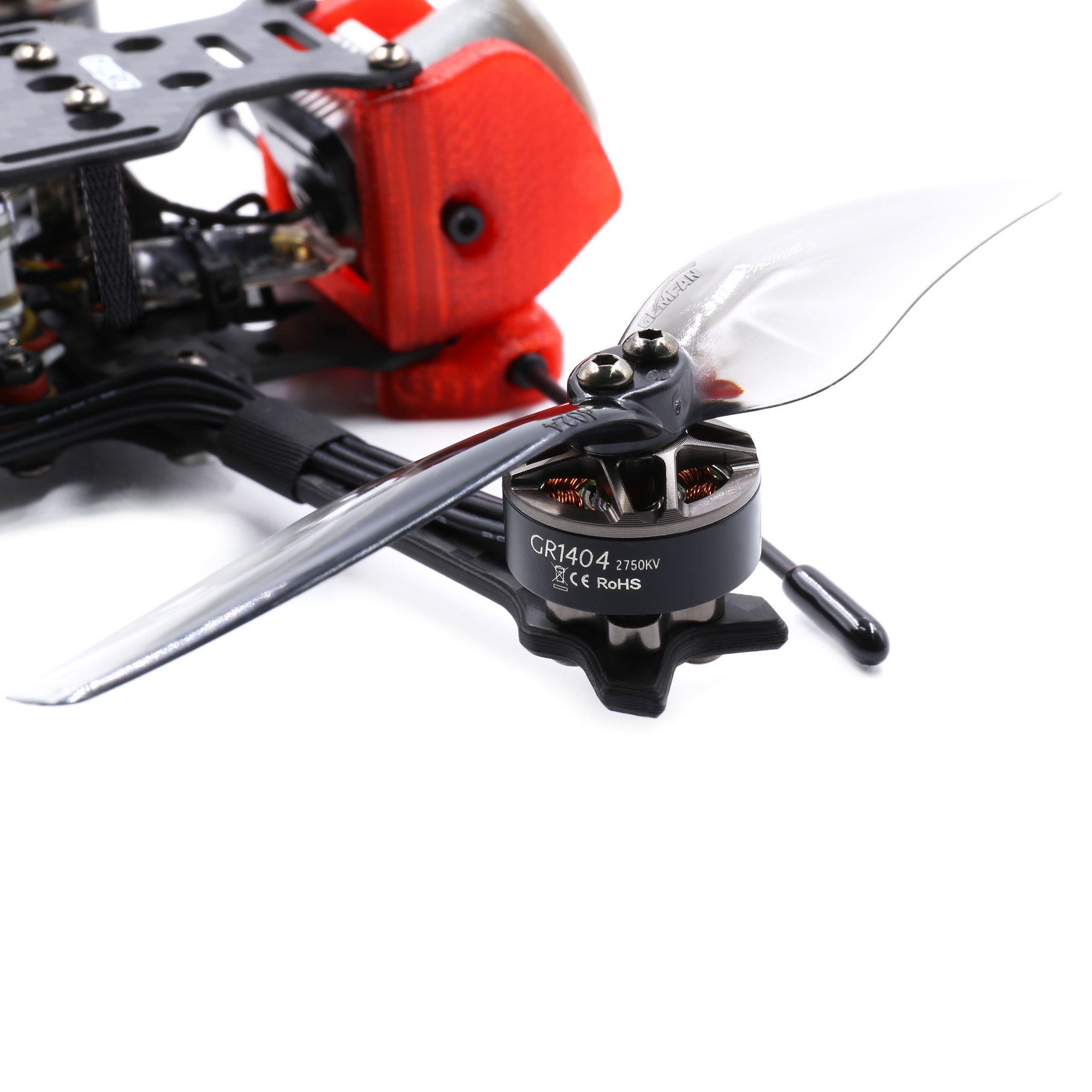

  • Motors:GR1404 2750KV
  • GPS:BN-228
  • Crocodile Baby 4″ HD Weight:242g (Include 4S 750mAh battery)
  • Receiver:PNP(with DJI Receiver) / Frsky XM+/ Frsky R9mm /TBS Nano RX

Variants

CB4HDLR
Crocodile Baby 4 (Black Red)
