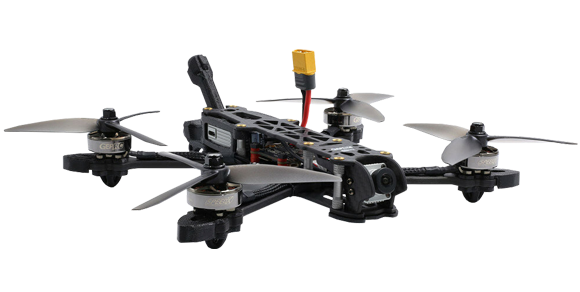

MARK4 HD5 from GEP RC

Details

Features:

  • The perfect match DJI FPV Air Unit
  • 3D printing parts are fixed and protected
  • No propeller in the view
  • Full 3K Carbon Fiber Frame
  • Super lightweight Freestyle frame
  • Beautiful appearance design,durable in crashing
  • Quick maintenance Arms and replacement of equipment
  • 25mm standoffs for better height and CG relation,Ample space for electronic installation
  • ALU6061 Srandoff New , Strengthen the hardness
  • There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.
  • High quality 3K twill carbon fiber plate, high precision CNC processing
  • YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

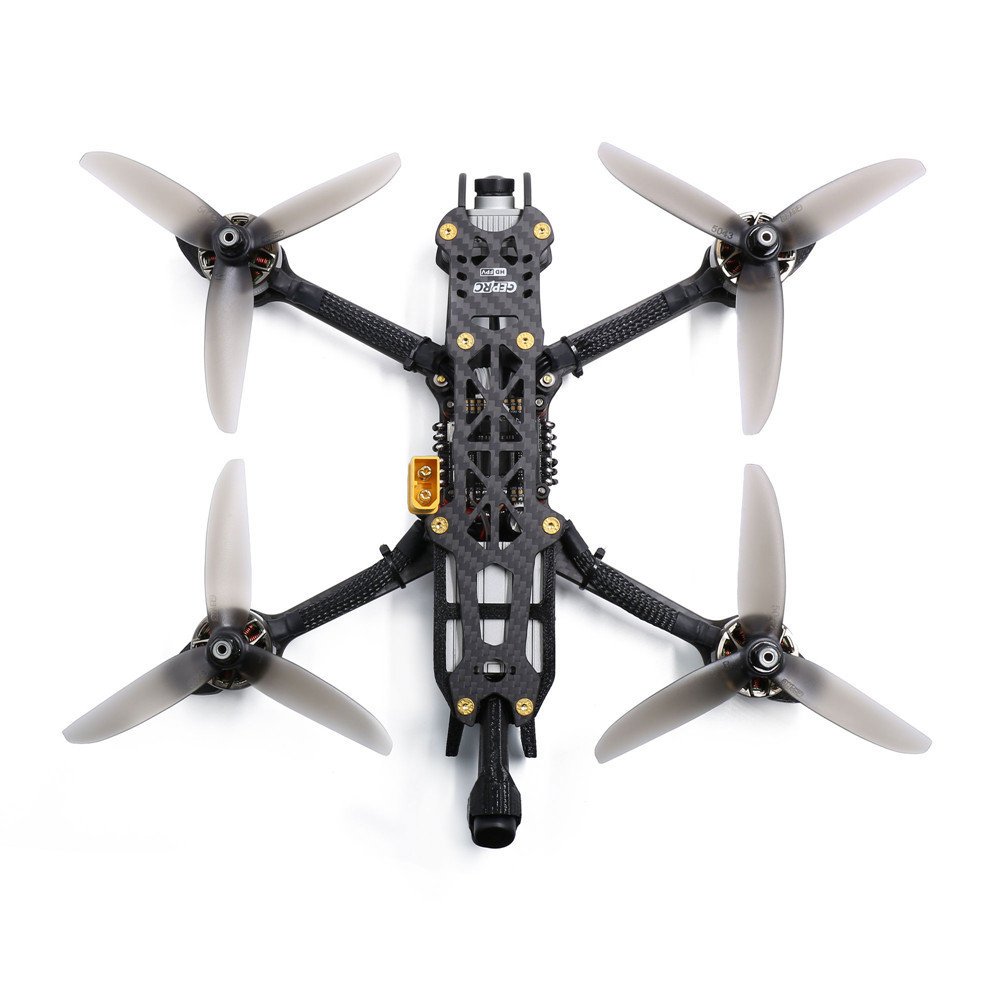

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the MARK4 HD5 in particular but at least we know they do distribute GEP RC.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 224mm (8.8 in)
Length: 224mm (8.8 in)

Weight: 121 g (4.3 oz)
  • Propeller : 5inch
  • Motor to motor:224mm
  • Size:138*176mm
  • Mounting Holes: 30.5*30.5mm/20*20mm
  • Weight:121g
  • Arms plate : 5mm
  • Side plate : 2.5mm
  • Top plate : 2.5mm
  • Bottom plate : 2.5mm
  • Protect plate : 2mm

Recommended:

  • Flight Controller:RF/Kiss/F3/F4/F7
  • Motor:2205/2206/2207/2207.5/2305/2306/2306.5
  • ESC:30A-50A
  • Propeller:5inch
  • Lipo: 4S 1500mAh ~ 6S 1300mAh
  • FPV :DJI FPV Air Unit

Variants

MRK4-HD5
MARK4 HD5 (Black)
