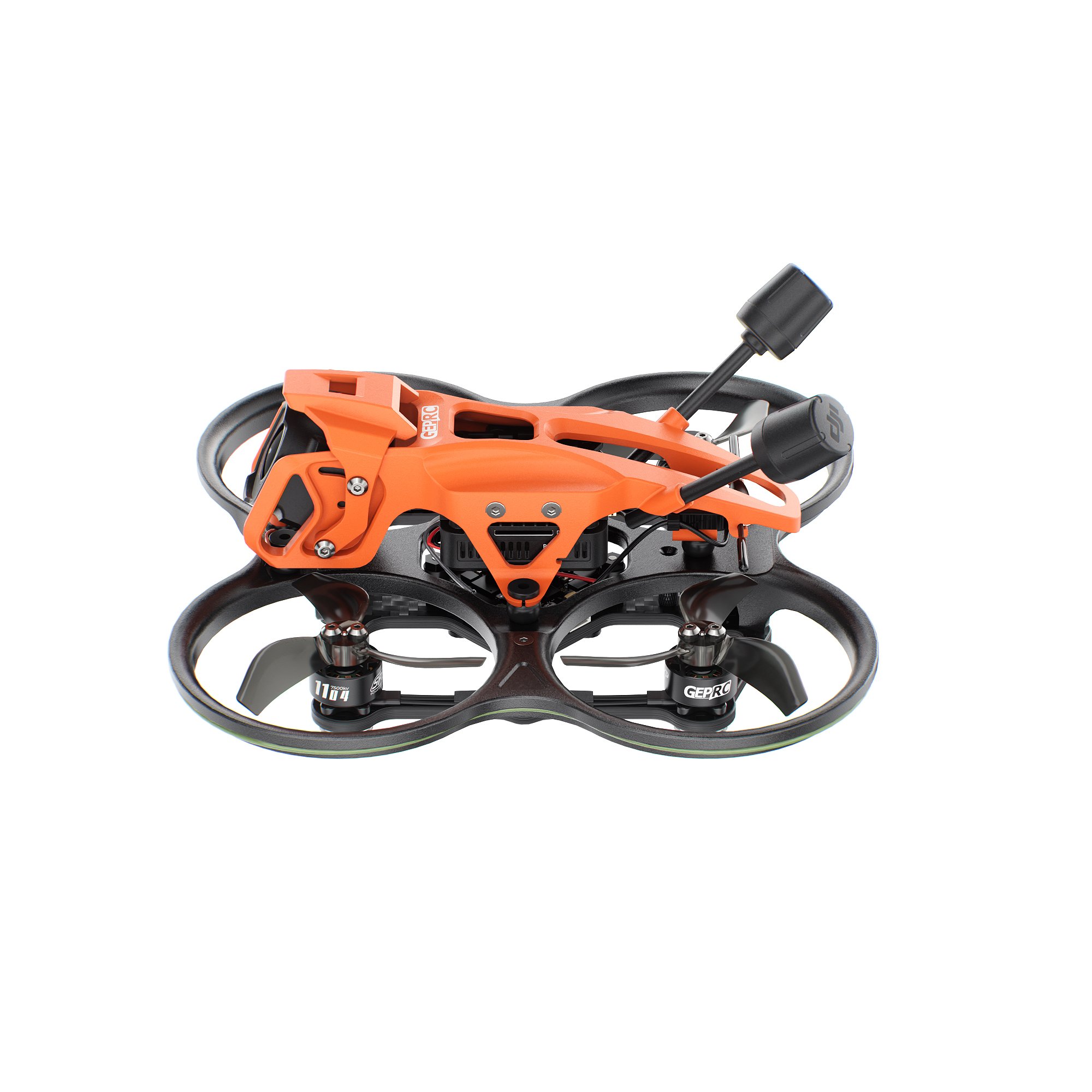

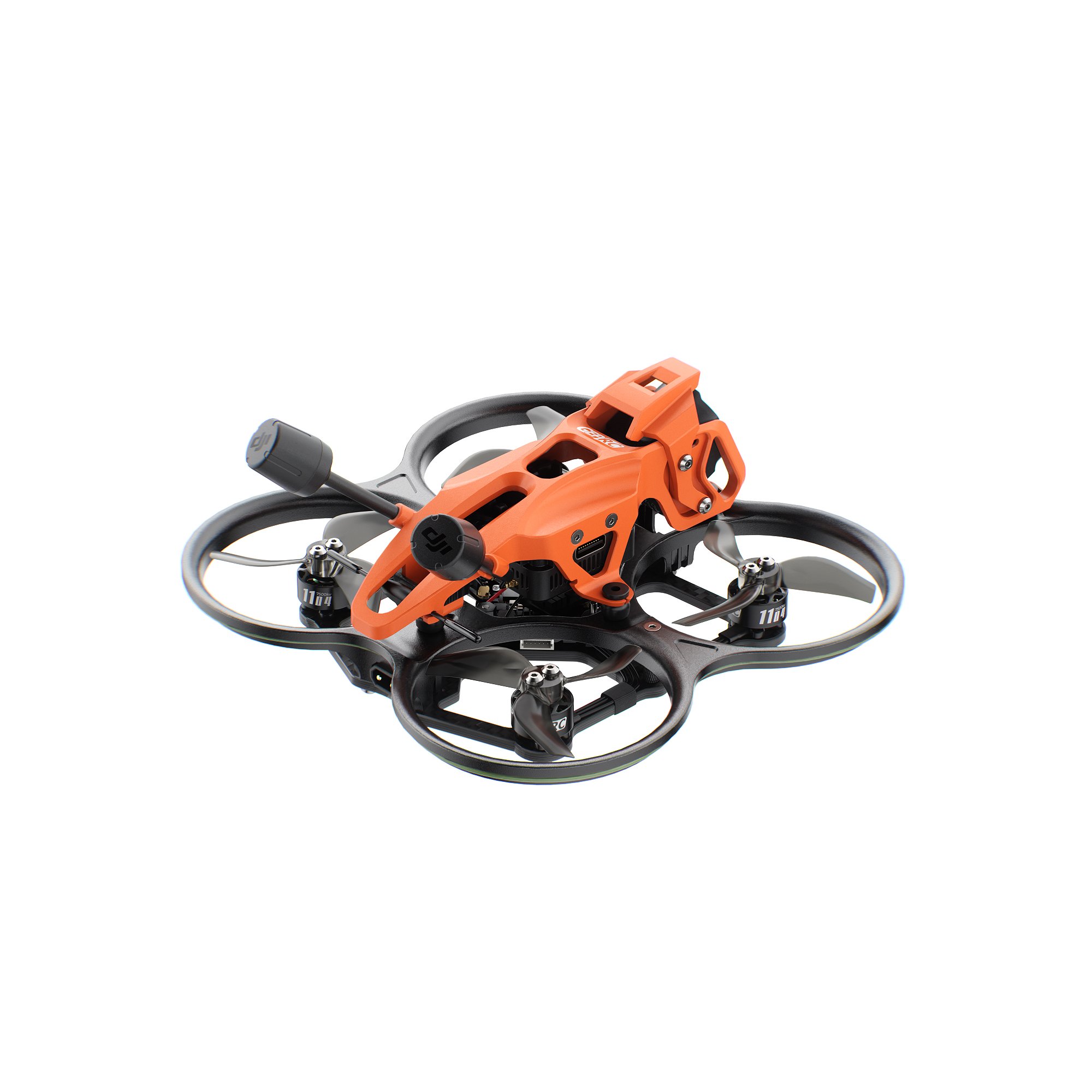

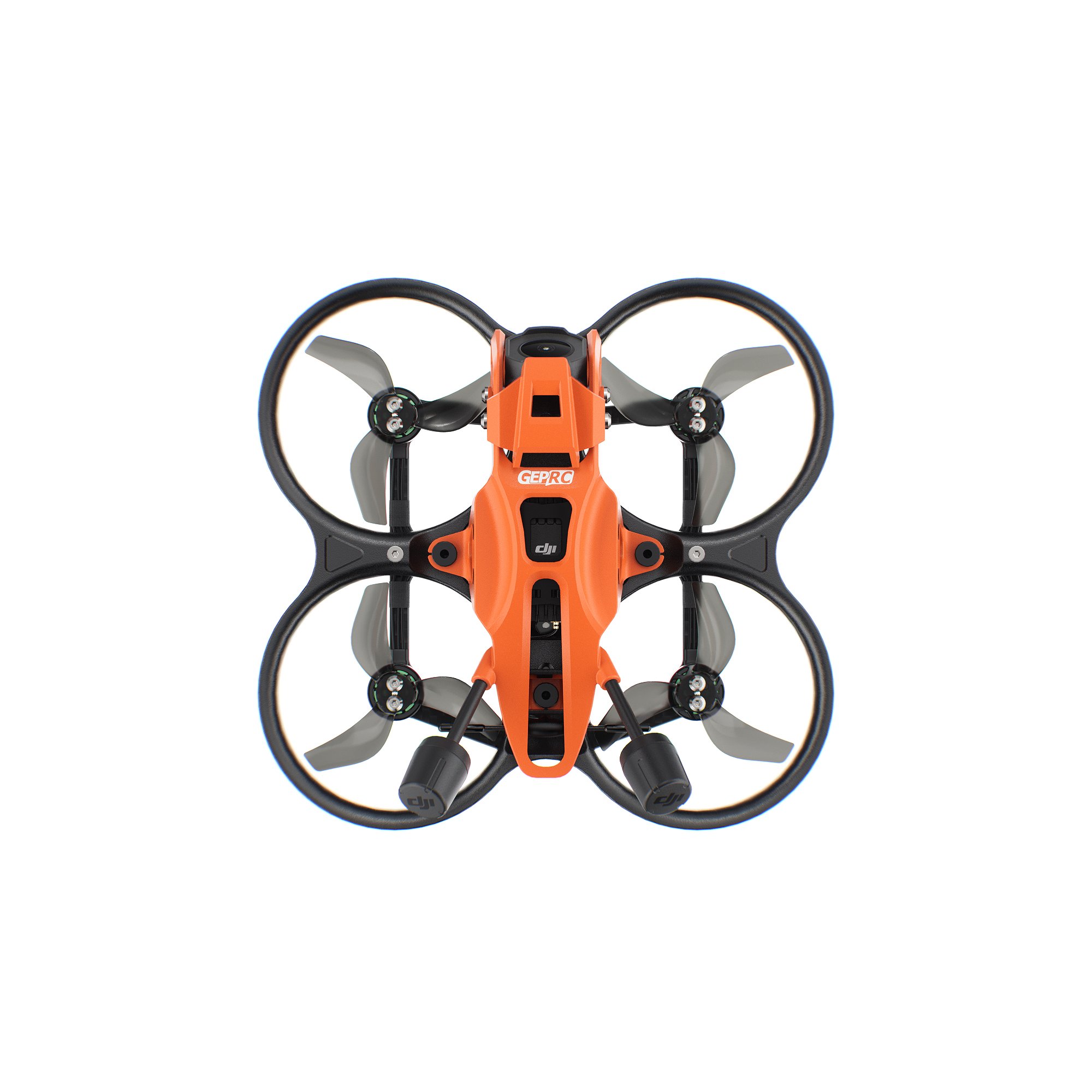

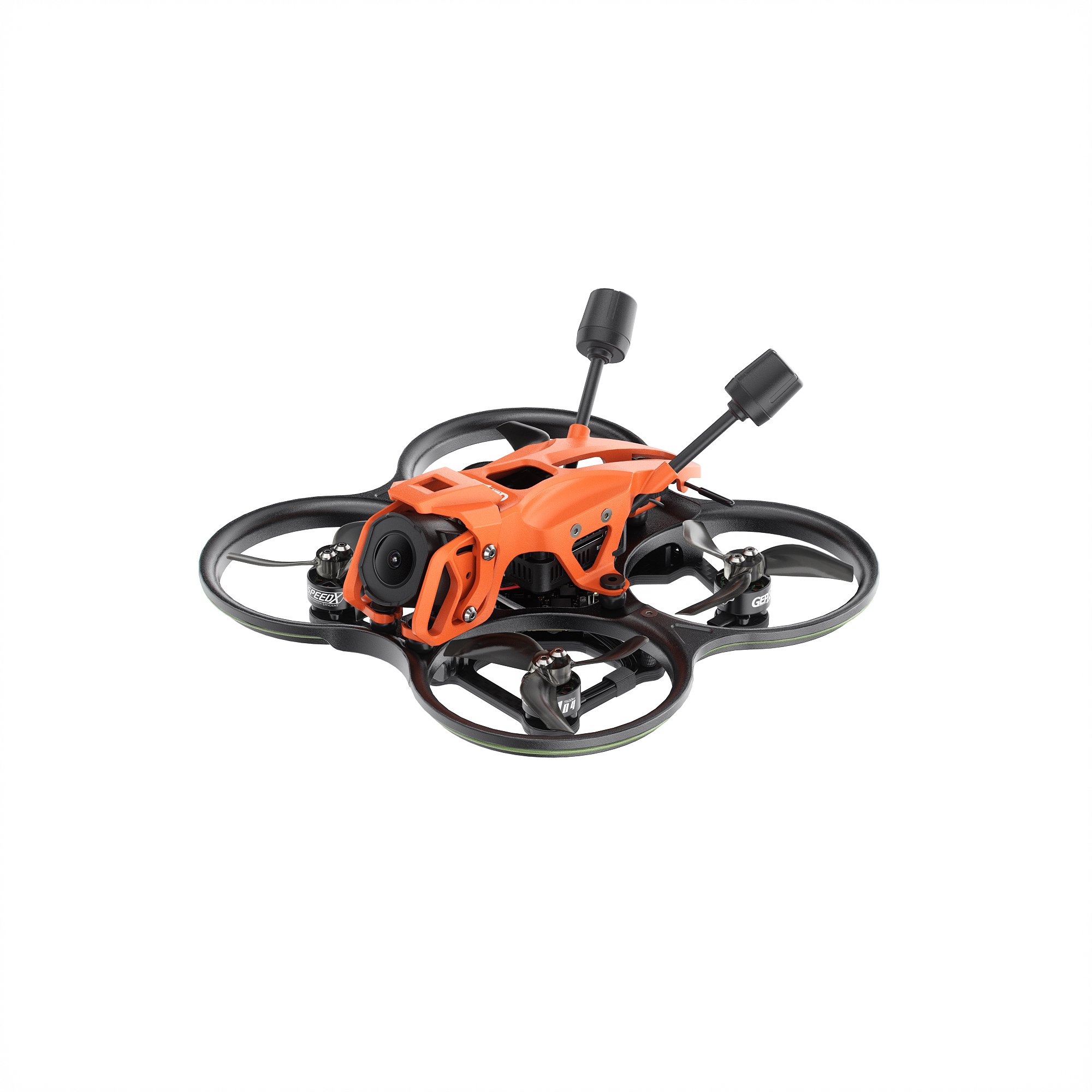

DarkStar22 O4 from GEPRC

Details

The DarkStar22 combines high performance with excellent portability and is equipped with the DJI O4 Pro VTX system, delivering ultra-low-latency, high-definition, and stable long-range video transmission.

At its core is the latest TAKER F405 20A ELRS 2.4G 2–4S AIO flight controller with an integrated receiver, removing the need for a separate RX while ensuring full compatibility with mainstream ELRS radios. An innovative five-point floating damping system creates a stable operating environment for the O4 Pro gyro, resulting in smoother footage and improved video stability.

A dedicated GPS mounting position allows pilots to add a mini GPS module for safer operation in complex outdoor environments. Power comes from SPEEDX2 1104 7500KV motors paired with newly designed 2219 high-efficiency propellers, providing strong thrust while maintaining an excellent balance between performance and flight time.

The compact airframe is reinforced with a thickened protective canopy and integrated prop guards for improved crash resistance. This makes the DarkStar22 suitable for both indoor and outdoor flying, while remaining approachable for newer pilots. Overall, it stands out as a high-performance micro cinewhoop designed for stability, safety, and impressive video quality.

Features:

  • Compact micro drone equipped with DJI O4 Pro HD system, supporting up to 4K 120 fps recording
  • TAKER F405 20A ELRS 2.4G 2–4S AIO with integrated ELRS receiver
  • Protective camera canopy designed to safeguard the O4 Pro camera module
  • Advanced five-point damping system for enhanced camera and gyro stability
  • Simplified frame design requiring only four screws for full disassembly
  • Integrated LED strip powered by a mini controllable BEC
  • O4 Pro mounting module with reserved GPS slot, compatible with most mini GPS units

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the DarkStar22 O4 in particular but at least we know they do distribute GEPRC.

Wingspan: 100mm (3.9 in)
Length: 100mm (3.9 in)

Weight: 127 g (4.5 oz)
  • Model: DarkStar22 O4 Pro
  • Frame: GEP-DS22
  • Main Carbon Plate Thickness: 2.5mm
  • Wheelbase: 100mm
  • FC System: TAKER F405 20A ELRS2.4 2-4S AIO
  • MCU: STM32F405
  • Gyro: ICM42688-P
  • FC Firmware: GEPRC_TAKER_F405 AIO
  • Flash: 16MB
  • ESC: 8Bit 20A
  • Motor: SPEEDX2 1104 7500KV
  • Propellers: GEPRC x GEMFAN GP2219-3
  • Power Connector: XT30U-M
  • VTX: DJI O4 Air Unit Pro
  • Camera: DJI O4 Air Unit Pro camera module
  • Antenna: DJI O4 Air Unit Pro antenna
  • Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
  • Weight (ELRS 2.4G version): 126.8g
  • Recommended Battery: GEPRC Storm LiHV 3S 720mAh
  • Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)
