DoMain3.6 from GEPRC

Details

DoMain is GEPRC’s new generation of consumer Freestyle FPV drone, It brings pilots the GEPRC team’s comprehensive technical evolution, as well as a deep comprehension of the Freestyle quadcopters , DoMain is made for the dream Freestyle FPV drone what we’ve been looking for.

Features:

Unique structure design,Increase the stability of the frame structure.
The new side panel design is integrated, supporting DIY side panel decals.Higher creativity and diversity.
Equipped with sufficient power, it can complete difficult freestyle flight.
Support full-size GOPRO or naked GOPRO on itself, Shooting all perfect footages in the view
DC structure design, the frame looks neat and compact.The extraordinary high integration, Without Prop in the view, showing you a pure picture.
Equipped with M-10 GPS to ensure the safety of every flight with rescue mode.

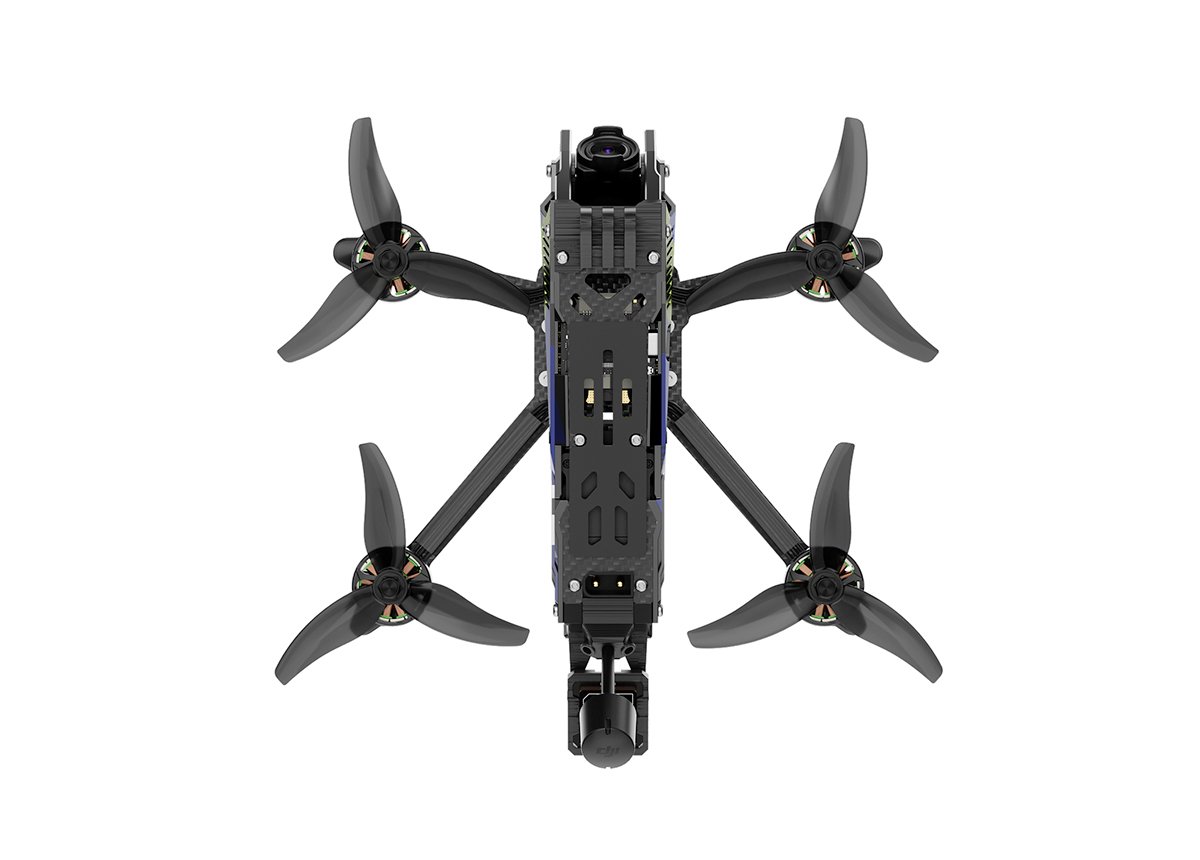

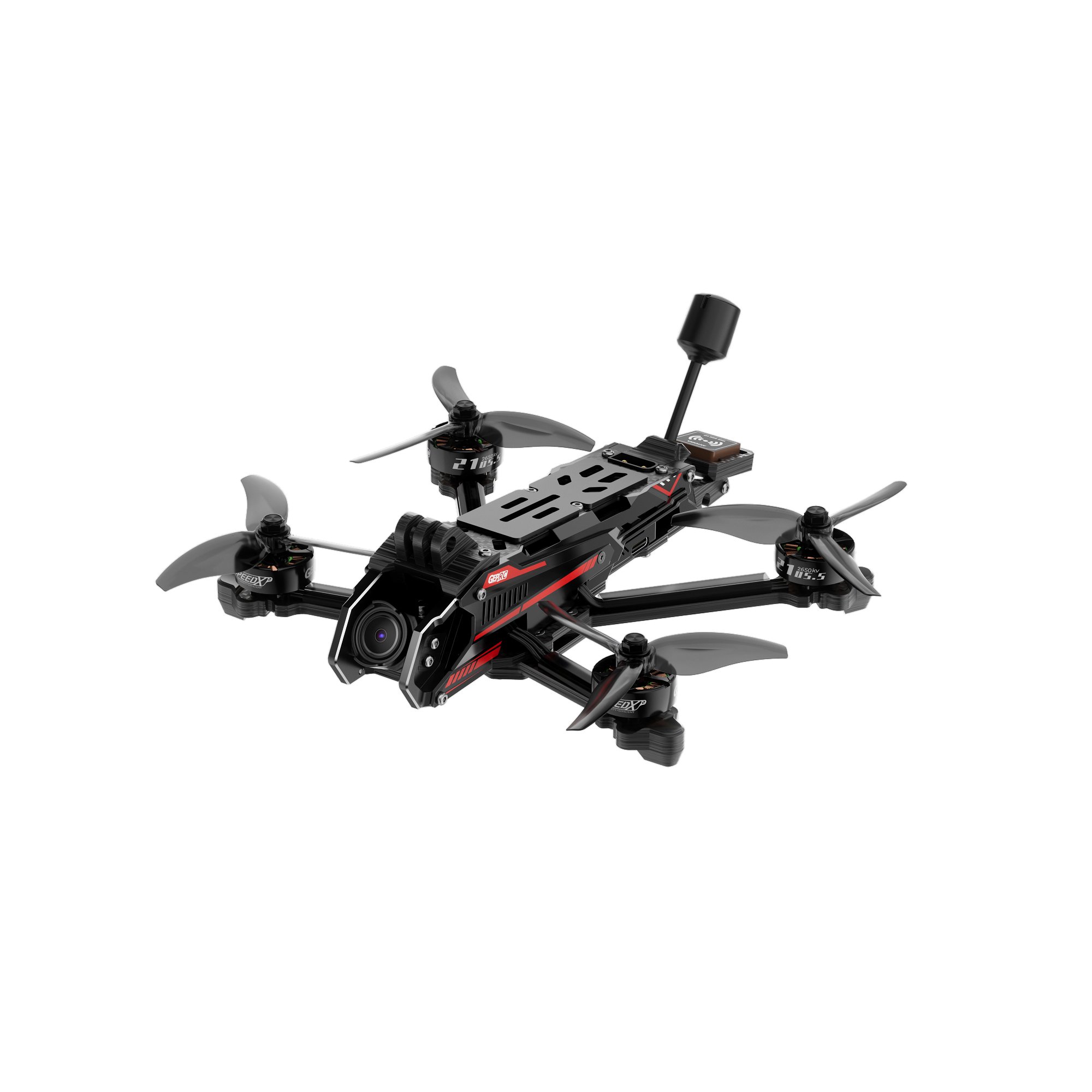

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the DoMain3.6 in particular but at least we know they do distribute GEPRC.

Where to buy

China
GEPRC
check web site
Ship to: Worldwide

Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 170mm (6.7 in)
	Length: 170mm (6.7 in)
Weight: 295 g (10.4 oz)

See more Details

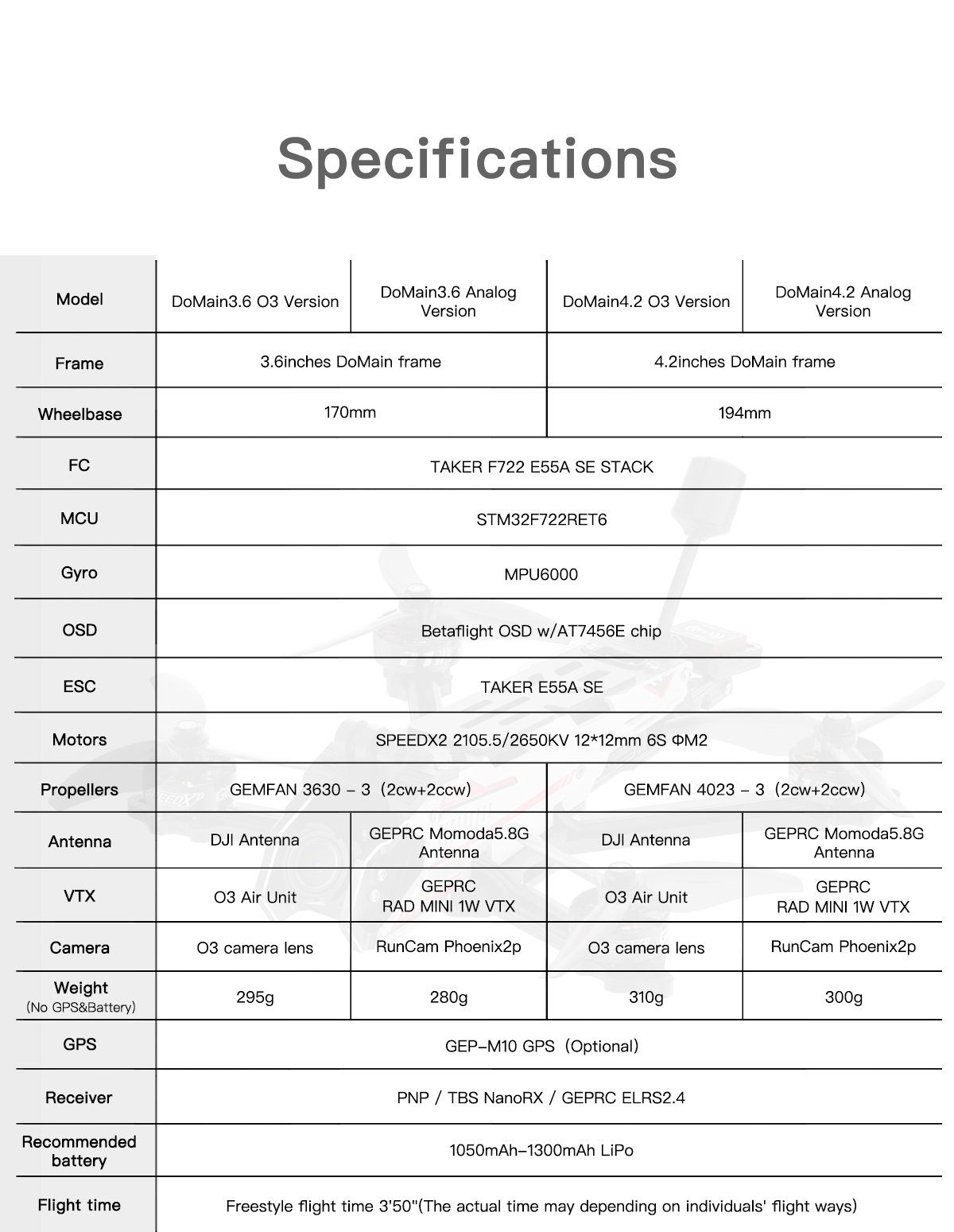

Frame：GEP-DoMain
Wheelbase：170mm
Roof thickness：2mm
Base plate thickness: 2.5mm
Arm thickness:4.0mm
Midplate thickness：3mm
FC：TAKER F722 SE
ESC：TAKER E55A 32Bit 4IN1
MCU： STM32F722RET6
Gyro: MPU6000
OSD：AT7456E
VTX：O3 Air Unit
Camera：O3 camera
Antenna：5.8G&2.4G
Motor：SPEEDX2 2105.5 2650KV
Propellers: GEMFAN 3630 – 3
Weight: 295g ±5g
Receiver：PNP/ TBS NanoRX / GEPRC ELRS2.4
Recommend battery：Lipo 6S 1050-1300mah
