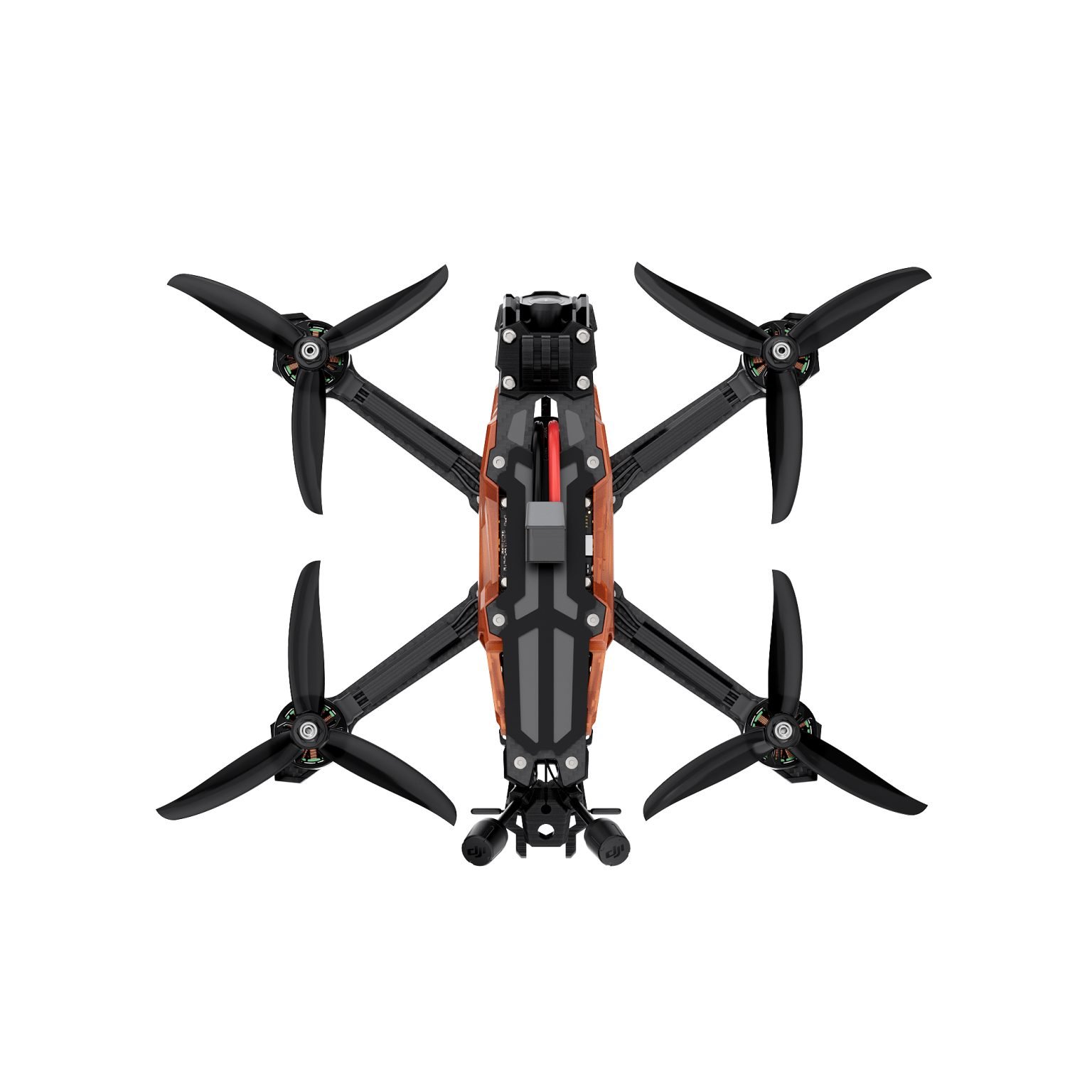

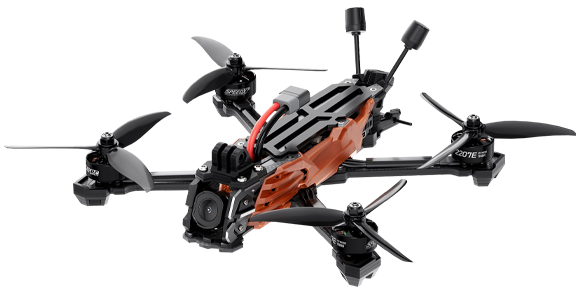

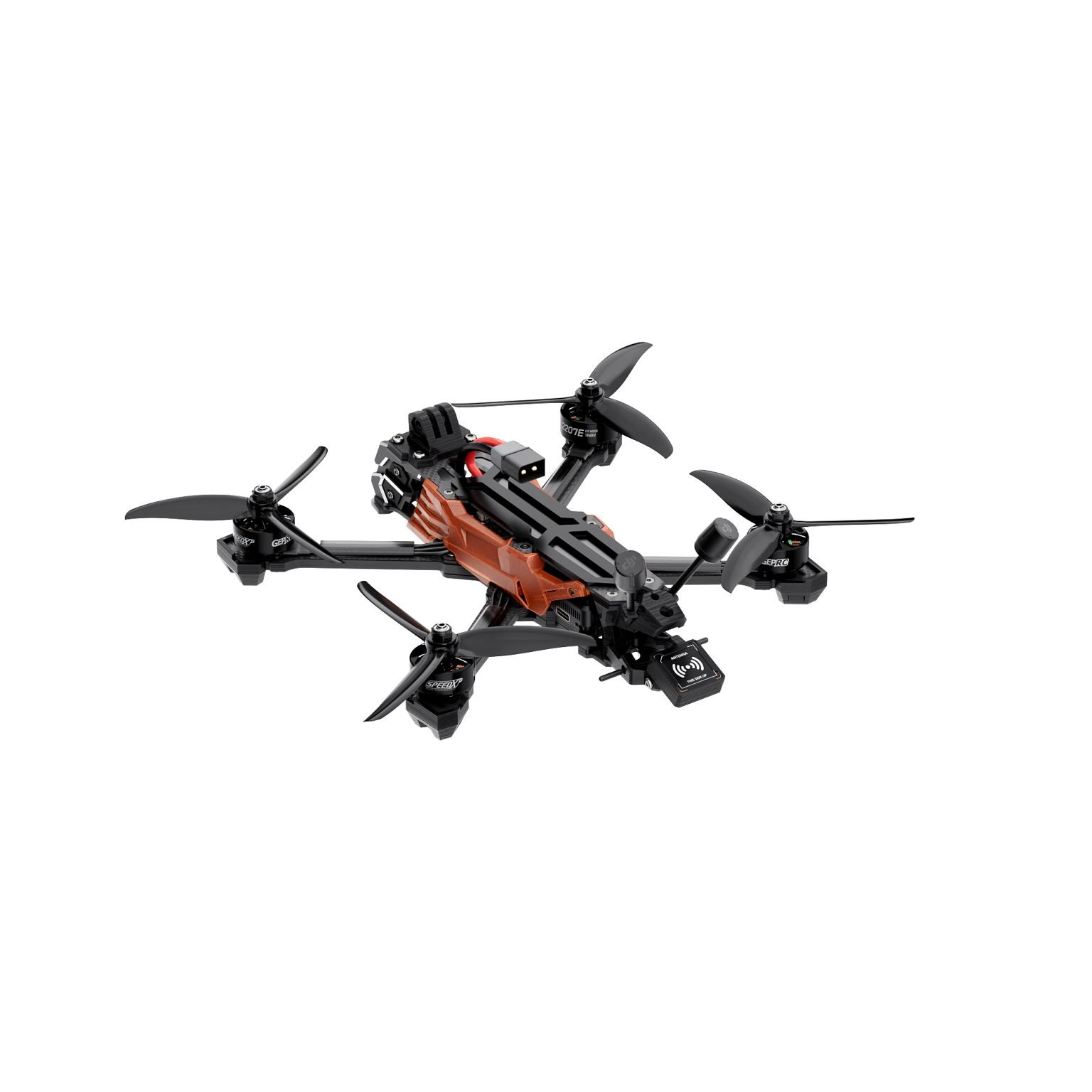

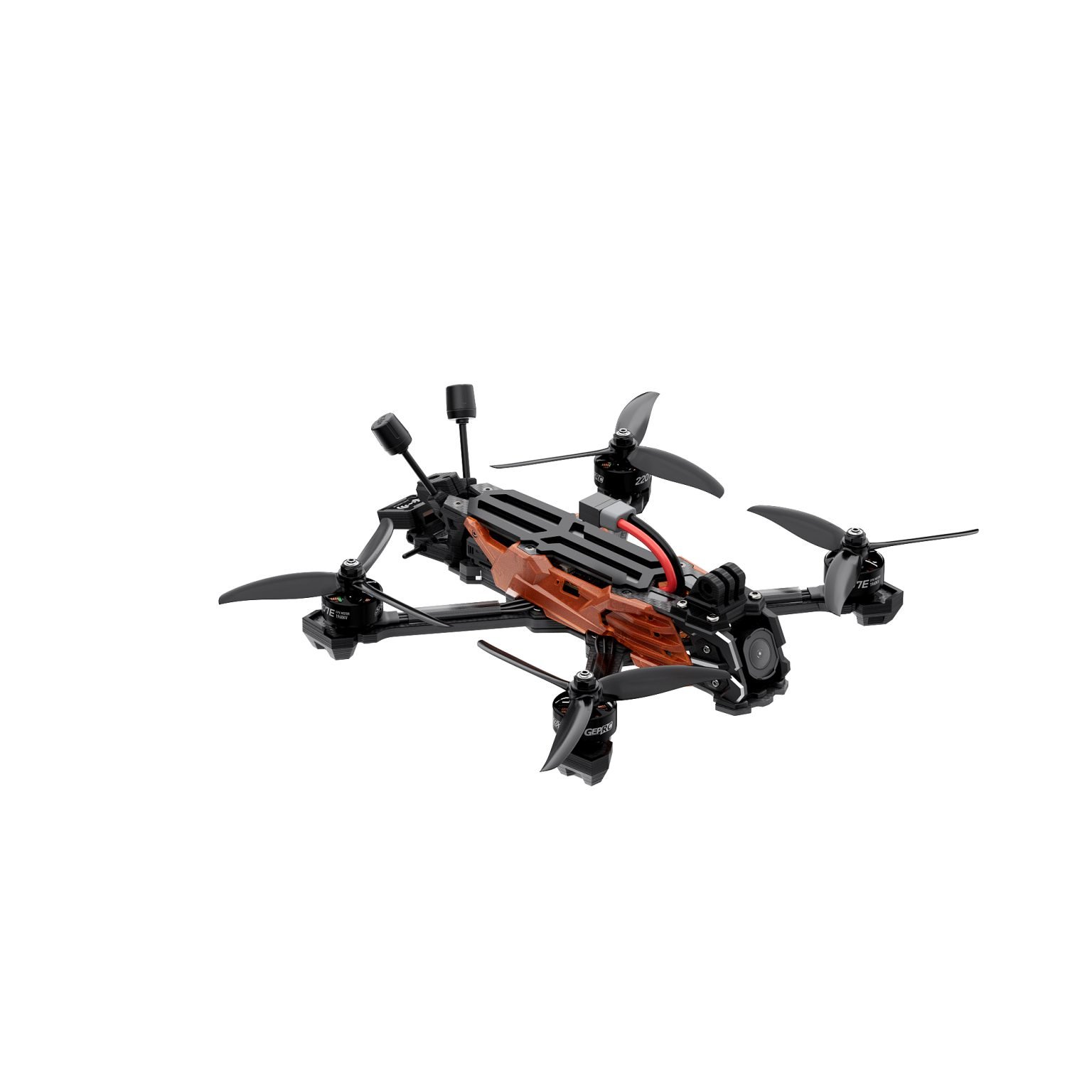

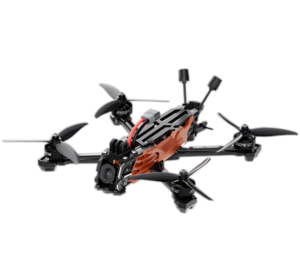

Vapor-X5 HD O4 from GEPRC

Details

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Features:

  • DJI O4 Air Unit Pro features a larger CMOS sensor for improved image clarity and enhanced light sensitivity.
  • CNC aluminum lens housing for a durable, bold design.
  • GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
  • Front lip design provides extra lens protection for confident flying.
  • Wider 5mm carbon fiber arms for increased durability and a sleek build.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vapor-X5 HD O4 in particular but at least we know they do distribute GEPRC.

Wingspan: 230mm (9.1 in)
Length: 230mm (9.1 in)

Weight: 409 g (14.4 oz)
  • Frame: GEP-Vapor-X5 O4 Pro frame
  • Wheelbase: 230 mm
  • Top Plate: 2.0 mm
  • Middle Plate: 2.0 mm
  • Bottom Plate: 2.5 mm
  • Arm Thickness: 5.0 mm
  • FC: GEP-F722-HD v2
  • MCU: STM32F722
  • Gyro: ICM42688-P(SPI)
  • Barometer: YES
  • OSD: Betaflight OSD w/AT7456E
  • ESC: TAKER H60_BLS 60A 4IN1 ESC
  • VTX: DJI O4 Air Unit Pro
  • Camera: O4  Pro Camera
  • Antenna: O4  Pro original antenna
  • Connector: XT60
  • Optional GPS: GEP-M10 GPS
  • 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
  • 5-inch Propeller: GEMFAN 5136
  • Vapor-X5 O4  PNP  Version Weight: 409g±5g
  • Receiver: PNP/GEPRC ELRS24/TBS Nano RX
  • Recommended Battery: 6S LiPo1300mAh – 1800mAh
  • Flight Time: 14-19min
