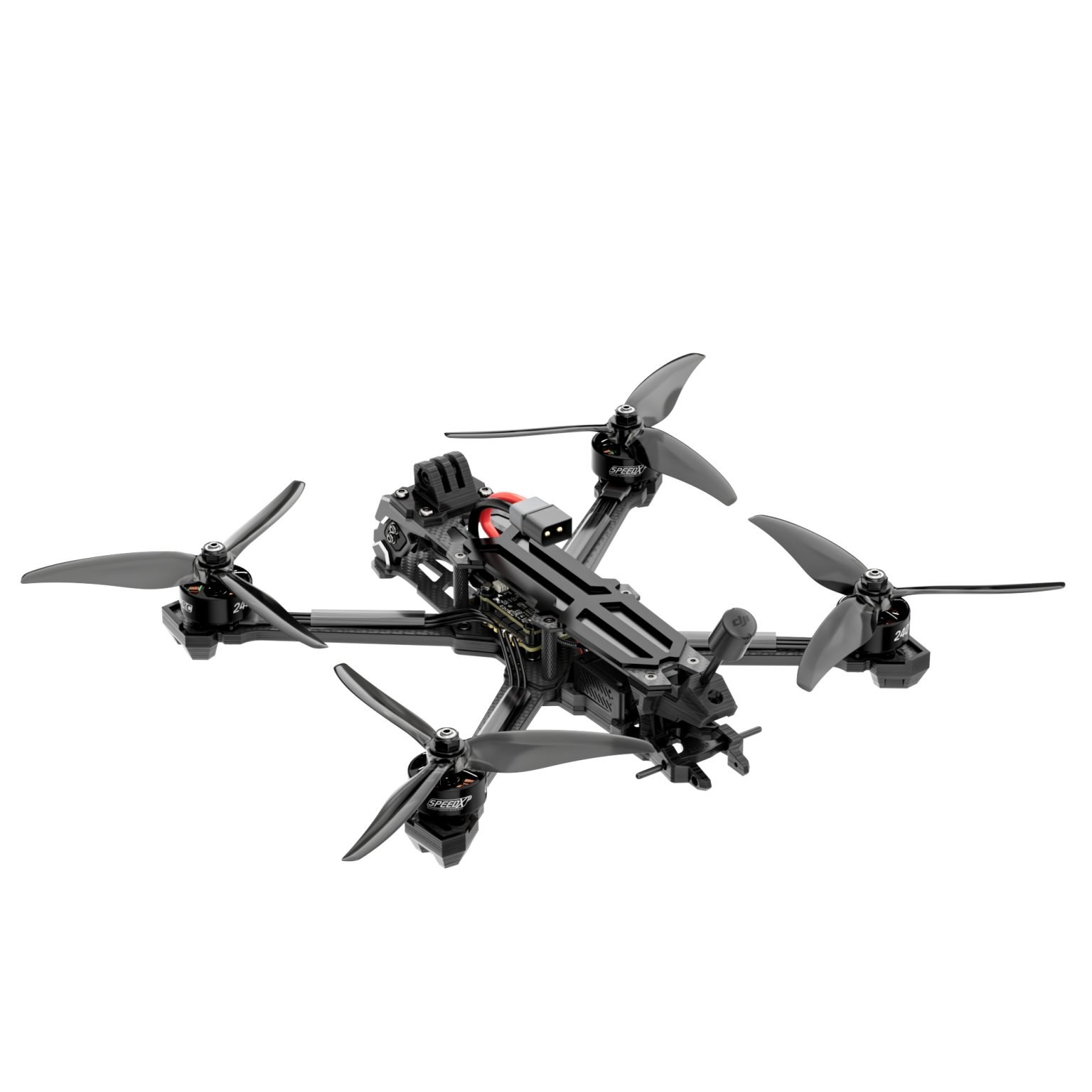

Vapor-X6 HD O3 from GEPRC

Details

The Vapor-X is a robust and agile FPV designed for freestyle flying. The name “Vapor-X” is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.

It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.

Available in 5-inch and 6-inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.

Features:

  • Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
  • Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
  • The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
  • The front lens protection design provides reassuring protection for flying.
  • The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
  • Available in 5-inch and 6-inch models, catering to various flying preferences.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vapor-X6 HD O3 in particular but at least we know they do distribute GEPRC.

Wingspan: 255mm (10 in)
Length: 255mm (10 in)

Weight: 453 g (16 oz)

Frame: GEP-Vapor-X6 frame
Wheelbase: 254.5 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: O3 Air Unit
Camera: O3 Camera
Antenna: O3 original antenna
Connector: XT60
6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
6-inch Propeller: HQprop 6X3.5X3
Vapor-X6 O3 PNP Version Weight: 453g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
Recommended Battery: LiPo 1550mAh – 2200mAh
Flight Time: 14-19 min

EnglishFrenchGermanItalianPortugueseRussianSpanish
5,061 models
(60,732 icons in the database)
ASK FOR A NEW MODEL TO BE ADDED

Although I do my best to complete this library, you may not find the model you are looking for.

In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.

I'm sometime asked to add a non flying model to this library but unfortunately, it's not the focus of this website

Ask for a new model

RANDOMIZER

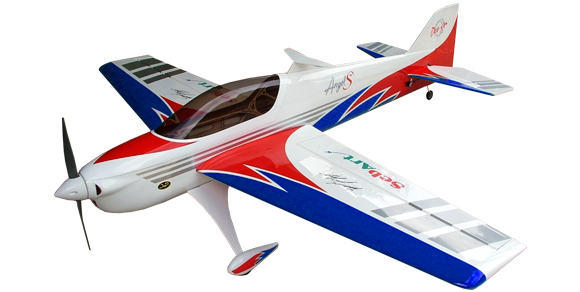

Angel S30E
