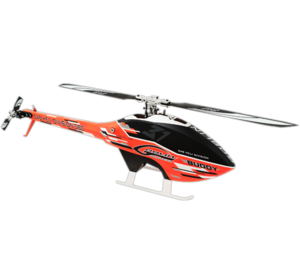

Goblin Buddy 380 from Goblin Helicopters

Details

The all new Goblin Buddy 380! This is based off of the original, well proven, Goblin 380 design that now features some design improvements. The landing gear is wider and more stable, making it easier for taking off and landing. The side frames are now 1.5mm thick making them even stronger and more robust! The ESC and battery placements have been raised to improve the CG and overall performance of the model.

Goblin Buddy has a 380mm blade length.

The project is based on the old Goblin 380 and introduces some important new features:

  • new shape to make it more stylish
  • new canopy scheme to increase the visibility
  • new wider landing gear to make taking off and landing more stable
  • new 1.5mm frames for increased rigidity
  • new battery-ESC position to optimize the CG.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 856mm (33.7 in)
Length: 856mm (33.7 in)

Weight: 1075 g (2.4 lbs)
Main rotor diameter 856mm
Main blade length 380mm
Tail rotor diameter 196mm
Tail blade length 70mm
Main shaft diameter 8mm
Tail shaft diameter 5mm
Weight 1075g (ex. Battery)
Cyclic Servos Micro size 23 mm
Tail Servo Mini size 36 mm
Typical speed controller 60 - 90 A
Maximum motor size 41 mm diameter x 41 mm height
Motor KV 850-1000KV
Battery compartment 44x44x130 mm
Battery capacity 6S 1500/2600 mAh
Available ratios From 5.0 to 6.3
