Venus 40 from Great Planes

Details

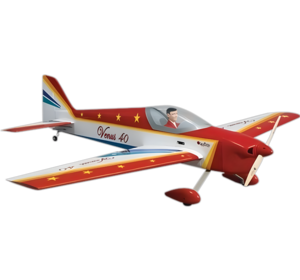

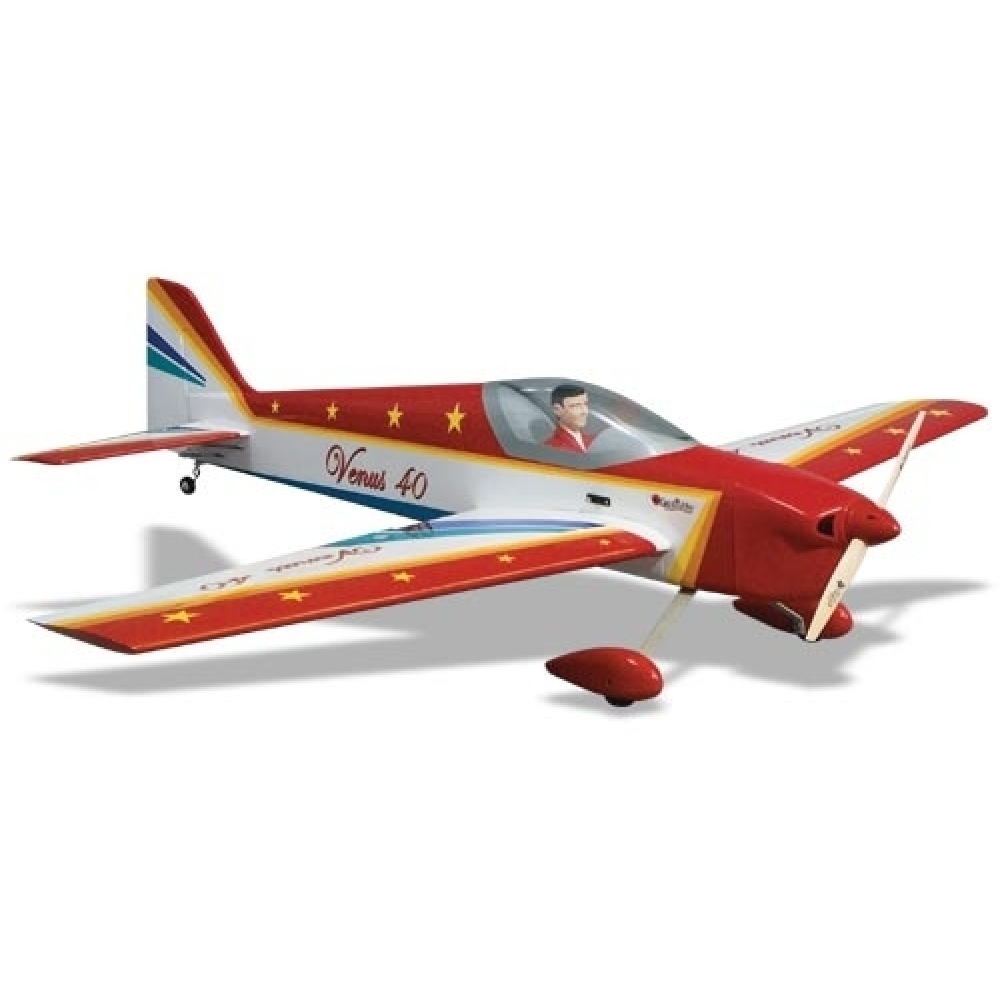

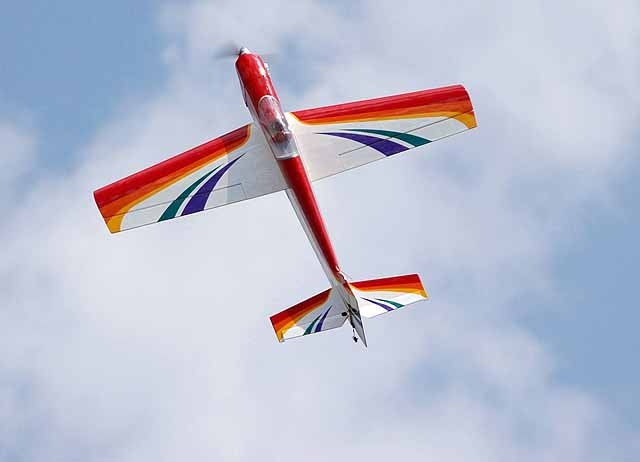

This is a Radio Controlled, Glow Powered, Almost-Ready-to-Fly, Great Planes Venus .40 Sport Scale Airplane.

Recommended for modelers who have had trainer airplane experience and also have safely flown/landed .40 Size low wing planes.  Engineered for precise handling flight characteristics demanded for F3A type contest maneuvers.

Features:

  • Sport flying plane that Excels at F3A Pattern Style Aerobatic flying.
  • Construction: All balsa and plywood
  • Wings: 2-piece all wood
  • Covering: Factory applied NINE color Monokote.
  • Pre-painted fiberglass Cowl and Wheel Pants.
  • Canopy: clear single
  • Landing Gear: pre-formed aluminum
  • Dual Aileron Servos: One goes in each wing half with servo lead pull strings already in place.



Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1400mm (55.1 in)
Length: 1370mm (53.9 in)

Weight: 2550 g (5.6 lbs)
  • Wingspan: 1400 mm (55″)
  • Wing Area: 36.8 dm² (570 sq in)
  • Length: 1370 mm (54″)
  • Flying Weight: 2320-2550 g (5.1-5.6 lb)
  • Wing Loading: 63-69 g/dm² (21-23 oz/sq ft)

Recommended Settings

  • Stab = 0
  • Engine Down Thrust = 1.5
  • Engine Right Thrust = +3
  • Right Wing Root = +0.75
  • Right Wing Tip = +0.75
  • Left Wing Root = +0.75
  • Left Wing Tip = +0.75

Variants

Venus40
Venus 40 (White Red Blue Yellow)
