Drashark 1.6 from HGLRC

Details

  • HGLRC Drashark (Dragon shark) is a 1.6-inch toothpick fpv drone, suitable for indoor or outdoor light flight
  • Drashark Naming inspiration from Dragon ➕ Shark, So translated as Drashark, hence the name
  • The new SPECTER 5 in1 AIO integrated ESC, flight control, 5.8G VTX , elrs receiver and Betaflight OSD
  • Using Caddx camera, clear and sharp picture;
  • Built-in integrated 400mw simulation map transmission, up to 48 CH, stable and efficient;
  • The drone with the new SPECTER 1002 motor, strong power;
  • Standard Gemfan1610 two-blade propeller, silky flight and flight sound is only 70 decibels;
  • light and handy size , the weight of about 30g, a single battery life of about 5 minutes;
  • Straight plug motor, no welding is more convenient;
  • Built-in integrated SPI elrs3.0 receiver, built-in antenna, can be connected to black sheep receiver, customized miniature T-shaped antenna, reduce weight;
  • Recommended use: 1s 550mah high voltage battery, drone battery plug is A30 plug

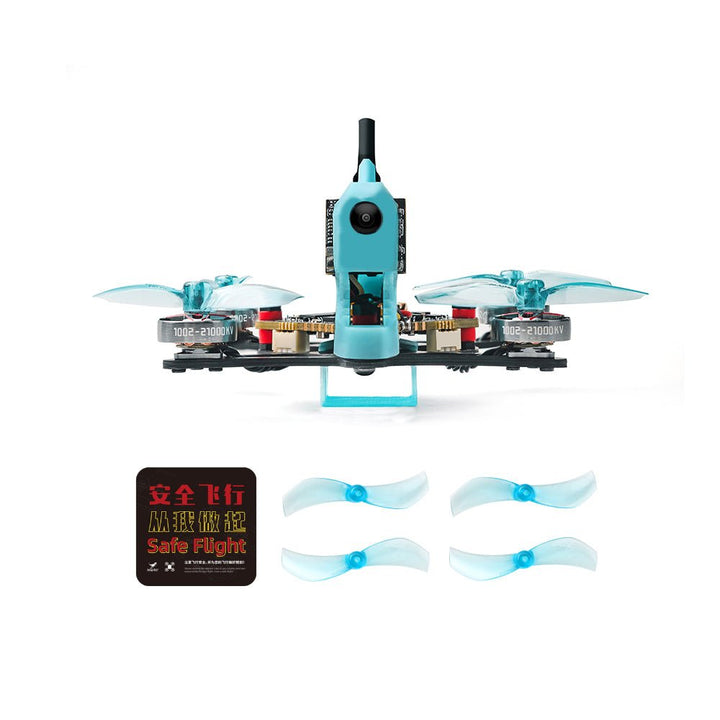

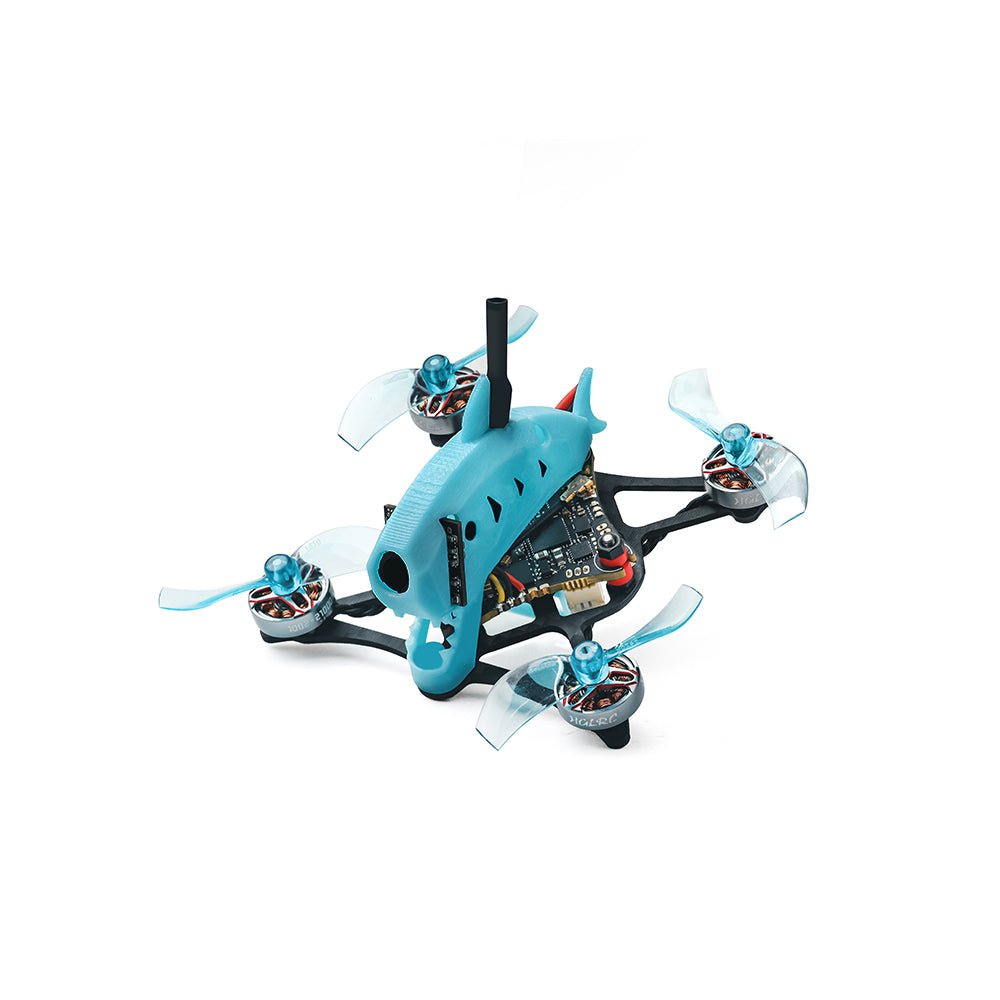

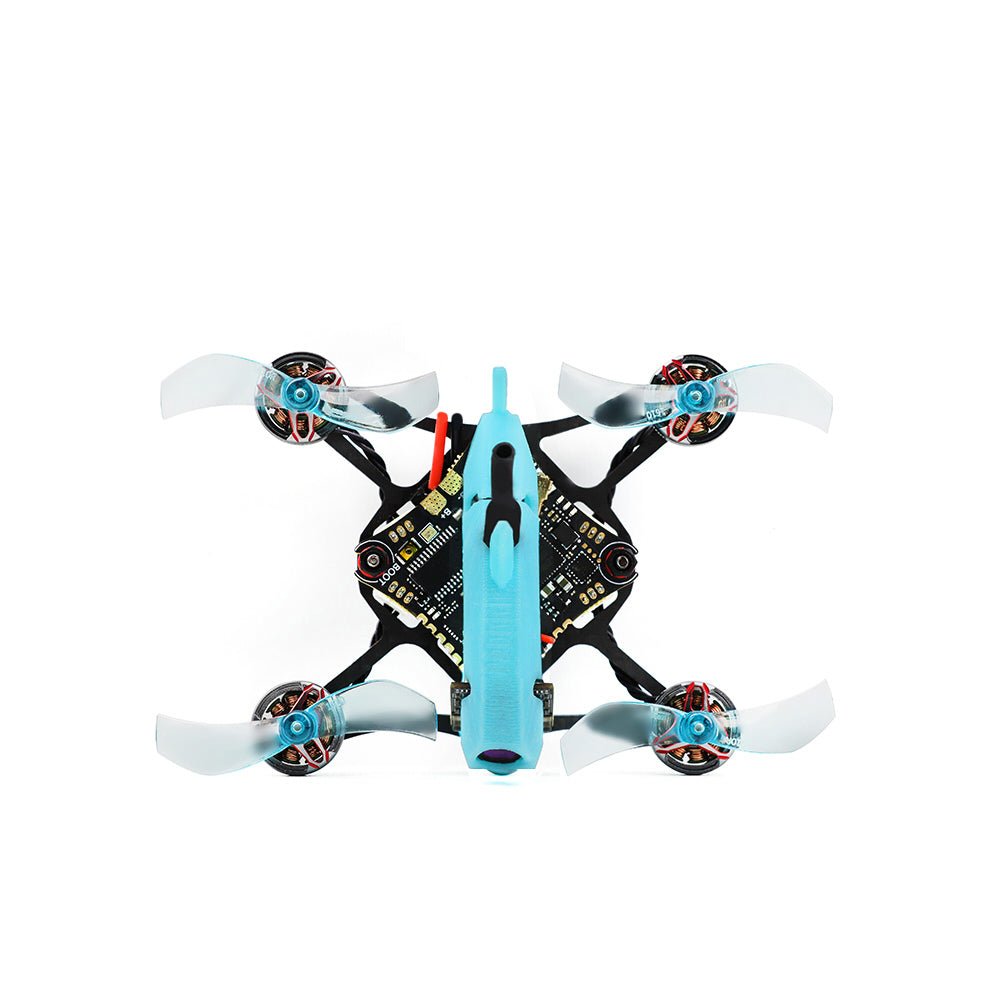

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Drashark 1.6 in particular but at least we know they do distribute HGLRC.

Where to buy

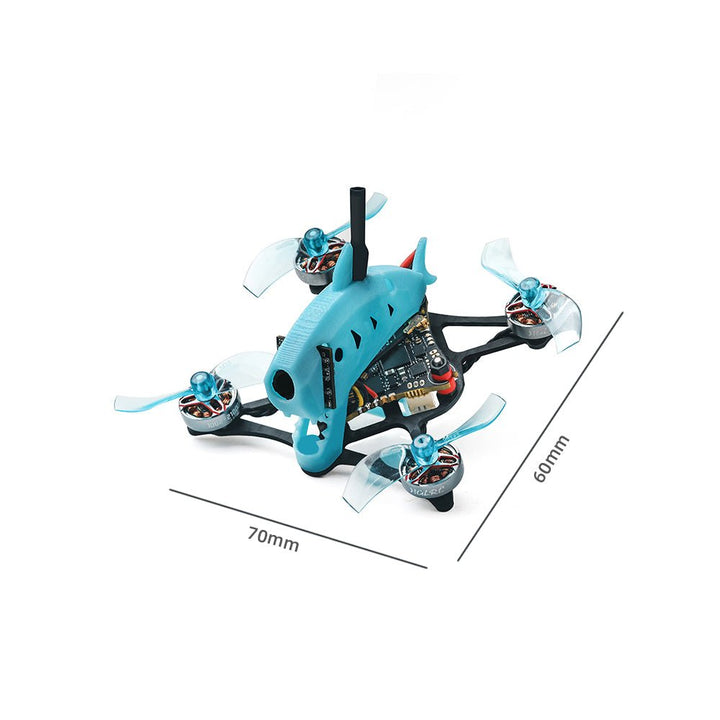

Wingspan: 75mm (3 in)
Length: 75mm (3 in)

Weight: 30 g (1.1 oz)
  • Frame: Drashark 75mm frame
  • Flight control: HGLRC SPECTER 10A F411AIO
  • MCU:STM32F411
  • Gyro:ICM42688
  • Built-in receiver: SPI ExpressLRS 2.4G
  • Built-in VTX: 25-100-400 mW (adjustable)
  • integrated ESC: Continuous current: 10A; peak current:13A (10s)
  • Electromodulation protocol: Dshot600, Oneshot, Multishot; electric firmware:Z-H-30 (Bluejay)
  • Flight control firmware: HGLRCF411SX1280 V2
  • Input voltage: 1-2 S 3.7-7.4v (Lipo)
  • Installation hole position: 25.5X25.5mm.M2
  • Motor: SPECTER 1002 21000kv Motor
  • Propeller: Gemfan 1610 two-blade
  • weight: 30g
