Introduced in 1977, the Christen Eagle II was the brainchild of avid aerobatic pilot and entrepreneur, Frank Christensen. His idea? Give pilots a refined, aerobatic kit plane almost anyone could build. The sporty little two-seater was so well-received that a slightly modified, single-seat version became the plane of choice for one of the greatest aerobatic demonstration teams of all time – Charlie Hillard, Tom Poberezny and Gene Soucy, otherwise known as The Eagles. The trio flew the plane from 1979 through 1995, thrilling millions at air shows all over the world.

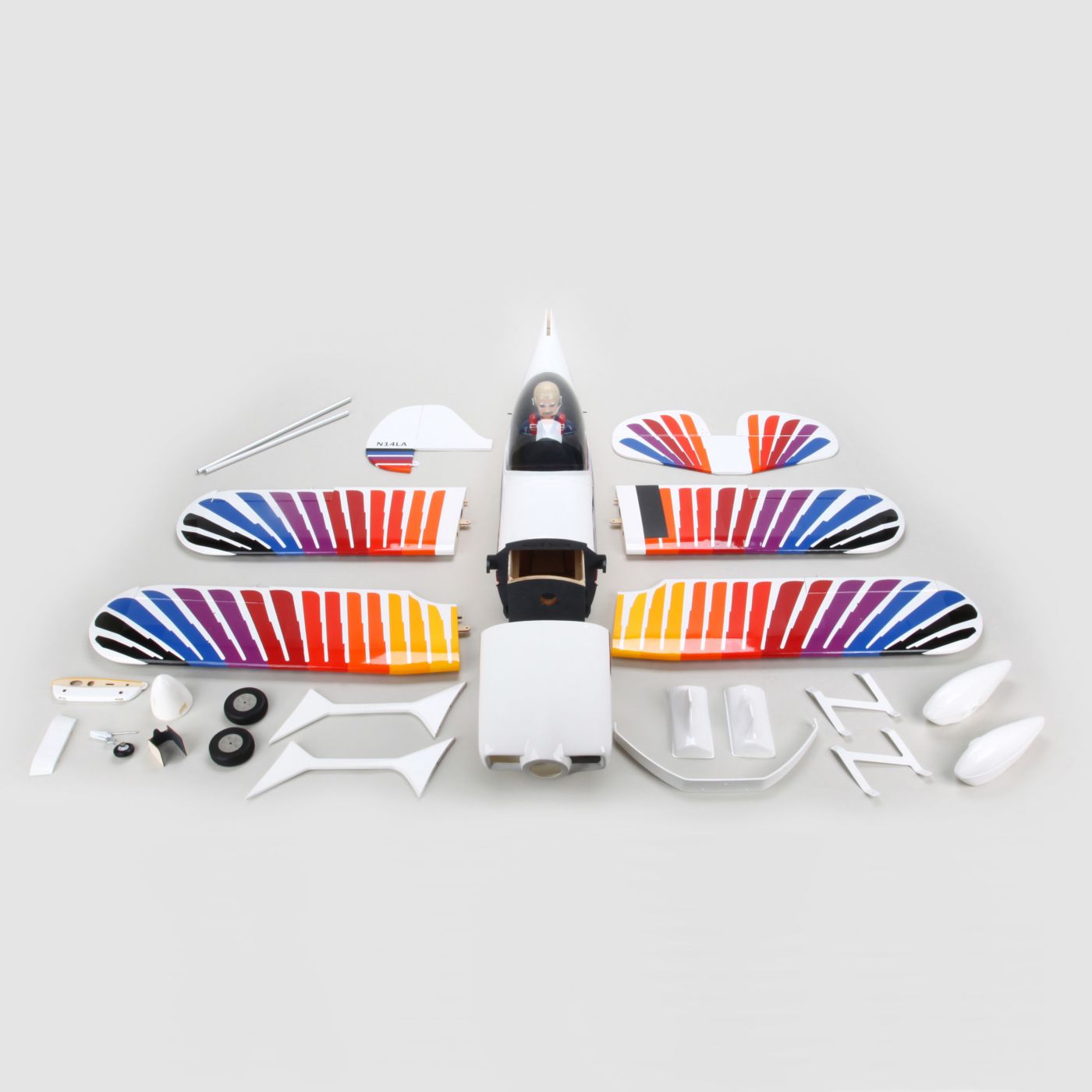

The Hangar 9® Christen Eagle II 90 ARF brilliantly captures the spirit of this remarkable airplane. Constructed of top quality balsa and light plywood, it will eagerly perform extreme aerobatics just like its full-scale inspiration using your choice of glow or brushless electric power options. And it comes out of the box with a level of scale fidelity that truly sets it apart from the rest of the sport model crowd.

If you’re a sport flier ready for more advanced planes or an aerobatic pro looking for a fun, sport scale model, the Christen Eagle II 90 has what you’re after.

Features:

  • Lightweight balsa/plywood construction
  • Impressive scale outline
  • Multi-color Eagle UltraCote® trim scheme
  • Painted fiberglass cowl and wheel pants
  • Designed for glow or electric power
  • Large, easy-access top hatch
  • Cockpit details and pilot figure included
  • All hardware included
  • Wing transport frames included

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Christen Eagle II in particular but at least we know they do distribute hangar 9.

Wingspan: 1370mm (53.9 in)
Length: 1290mm (50.8 in)

Weight: 4500 g (9.9 lbs)
Approximate Assembly Time: 10-15 Hours
CG (Center of Gravity): 5 5-1/2 inches behind leading edge of upper wing at center
Completion Level: Almost Ready-To-Fly
Control Throw (Ailerons): Low: 15mm up/down, 33% expo; High: 22mm up/down, 42% expo
Control Throw (Elevator): Low: 25mm up/down, 30% expo; High: 35mm up/down, 42% expo
Control Throw (Rudder): Low: 35mm right/left, 35% expo; High: 45mm right/left, 45% expo
Flaps: No
Flying Weight: 8.50-10.0 lb (3850 - 4500 g)
Length: 50.8 in (1290 mm)
Minimum Required Radio: 4 channel radio system minimum
Motor Size: Power 90
Propeller Size: Saito 125 - 16x6 Power 90 - 17x8E
Recommended Fuel: Glow
Recommended Motor Battery: 14.8V 4000mAh 4S 30C LiPo x2
Recommended Receiver Battery: 5-cell 2700mAh NiMH
Retracts: No
Servos: 5 standard size servos required (4 for EP)
Speed Control: 75-Amp
Spinner Size: 2.75 inch
Trimscheme Colors: White (HANU870), Deep Blue (HANU873), Orange (HANU877), Black (HANU874), Smoke Purple (HANU868), Deep Red (HANU871), Flame Red (HANU883), Dark Yellow (HANU889), Bright Yellow (HANU872)
Wing Area: 878 sq. in. (56.7 sq. dm)
Wing Loading: 22.3-26.2 oz/sq ft (67.9-79.3 g/sq dm)
Wingspan: 54.0 in (1370 mm)
