Piper Cub J-3 from hangar 9

Details

The Piper J-3 Cub was the most popular commercial aircraft of the 1930's.  Barely seven yards long and instantly recognizable in its yellow-and-black paint scheme, this nostalgic favorite became the foremost trainer of the era, eventually training 80% of the United States' military pilots by the end of World War II.  A new Cub was rolling of the assembly line nearly every 20 minutes, and many of these beloved airplanes are still around today.

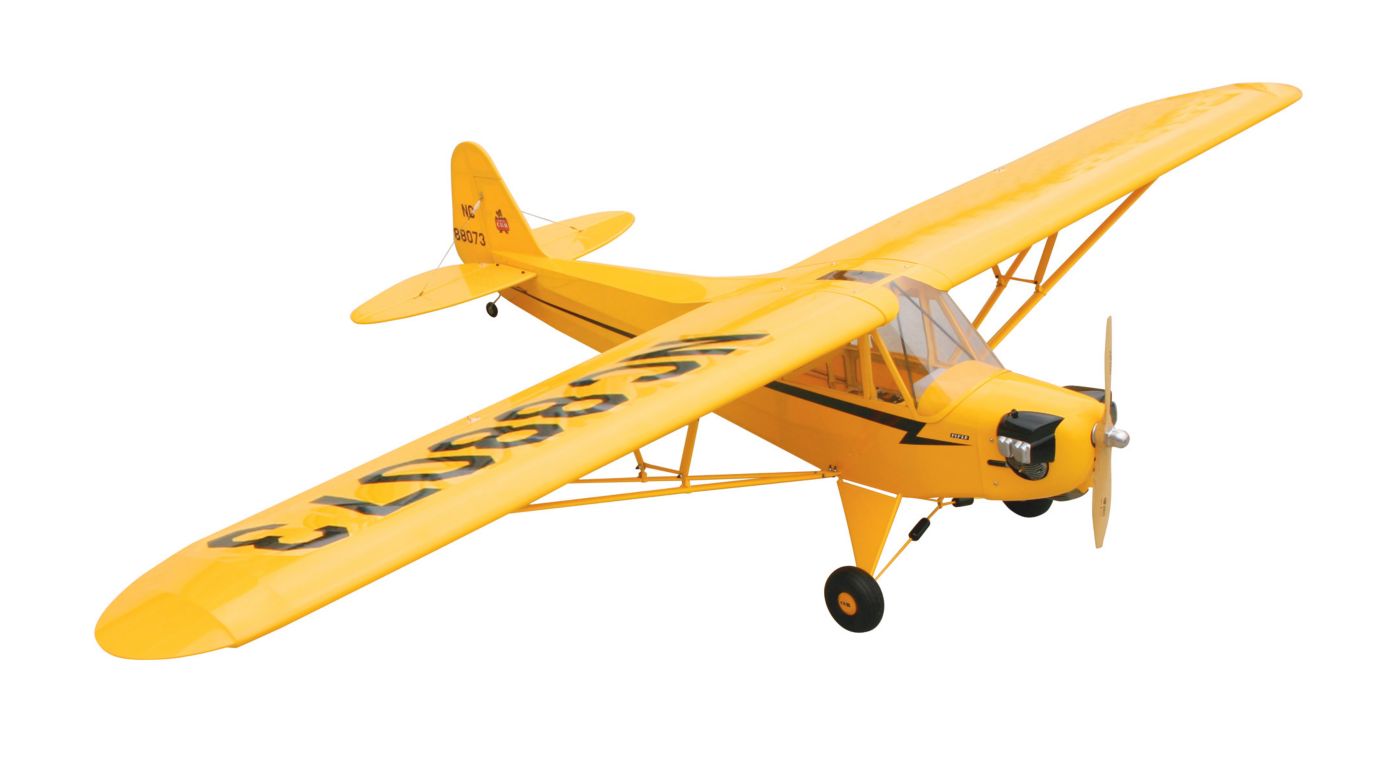

Hangar 9's new .40-size Piper J-3 Cub ARF captures the classic scale lines and smooth flight performance of its grandfather, a full-scale Cub owned by Pat Hartness, whose Triple Tree Aerodrome hosts the annual Joe Nall and Don Lowe Masters RC events.  Constructed from top-quality balsa and lightweight plywood materials and showing off a vibrant Cub Yellow UltraCote scheme, this scale Cub will provide aviation buffs with hours of sport-flying fun.

Features

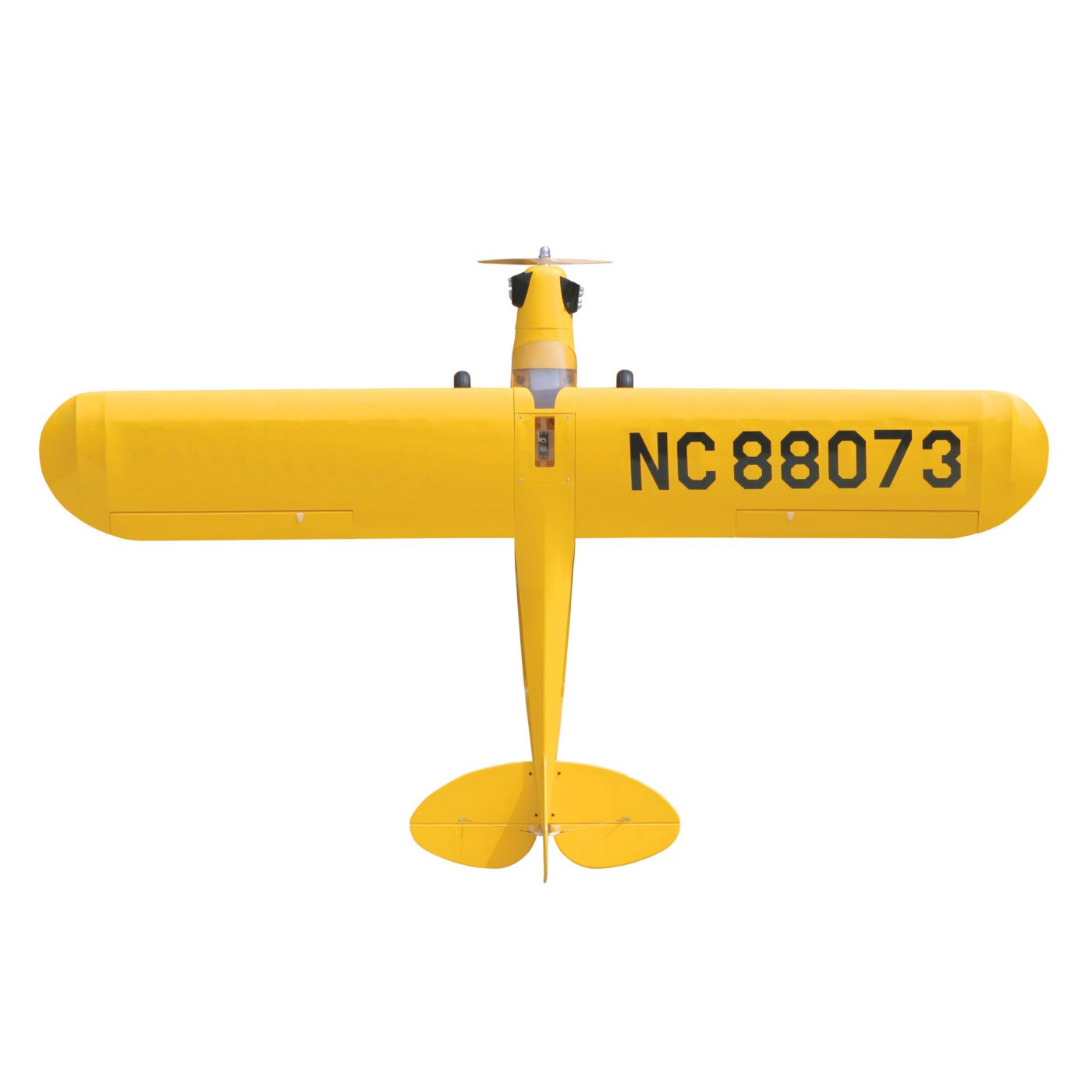

  • Scale detail and scheme-based on Pat Hartness' full-sized J-3 Cub
  • Extremely lightweight, state-of-the-art all-wood construction

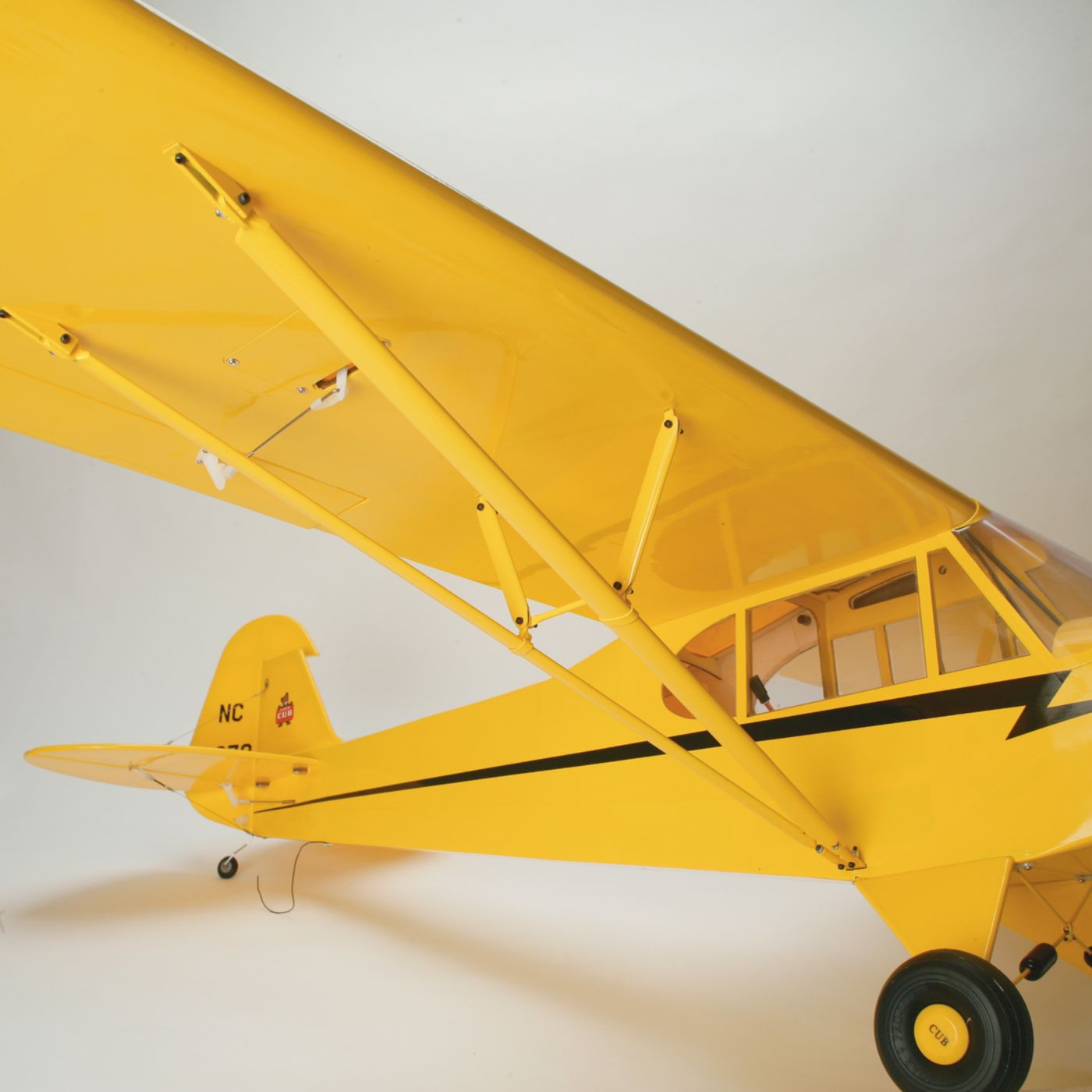

  • Factory-painted airfoil-shaped aluminum wing struts

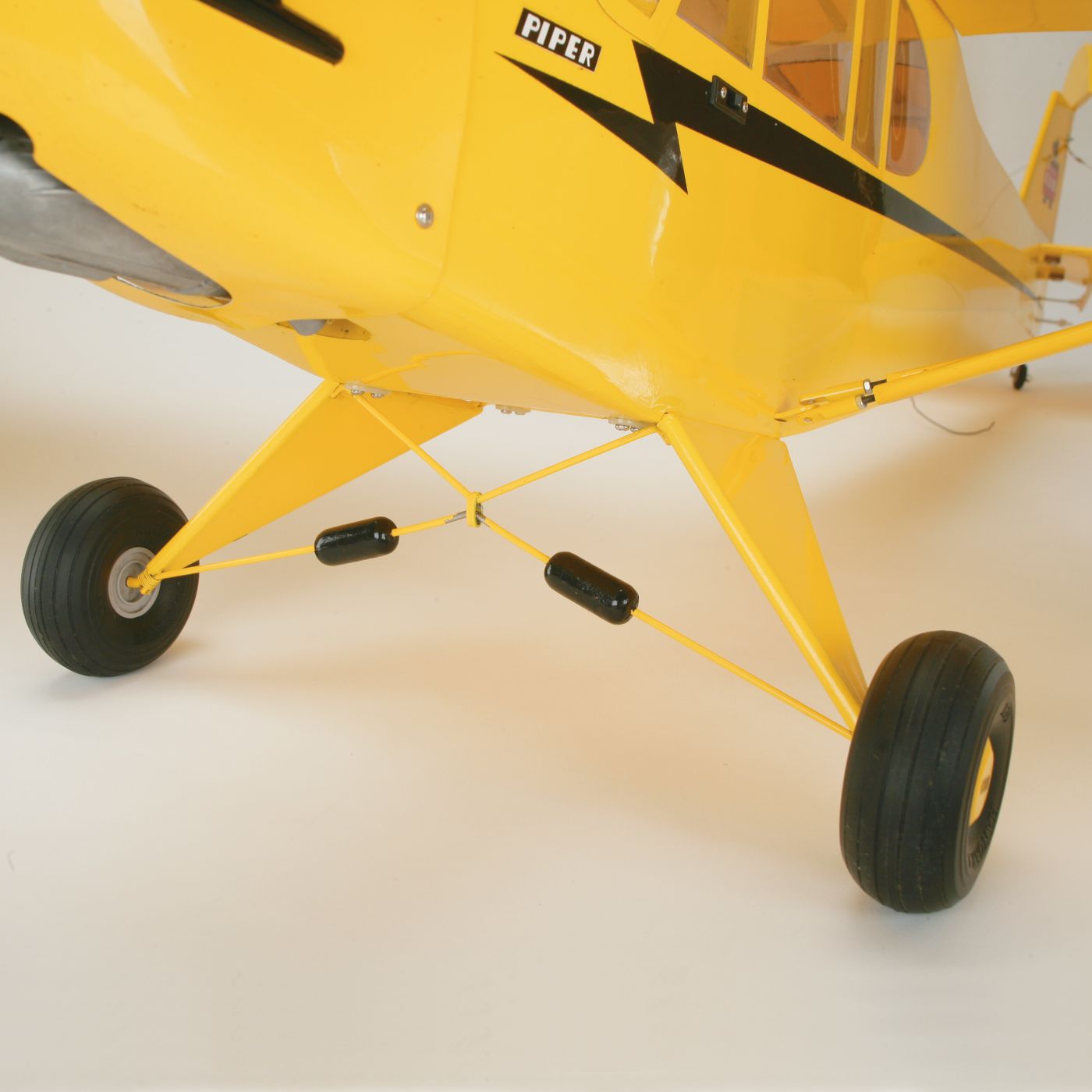

  • Strong, lightweight scale landing gear with simulated bungies
  • Covered in exclusive Hangar 9 UltraCote

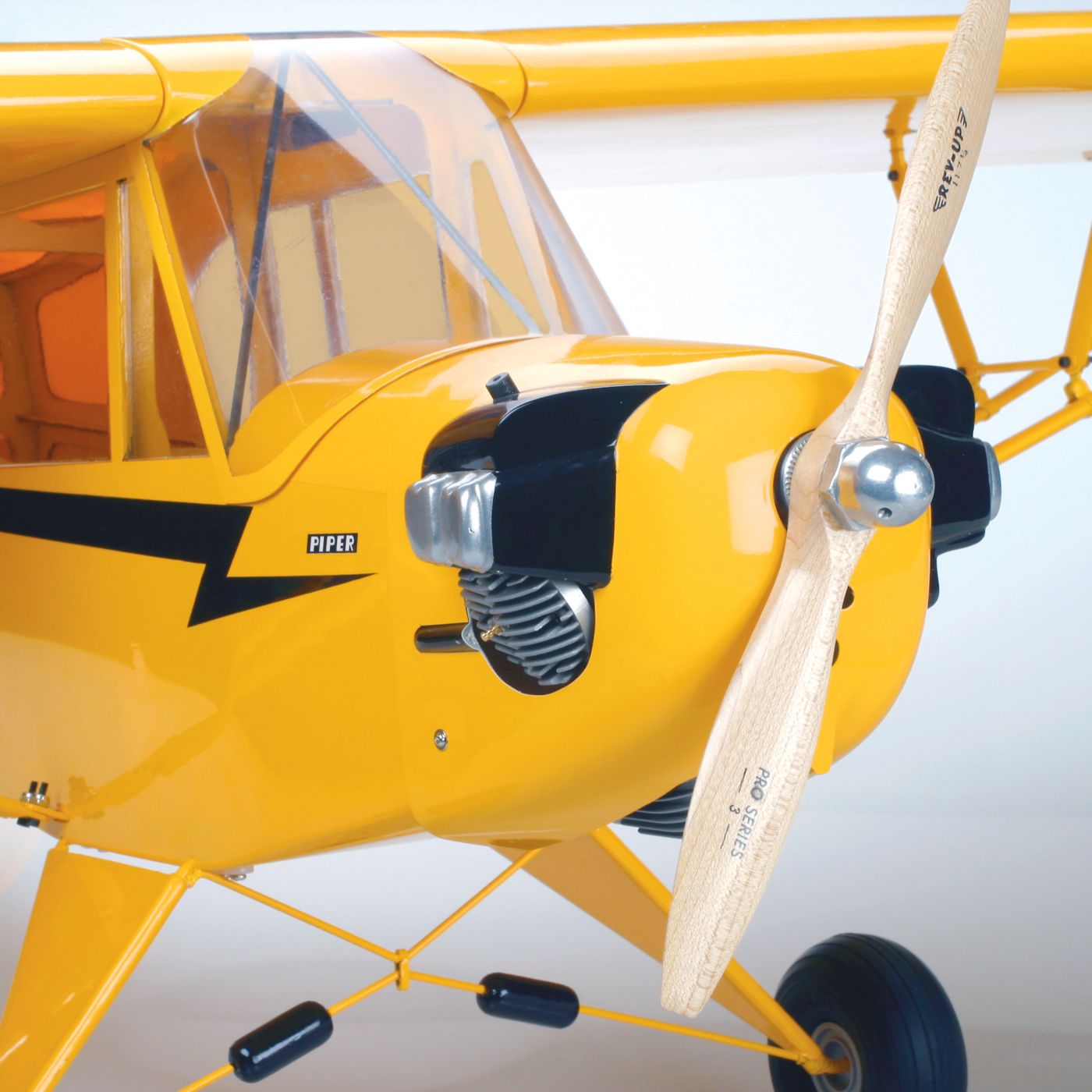

  • Fiberglass cowl includes prepainted molded-in dummy engine

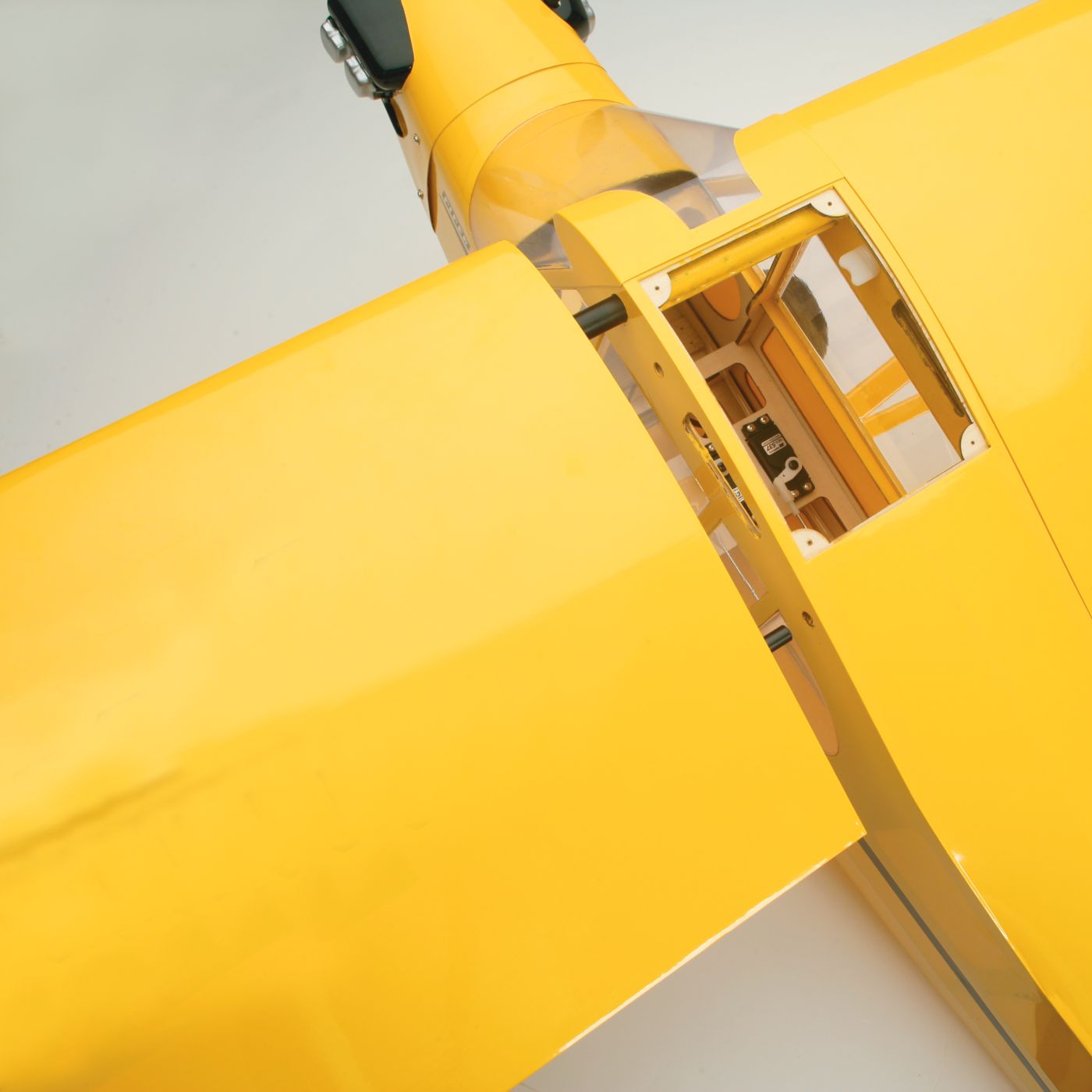

  • Easy-to-transport 2-piece wing and tail sections

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Piper Cub J-3 in particular but at least we know they do distribute hangar 9.

Wingspan: 2032mm (80 in)
Length: 1268mm (49.9 in)

Weight: 3400 g (7.5 lbs)

Wing area: 919 sq. in. (59.3 sq dm)
Engine: .36–.46 2-stroke, .56–.82 4-stroke
Radio:  4-channel w/ 5 servos
Recommended Fuel : Electric or Glow
