Crux35 from Happymodel

Details

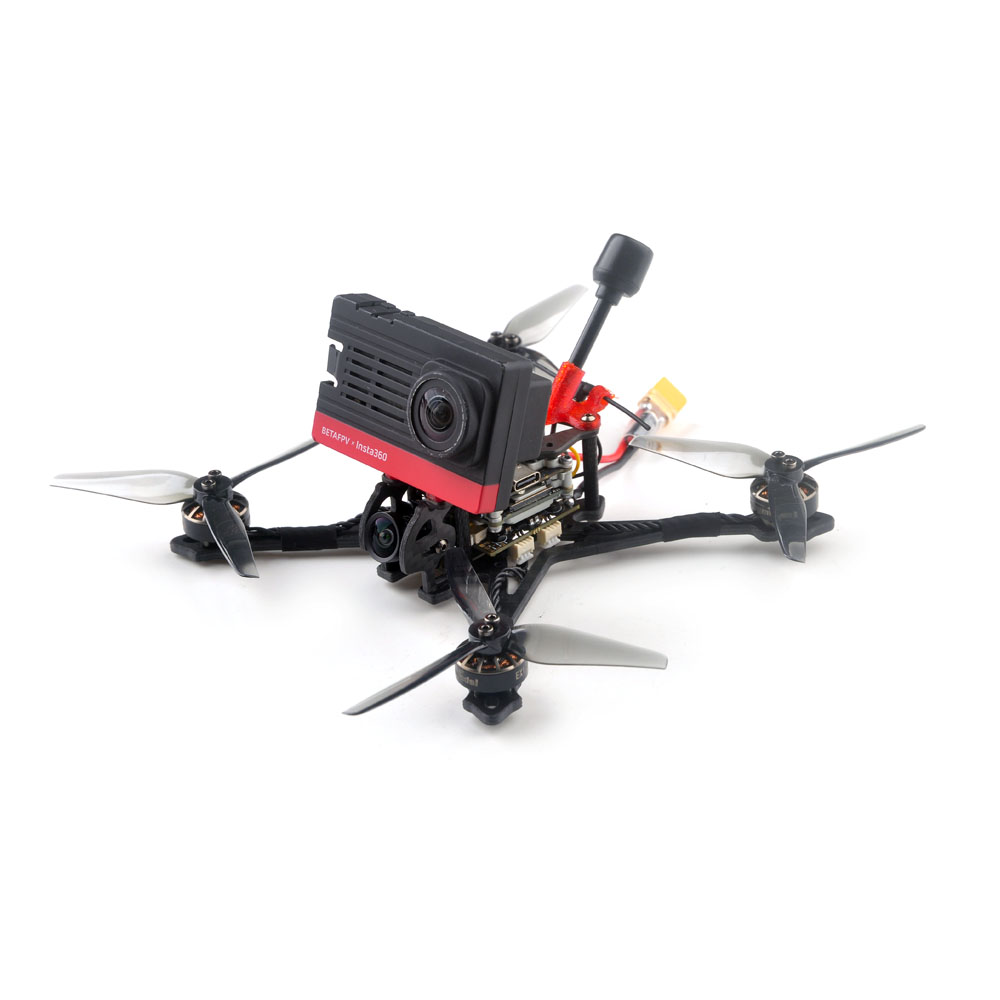

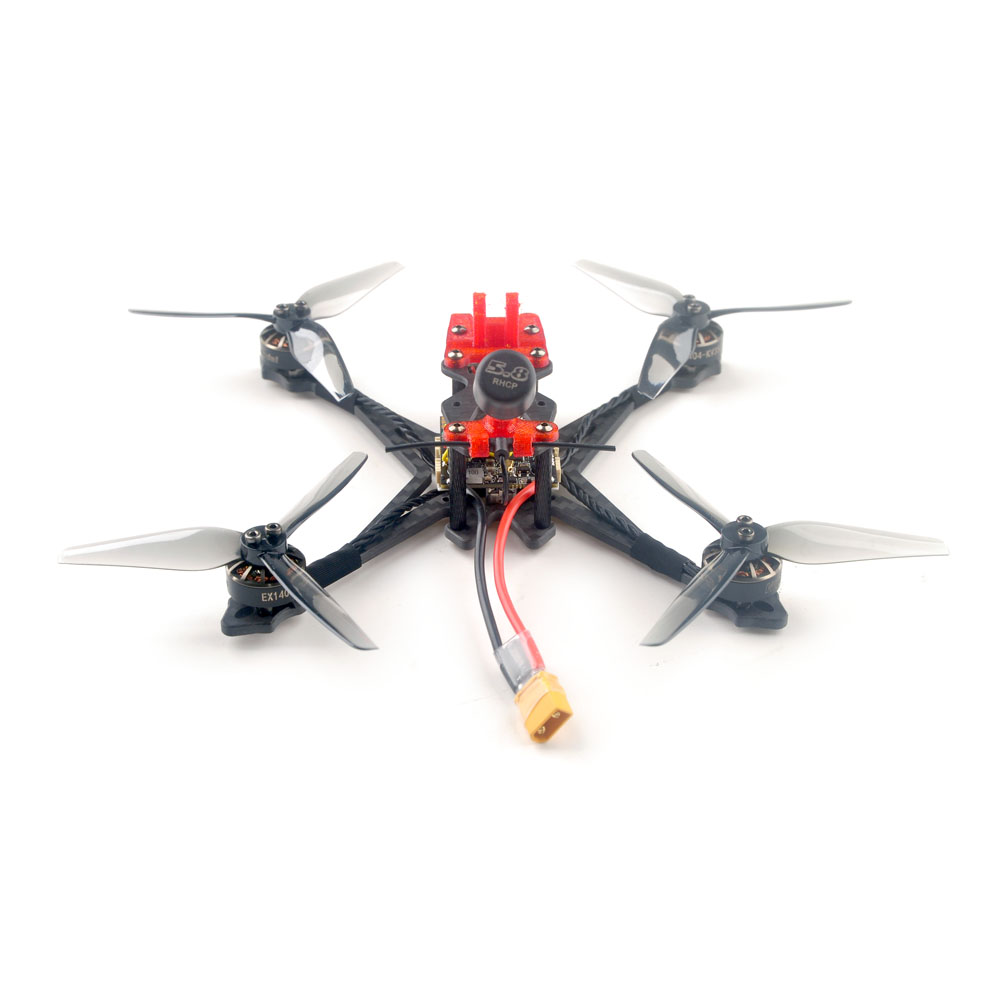

CRUX35/CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.

The HD version is equipped with CADDXFPV Nebula and Vista HD image transmission system. The analog version is equipped with CADDXFPV Ant ant camera.

The receiver version can be SPI ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.

ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 and Crux35 HD.

Features:

  • Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
  • HD video transmission and analog video transmission are optional
  • Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
  • High efficiency EX1404 power system
  • Can be equipped with Naked Gopro or SMO4K
  • Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Crux35 in particular but at least we know they do distribute Happymodel.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 150mm (5.9 in)
Length: 150mm (5.9 in)

Weight: 108 g (3.8 oz)
  • Wheelbase: 150mm
  • Weight:
    • Crux35 87gram
    • Crux35 HD 108gram
  • Size: 130mmx130mmx45mm(without propellers)
  • Receiver option:
    • SPI ExpressLRS 2.4GHz
    • SPI Frsky D8/D16 (S-FHSS compatible)
  • Camera option: HD version Nebula+Vista
  • Analog version Ant+OVX303 VTX
  • Flying time: 9min~15min 4s 750mah battery

Variants

crux35
Crux35 (Black Red)
