Crux3NLR from Happymodel

Details

The Crux3NLR Nano LR is a 18650 style Nano Long Range FPV quadcopter BNF . Very simple and convenience, just plug a single 18650 battery and then bind to fly.  Crux3 NLR come with ELRSF4 2G4 flight controller which means it built-in ExpressLRS high performance radio link which made you get a better range and stable link.

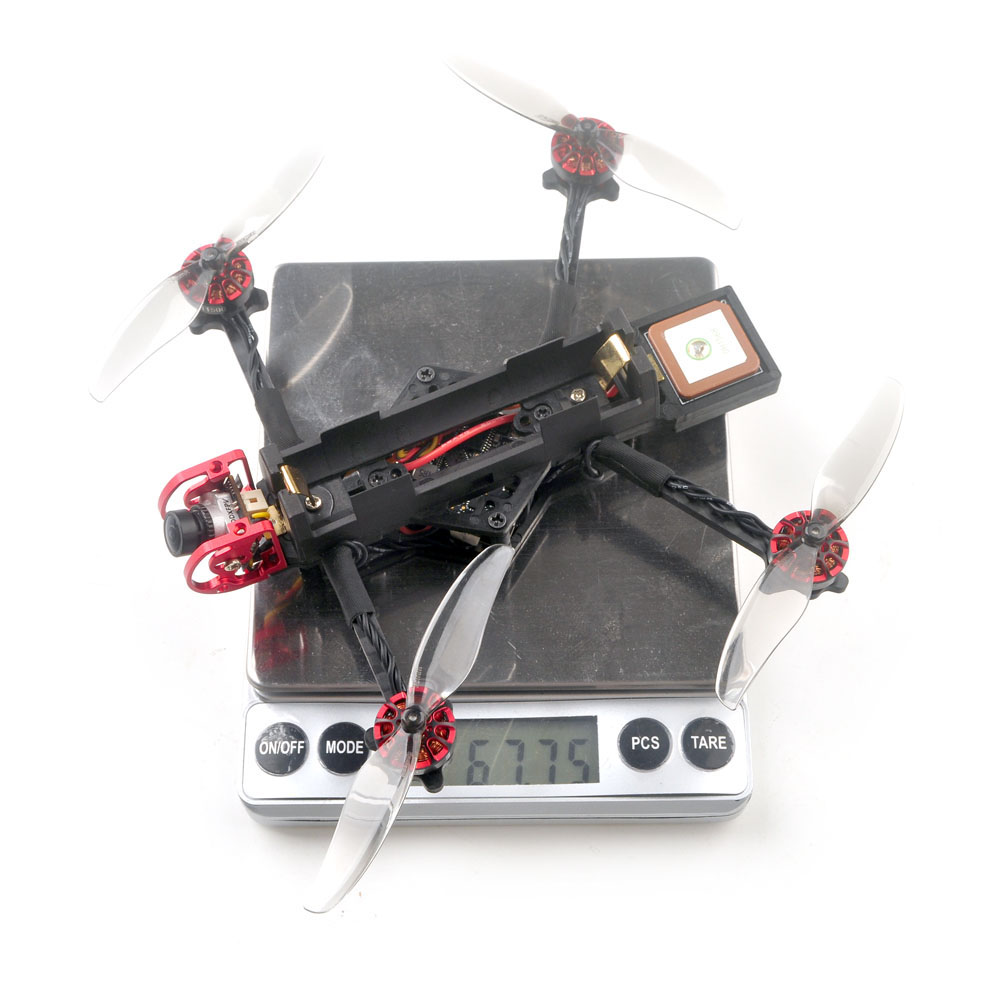

The Crux3 NLR also comes with GPS and buzzer , so that would be much better for a long range FPV flight.  Although equipped with so many devices, the weight is only 68 grams, so we could get more flight time.

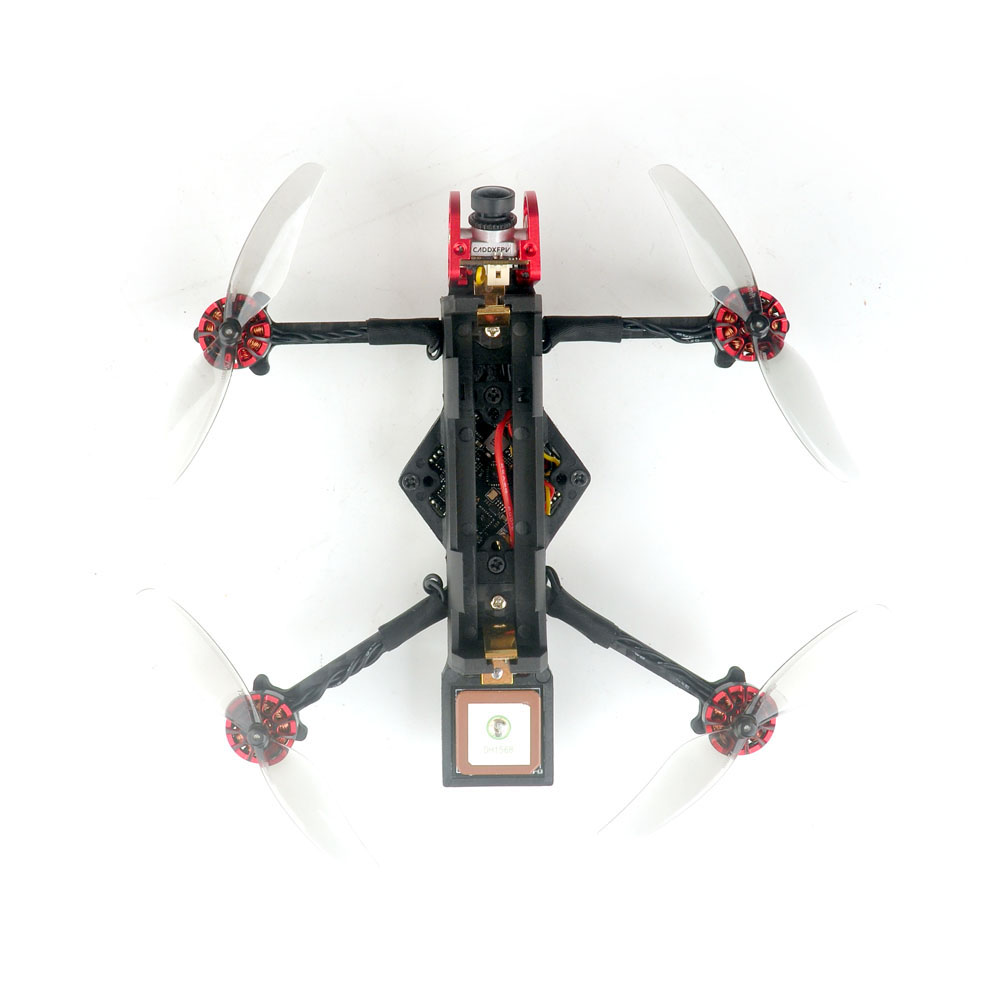

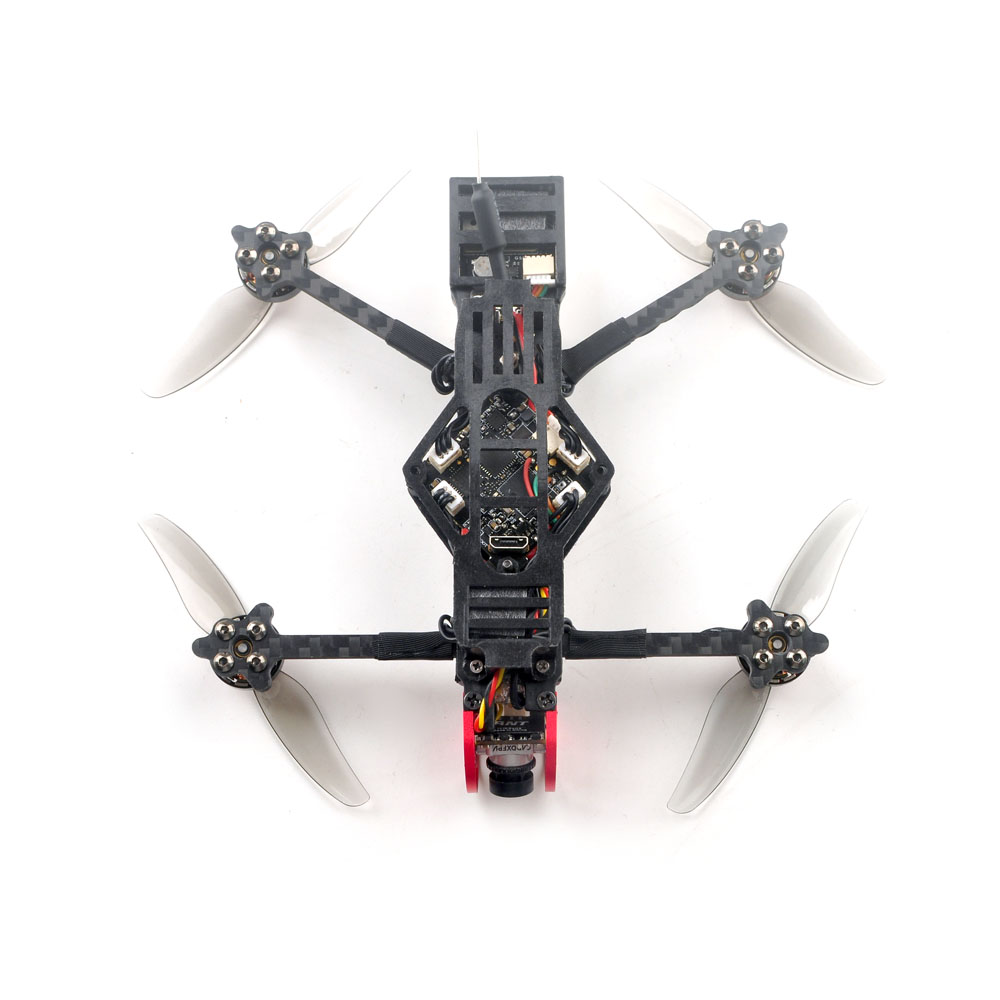

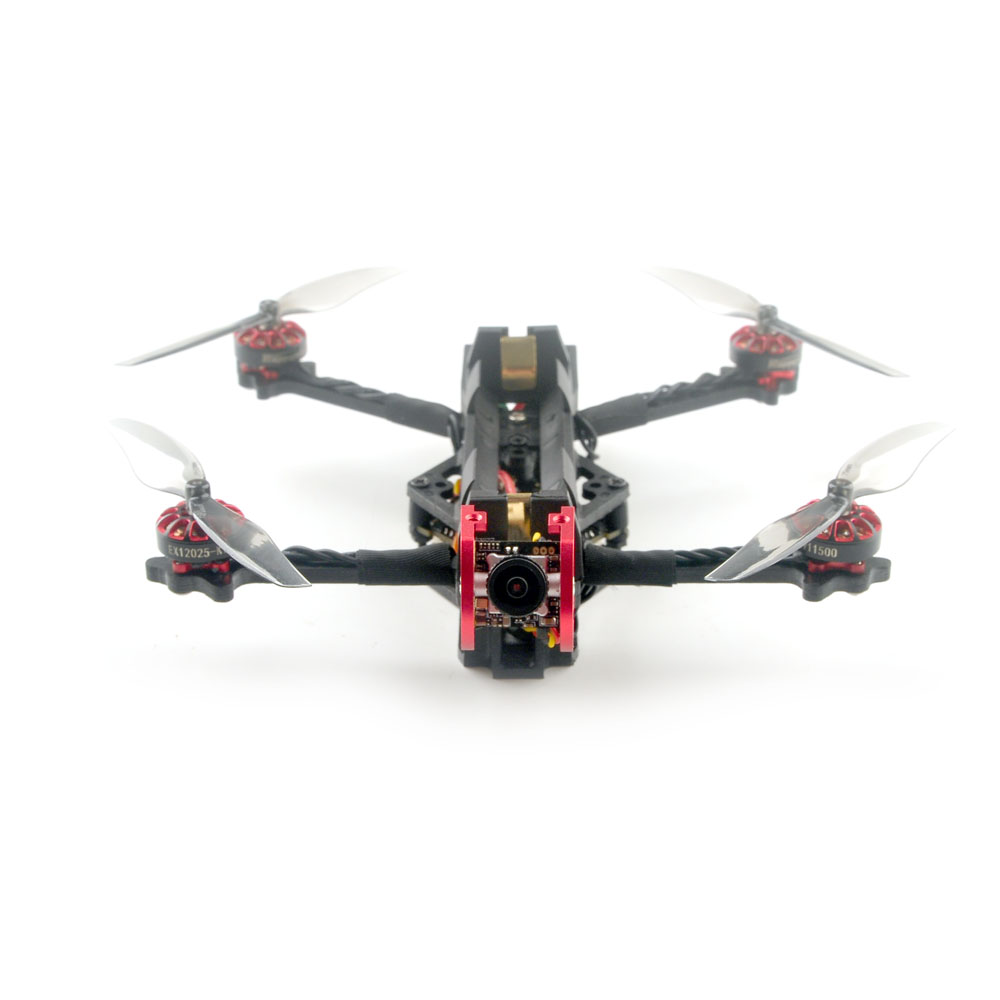

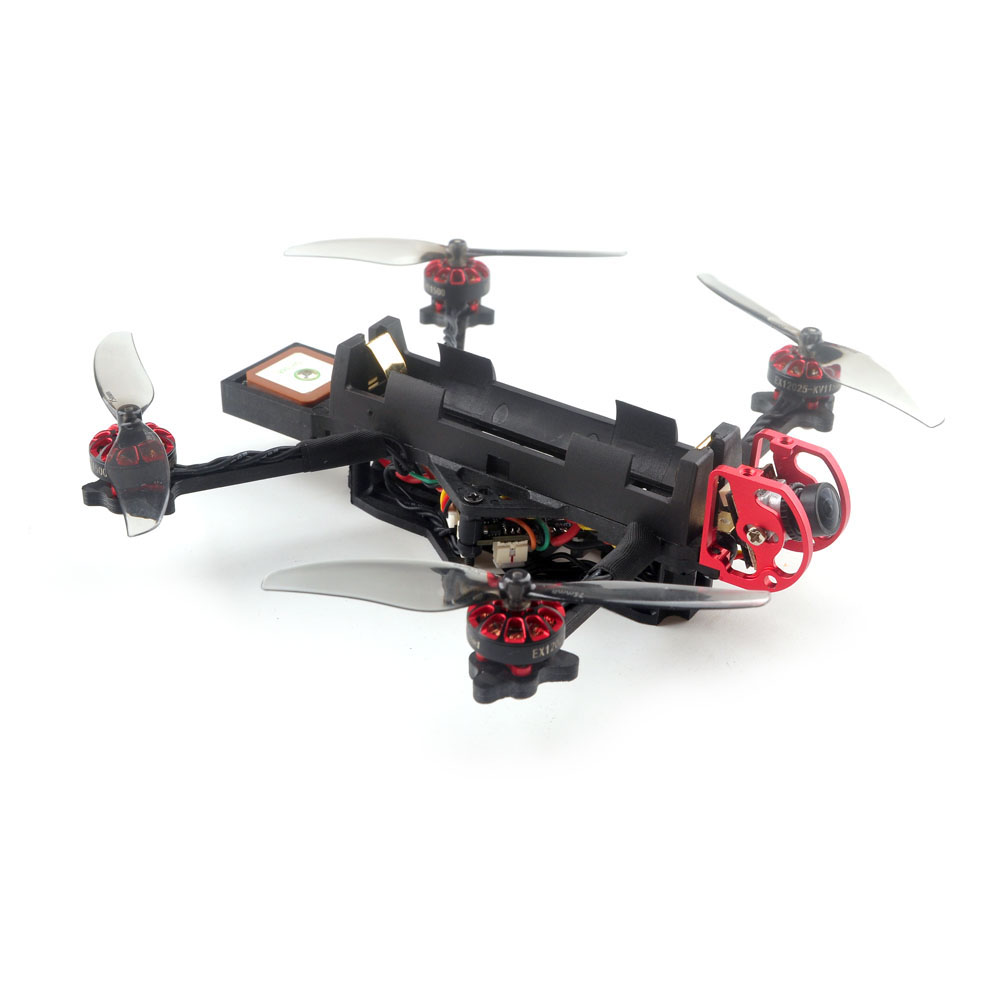

Pictures

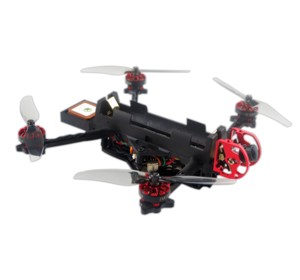

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Crux3NLR in particular but at least we know they do distribute Happymodel.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 135mm (5.3 in)
Length: 135mm (5.3 in)

Weight: 68 g (2.4 oz)
  • Wheelbase: 135mm
  • Size: 125mmx115mmx40mm(without propellers)
  • Weight: 68g(without battery)
Motor Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S
Propellers Gemfan 75mm
Center Thickness:5mm
Prop Diameter:75mm
Center Hole diameter:1.5mm
Pitch:0.9in
Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controllerfirmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna : SMD antenna
Telemetry output Power: <12dBmReceiver protocol to flight controller:  CRSFCould bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module
Onboard 5.8g VTX Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race bandSmartaudio ready
Happymodel Mini M8N GPS Chip Model: Mini M8N GPS
Features: GPS+SBAS or GPS+GLONASS+SBAS
Position Accuracy: 2.0 m CEP
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Update rate: 5HZ Default, up to 10HZ
Baudrate: 57600
Size: 20mm*20m*6mm
Weight: 6g
Cold start waiting time: 3~5minutes
Warm start waiting time: 0.5~1.5minutes
Caddx ANT 1200tvl camera Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

Variants

Crux3NLR
Crux3NLR (Black Red)
