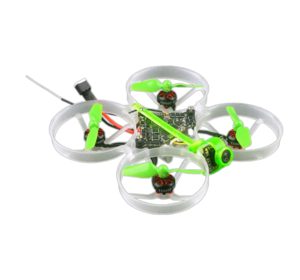

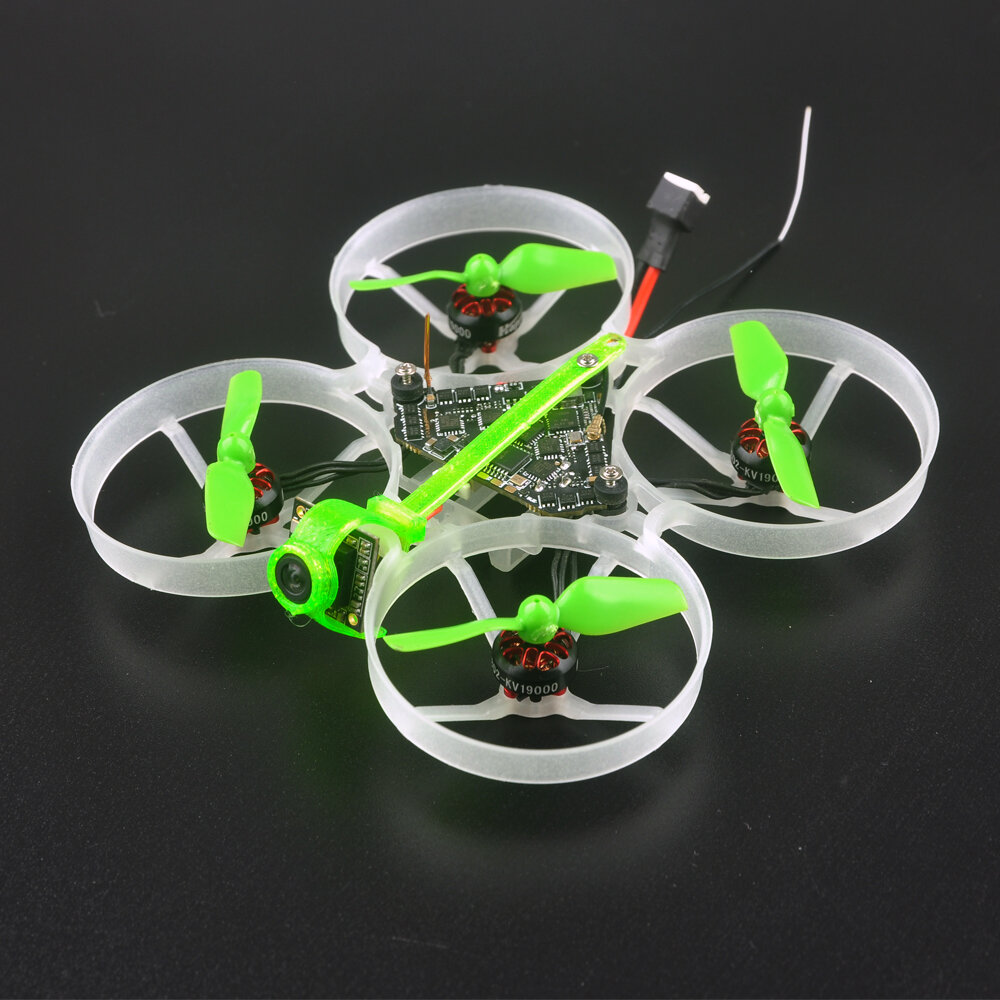

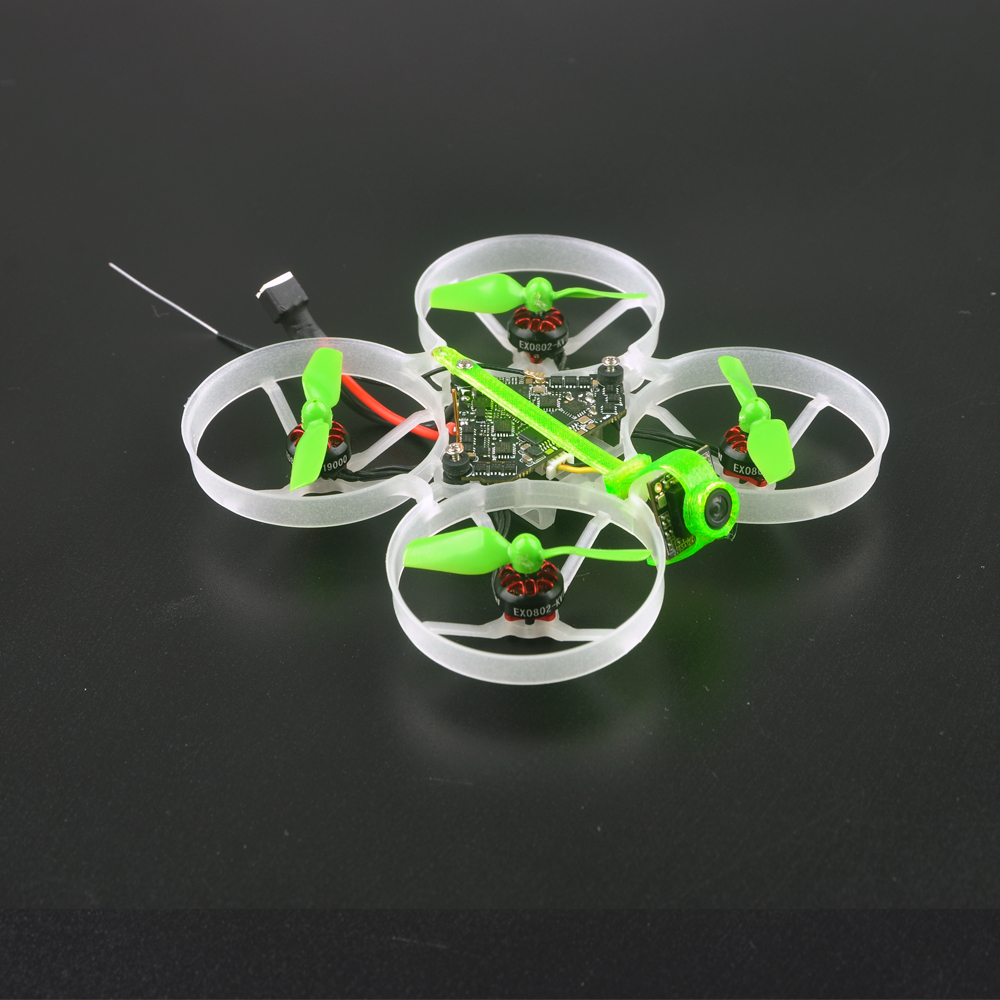

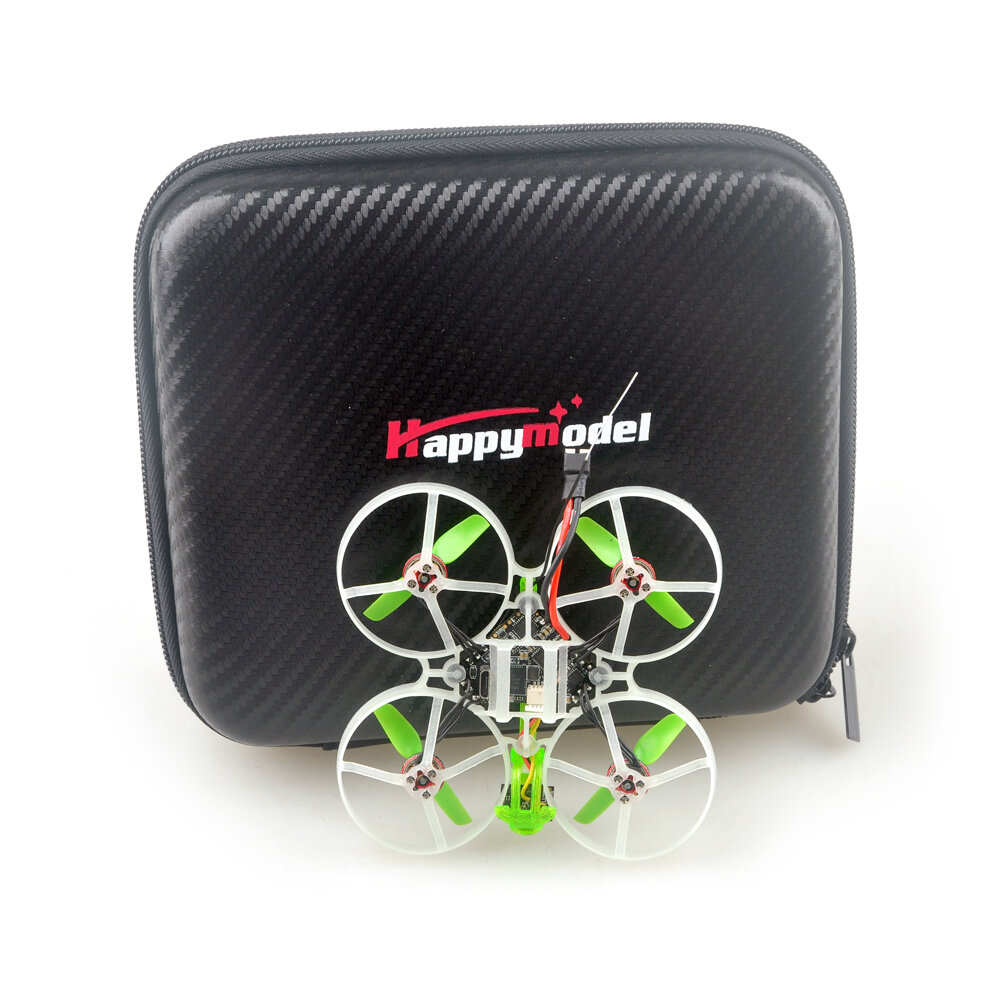

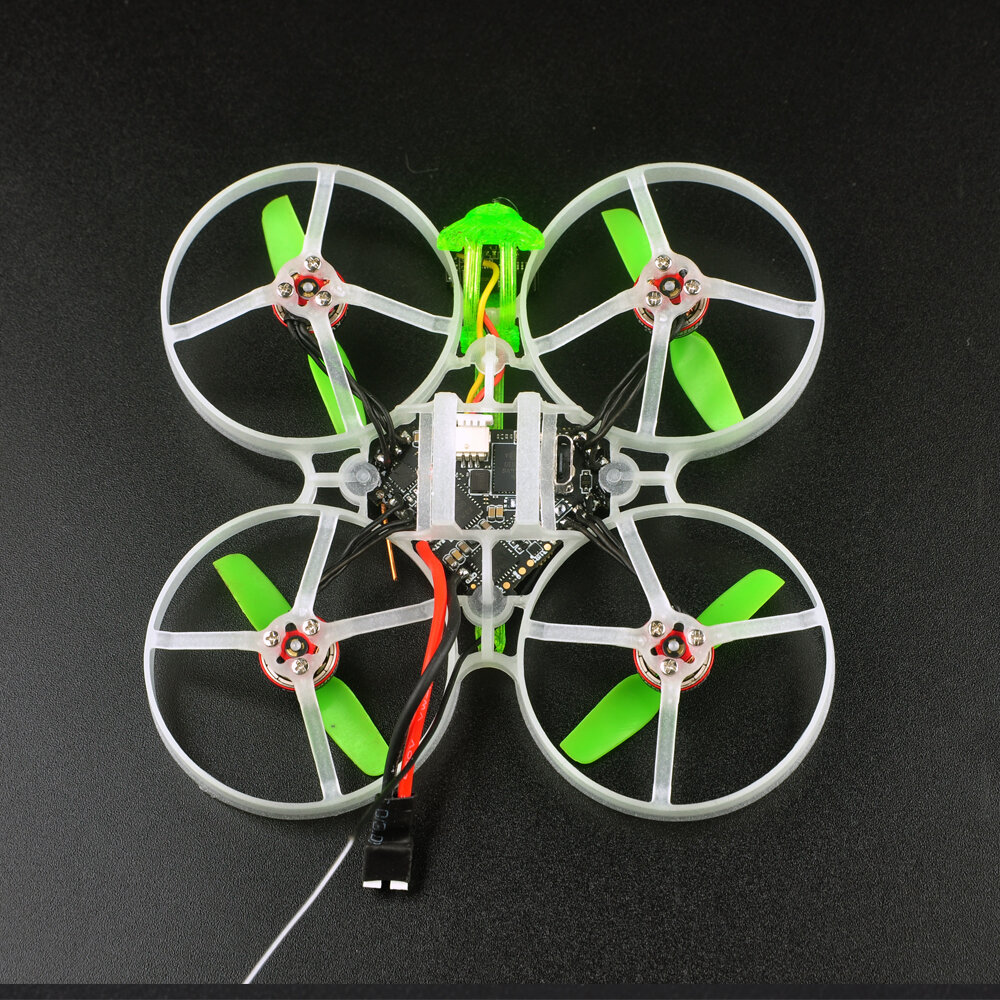

Moblite7 1S from Happymodel

Details

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Moblite7 1S in particular but at least we know they do distribute Happymodel.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 97mm (3.8 in)
Length: 97mm (3.8 in)

Weight: 36 g (1.3 oz)
  • Wheelbase: 75mm
  • Size: 97x97x25mm
  • Weight: 19.5g (without battery)
  • Weight: 36g (with Original 1s 650mah Lipo battery )

Motor

  • Model: EX 0802 19000KV ( New Unibell Version)
  • Configuration: 9N12P
  • Stator Diameter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter:Φ1mm
  • Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
  •  Weight(g): 1.7g
  •  No.of Cells(Lipo): 1S only

 Flight Controller

  • (Frsky SPI RX Version) DiamondF4 FR FC Firmware   Target: CrazybeeF4FR
  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000 (SPI connection)
  • Original whoop size compatible
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC

 Onboard 4in1 ESC

  • MCU Upgraded to EFM8BB21
  • Power Supply: 1S LiPo/LiPo HV
  • Current: 5A continuous, peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory Firmware: O_H_50_REV16_8.HEX
  • Default Protocol: DSHOT600

 Onboard Frsky SPI D8 receiver Version

  • SPI BUS Receiver Frsky D8 Compatible
  • Compatible Non EU transmitter D8 model
  • Channels: 8CH
  • Failsafe Support
  • No ground interference ( Transmitter and receiver 1 m from the   ground): 200m~300m
 Onboard Flysky Receiver Version
  • SPI BUS Receiver
  • Protocol: AFHDS and AFHDS-2A Switchable
  • Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)
  • No ground interference ( Transmitter and receiver 1 m from the   ground): 100~200m
  • Failsafe Support

 Onboard 5.8G 40CH 25-200mW VTX

  • Output Power: 25mw~200mw switchable
  • Frequency: 40CH
  • Input Voltage: 3.3V 5.5V
  • Current Consumption: 300mA (type)
  • Frequency: 5.8GHz 5bands 40 channels (include Race band)
  • Smartaudio Ready

 Runcam Nano 3 FPV Camera

  • Model: RunCam Nano 3
  • Image Sensor: 1/3" CMOS
  • Horizontal Resolution: 800TVL
  • Lens : 2.1mm(M8) FOV 160°
  • Signal System: PAL/NTSC Non Switchable
  • S/N Ratio: >50dB
  • Electronic Shutter Speed: Auto
  • Auto Gain Control (AGC): Auto
  • Min. Illumination: [email protected]
  • D-WDR: Auto
  • Day/Night: Color
  • Power:DC 3-5.5V
  • Current: [email protected]  [email protected]
  • Housing Material: ABS
  • Net Weight: 1.2g
  • Dimensions: L14mm*W14mm*H9mm

 Lipo Battery

  • Capacity: 650mAh
  • Voltage: 3.8V
  • Continuous Discharge Rate: 30C
  • Instantaneous Discharge Rate: 60C
  • Size: 60mmx18mmx8mm
  • Weight: 16g
  • Connector: PH2.0
  • Quantity: 2 PCS

Variants

moblite7
Moblite7 1S (White Green Fluo)
