Cessna 188 Agwagon from HobbyKing

Details

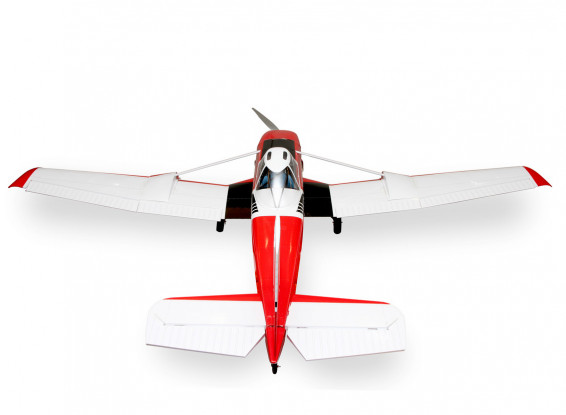

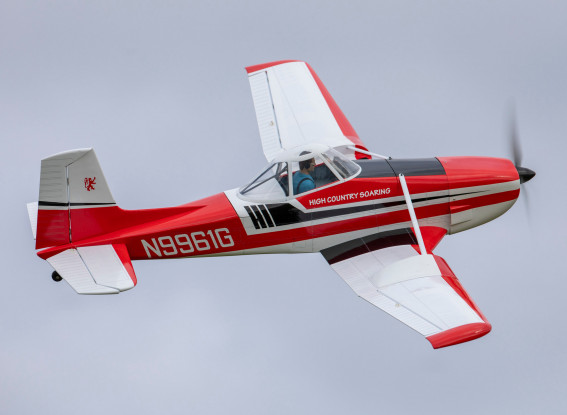

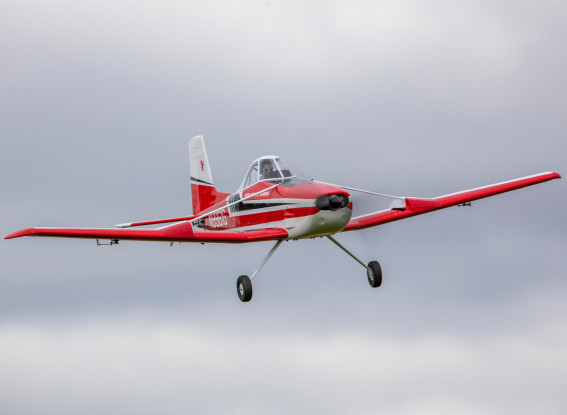

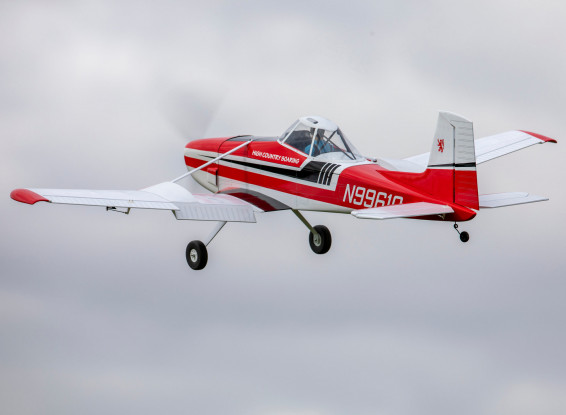

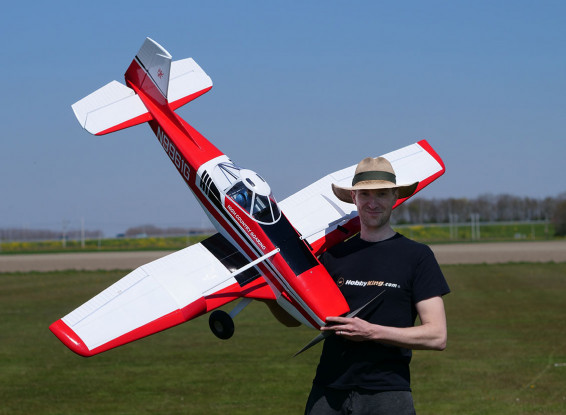

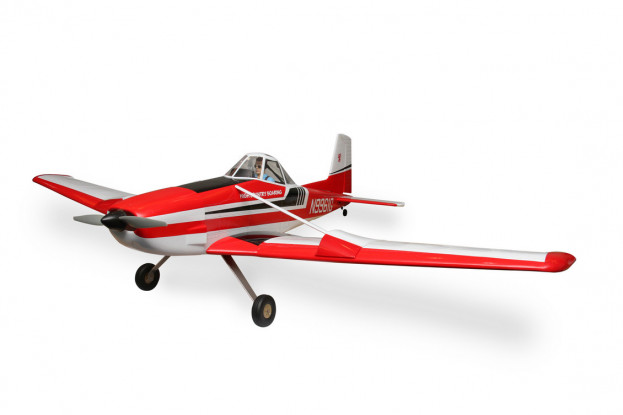

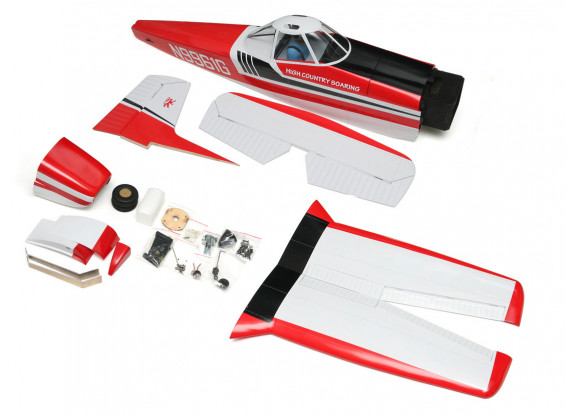

The VQ Models Cessna 188 "Agwagon"  from HobbyKing is a highly detailed, impressive-looking model of this popular full-size workhorse. Due to its large wing area, working flaps, and light wing loading it has a very impressive flight performance, it also has options for gas, glow, and electric power. This ARF model has a lightweight balsa and lite-ply jig built fuselage and wings, pre-hinged control surfaces, fiberglass cowl with detailed panel lines, and a huge internal space for electronics, and even possibly a flour hopper! Also included is a detailed cockpit with hand-painted pilot, spinner, servo mounts, vibrant decals, printed scale detail, and a complete hardware pack including mount and fuel tank for the glow/gas versions.


For easy transportation and assembly, the Cessna 188 has a two-piece wing with an aluminum wing joiner allowing this impressive-sized model to be transported in the smaller hatchback cars. Another feature is a large battery hatch to facilitate easy battery pack changes between flights if you are electrifying the Cessna 188.

The Cessna 188 was a light agricultural aircraft produced between 1966 and 1983 by the Cessna Aircraft Company. The initial design of the Cessna 188 was so successful that over its 17-year production run the basic airframe remained unchanged. The main use for the Cessna 188 series was for agricultural purposes, ie, crop-dusting, but many examples were later acquired for use as sailplane and glider tugs.

Features

  • Impressive size and flight performance
  • Jig-built lite ply/balsa fuselage and wings
  • Two-piece wing for easy transport and assembly
  • Mounting options for gas, glow, or electric
  • Control surfaces pre-hinged and installed

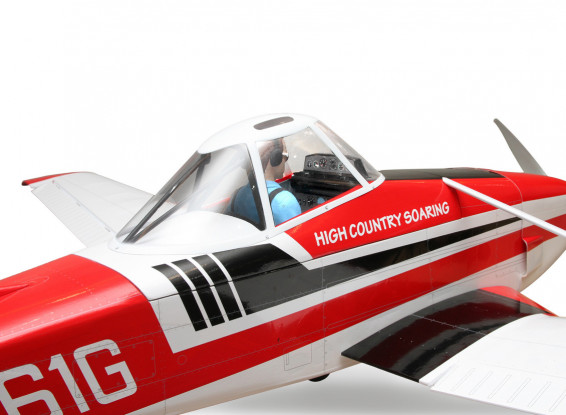

  • Detailed cockpit with hand-painted pilot
  • Fiberglass cowl with detailed panel lines

Manufactured by  Vinh Quang RC Model (VQ model)

Pictures

Manual

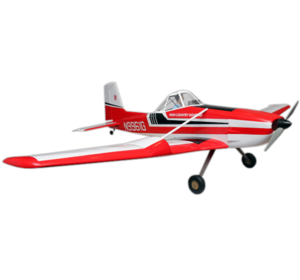

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Cessna 188 Agwagon in particular but at least we know they do distribute HobbyKing.

Wingspan: 192mm (7.6 in)
Length: 1300mm (51.2 in)

Weight: 3500 g (7.7 lbs)
  • Wingspan: 1920mm (75.5")
  • Length: 1300mm (51")
  • AUW Ready to Fly: 3.5kg (7.72lbs}, will vary with set-up
  • Engine: .60 (nitro/gas 2-Stroke) /.90 (4 Stroke) or electric equivalent
  • Radio: 6 channels with 7 or 8 servos
  • Electric Motor: Motors with a KV of 300~400 (Turnigy G90-325KV or NTM 5060 380KV recommended)
  • ESC: 60~80A or above
  • Battery: 6S 5000mAh or above LiPo or LiHV



Required (not supplied) Electric version:

  • 6ch or more transmitter and receiver
  • 6 Std size servos (metal gear recommended)
  • 60~80A or more electronic speed controller with BEC or separate BEC unit
  • G90-325KV, NTM 5060-380KV, or similar brushless outrunner motor
  • 6S 5000mAh or above LiPo or LiHV battery pack
  • Suitable propeller
  • Extension leads
  • 5 & 30min epoxy, CA glue, silicone sealer
  • Tools (as listed in the assembly manual)


Required (not supplied) I.C.version:

  • 6ch or more transmitter and receiver
  • 7 Std size servos (metal gear recommended for flying surfaces)
  • .60 2 stroke nitro/gas motor or .90 4 stroke nitro motor
  • Suitable propeller
  • Fuel pipe to suit fuel being used
  • Extension leads
  • Receiver battery and on/off switch
  • 5 & 30min epoxy, CA glue, silicone sealer
  • Tools (as listed in the assembly manual)
