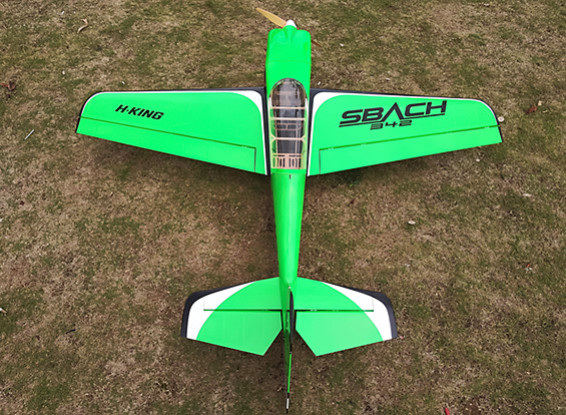

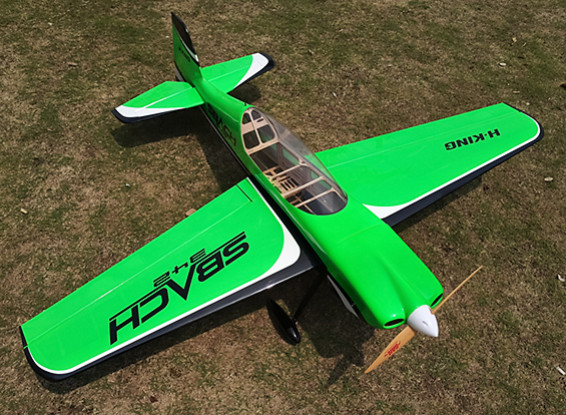

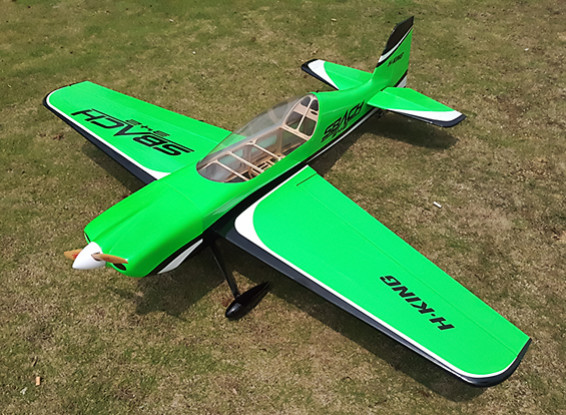

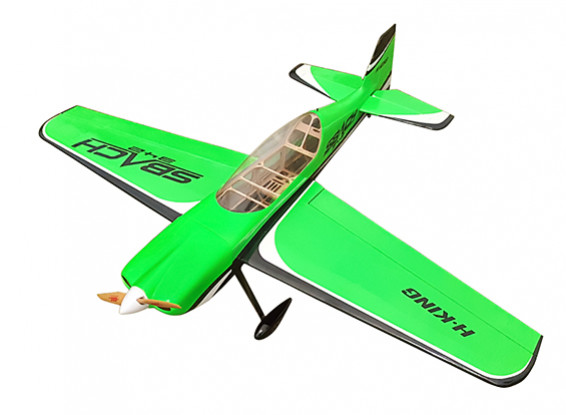

SBach 342 70E V1 from HobbyKing

Details

This H-King SBach 342 has been designed as a large lightweight fully aerobatic 3D model. Being primarily constructed of lightweight balsa and ply to a very high standard the model is well suited to an all-electric setup. The hardware supplied is of excellent quality making this model very simple and straightforward to assemble, all the major components are pre-built and covered in this eye-catching scheme.

The SBach has a 2 piece removable wing for easy transport, 2mm ballink control system, long fiberglass servo horns, one piece carbon fiber U/C, carbon fiber tailwheel assembly and loads more, see the list of features below. Due to its low wing loading it is quite easy to fly and will perform all the usual 3D and aerobatic maneuvers with ease.

Features:

  • Up to date structural design
  • Lightweight but with high strength
  • Excellent aerobatic and 3D performance
  • 2 piece removable wings and canopy quick release system
  • High quality hardware including 2mm ballink control system
  • Carbon fiber U/C, tailwheel assembly and wing tube
  • Aerofoil tail surfaces

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the SBach 342 70E V1 in particular but at least we know they do distribute HobbyKing.

Wingspan: 1520mm (59.8 in)
Length: 1470mm (57.9 in)

Weight: 2500 g (5.5 lbs)

Type: H-King SBach 342 70E V1 1520mm
Build: Almost ready to fly
Wingspan: 1520mm (60")
Length: 1470mm (58")
Wing Area: 47.6sq.dm (738sq.in)
Flying Weight: 2300~2500g (5~5.5lbs)
Color: Green
Recommended Motor: 50mm outrunner brushless (700 watts upwards)
Recommended ESC: 70amps upwards
Recommended Battery: 5~6 cells 3800~5000mah
Recommended Propellers: 16x10E, 17x8E
Radio: 4ch upwards with 5 std size servos


Required:

  • 50mm brushless outrunner motor (700W or more)
  • 70amp ESC or larger
  • 5~6 cell 3800~5000mah lipoly battery
  • 16x10E or 17x8E propeller
  • 4ch or more transmitter and receiver
  • 5 x standard digital servos
