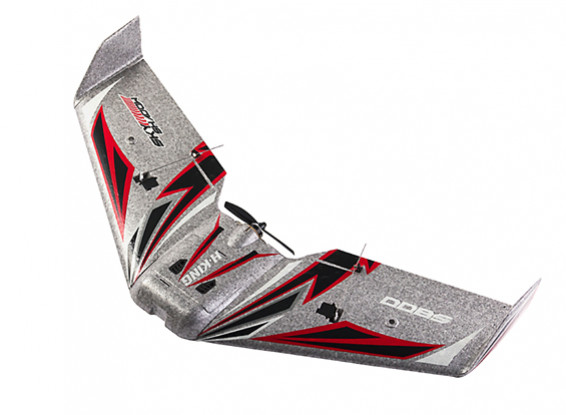

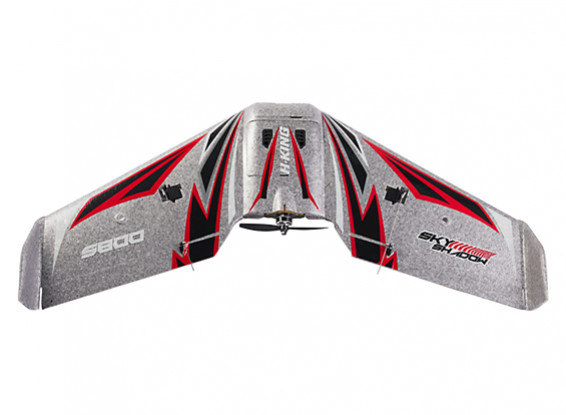

The Sky Shadow S800 is built for extreme FPV flying. The plane is constructed from almost indestructible grey EPP foam with six carbon fiber spars to provide strength and rigidity for excellent performance.

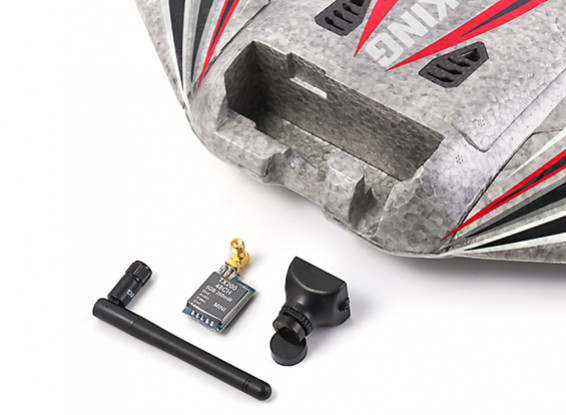

The aerodynamic wing gives stable flight throughout the entire flight envelope, from low speed passes to high-speed turns. The model has been well thought-out with ample room in the nose for an FPV camera and action cam, behind the camera is a large covered hatch for your battery and avionics allowing them to be neatly tucked away. In addition, there is also a compartment in each wing for the video transmitter and radio receiver.
The PNP H-King Sky Shadow S800 comes packaged with a 2205-2300KV brushless motor, 30A ESC, 9g servos, 6045 propellers, 5.8GHz 200W VTx and 700TVL FPV camera. All you need is your favorite radio system and a battery to get in the air.
• High quality, lightweight EPP foam construction
• Aerodynamic design for high speed, low wind resistance, stable flight
• Comes with 3-Axis flight control to ensure a more stable flight
• New design 5V/3A and 9V/3A Dual output powerboard for clean power for your video camera
• 2205-2300KV motor and 30A ESC
• 700TVL FPV camera for clear images
• 200mW VTx for real-time video transmission
• Fun to fly

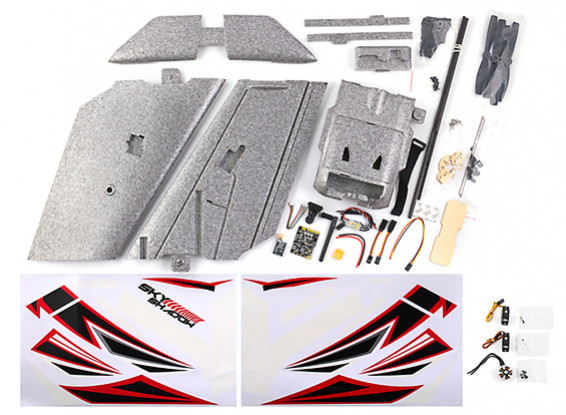

1 x Fuselage
2 x Wings
2 x Small Wing Tips
1 x Nose Block
1 x Main Hatch Cover
2 x Emax ES08A Servos
1 x 3-Axis Flight Control
1 x Flight Control Circuit Board Base
1 x Sunnysky 2205-2300KV Motor
2 x 6045 Propellers
1 x 700TVL Camera
1 x 200mW AV Transmitter
1 x 30A ESC
1 x Sticker Sheet
Some content in menu 2.
Overall Length: 405mm
Weight: 170g (without electronics)
Flight Controller: 3-Axis flight controller
Image Transmission: 200mW with antenna
Servo: Emax ES08A 9g x 2
Motor: Sunnysky 2205-2300KV CCW
Recommended Battery : 3S 1800mAh Lipoly
