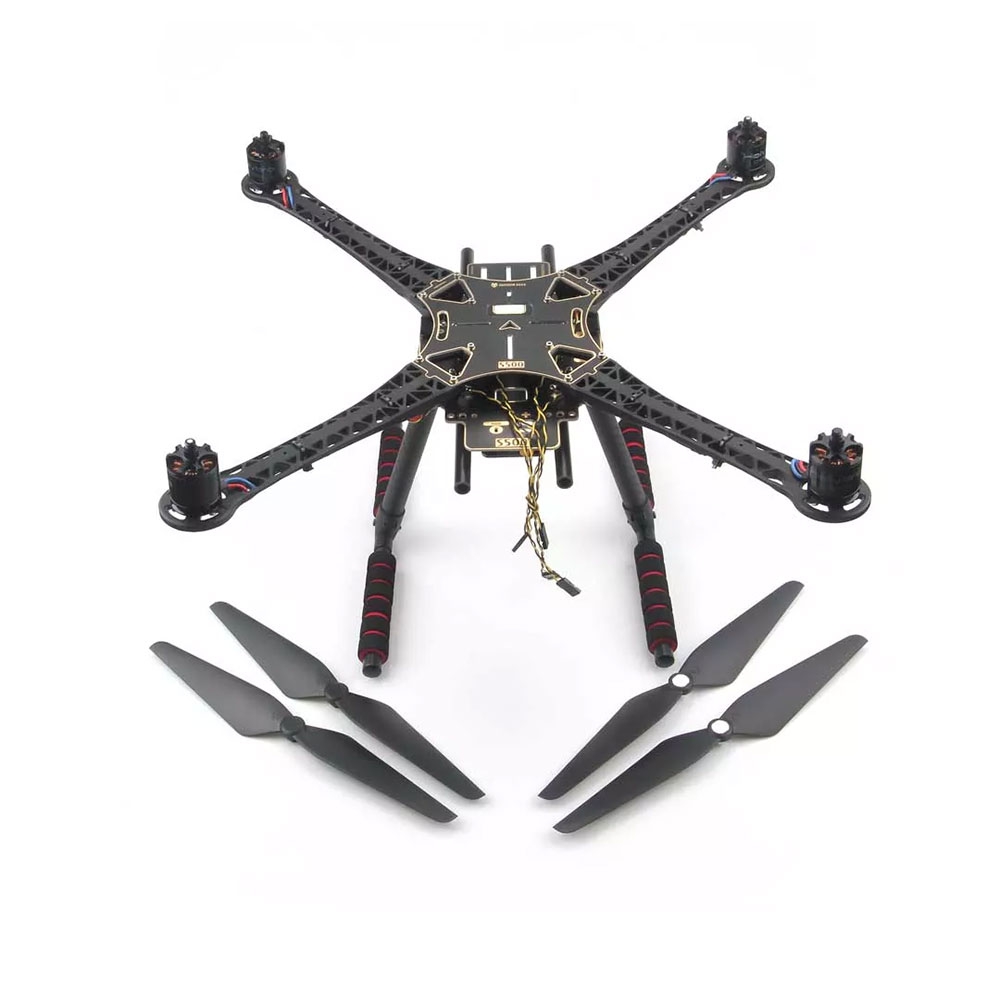

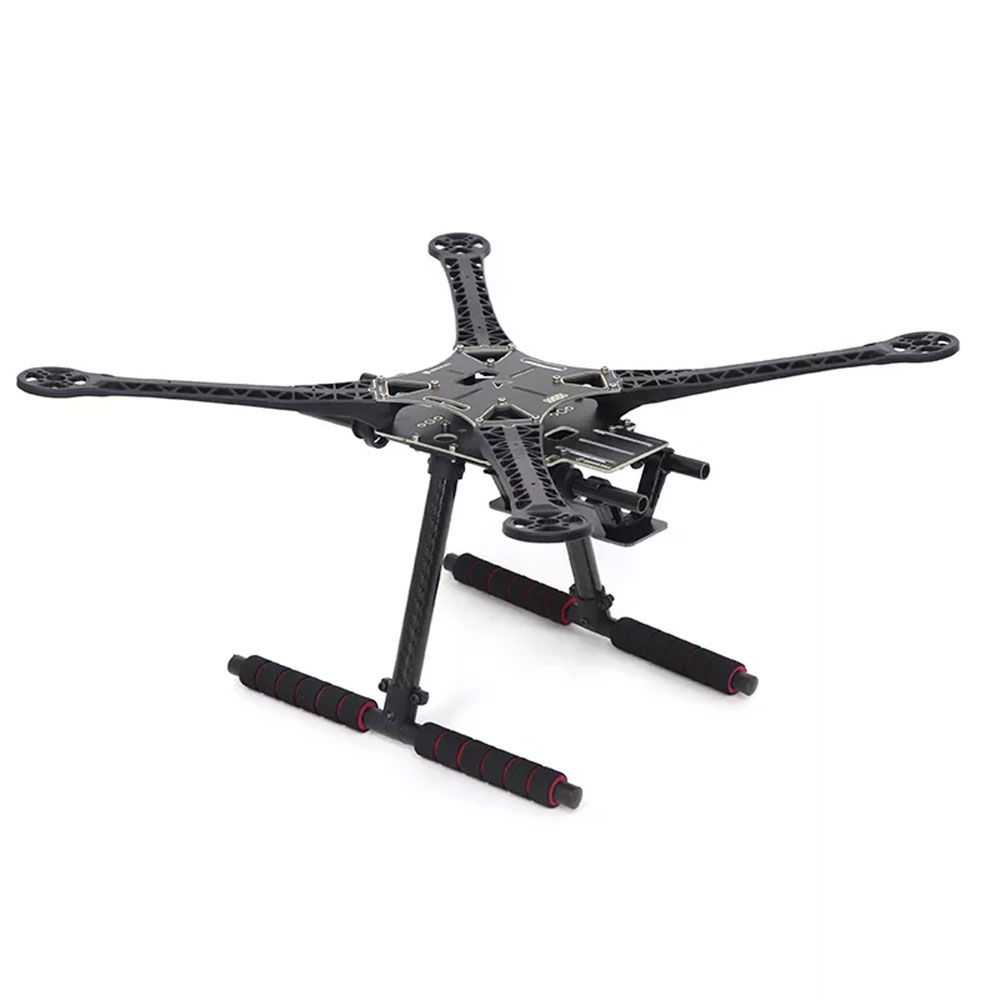

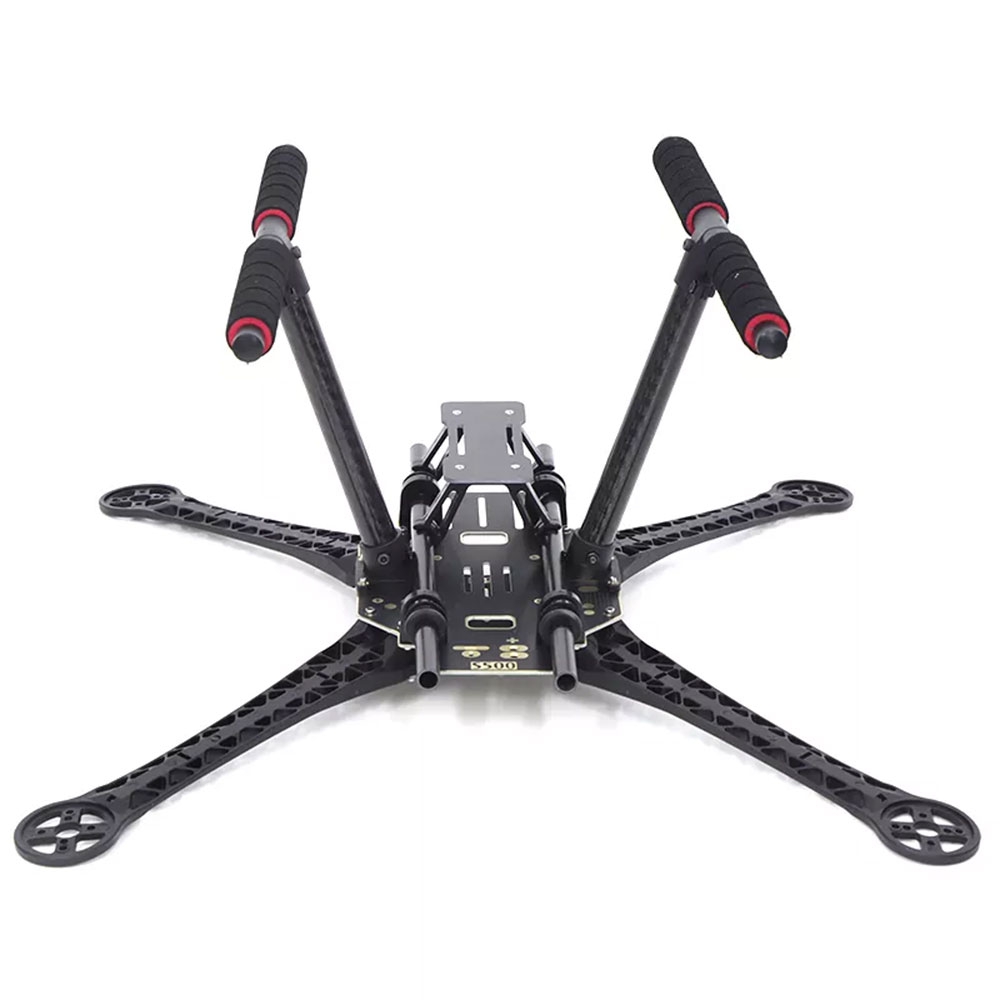

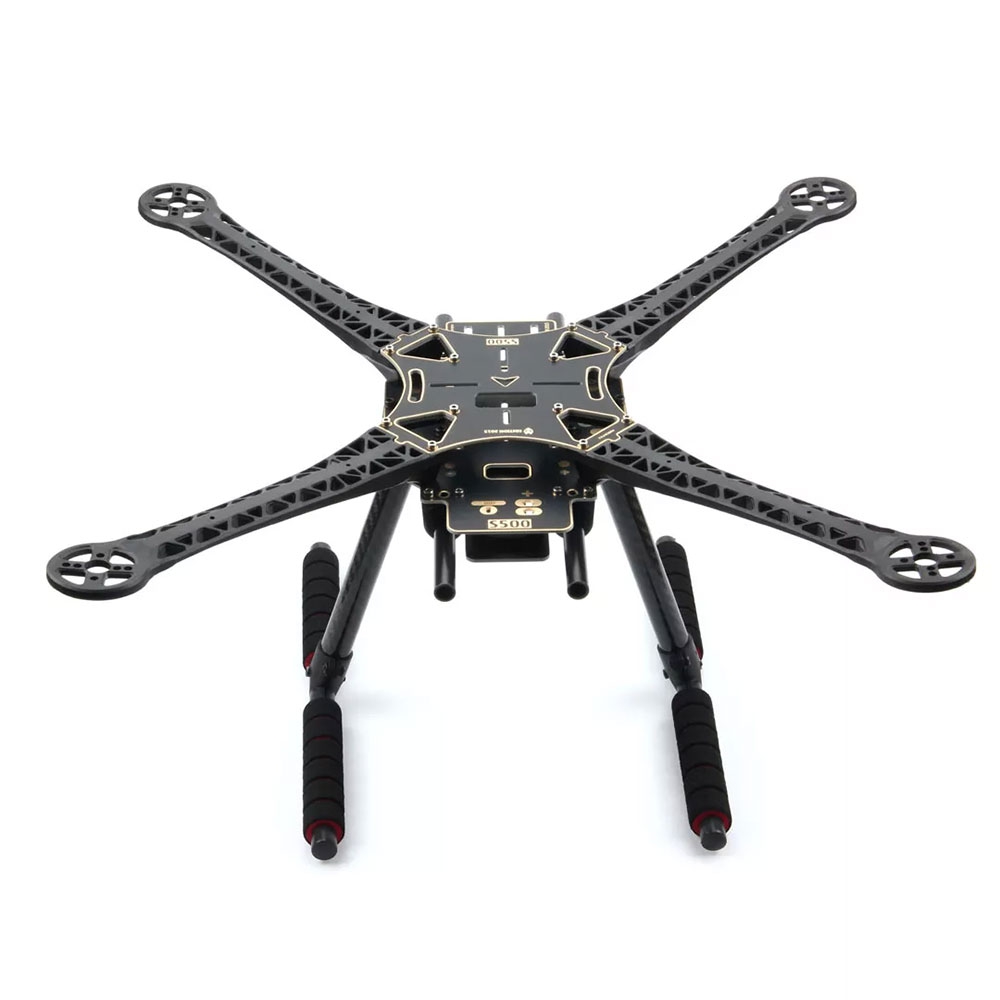

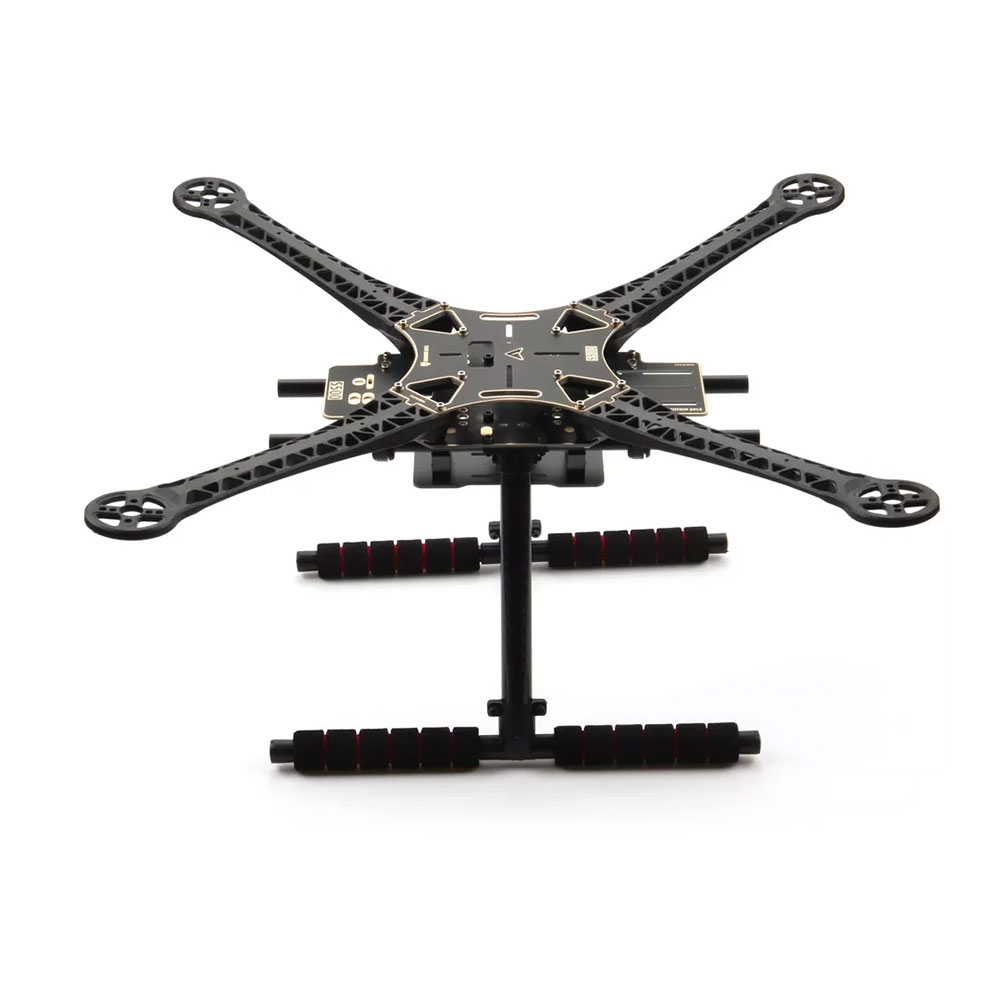

The S500 V2 chassis proposed by Holybro is perfect for people who want to build a drone in DIY (Do It Yourself) mode and realize the programming from A to Z.

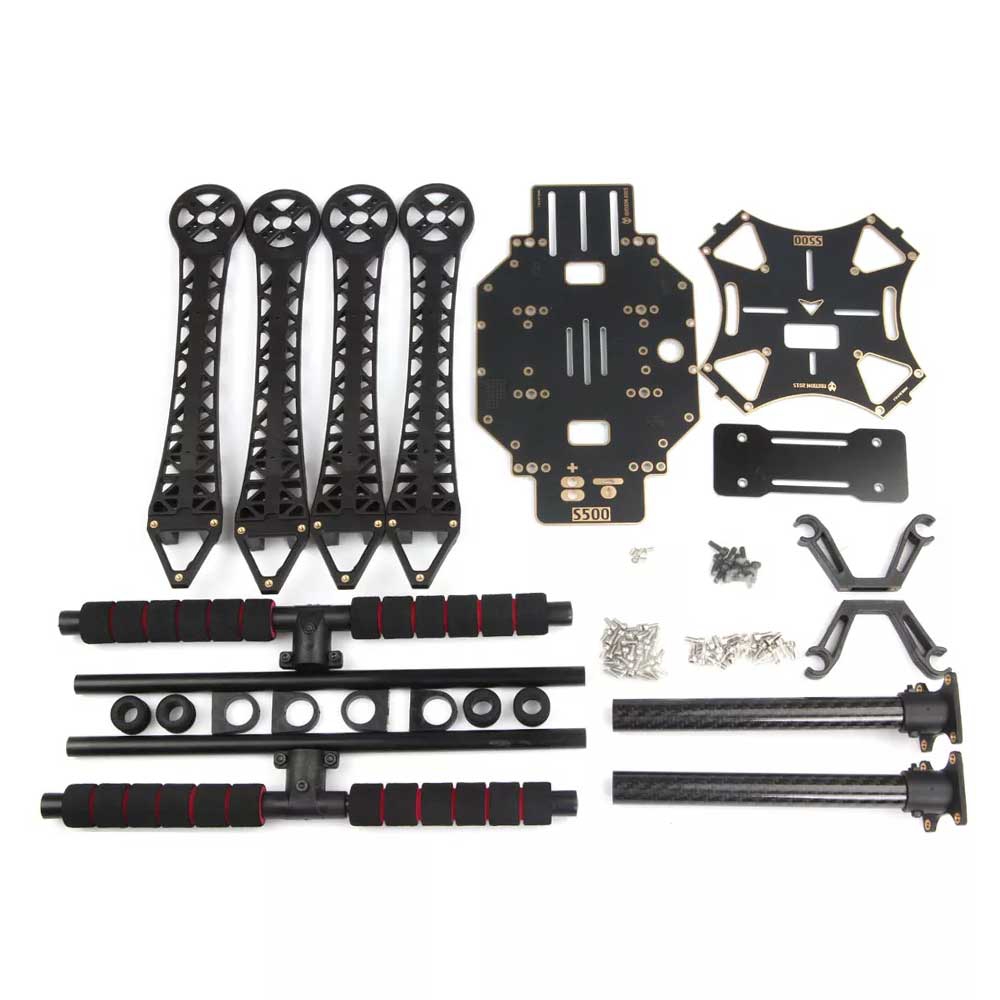

An assembly that will be done simply and quickly, it includes 4 arms screwed between the bottom plate and the top plate. The S500 chassis offers a great freedom of installation for the electronics: flight controller, ESCs, motors,... It is recommended to use 2216 motors of 920Kv coupled with 1045 propellers (10 inches). Concerning the power supply, it will be necessary to use a LiPo 4S battery between 2000 and 5000mAh.
This chassis has a wingspan of 480 mm for a weight of 440 grams. It will suit beginners as well as professionals who will find rails to install a stabilized gondola.
