Milan from Ideecon

Details

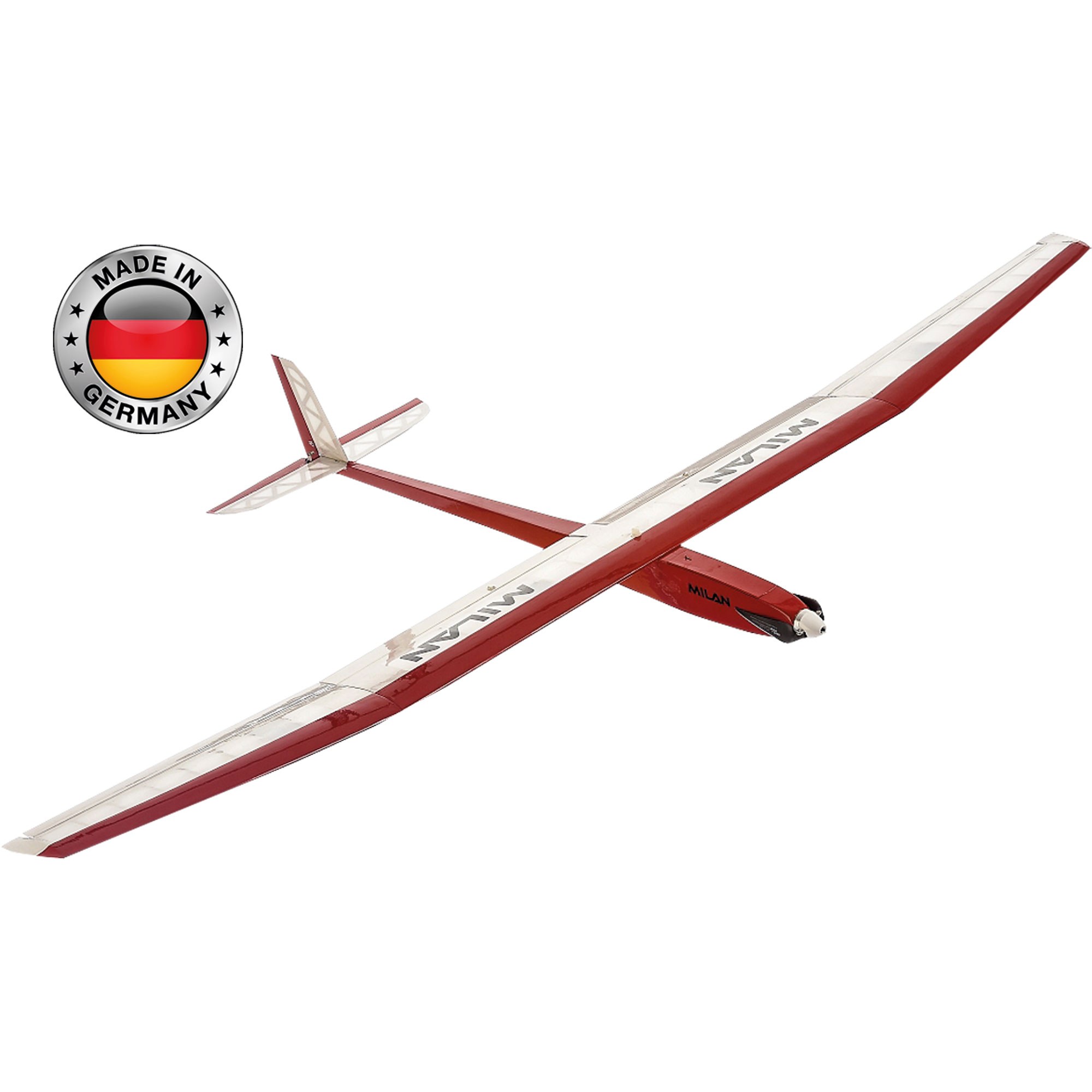

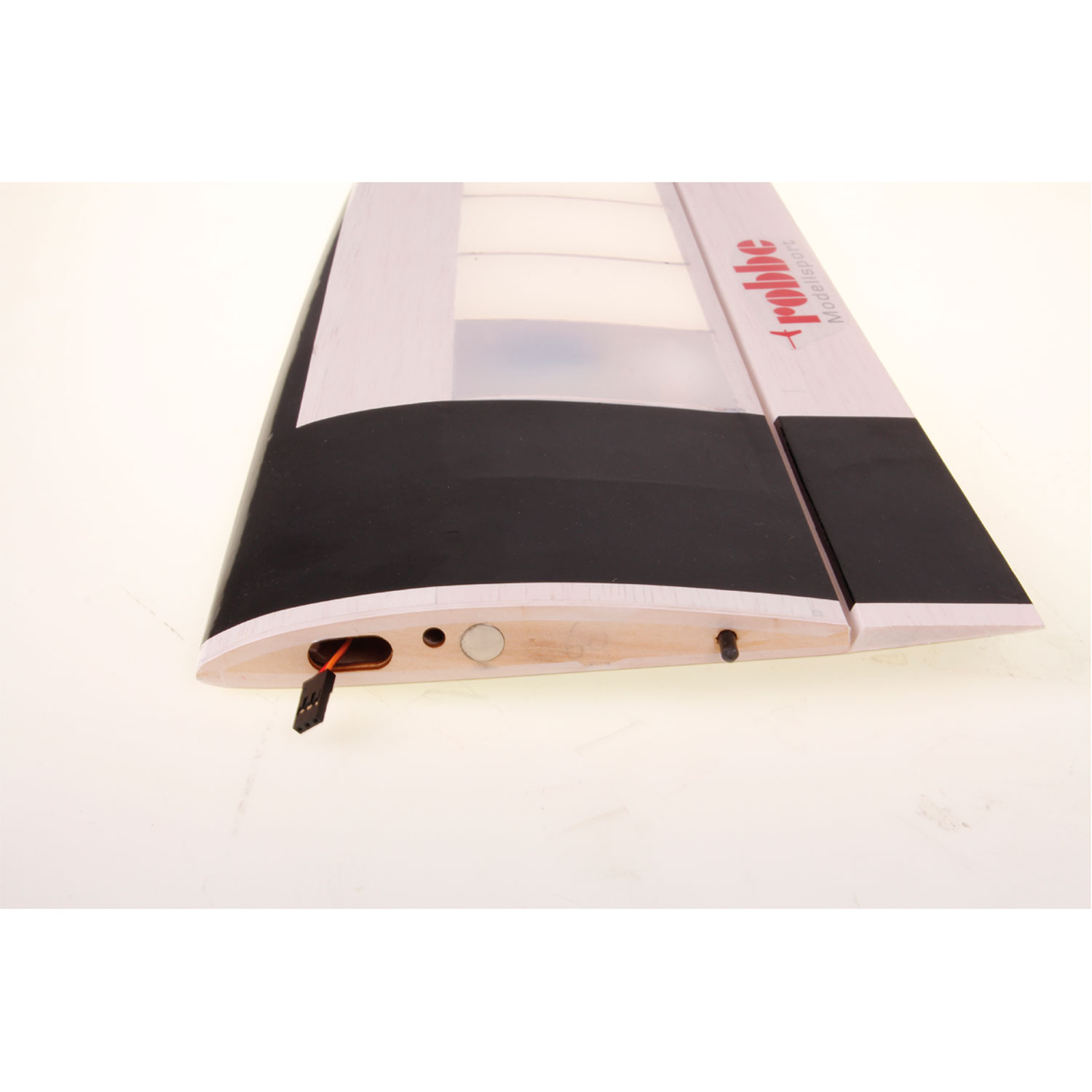

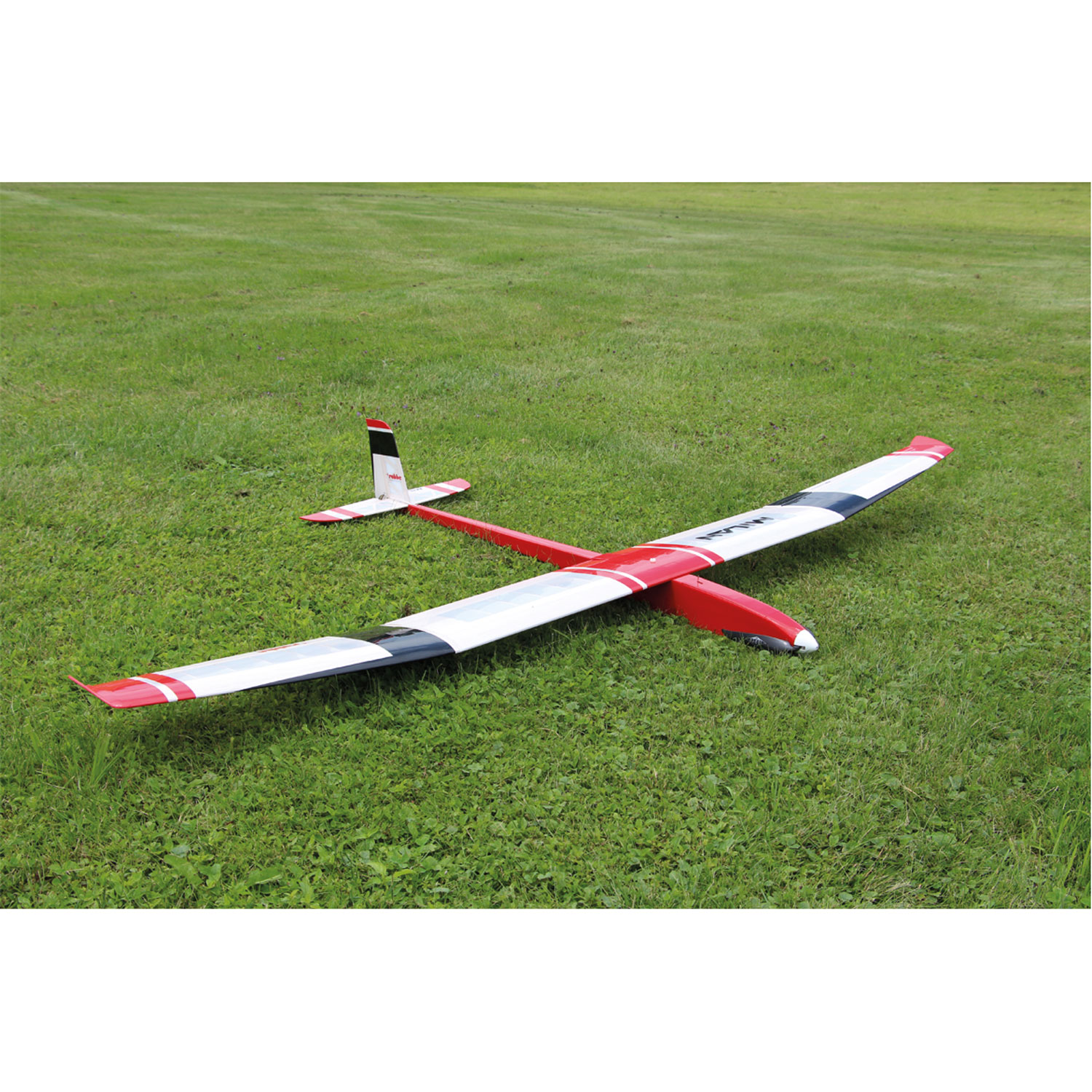

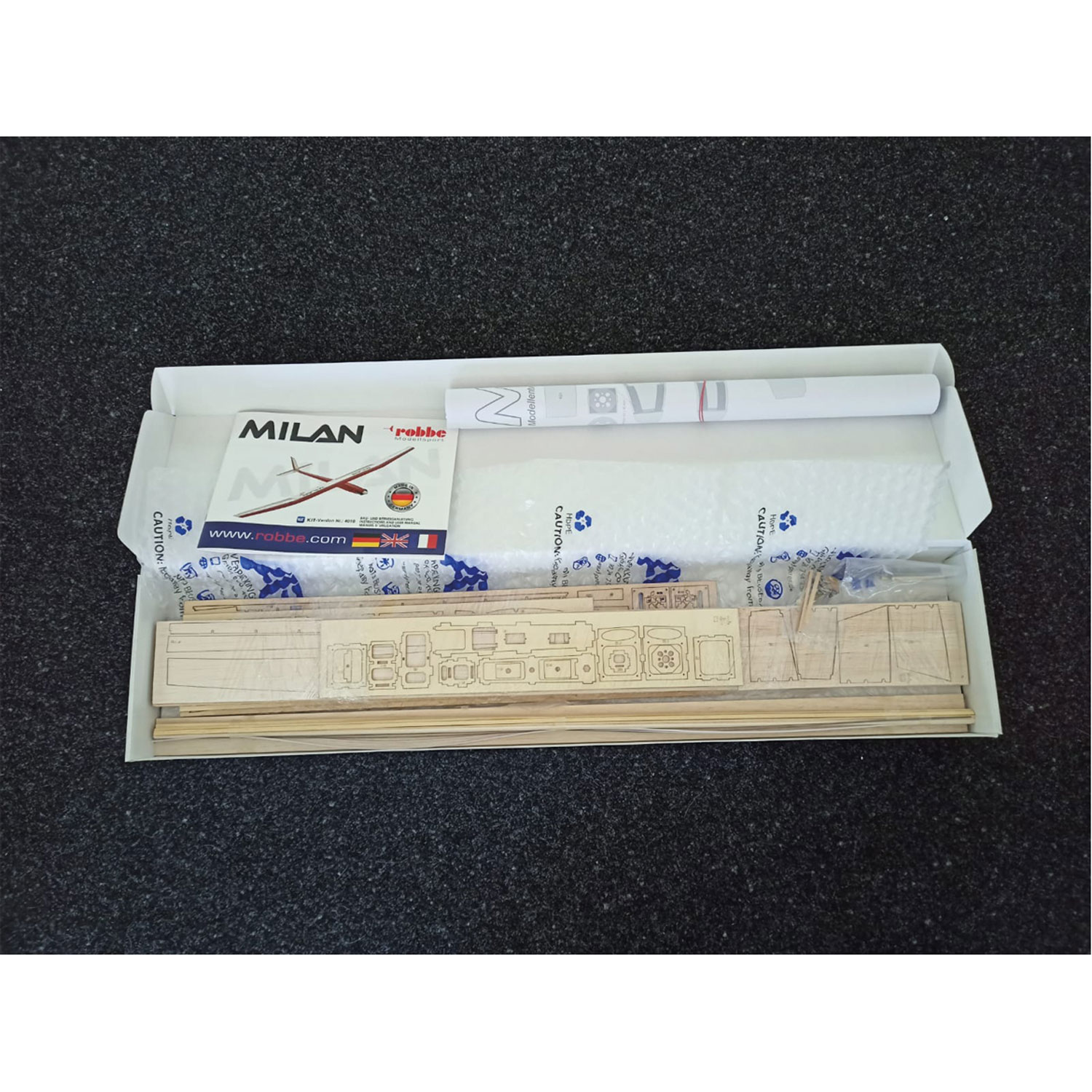

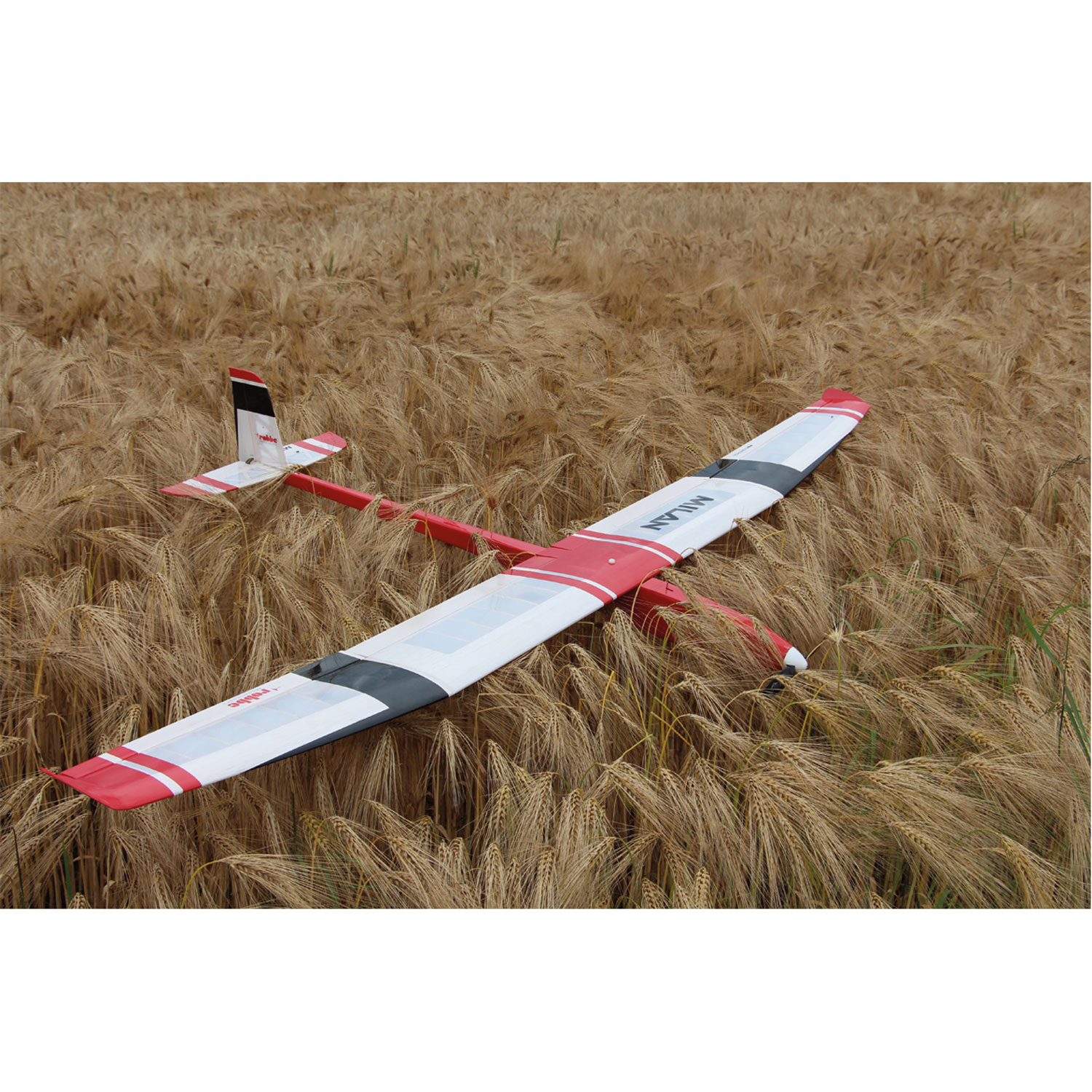

Milan is an elegant electric glider in the 2m class, which responds excellently to thermals. Already during the construction, joy arises, since all wooden parts are manufactured exactly fitting in the laser cut. The well thought-out construction, in which the wing is provided with a comb bar, leads to a quick assembly. The double-sided balsa planking of the wings from the leading edge to the main spar results in a light and torsion-resistant D-box. The wing is constructed in 3 parts with central piece and attachable surfaces. This creates a handy packing size for transport.

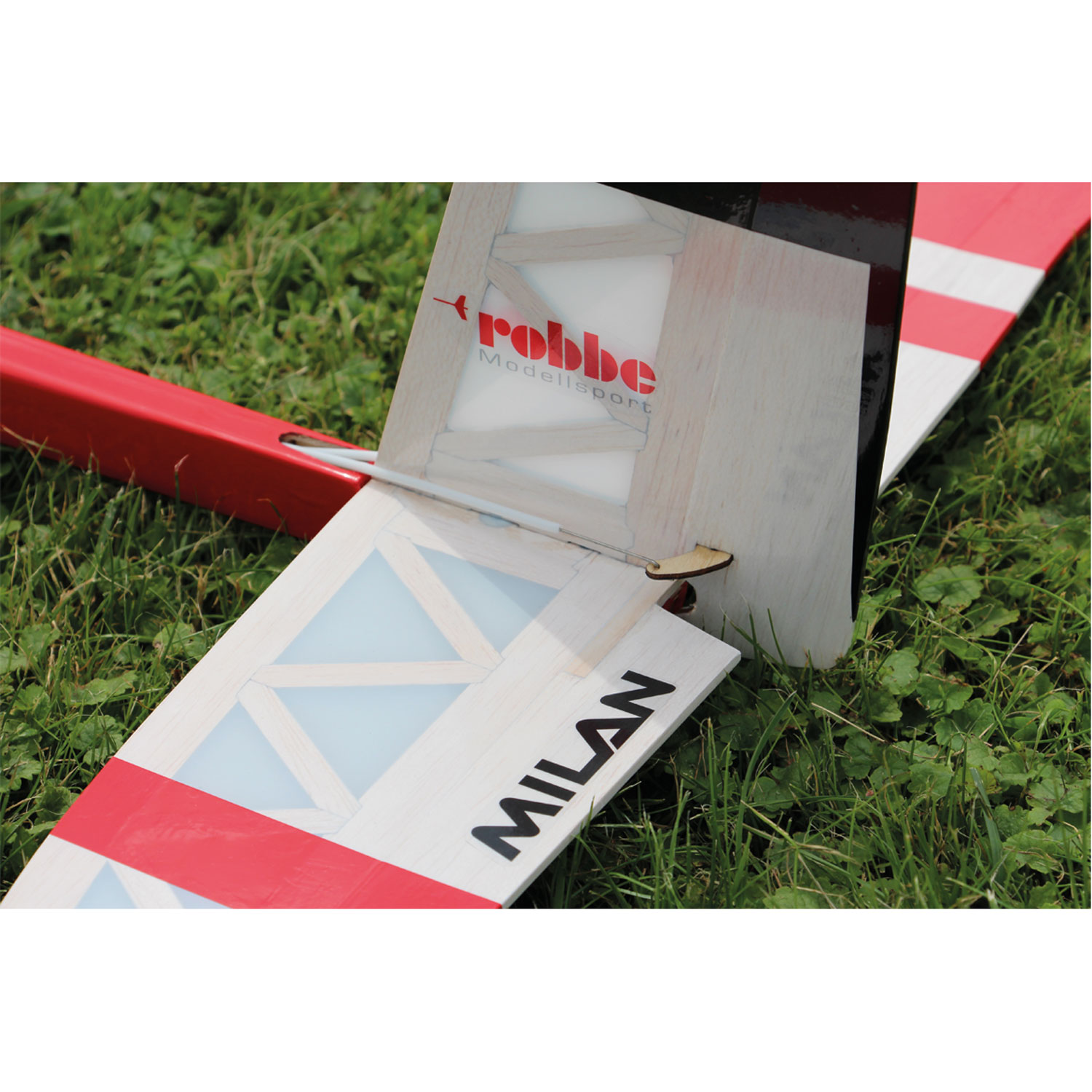

The fuselage is constructed in a classic stable wooden construction, whereby the curved side parts provide an elegant appearance. The cross tail is screwed to the fuselage and can optionally be removed. The Milan is not only an electric sailor suitable for everyday use, but the ideal companion for your holiday.

The Milan is equipped with a light BL motor, e.g. roxxy 2834-10, which drives a folding 11 x 8" propeller. The 3s Lipo battery with 2200 mA is inserted into the fuselage via a removable fuselage cover. It has enough displacement to be able to adjust the centre of gravity exactly without trim weight. With a take-off weight of approx. 995g a safe hand take-off is possible. After 15 - 20 sec. engine running time you have already reached a flight altitude of approx. 150 m. Even small thermal beards can be flown out well with the Milan. In addition to the ailerons in the outer surfaces, the centre section has flaps that can be extended to 90°. This allows safe landings on small landing sites despite the excellent gliding characteristics.

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Milan in particular but at least we know they do distribute Ideecon.

Where to buy


Wingspan: 1960mm (77.2 in)
Length: 1160mm (45.7 in)

Weight: 995 g (2.2 lbs)
Wingspan: 1960 mm
Flight weight approx.: approx.995 g
Rec. Battery: 3S/2200mAh LiXX
Length: 1160 mm
Drive Type: Electro

Variants

1002
Milan ()
