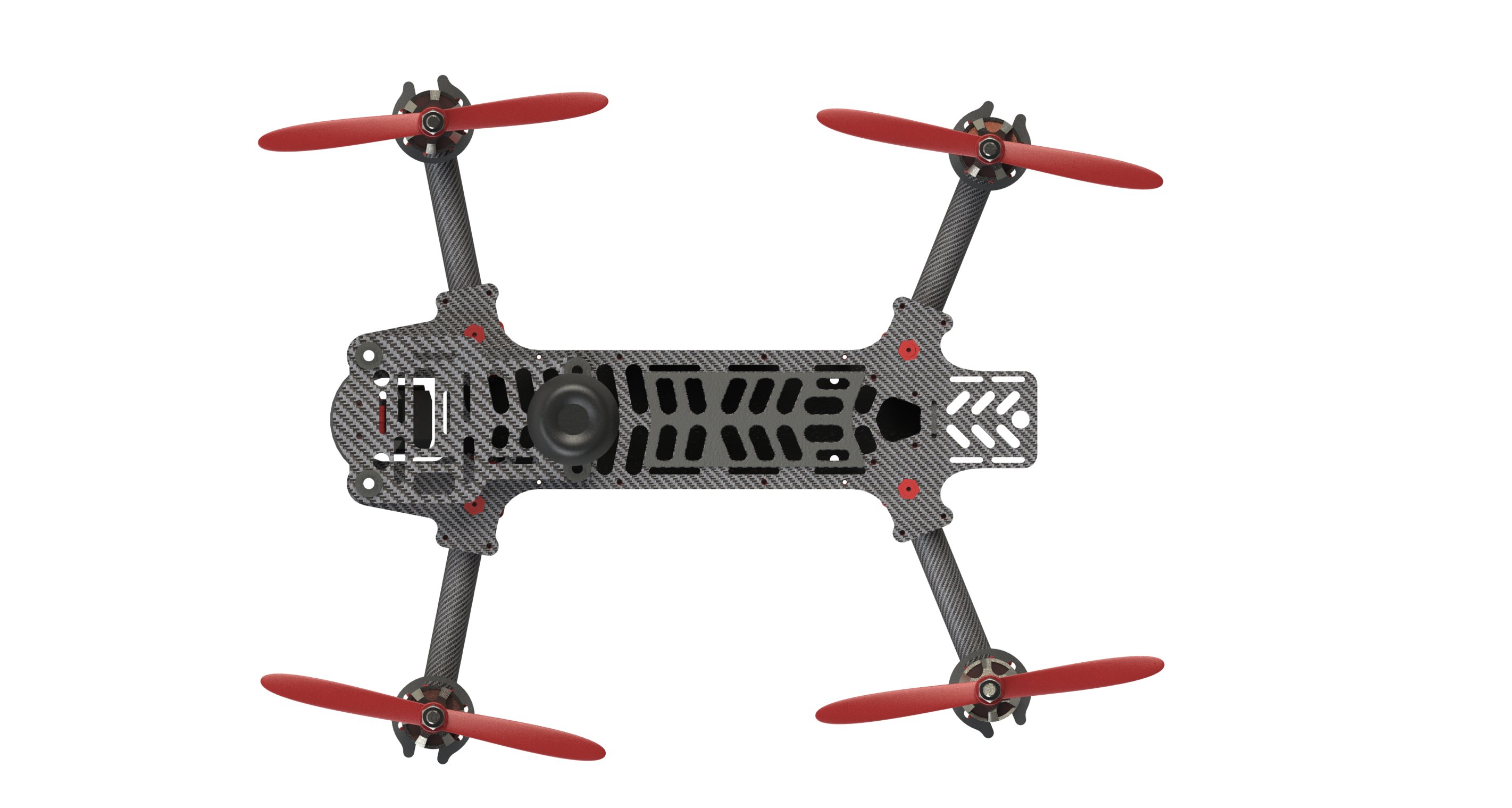

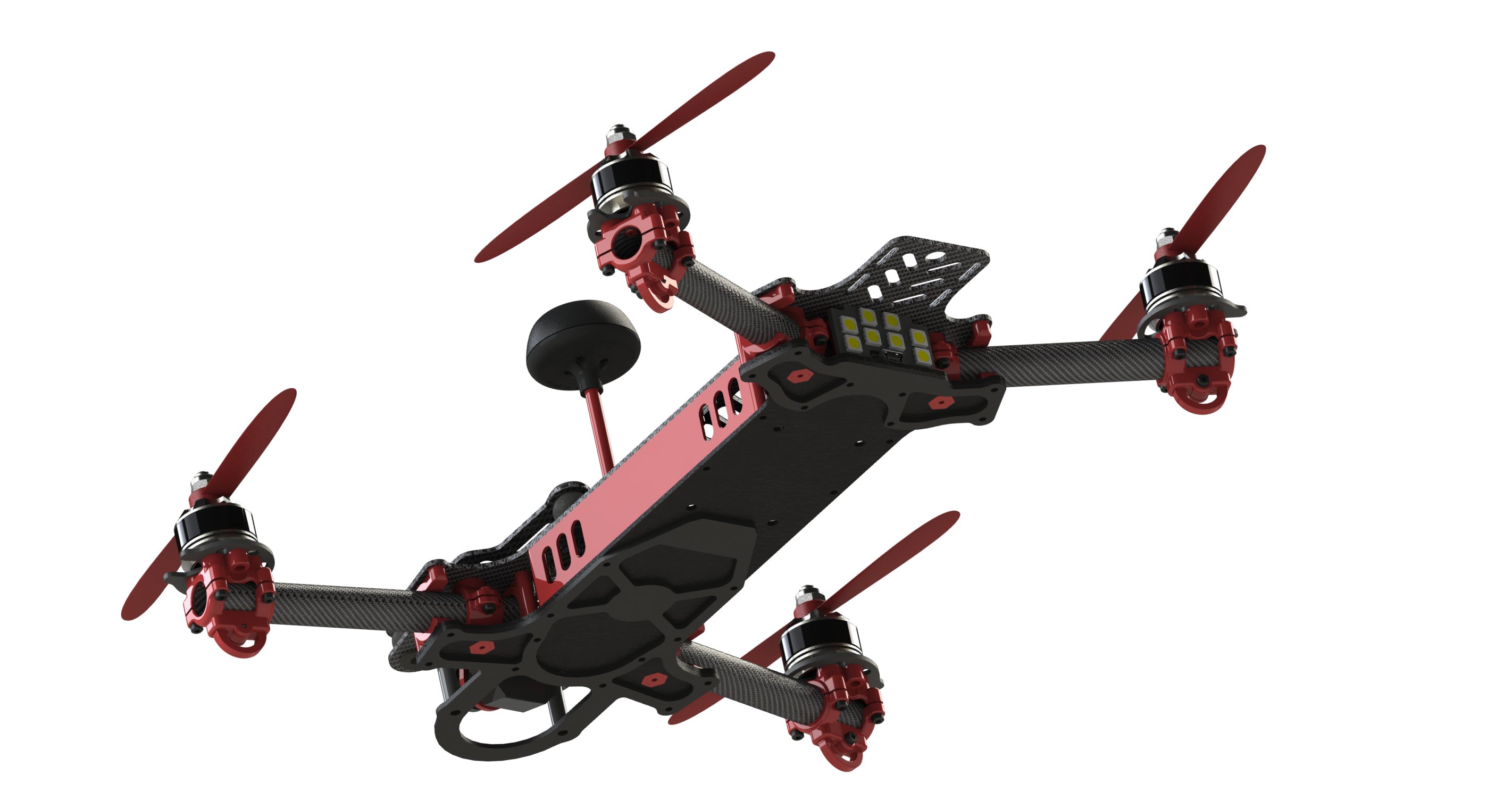

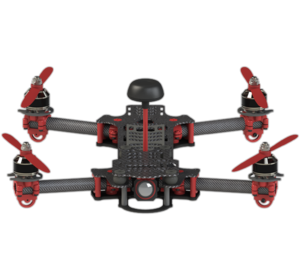

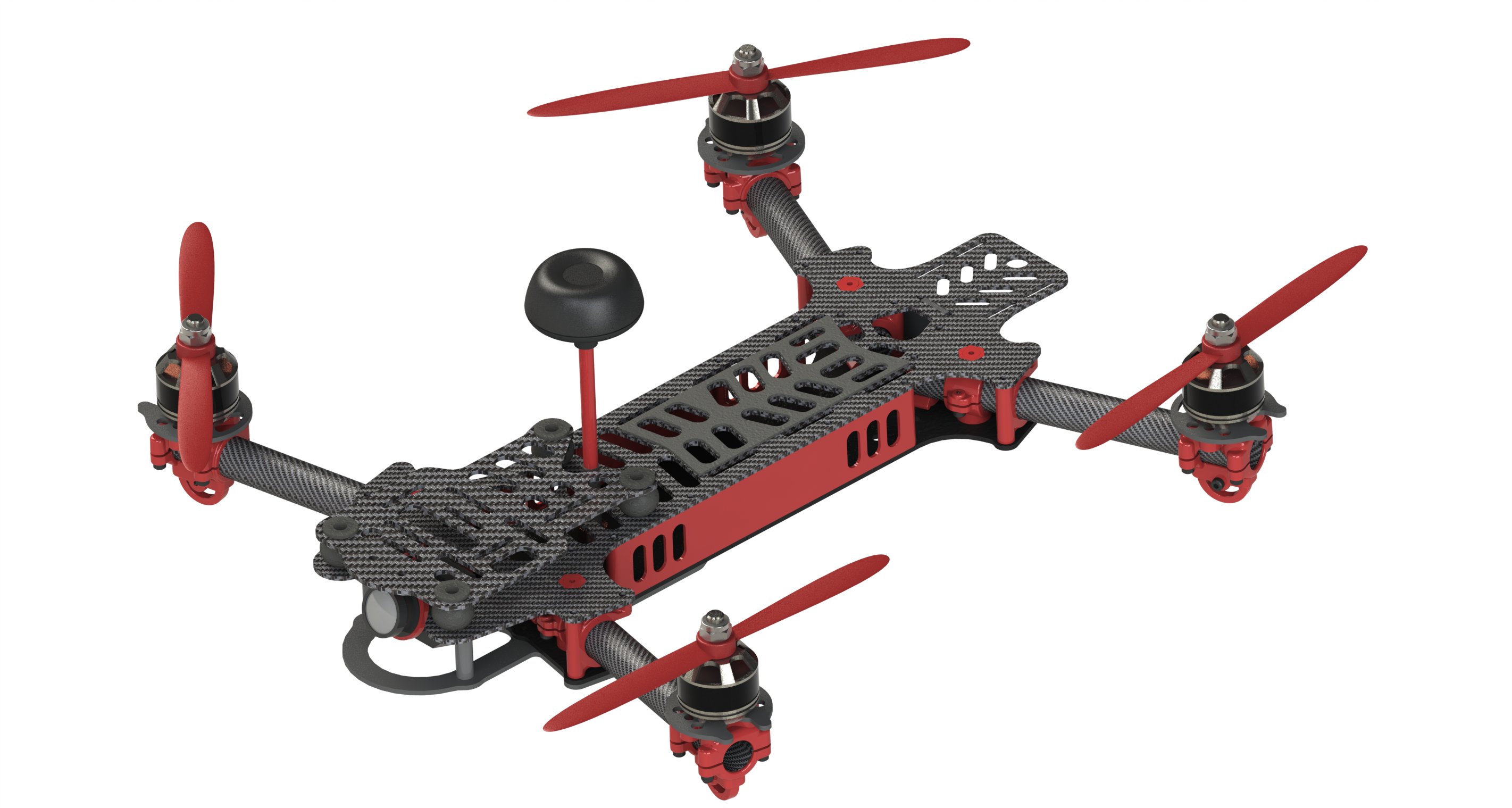

Vortex 285 from ImmersionRC

Details

The ImmersionRC team combined a unique foldable mini-quad frame, and added the stuff that ImmersionRC does well.

An integrated full-graphic OSD, coupled directly to a flight controller pre-loaded with Cleanflight. Drive that into a custom, integrated, 5.8GHz video transmitter with a punchy 350mW output power, just right for FPV racing with friends.

Just add a compatible R/C Rx (EzUHF preferred of course), and a battery, and go fly, everything else is included, from the SpiroNET Tx antenna, to the props.

Features

  • 285-sized foldable Mini-Quad
  •  Carbon Fiber and custom injected plastic design
  •  Integrated Flight Controller, pre-loaded with Cleanflight
  •  Integrated full-graphic OSD, with on-screen control of.. everything
  •  Integrated 40 channel NexWaveRF 5.8GHz Video Tx
  •  Pro-tuning options, select your favorite pilot!
  •  Tight interface with EzUHF receivers
  •  Tiltable, Vibration-free Camera mount
  •  GoPro (3/4) and Mobius mounting options

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vortex 285 in particular but at least we know they do distribute ImmersionRC.

Where to buy

USA
TOWER HOBBIES
check web site
Ship to: International
Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 285mm (11.2 in)
Length: 285mm (11.2 in)

Weight: 350 g (12.3 oz)
  • Weight: ~350g without battery, or HD camera
  • Power Requirements: 3s-4s LiPo (typical)
  • ESCs: Full Custom, 12A cont. 16A peak, rotorSENSE, OneShot125
  • Flight Camera: FatShark 600TVL CMOS (std), FatShark 700TVL CMOS, and 900TVL CCD optional
  • HD Camera: GoPro Hero, Hero 3/4  (Optional power from onboard BEC), Mobius, Runcam
  • Receiver Compatibility: CPPM Input, with S-Bus, and Spektrum™ Satellite converter cables optional
  • Flight Time: Highly dependent upon battery, and flying style

Variants

VRTX285
Vortex 285 (Black Red)
