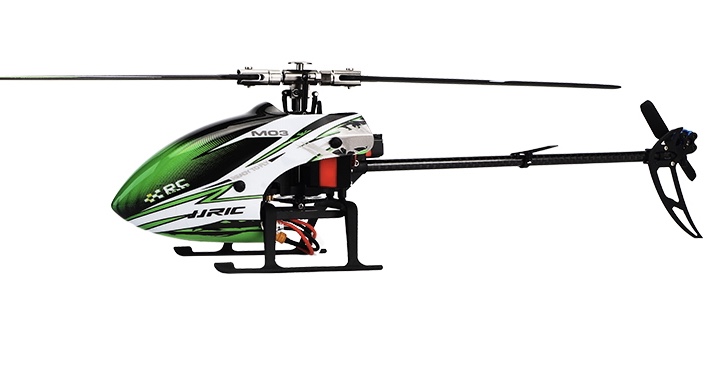

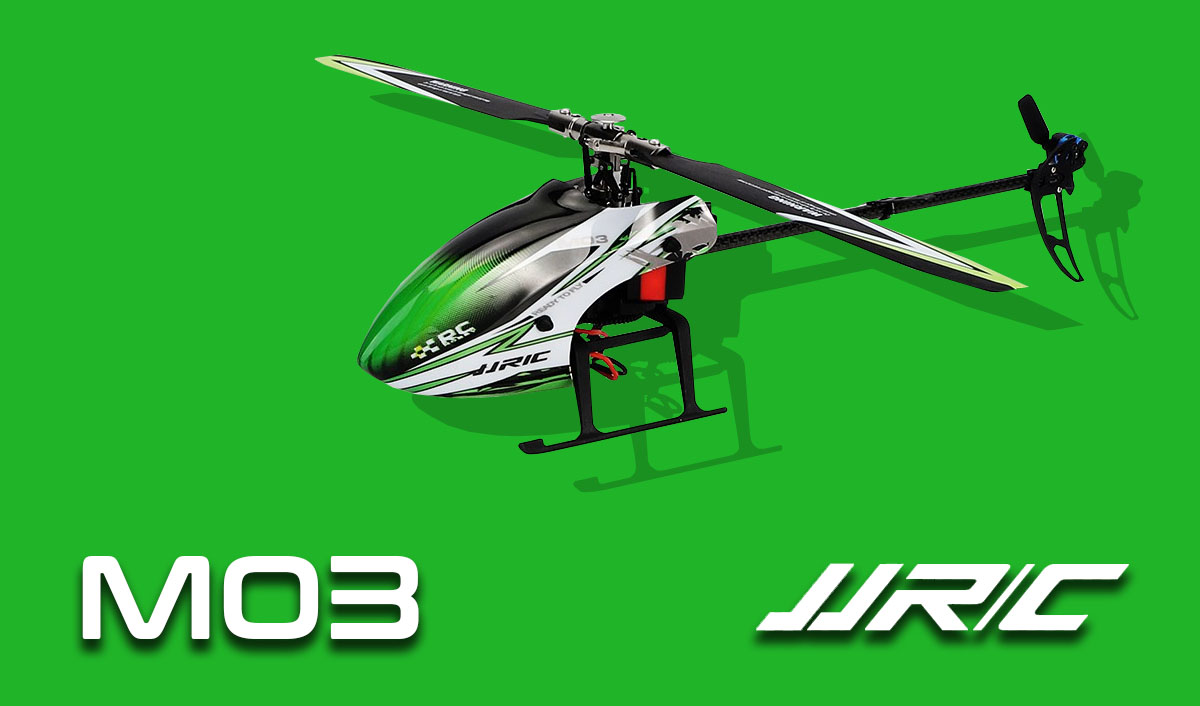

M03 from JJ R/C


Dual brushless motor helicopter, whose performance is far better than the previous single brushless helicopter, 700mAh large capacity battery, which provides you with more powerful power, better completion of stunt flight, and brings you different flight experience. Come and take it home!


  • Communication protocol compatible with Futaba s-fhss can expand the satellite receiver to support dsmx dsm2 ppm s-sus system.
  • Adopt the all metal CNC rotor head without aileron design, and use the aerodynamic principle to design the blades to provide strong power and body self stability.
  • New rotor clamp linkage structure, more accurate transmission efficiency, small clearance and flexible rotation, more conducive to the accuracy of flight feel.
  • The power of 1308 external rotating BLDCM is more powerful, and 1104 tail BLDCM tail lock 7.4V 700mah 25C high power battery
  • Set 3D6G system and switch with one key of remote control.
  • 3D mode uses 3-axis gyroscope, which is sensitive and can easily make actions such as brush pot rolling, inverted flying, hurricane pendulum, etc.
  • 6G mode uses 6-axis gyroscope, with stable flight, especially suitable for beginners.
  • Standard 6-channel remote control, supporting simulator function.
  • Equipped with special balance charger.


Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the M03 in particular but at least we know they do distribute JJ R/C.

Where to buy

Wingspan: 350mm (13.8 in)
Length: 345mm (13.6 in)

Weight: 445 g (15.7 oz)

Rotor diameter: 350mm
Body length: 345mm
Height: 108mm
Weight: 445g
