Pulse 2200 from Kavan

Details

A practically complete model of a swift and agile motor glider with a wingspan of 2200mm made of Expanded Polyolefin (EPO) for thermal and slope soaring. Equipped with brushless motor C3548-750 with an ESC RAY G2 R-50SB and 6 servos. Controlled ailerons, rudder, elevator, flaps and RPM of the motor. To be powered by 4S Li-Po 2600–4000mAh 30C.

Get ready for loads of fun in the air - a new swift and dexterous PULSE 2200 has an elegant "scale model" look of a modern glider, a fully mechanical wing with ailerons and flaps, a robust carbon-supported design made of foam EPO, and thanks to a brushless power class 600–800W it is powerful enough for acrobatic and slope flying. A perfect recreational aeroplane, which will every advanced to professional pilot fully enjoy!

The fuselage is made of highly durable foam EPO (expanded polyolefin) with thorough inner reinforcements. In the hull is placed electric brushless motor C3548-750 with a foldable 11x8" propeller and an ESC RAY G2 R-50SB with a powerful input voltage BEC stabilizer needed for powering of 6 servos onboard. The canopy is detachable, fixed in place by a tenon on the front and a magnet on the back. On the bow, you will find enough space for a propulsion battery and a receiver. Rudder and elevator servos are located in the tail part of the hull, and the rudder is controlled via a short direct wire linkage.

The two-part wing of the model made of foam EPO is reinforced by carbon supports, whose overlapping parts are also used as a wing joint fitting into dural holes in the fuselage. Halves of the wing are locked in place by a plastic screw. Ailerons (reinforced by carbon strips) and flaps are always independently controlled by two servos with short direct wire linkages.

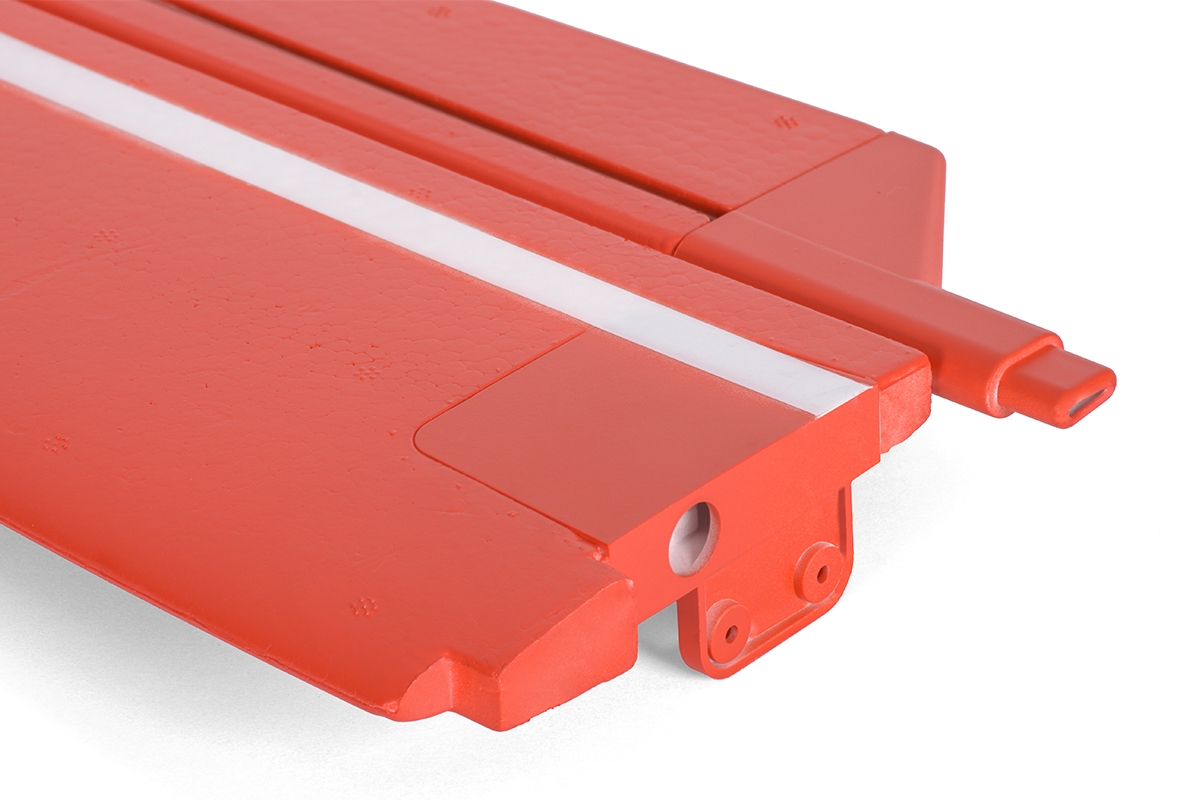

Tailplanes are too made of foam EPO with carbon strip reinforcements. A two-part horizontal tailplane is fixed to a keel by a carbon joint and a pair of screws for simple assembly and disassembly.

Model is powered by brushless motor class C3548-750 with a 50A ESC RAY G2 R-50SB.

Energy is provided by a LiPo 4S battery with a capacity of 2600–4000mAh with a discharge rate of at least 30C. Determine the best type so that the centre of mass is optimal without further weight balancing.

The least you will need for controlling the model is a 6-channel computer RC without any special features - in the basic variant, there are ailerons and flaps connected via Y-cables into only 1 channel. Of course, using a 7-channel computer RC set is optimal, since it allows independent controlling of ailerons and flaps by two servos and their mixing as a butterfly airbrake (both ailerons are raised up and both flaps raised down), which can nowadays be achieved even with an affordable Hitec Flash 7 or 8, Radiolink AT9S , AT10II or with a Futaba T6K transmitters. In that case, you need to swap the Y-cables of ailerons and flaps in the fuselage with 4 separate (15–30cm) cables.

Pictures

Radio icons

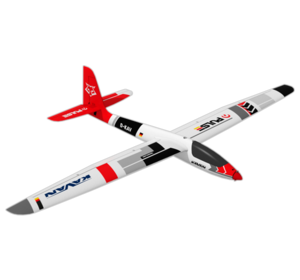

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 2200mm (86.6 in)
Length: 1272mm (50.1 in)

Weight: 2250 g (5 lbs)
  • Wingspan: 2200 mm
  • Length: 1272 mm
  • Weight: 2250 g
  • Surface:    42 dm²
  • Servos: 6 (installed)
  • Motor: C3548-750 (installed)
  • ESC: 50A ESC RAY G2 R-50SB (installed)
  • Material: EPO
