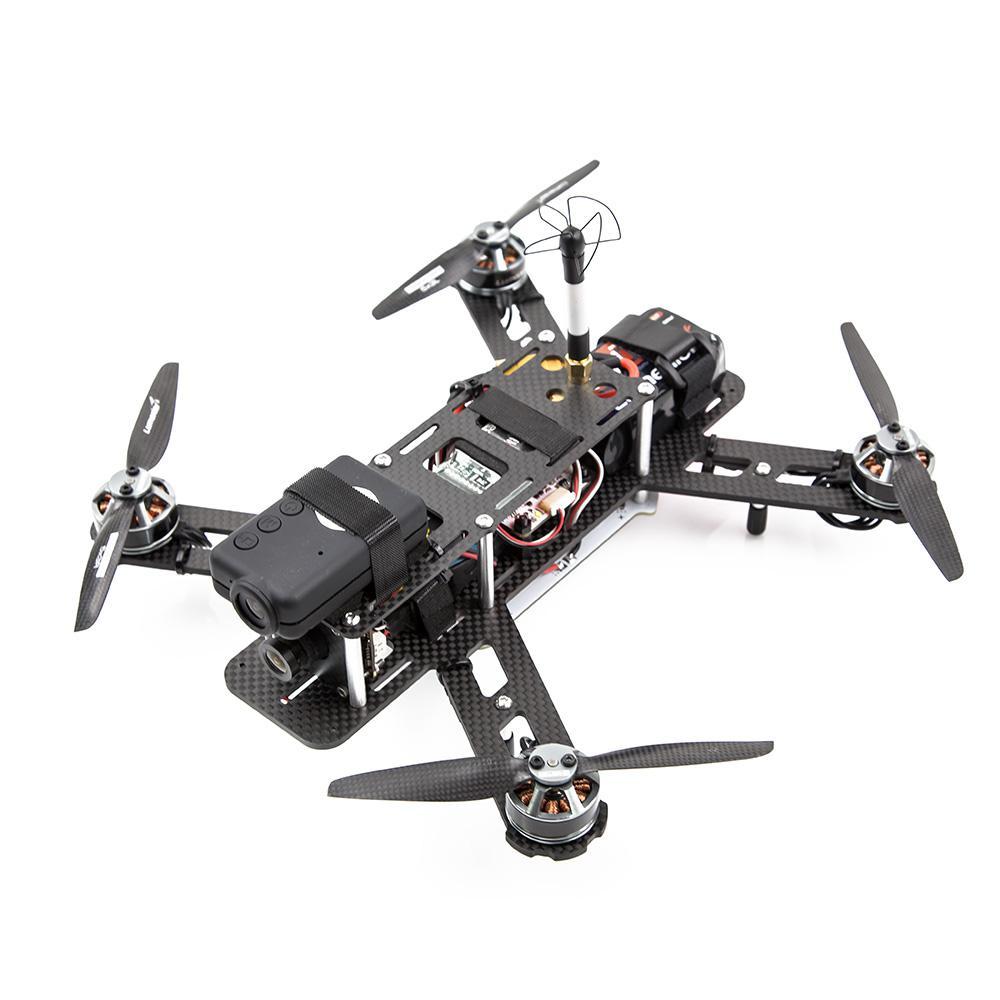

The Lumenier QAV250 Carbon Fiber Mini FPV Quadcopter ready to fly system from Lumenier is a small lightweight First Person View racing quad. The QAV250 Mini FPV Quadcopter Carbon Fiber Edition is made from 3mm 3K carbon fiber which gives excellent crash resistance, the symmetric 250mm size airframe accommodates 5" props while still allowing for a fully functional First Person View quadcopter. The 250mm is measured from motor shaft to motor shaft diagonally across the airframe.
The QAV250 Carbon Fiber is designed to support a 3s LiPo battery , the ready to fly version is fully built, test flown and comes with everything to get you going, you just need to add a battery and radio equipment and you're good to go

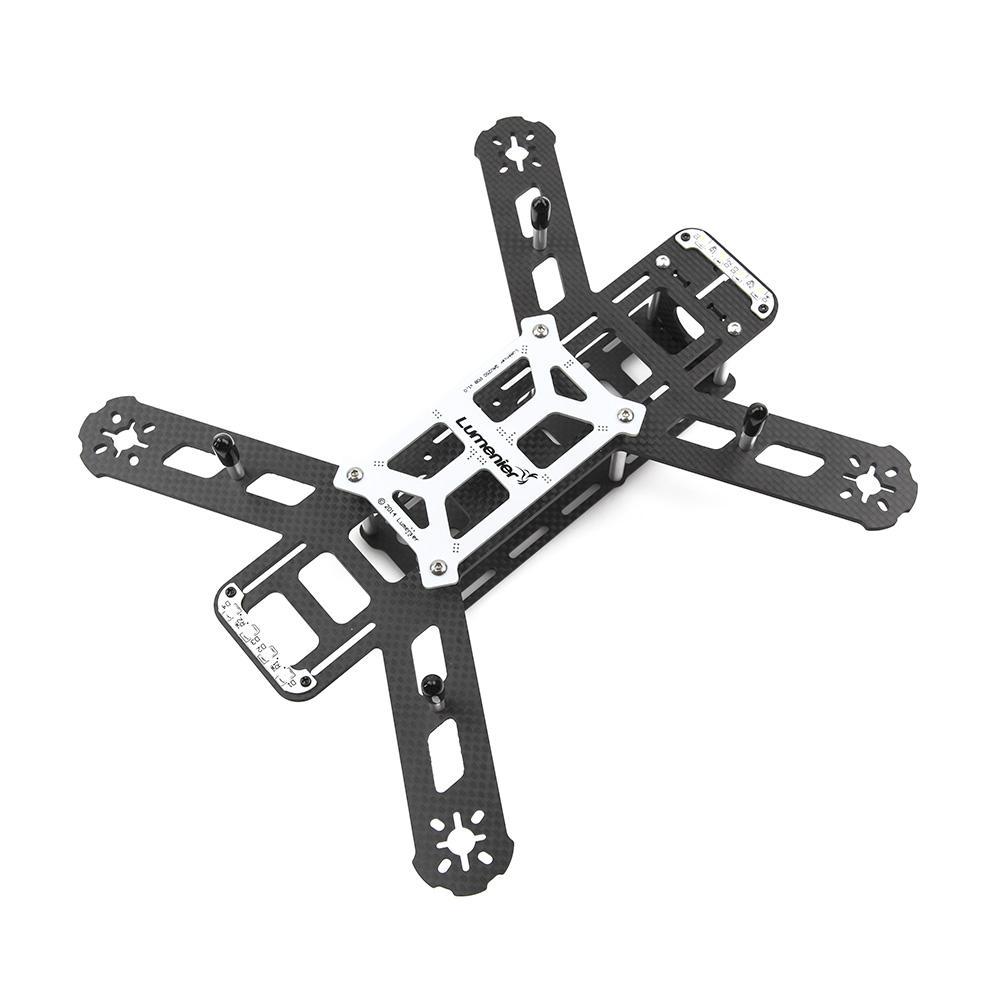

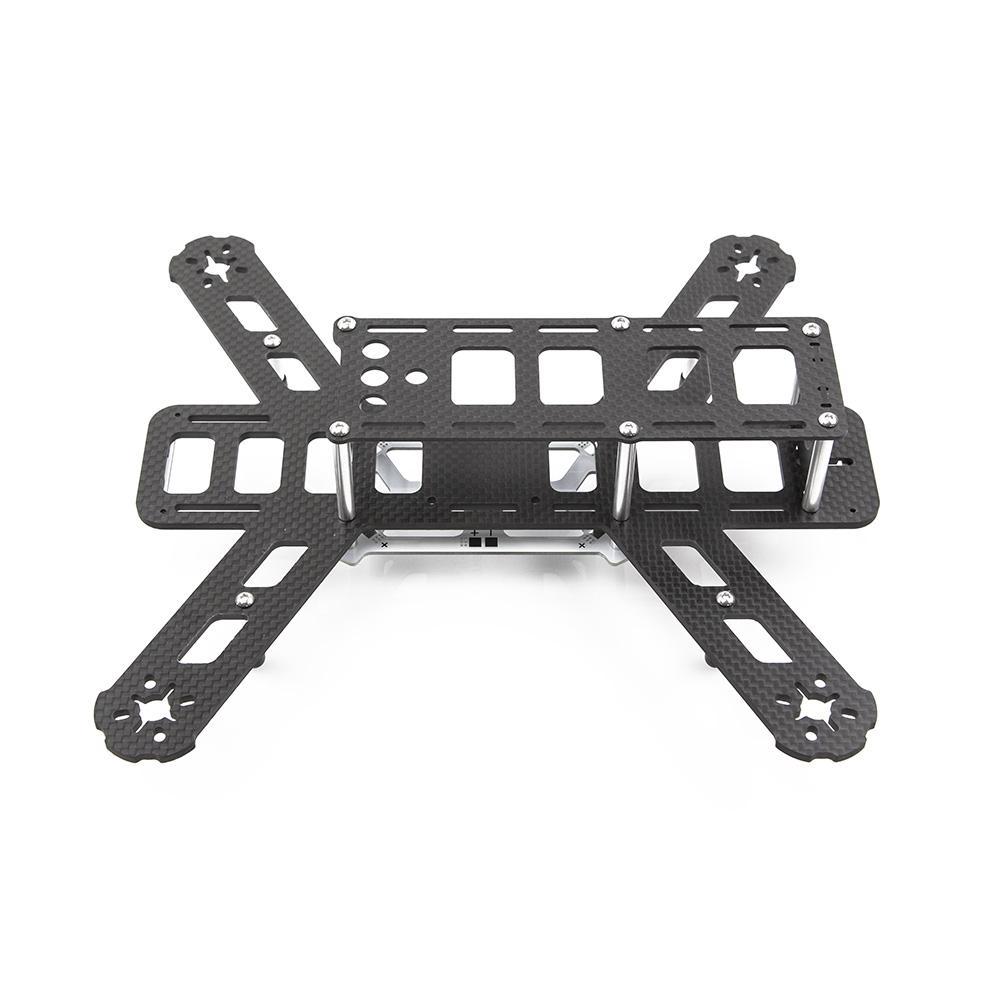

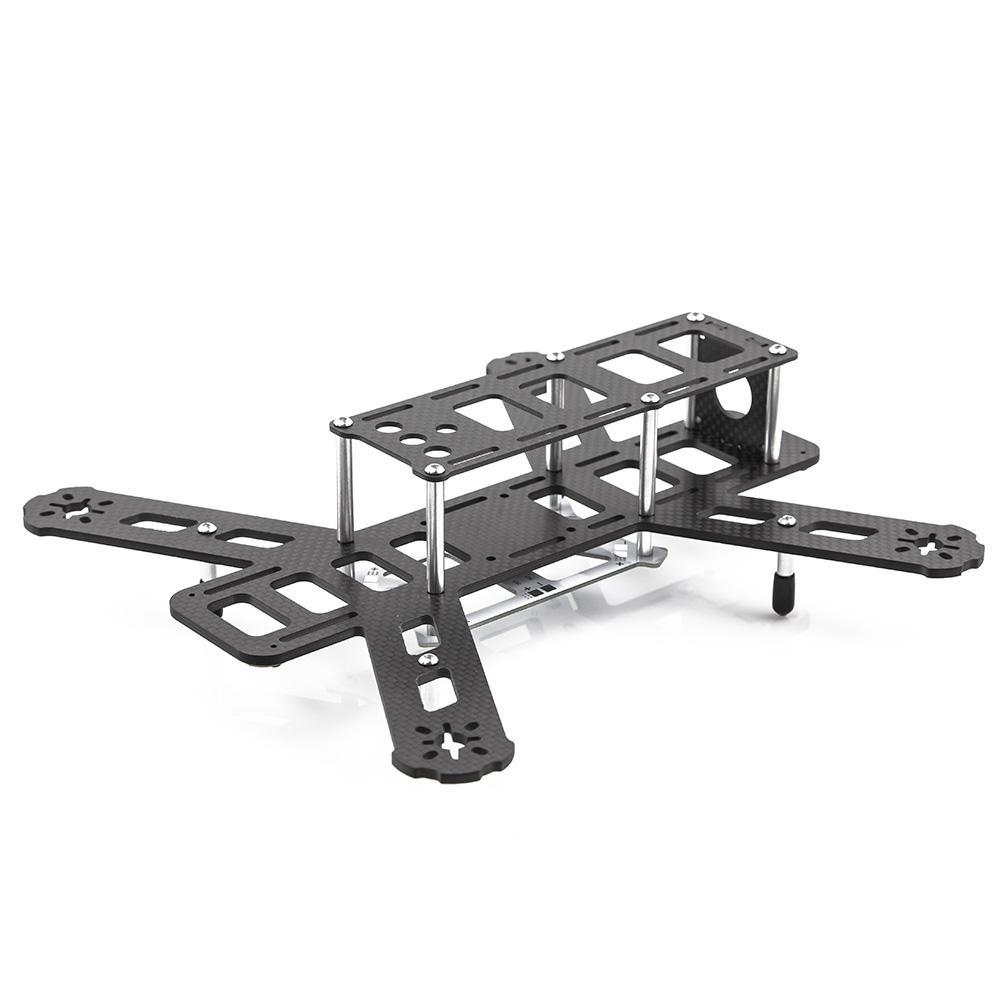

The carbon fiber QAV250 is not only lightweight but offers great crash resistance which comes from the main frame board being made in one complete part including the arms, this is known as the Unibody. There are landing legs which are installed on the arms, these can be removed if required. The motor mounting points have been cut into the frame arms to allow a number of motor upgrade options if needed, each arm has an additional few mm’s or material which will allow the motors to be protected from knocks and bumps.
There are 2 power distribution boards integrated in to the QAV250 ready to fly system, this means that the airframe has easy connection points and configuration of the electronics for the ESC’s and the First Person View system is laid out in a very compact configuration. There are two LED boards for visual navigation which assist with orientation of the craft when not using with FPV equipment, these are white and red in colour. The flight controller cover board has cutouts for SMA connectors and adapters used with FPV equipment..
The airframe of the QAV250 carbon edition is only 170 grams, this includes landing legs, LED’s and power boards. The recommended battery for the QAV250 is a 3s lipo with the maximum dimensions of 70 x 32 x 22 mm’s with a 35 C rating. The recommended all up weight on the QAV250 for take-off is 500 grams.
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
Kit contents :
