QAV-PRO Lifter 9 from Lumenier

Details

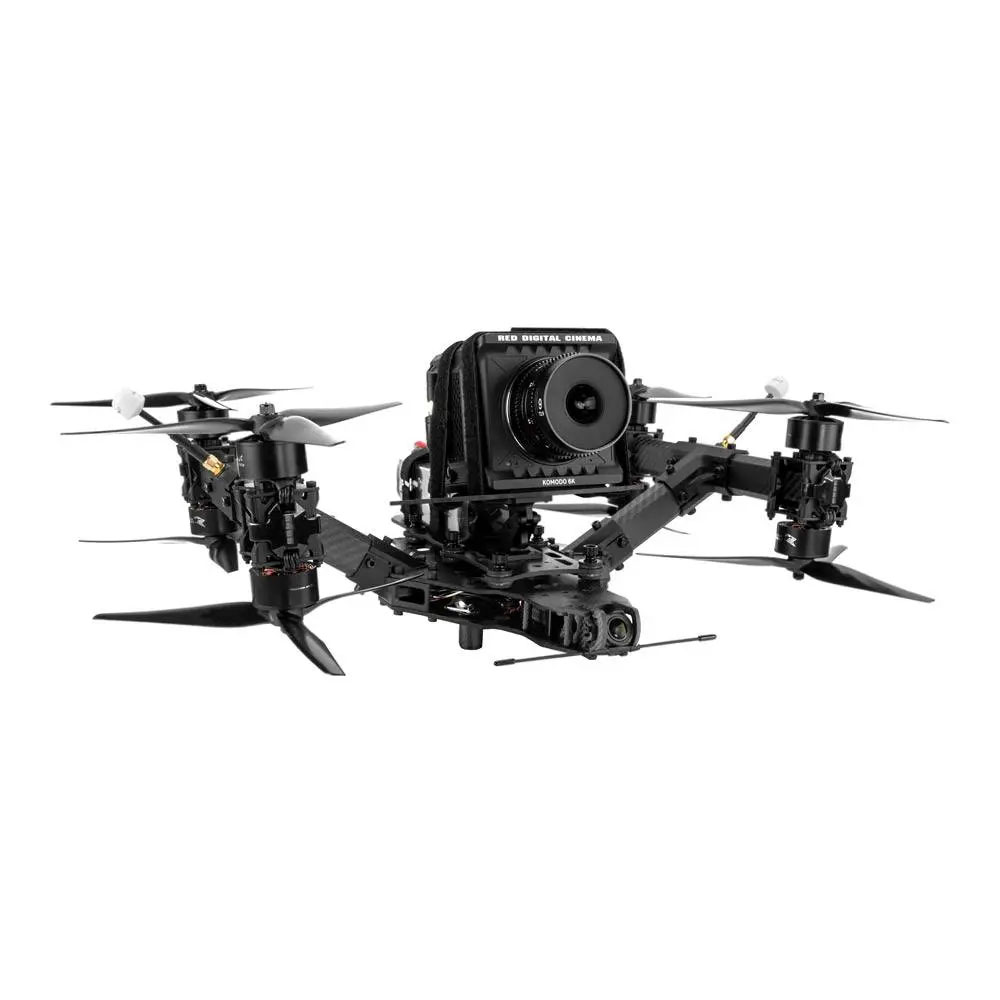

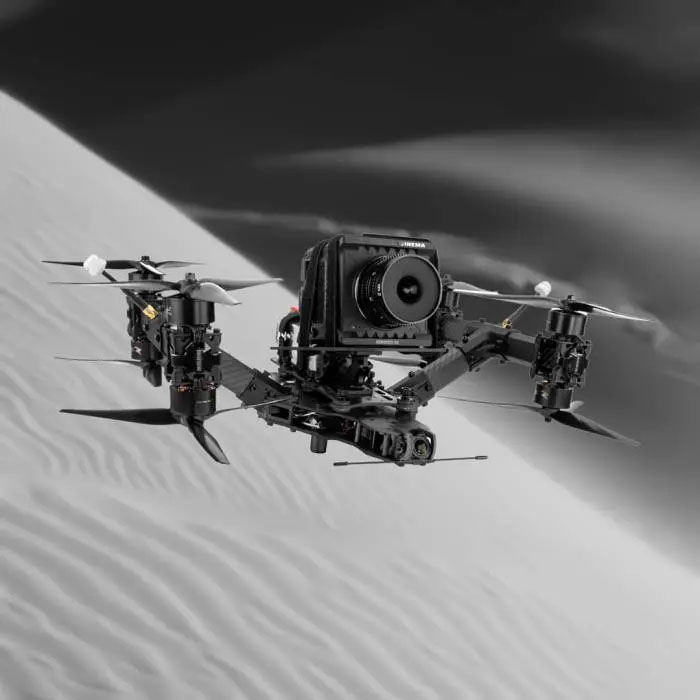

The Lumenier QAV-PRO Lifter Cinequads Edition RTF Drone is a revolutionary FPV X8 Cinelifter drone that is designed to carry professional grade Cinema Cameras while maintaining the speed and agility that characterizes a true FPV drone.

The Lumenier QAV-PRO Lifter Cinequads Edition RTF Drone is a revolutionary FPV X8 Cinelifter drone that is designed to carry professional grade Cinema Cameras while maintaining the speed and agility that characterizes a true FPV drone.

The QAV-PRO Lifter drone is engineered to take performance, versatility and creativity to the next level while making a statement with a modern and professional aesthetic. It is a must-have creative tool for every drone Cinematographer.

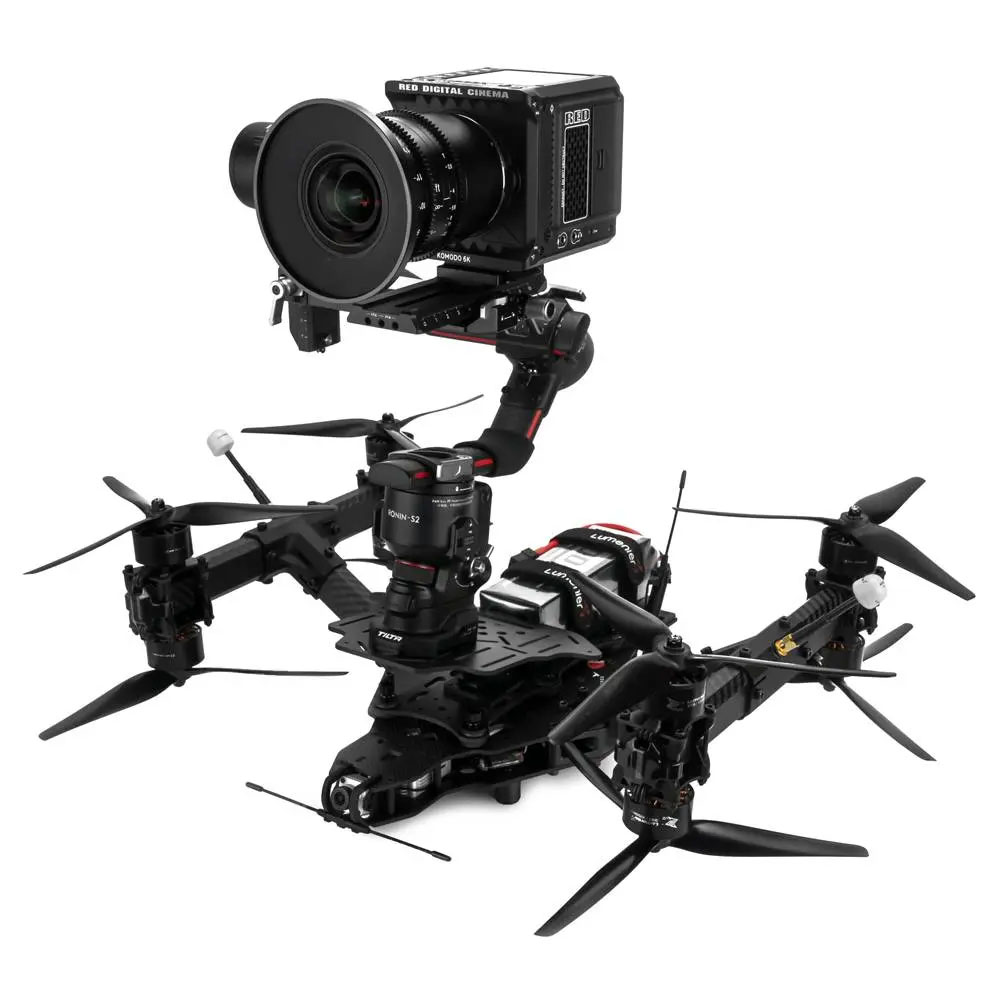

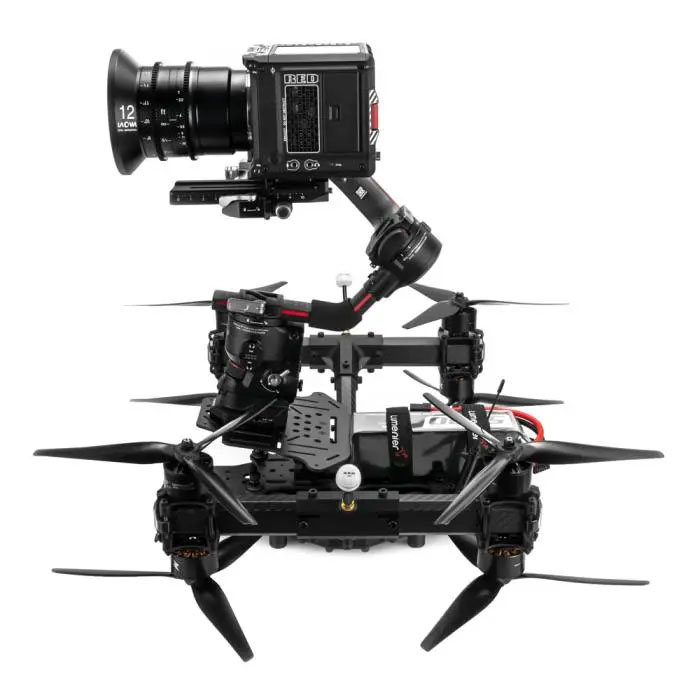

With the ability to carry cinema cameras at 86mph+, the QAV-PRO Lifter is the ultimate Cinema Drone when it comes to maneuverability of Heavy Cameras such as the RED KOMODO 6K, and it has outstanding performance under even the most challenging conditions.



Features:

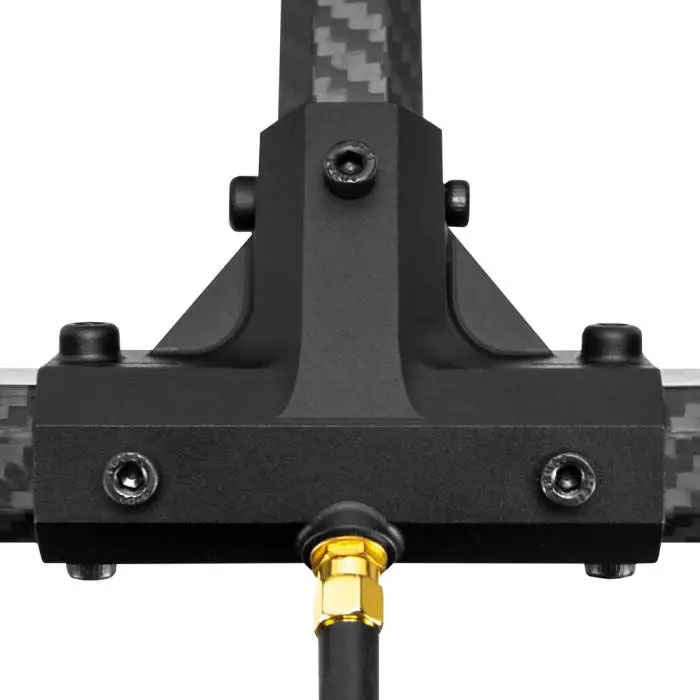

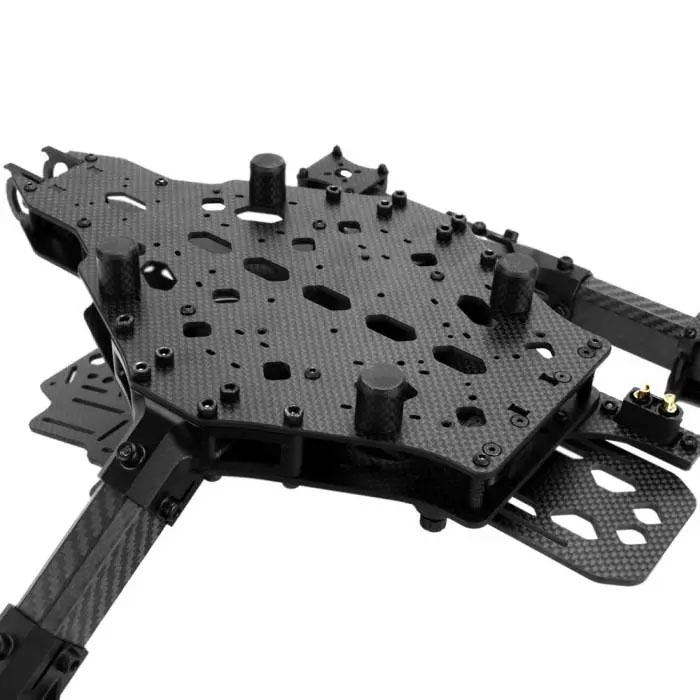

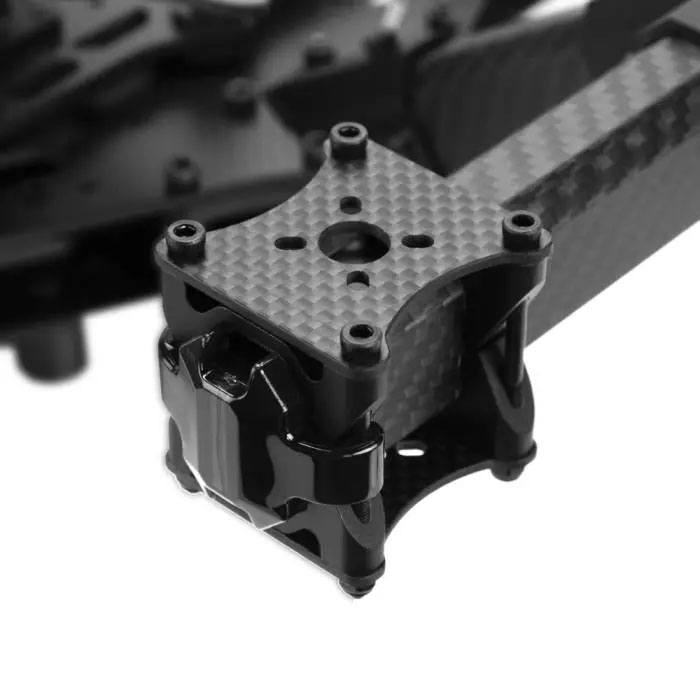

  • Robust T-style arm design with dual CNC Aluminum mounts that reinforce the structure, octagonal carbon fiber tubes with aluminum mounts that secure them with strong clamping force, and hide internal motor and led wiring.

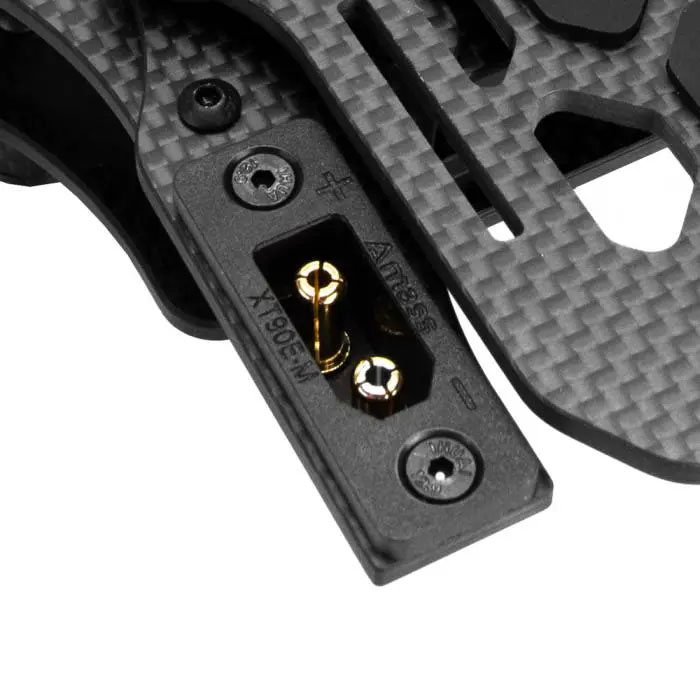

  • Dedicated power management PDB for cleaner soldering to 4-in-1 esc and accessories, as well as redundancy connections to the power train system to prevent a crash during any type of malfunction.
  • A proprietary LED system located on the arm ends that works with Betaflight configuration, gives the option to program light codes as a safety feature and requirement when working on set.

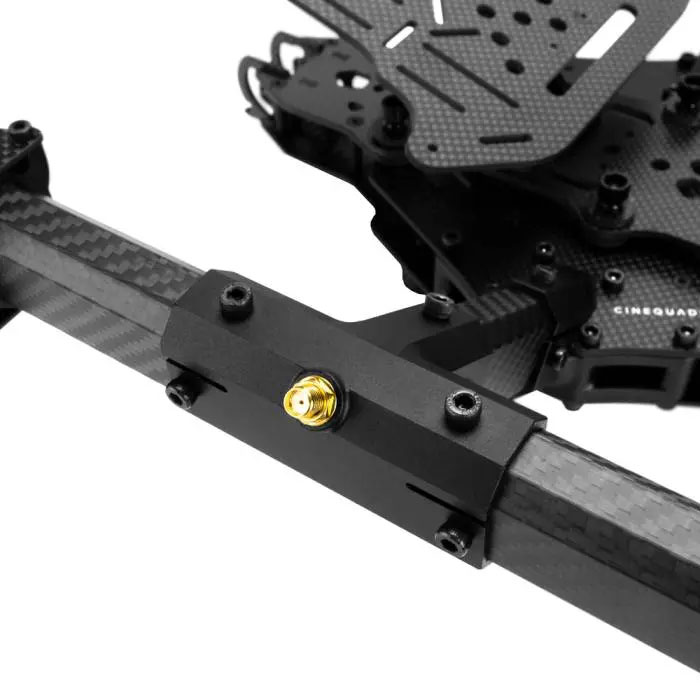

  • Optimized dual antenna placement provides maximum video performance by locating the receiving antennas away from the Cinema Camera body to guarantee signal strength.

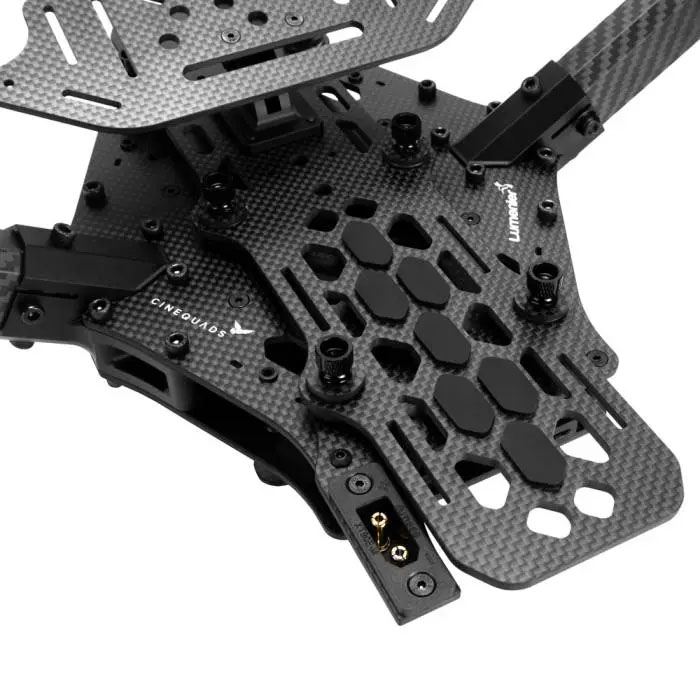

  • The cinema camera is fixed to an isolation plate with 6 alpha gel a-1 dampers, combined with the battery sitting on this plate, adding damping weight and reducing vibrations.

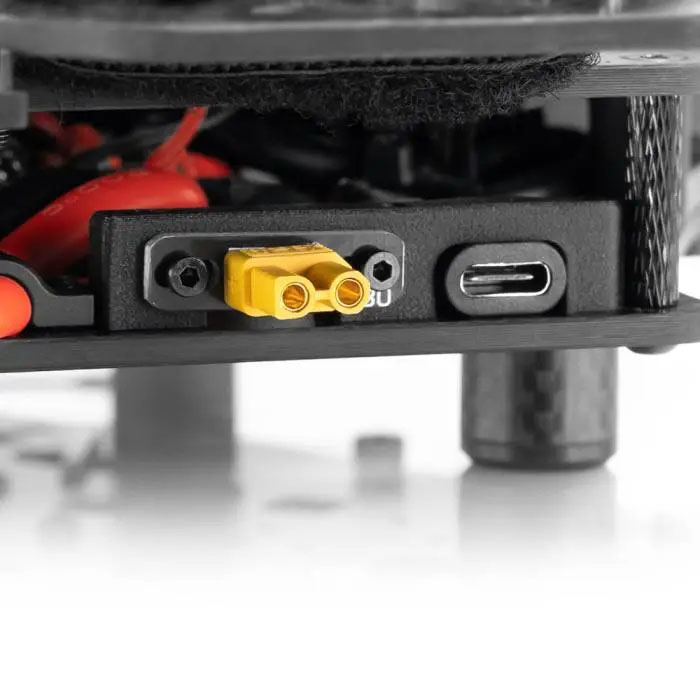

  • Additional XT-30 regulated aux power outputs. 2x 12V power output for the Cinema Camera, 9V regulator onboard to power the digital DJI O3 air unit.
  • Micro-USB or USB-C extension cables for easy access to the flight controller when needing to change settings without disassembling the drone.
  • A Cinema camera has 60 degrees of motion in 7.5-degree increments, the tilt goes from 40 degrees to -20 degrees for any type of shot needed.
  • Camera and battery position shift options, to be able to distribute the weight and balance the aircraft when using different lenses, gimbal, etc.
  • 32-degree Angled arms lower the center of gravity to the cinema camera improving payload balance and flight performance.

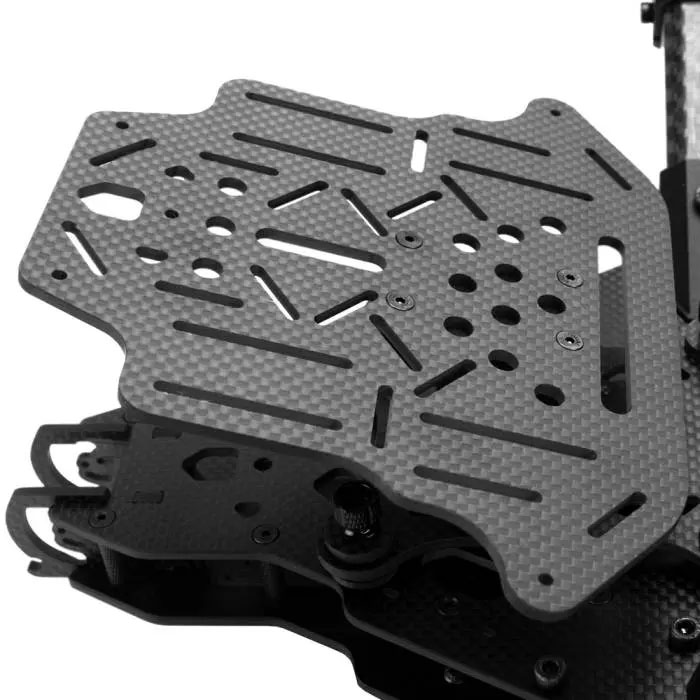

  • The cinema camera is secured to a carbon fiber plate, which uses universal mounting slots and holes for camera versatility.
  • A reversible isolation plate gives the option to have the cinema camera look back for any reverse shots.
  • Motors mounted with -3 degrees of camber angle increase the authority and stability on the Yaw axis.
  • DJI O3 Air Unit

Pictures and Description from getFPV

Pictures

Manual

Radio icons

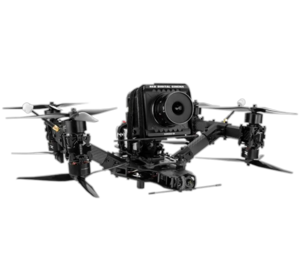

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the QAV-PRO Lifter 9 in particular but at least we know they do distribute Lumenier.

Wingspan: 600mm (23.6 in)
Length: 470mm (18.5 in)

Weight: 2500 g (5.5 lbs)
  • Propellers: HQProp MacroQuad 9X4.5X3R Glass Fiber Reinforced Nylon Propeller (CW+CCW)
  • AUW Weight: Approx. 2.5Kg and 9” propeller (excluding battery and payload)
  • Dimensions: 470mm (L), 600 (W), 155mm (H) (with propellers)
  • Antennas:
    • TBS Crossfire Immortal T Antenna V2 - Extra Extended
    • TBS Crossfire Immortal T Antenna V2 - Extended
    • Lumenier AXII 2 5.8GHz Antenna (LHCP)
  • ESC: Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
  • Motors: Lumenier ZIP V2 3115 Cinematic Motor - 1050KV
  • Model: Lumenier QAV-PRO Lifter 9" Cinequads Edition
  • FC: Lumenier LUX H7 HD Ultimate Flight Controller
  • Receiver: TBS Crossfire Diversity Nano RX
  • Camera/VTX: DJI O3 Air Unit
