QAV-S 5" JB Edition from Lumenier

Details

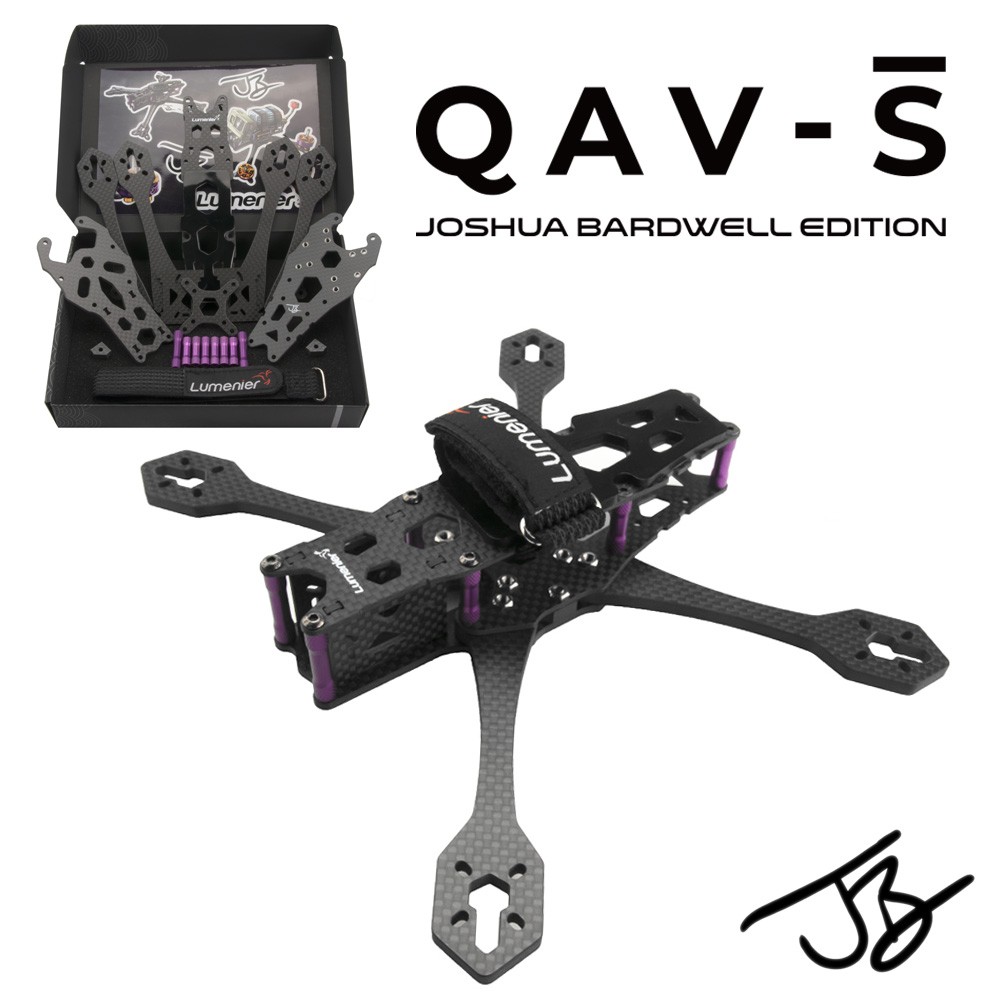

This frame was designed in collaboration with Lumenier and world-renown FPV guru Joshua Bardwell to bring you the "perfect" FPV freestyle frame. Building upon the success of the QAV-S series, the JB special edition takes it a step further with optimized design to save weight, single-piece top plate for added strength and rigidity, thicker bottom plate for more durability, lower stand-offs for improved CG and better handling, and much more!

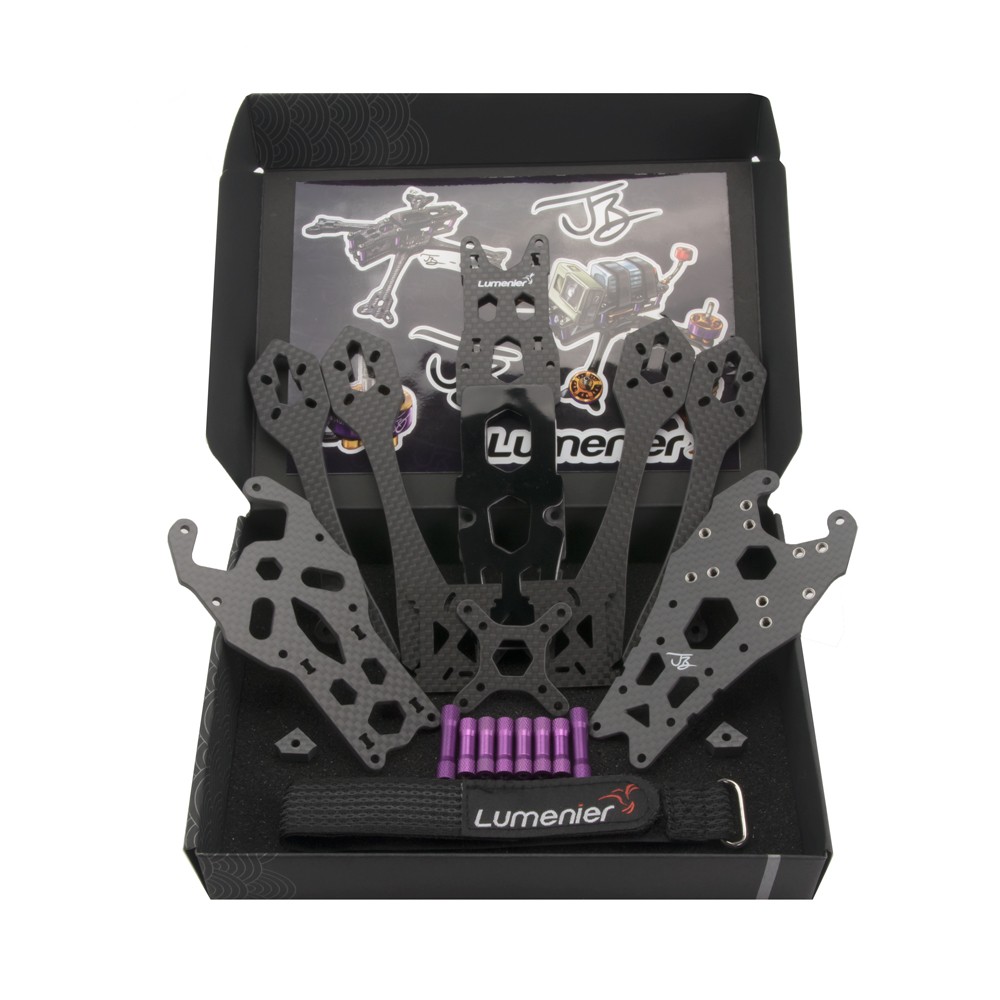

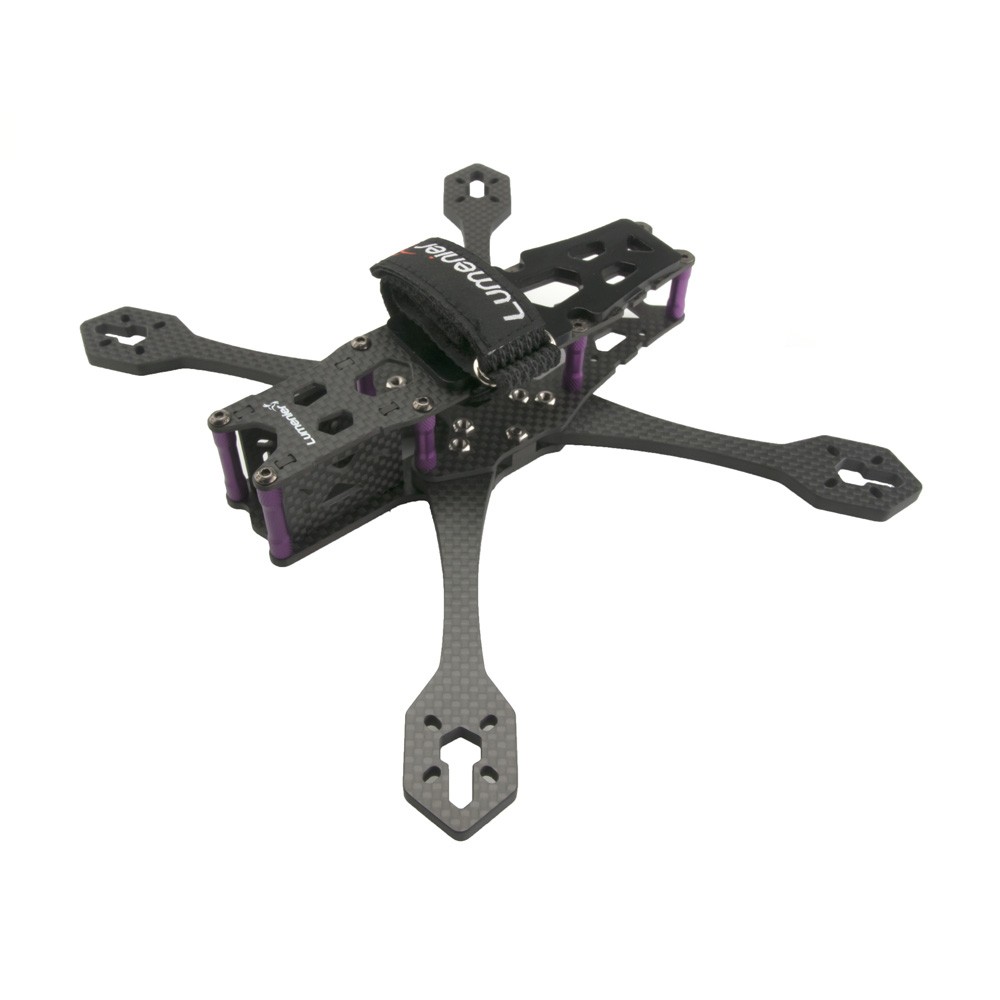

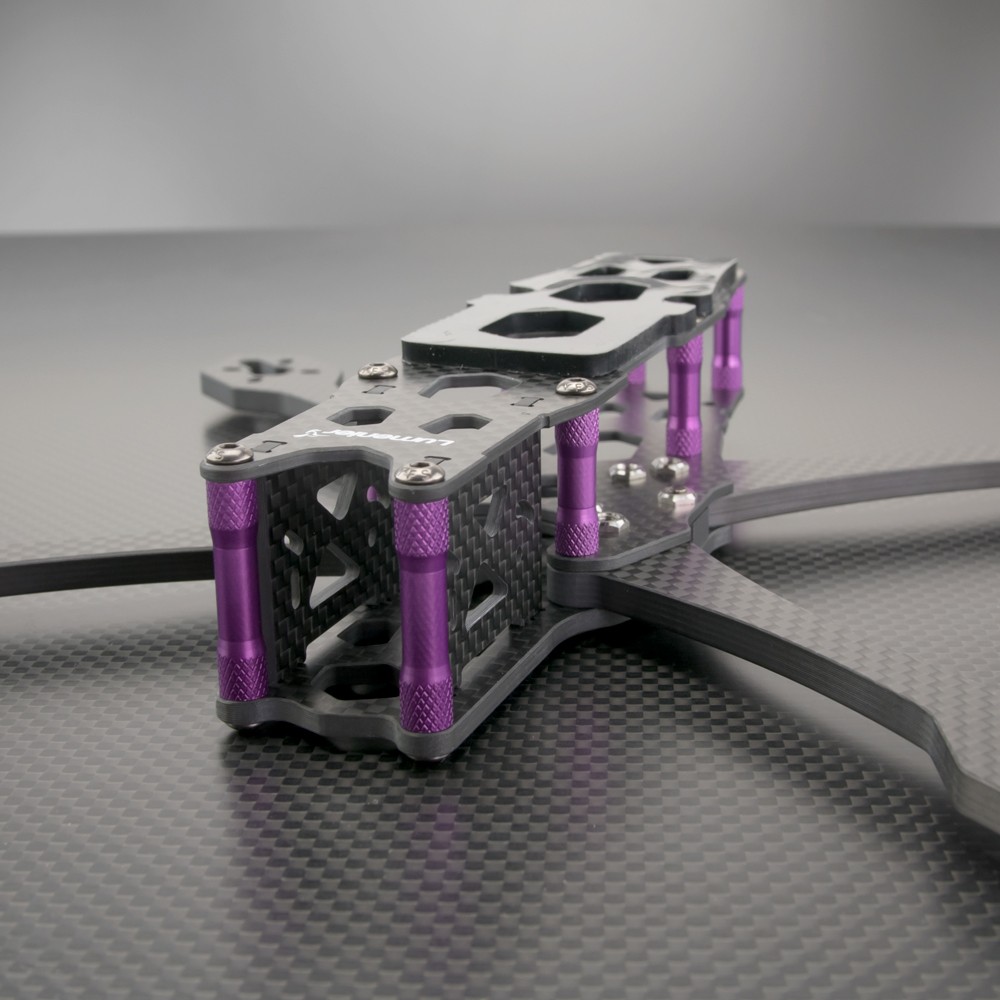

The QAV-S is a 5-inch freestyle airframe that is ultra-durable, easy to work on, and locked-in to perform and provide the best flight feel. The QAV-S has many small details that were well-thought-out - including premium Lumenier carbon fiber with finished and chamfered edges on all the plates, 7075 colored aluminum standoffs to give the quad a sleek look, plus all hardware is included.

The QAV-S brings several new innovations to the table. The first innovation is the arm locking system which includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. This is a convenient feature when maintenance is needed. The second feature is a split bottom plate that gives enough room for a micro camera, while also reducing the rear deck space for components. Lastly, the QAV-S has isolated 20x20 and 30x30 stack mounting in the center (and 20x20 mounting in the rear) that lets you take care of your electronics stack without the need to alter the frame structure and overall build.

Features:

  • 20x20 and 30x30 mounting options
  • Caddx Vista compatible
  • Low profile design (slammed to 20mm)
  • Isolated stack design (lowers vibrations to FC)
  • One screw arm swap
  • Split bottom plate +upgraded 3mm carbon fiber
  • Narrow body plates for reduced weight and improved flight performance
  • Optimized motor mounts to reduce weight
  • Purple stand-offs!!

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the QAV-S 5" JB Edition in particular but at least we know they do distribute Lumenier.

Where to buy

Hong-Kong
HELIPAL
check web site
Ship to: International
USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 220mm (8.7 in)
Length: 220mm (8.7 in)

Weight: 107 g (3.8 oz)
  • Arm: 5mm 3K Carbon Fiber
  • Aluminum Spacer: 7075 Aluminum
  • Screws: YFS steel 12.9 grade
  • Frame Size: 220mm
  • Weight: 107g (without battery pad)

Recommend Parts (Not Included)

  • FC: 30.5x30.5 / 20x20 hole size
  • Battery: 4-6S 1300-1800mAh
  • Camera : Micro(19mm) Size
  • ESC: 40-60A 4in1 ESC
  • Motor : 20xx-22xx

Variants

QAVS5JB
QAV-S 5" JB Edition (Black Purple)
