Protos 380 Evo V2 from MSH Model

Details

Protos380EVO V2 include new frame(MSH41233).  Rigid tail blades (MSH41181-1).

Features:
1.New servo layout for easier maintenance
2.1.5mm full carbon frame
3.Metail servo frame

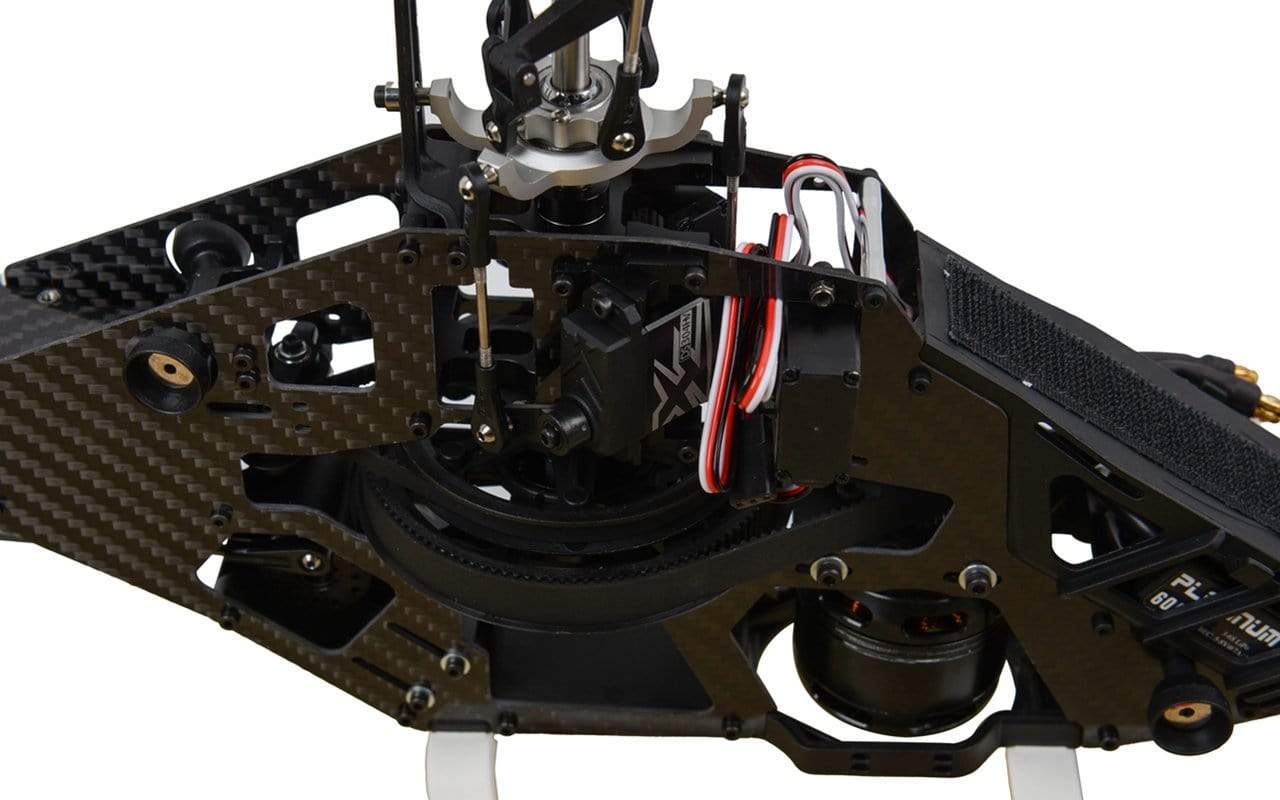

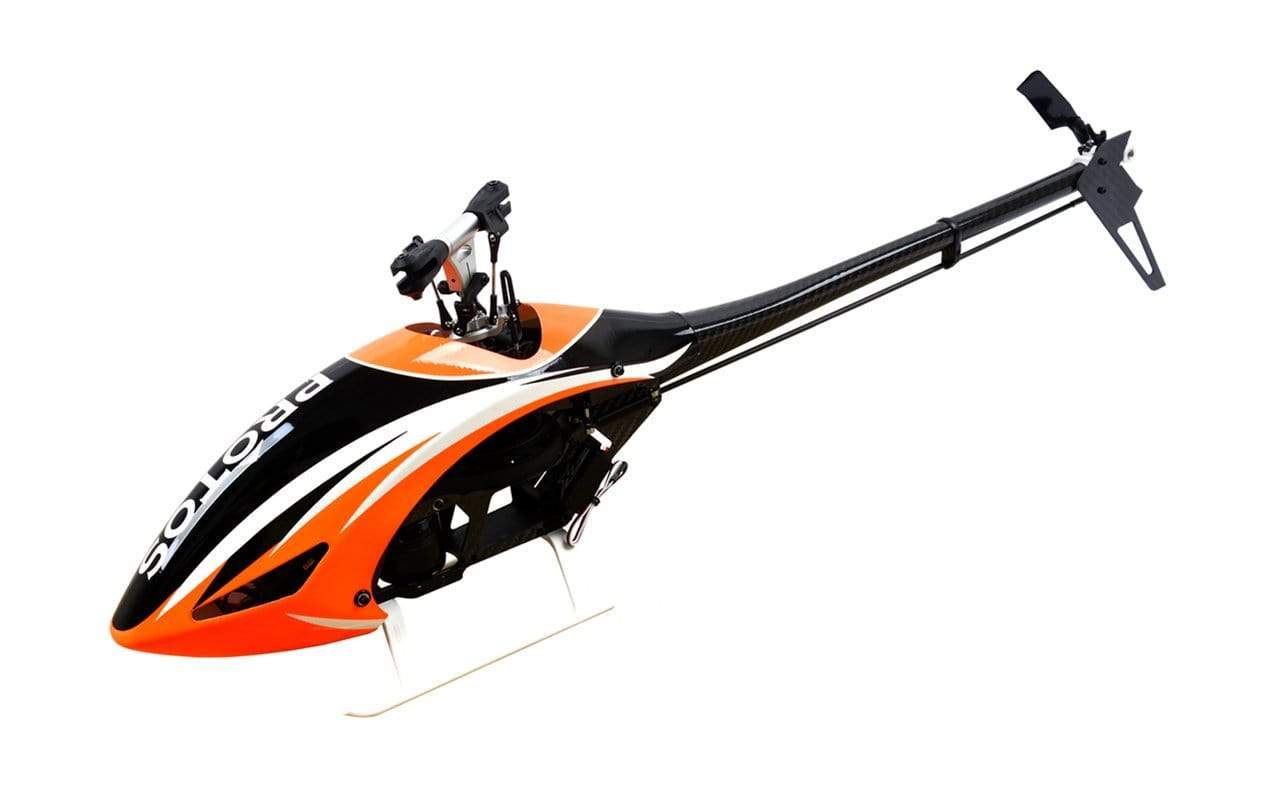

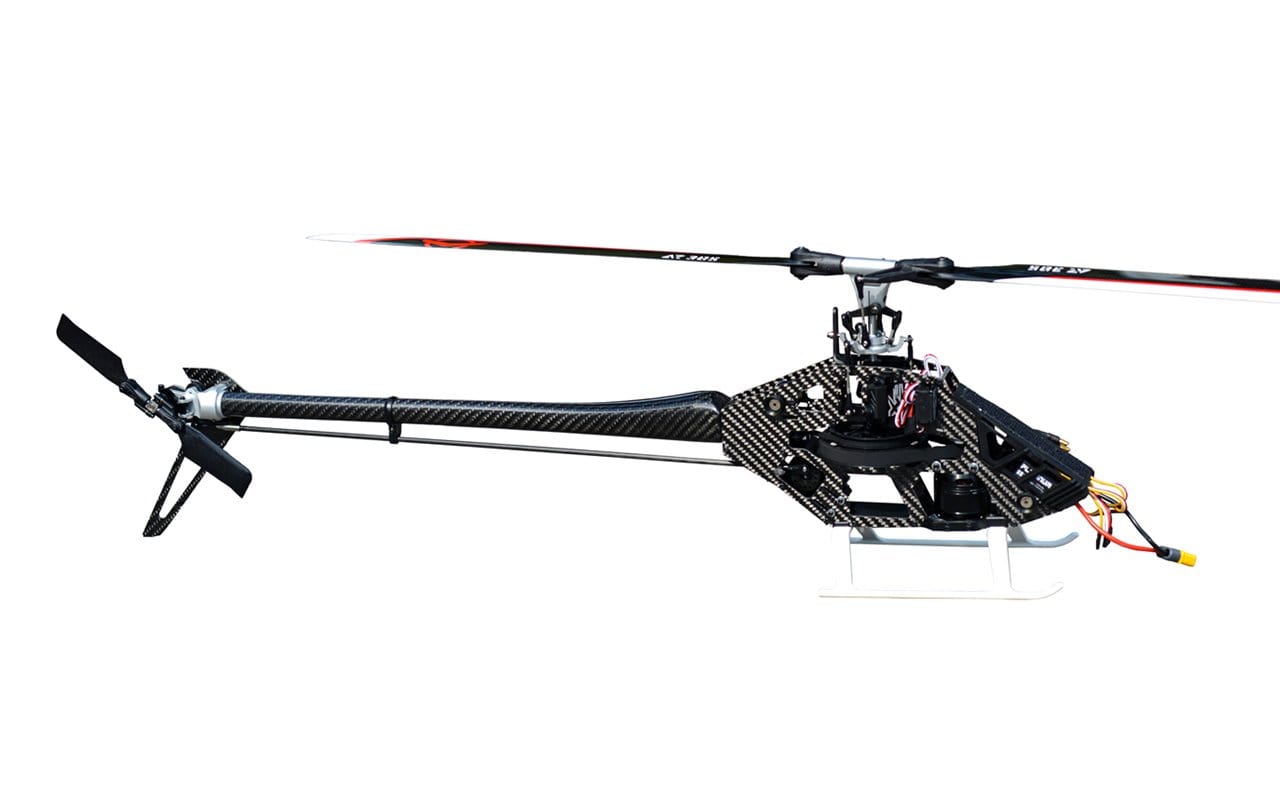

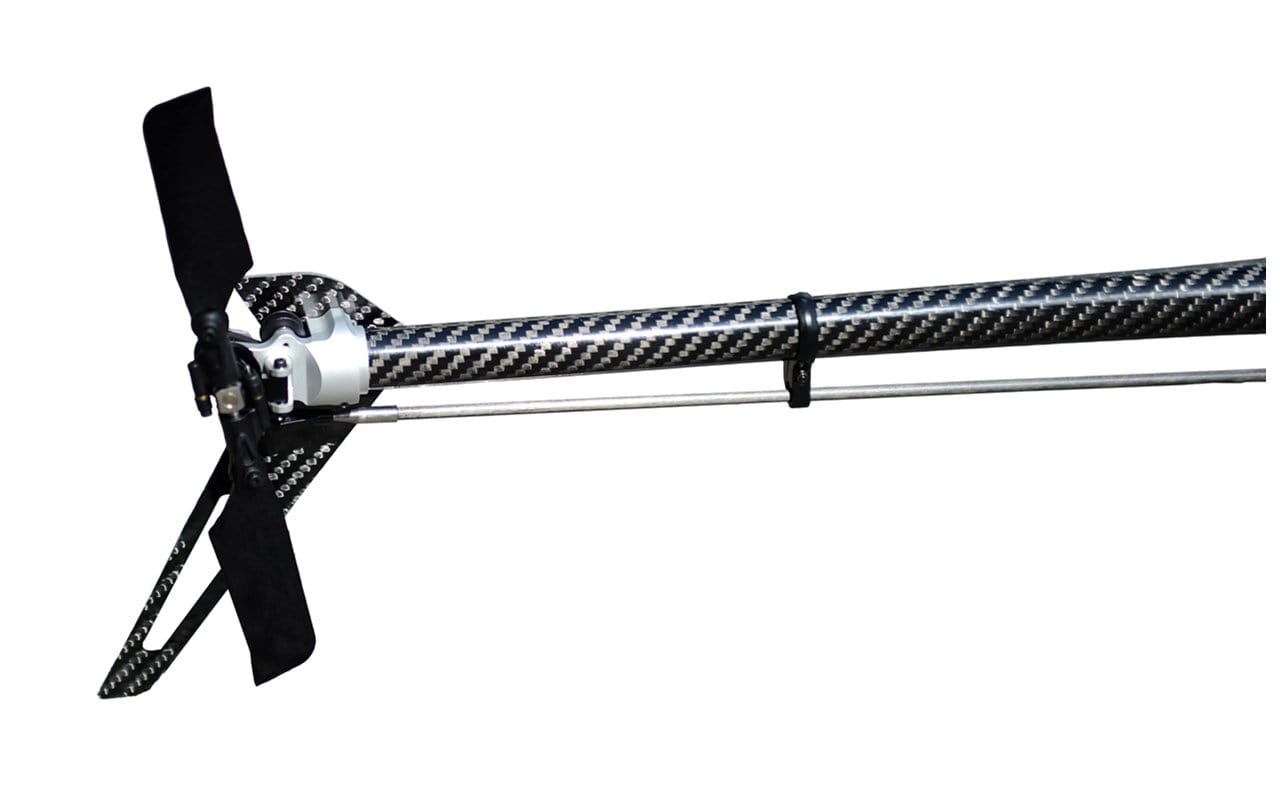

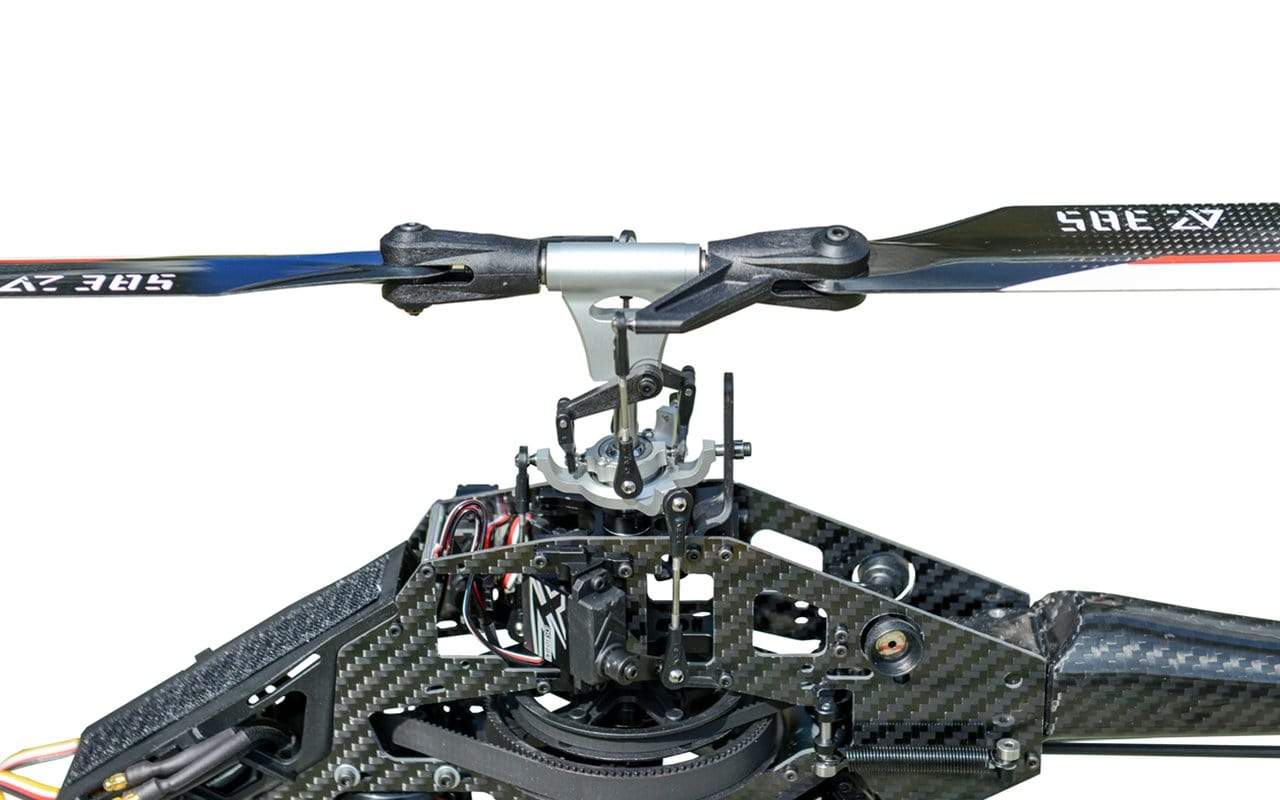

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Protos 380 Evo V2 in particular but at least we know they do distribute MSH Model.

Where to buy

USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 760mm (29.9 in)
Length: 800mm (31.5 in)

Weight: 1300 g (2.9 lbs)
  • Main Blade Length: 325-380mm
  • Tail Blade Length: 68mm
  • Length: 800mm
  • Height: 235mm
  • Width: 110mm
  • Main Gear: 120T
  • Tail Gear: 22T
  • Auto Gear: 94T
  • Tail Drive Gear Ratio: 4.27
  • Estimated RTF Weight: 1300g  (Depending on Setup)
  • Suggested Max Battery Dimensions: 115x40x35mm

Electronic Requirements:

  • Cyclic Servos: Micro size 23mm
  • Tail Servo: Micro size 23mm OR Mini size 35mm
  • Typical Speed Controller:
    • General and 3D Flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75,Hobbywing 50A, Hobbywing 60A V4
    • General and Extreme Flight: Kontronik Koby 90 - Jive 80LV , YGE 90 LV, Hobbywing 80A V4
  • Typical Motor
    • 28XX/30XX/32XX Series w/5mm Pinion 800-1000kV

Variants

MSH41515
Protos 380 Evo V2 (Orange)
