Glogo 690 SX from Mikado

Details

Features:

Designed and tested by World Champion R/C Helicopter Pilot and long time Team Mikado Member, Kyle Dahl.
Systematically designed and put through rigorous amounts of testing, this is the ideal 690 size Nitro machine, for every pilot, for every style of flying.
Mikado hasn’t had a model for the nitro market in 26 years, but the ultra light GLOGO 690 is the model worthy to bring NITRO back to MIKADO!

It utilizes tried and tested components from the existing LOGO 690 such as

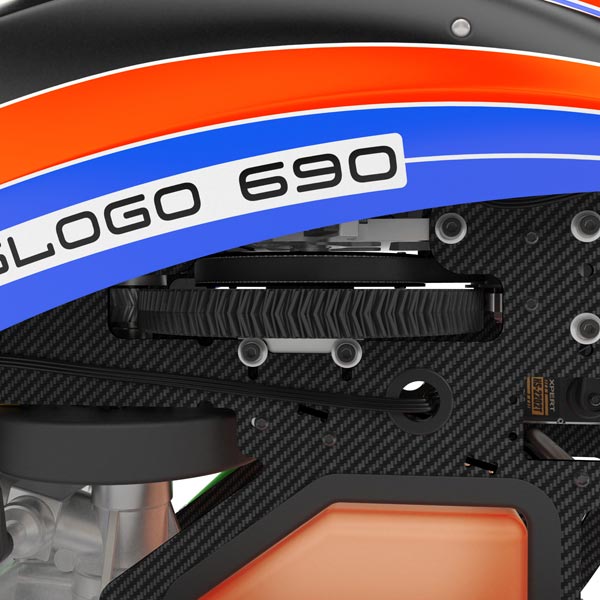

106 T Herring bone gear which is quiet, strong, and efficient
aluminum swashplate with new geometry for quicker cyclic response
robust tail drive via HTD-belt, with aluminum drive pulleys
stronger blade grips with Ø 5 mm blade grip bolt
stronger free wheel for higher torque
reinforced clamp ring for main rotor shaft

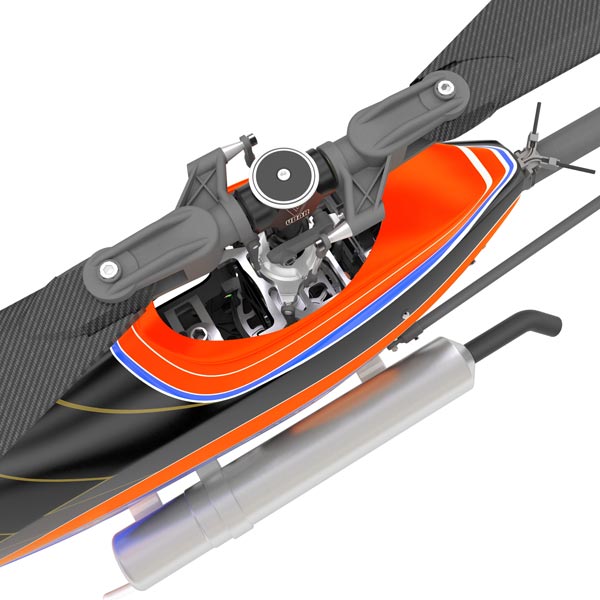

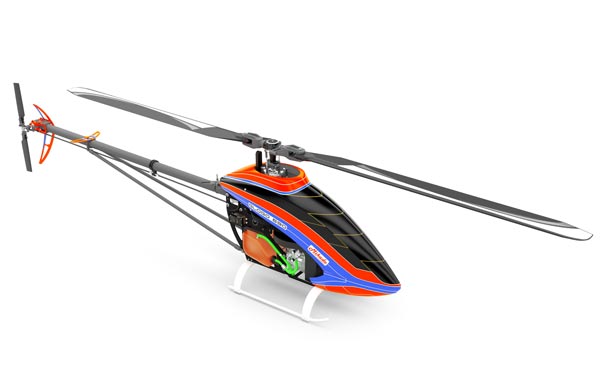

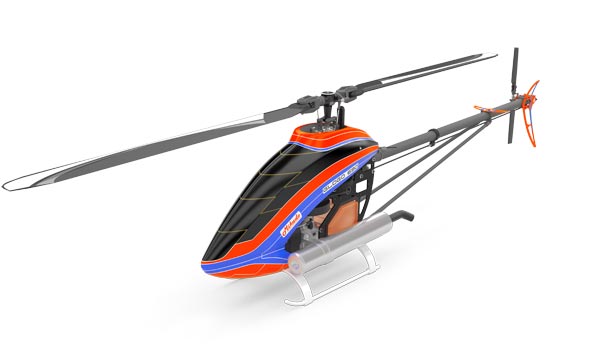

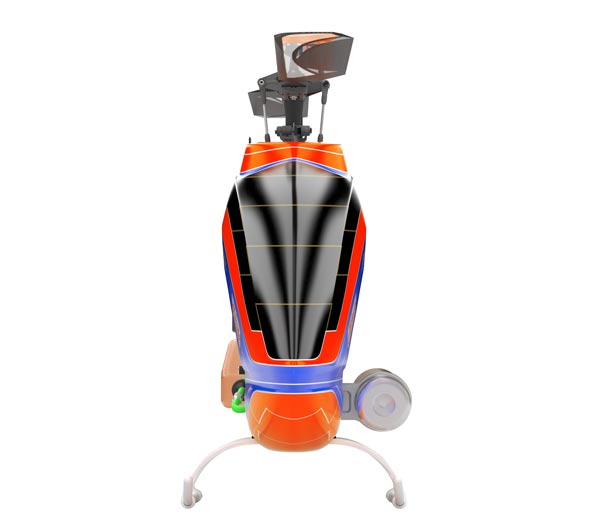

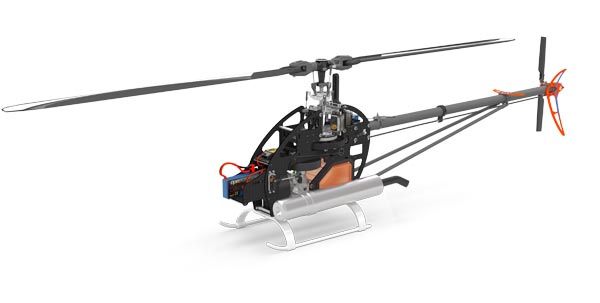

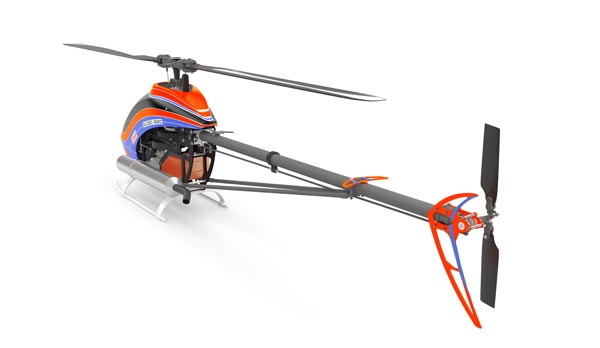

Pictures

Manual

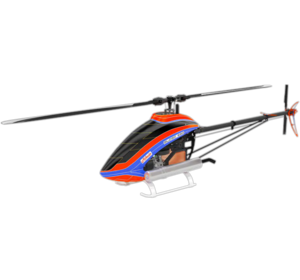

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Glogo 690 SX in particular but at least we know they do distribute Mikado.

Where to buy

Germany
Schweighofer GE
check web site
Ship to: Germany

Austria
Schweighofer AT
check web site
Ship to: International

USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 1560mm (61.4 in)
	Length: 1300mm (51.2 in)
Weight: 4350 g (9.6 lbs)

See more Details

Rotor diameter	1,560 mm
Rotor blades	e.g. VTX 697, Rotortech 690
RTF weight	4.100 - 4.350 g (dry)
recommended batterie	recommended rx-Lipo 2s-5,000 mAh
Main gear ratio	8,15
Main Gear size	106 teeth, modul 1
Length	1,300 mm
Hight	425 mm
