BK GP-14 Velo Carbotec from Multiplex

Details

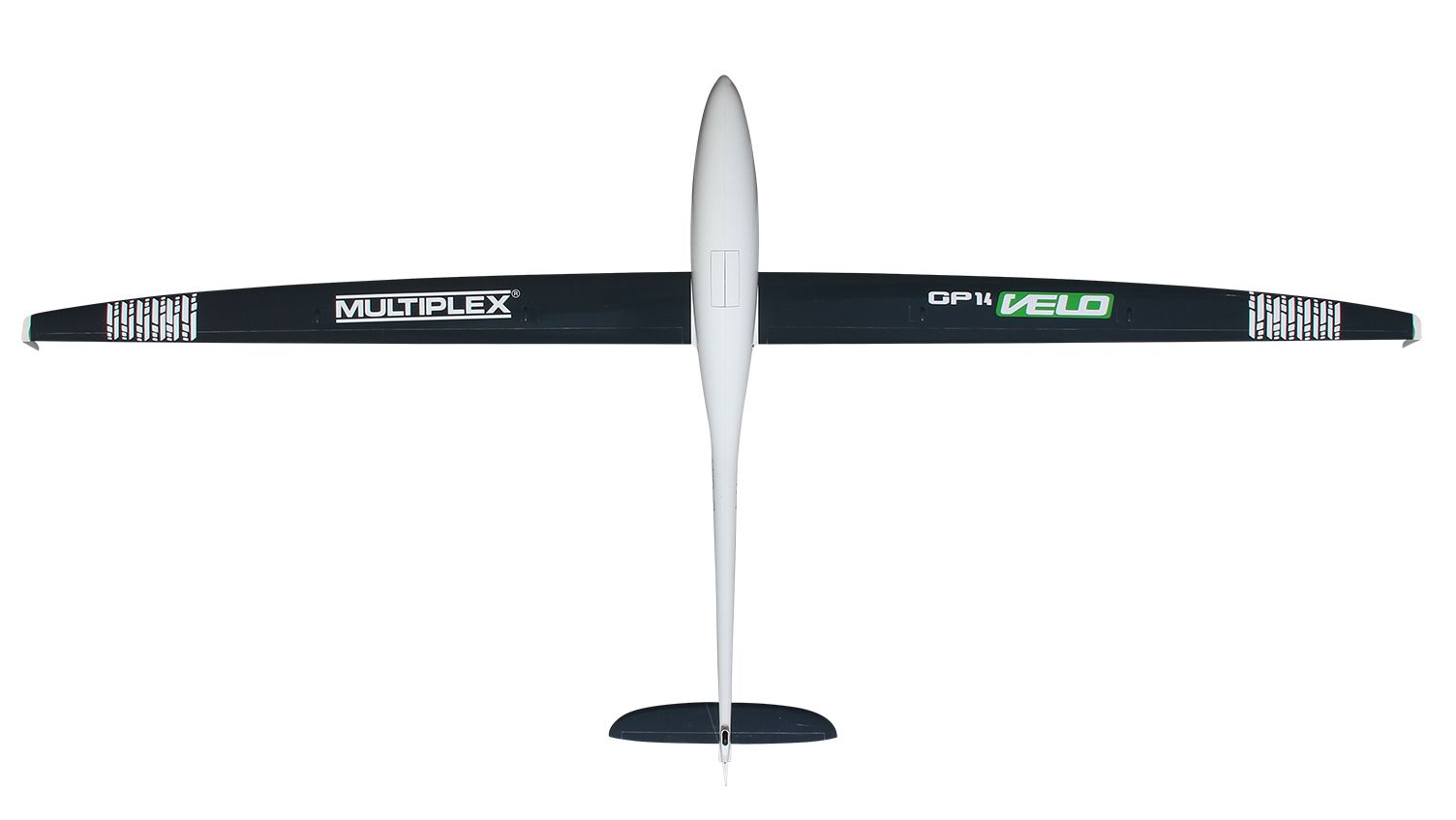

The new Multiplex GP-14 Velo Carbotec is modelled on the modern high performance glider from GP Gliders. The scale is 1:3.2, which results in a wingspan of 4.2 m for our GP-14 Velo Carbotec compared to the original. The model design and CAD construction were realised in cooperation with Ceflix-Modellsport.

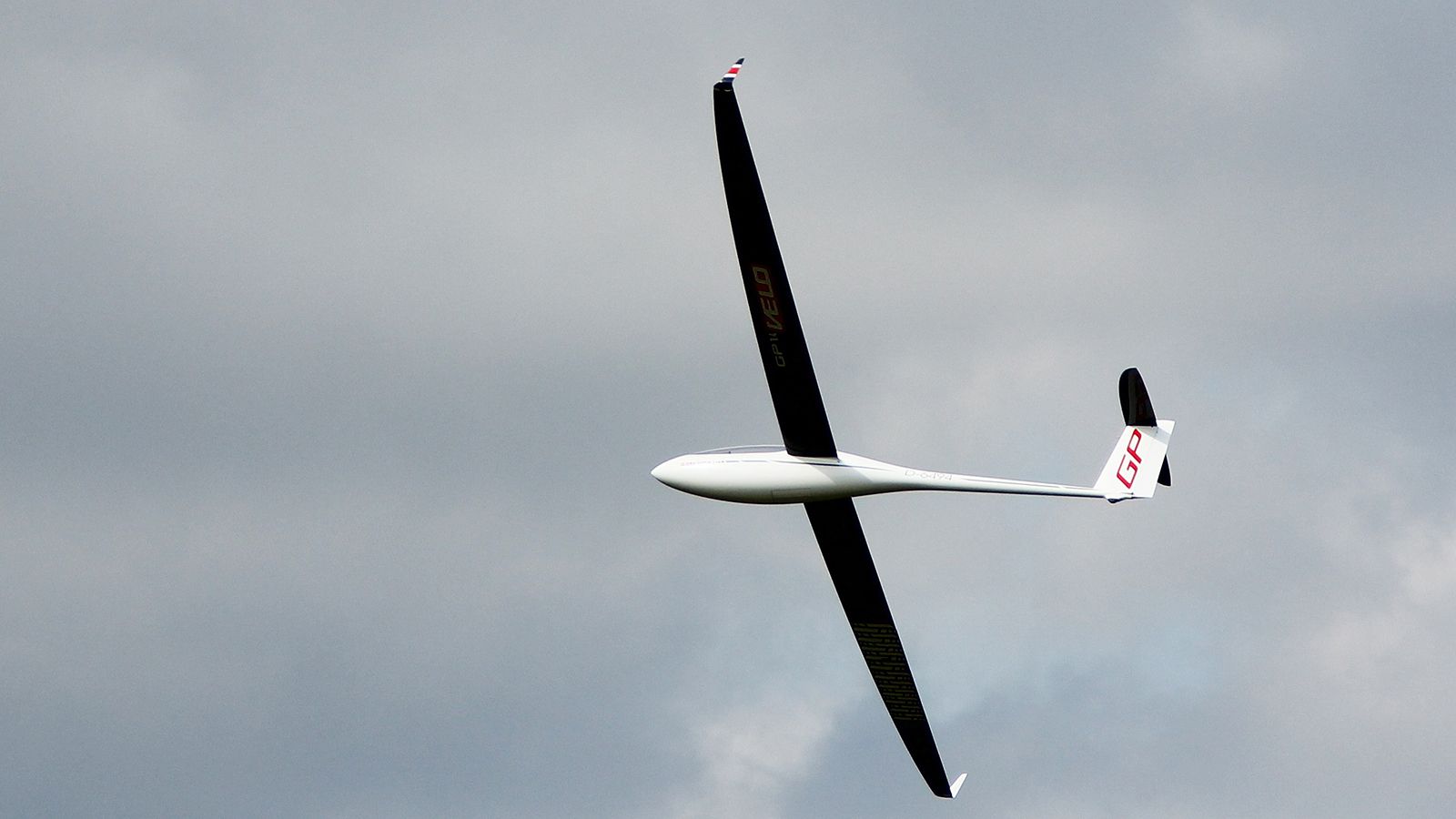

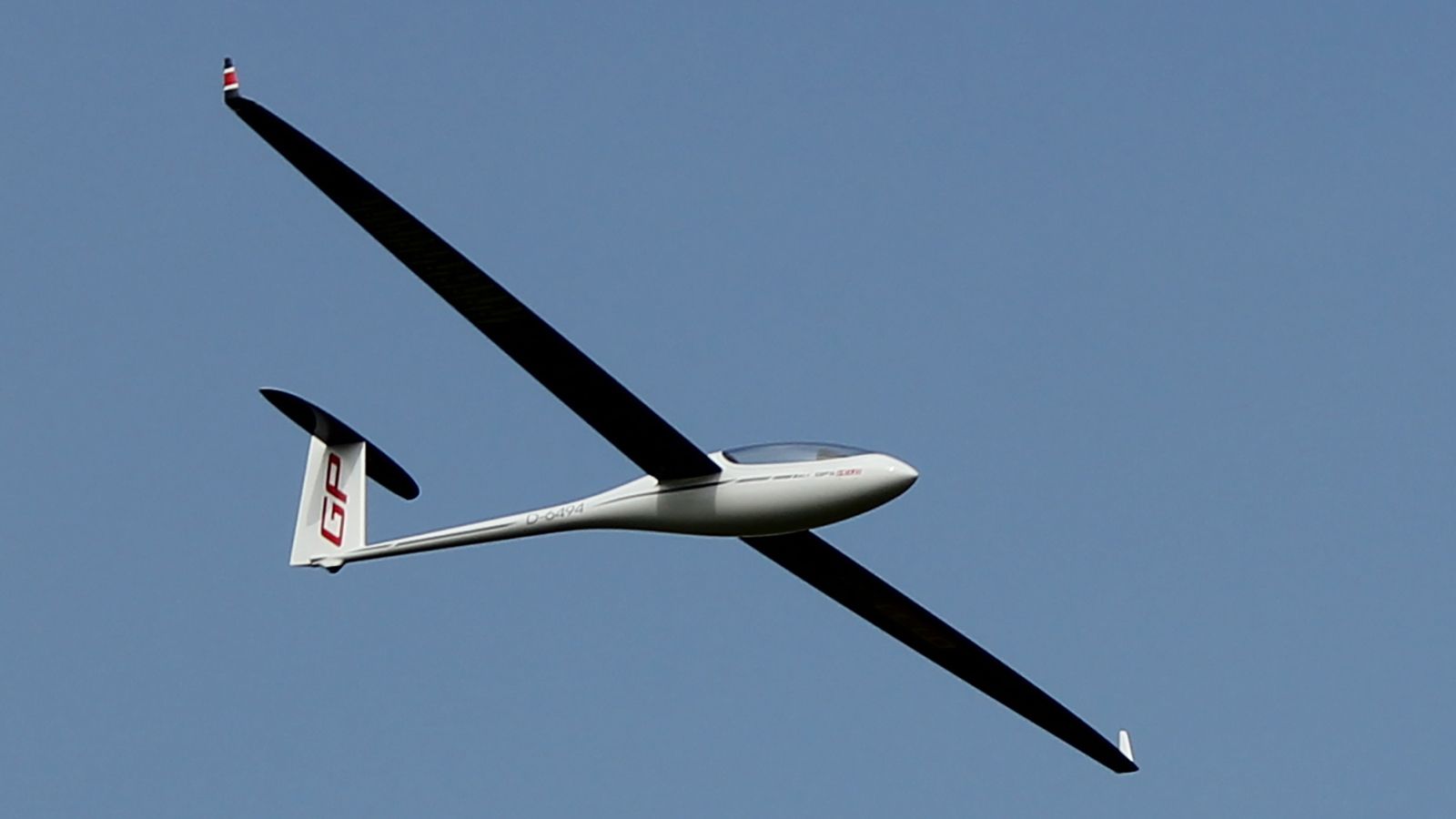

Those who know the premium models from Ceflix know why we were very happy about this cooperation. The prototypes were put through their paces on the flat as well as in high alpine terrain. We have to honestly admit that we are thrilled with the performance of our new GP-14 Velo Carbotec. It is strong in thermals, has a super pull, is very agile and always remains docile in slow flight. The elegant flight pattern suggests a much larger model, this is created by the voluminous fuselage, which corresponds to the scale.

The fuselage volume allows the convenient installation of the optional FES retractable landing gear, which is equipped with a 100 mm wheel, a FES propulsion set on 6S or a folding impeller (e.g.: Ceflix 350 on 6S).

The FES propulsion system specially designed for the GP-14 Carbotec consists of a 50-mm outrunner motor with 485KV, a carbon fibre spinner by Freudenthaler adapted to the fuselage contour and a high-end carbon folding propeller by Georgi Mirov with 13x8 in white.

In conjunction with a 6s 4000mAh Lipo, a powerful ground launch with efficient climb rate is possible. For hand launching on slopes, simply change the propeller to a GM CFK V2 Scale 18x8.5S. This setup then uses a 4s lipo, which also allows efficient hand launching. For pure hand launch operation without the possibility of ground launch we recommend our motor D50-65-400kv on 6S and the GM CFK V2 Scale 18x8,5S propeller.

Features:

  • CFRP fuselage (with glass fabric in RC range 2.4Ghz friendly).
  • Full CFRP hull surfaces with bottom hinged rudders (We recommend the use of the enclosed GRP rudder horns, for a stiff and robust cross linkage. However, in order to leave customers the option of also installing LDS or IDS linkages, the rudder horn cut-outs have deliberately not been pre-milled).
  • 4-square CFK mating
  • Ready-made wing attachment to the fuselage using M5 plastic thumbscrews
  • Plug-in winglets
  • Full CFK tailplane
  • Attached rudder with glued rudder lever
  • Included matching wiring harness
  • CNC milled canopy glass for easy assembly
  • Included CNC machined wooden bulkheads for EDF and FES installation
  • Extensive and high quality small parts accessories

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BK GP-14 Velo Carbotec in particular but at least we know they do distribute Multiplex.
Wingspan: 4023mm (158.4 in)
Length: 2020mm (79.5 in)

Weight: 5800 g (12.8 lbs)
  • Wingspan: 4023 mm
  • Length: 2020 mm
  • Flight weight: 5,8 Kg
  • Channels: 6
  • Surface area: 77,5 dm²
