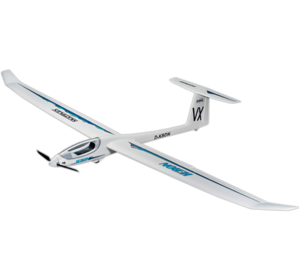

Heron from Multiplex

Details

The MULTIPLEX HERON is a high performance electric glider with T-tail and high-performance four-flap wings. With its elegant wings and flowing body, he takes thermals excellent and if necessary the efficient PERMAX-brushless motor drives the folding propeller (RR version) to powerful. Through its docile handling and excellent flight performance lets you experience the HERON maximum flying pleasure, whether you are amateur pilot or a veteran. With elegance and precision you float through the air long or enjoy sport aerobatics. The extravagant four-flap wings with their extremely stiff CFK / ALU tubular spar technology set new standards in the 2.40 meter class. With the standard Fold land absolutely accurate,

Features:

  • 4 wing flaps for high flight performance (flaps) and targeted landing approaches (Butterfly)
  • Wide range of services: speed, aerobatics, thermal flying
  • Innovative CFK / ALU pipe rail technology for heavy-duty wings
  • High-strength hull by GFK "M-SPACE technology"
  • High performance Brushless -Drive with folding propeller at RR version

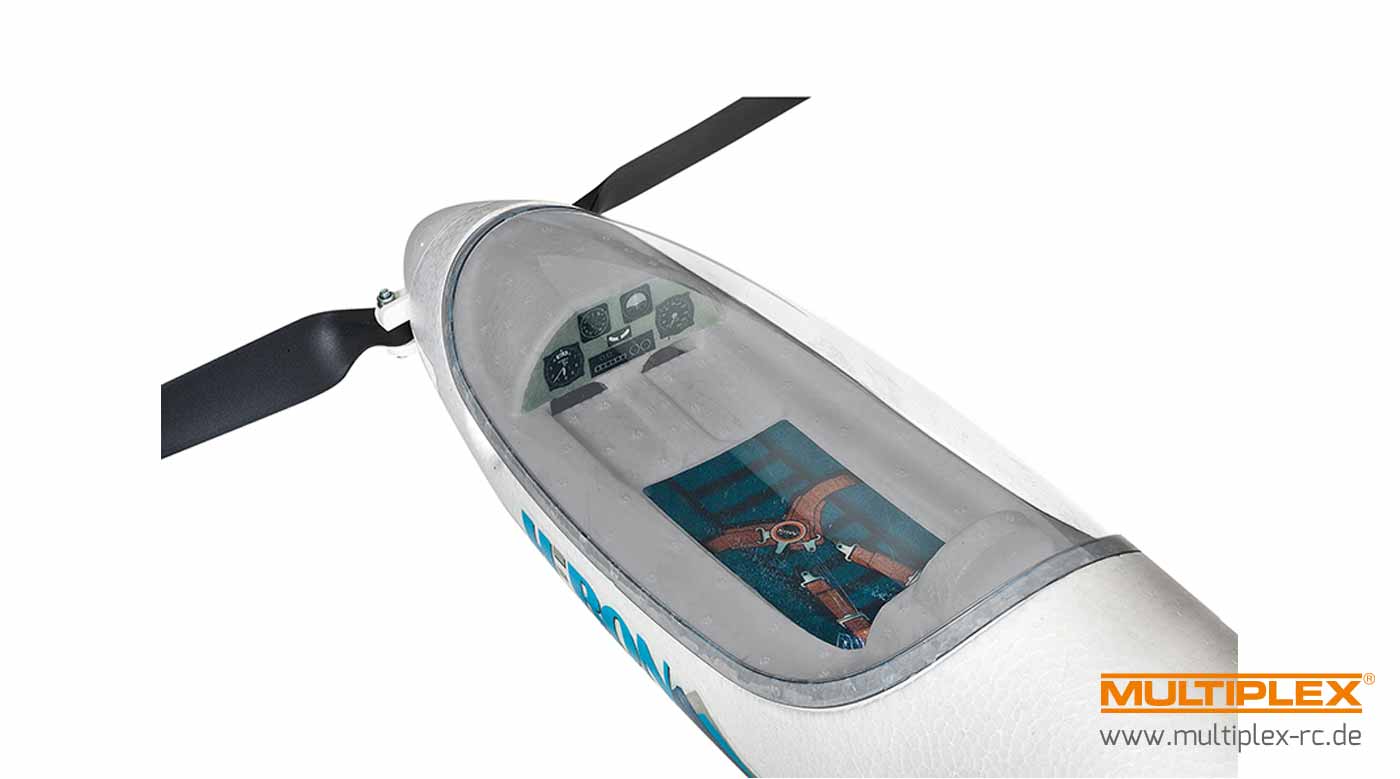

  • Transparent canopy with very detailed cockpit
  • Transport due to detachable areas and horizontal tail

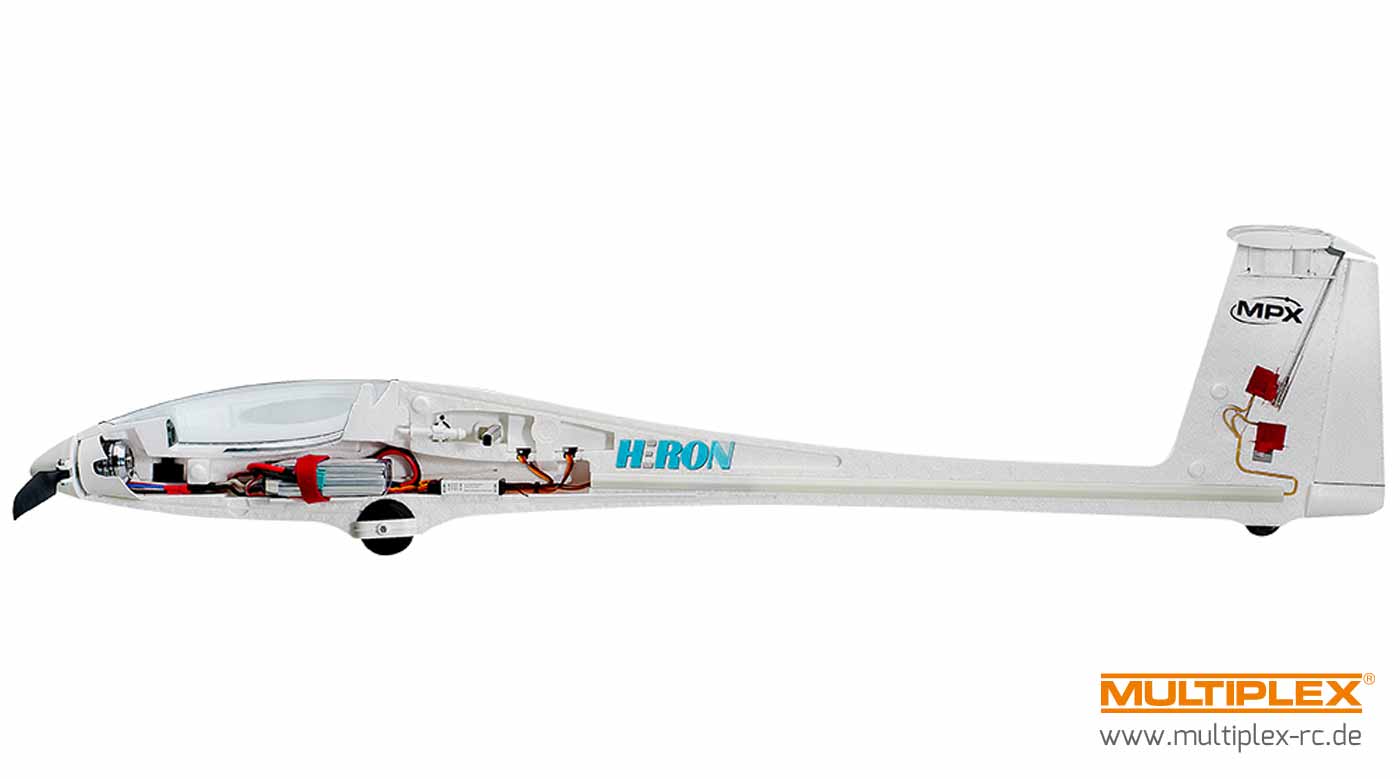

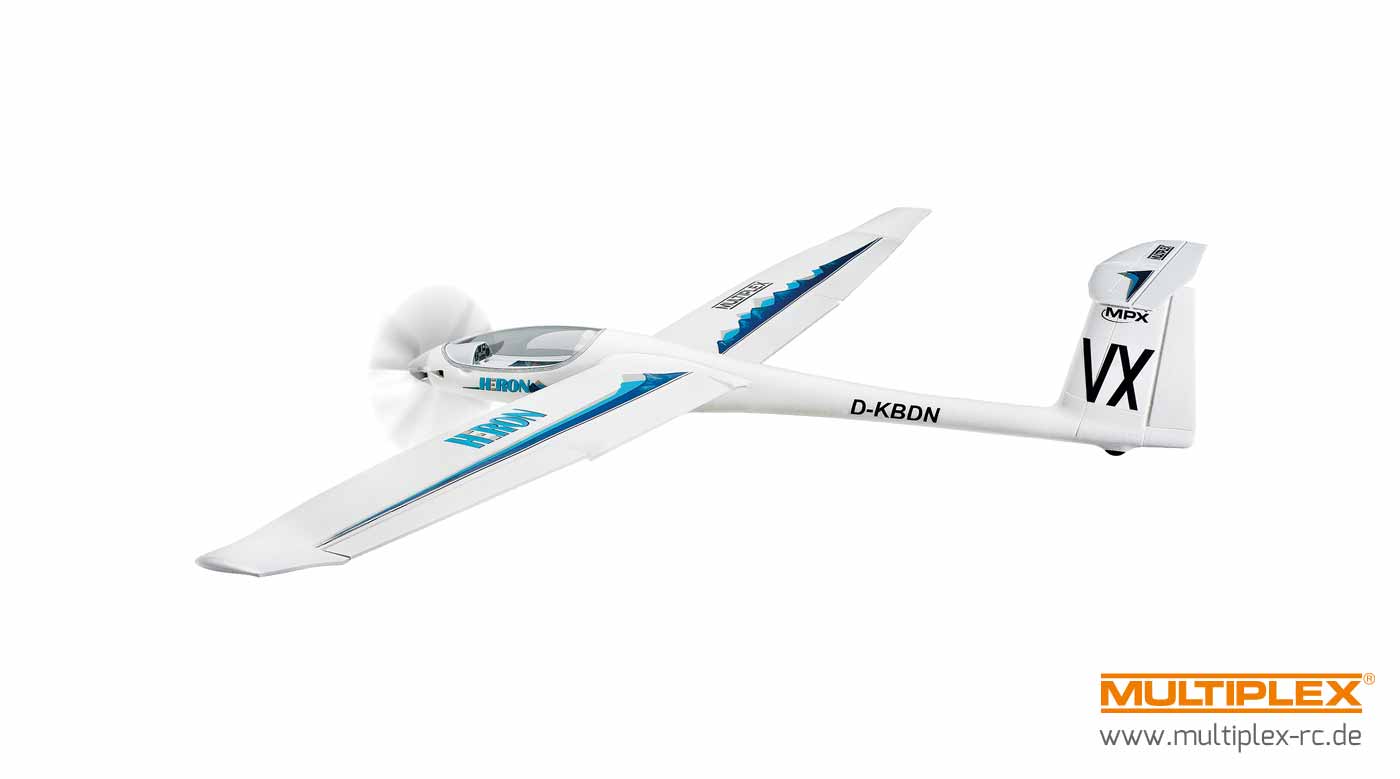

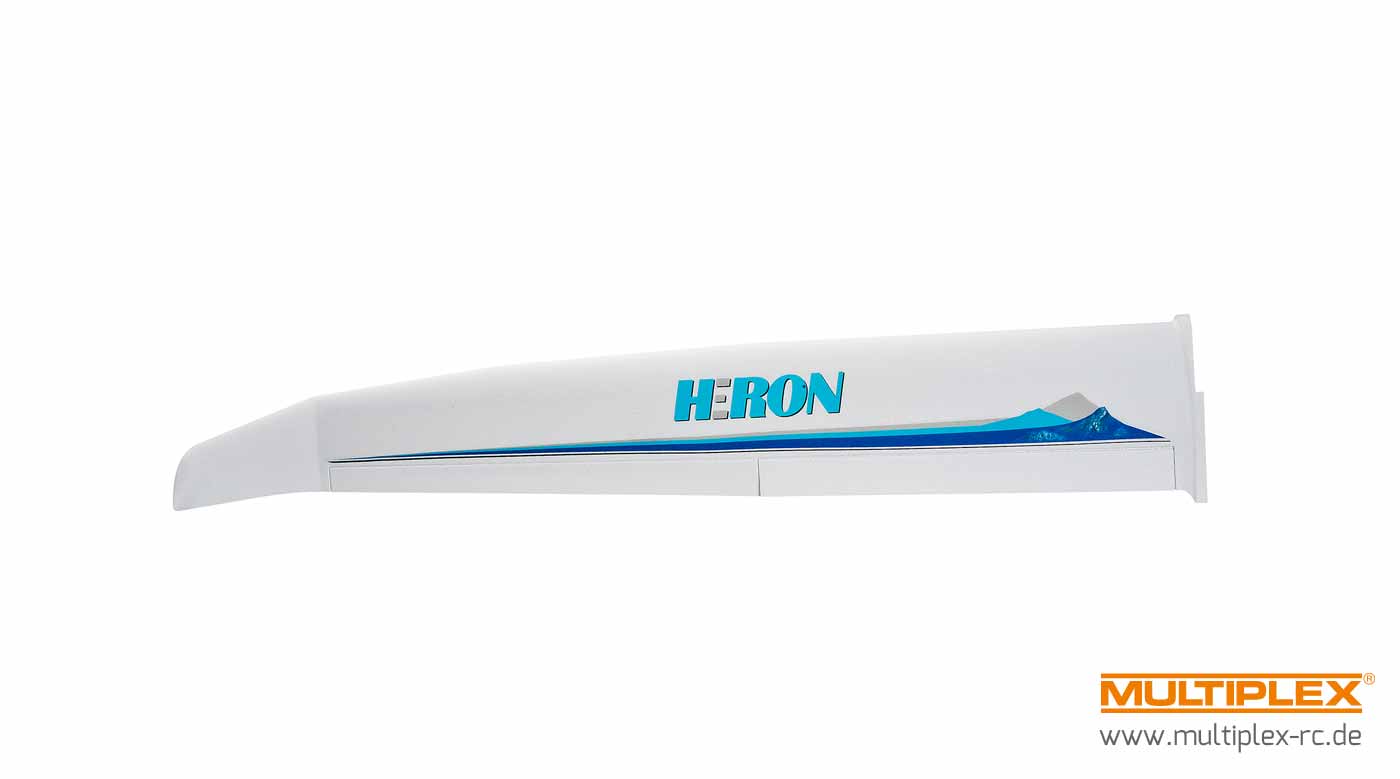

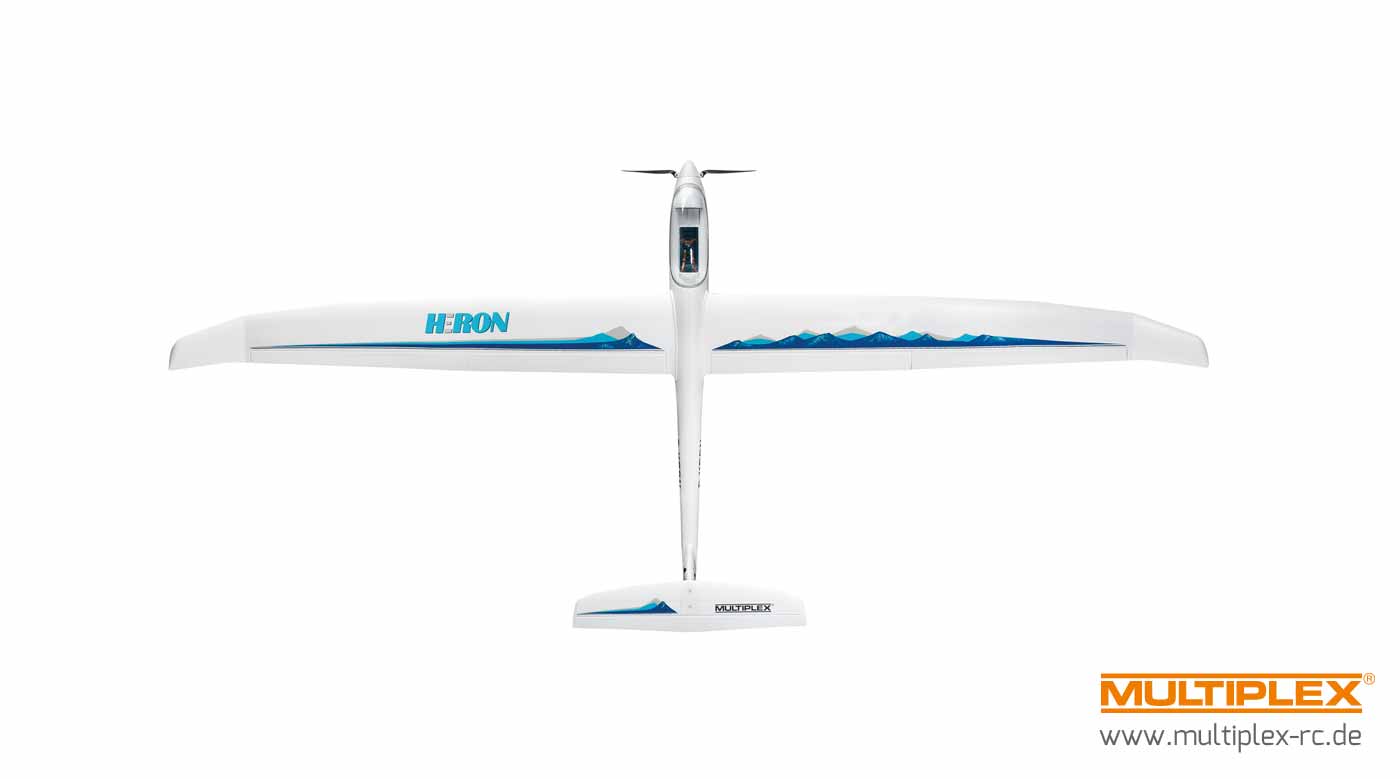

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Heron in particular but at least we know they do distribute Multiplex.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
Hungary
SG RC Modell
check web site
Ship to: Hungary
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
Switzerland
Leomotion
check web site
Ship to: Switzerland
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
PB Modélisme
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
Canada
Icare RC
check web site
Ship to: Canada
USA
Graves RC
check web site
Ship to: USA
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
United Kingdom
Arrow Models
check web site
Ship to: Europe
Austria
Freudenthaler
check web site
Ship to: Europe
Wingspan: 2400mm (94.5 in)
Length: 1100mm (43.3 in)

Weight: 1350 g (3 lbs)

Wingspan: 2400 mm
Overall length: 1100 mm
All-up weight, glider: 1350 g
All-up weight, electric: 1550 g
Wing area: 41,3 dm²
Wing loading:  32,7 / 37,5 g/dm²
RC functions: SR / HR / QR / motor / option flaps and tow hook
Flight time: 40min
types of batteries / cells: 3S Lipo
construction time: 15mn
Material: Elapor

Variants

1149
Heron ()
