Lentus from Multiplex

Details

Lentus is the most powerful ELAPOR glider model of all time!
The Lentus is the latest development from MULTIPLEX. The model is designed as a club glider with an emphasis on thermal and slope flying.
We have implemented a lot of innovative ideas in the Lentus again. The already built RR basic version of the model has a powerful ROXXY brushless motor for 3S-2600 batteries and is equipped as standard with 6 Hitec HS-65HB servos for elevator and rudder, ailerons and flaps. By installing the optionally available retractable landing gear, the model is self-launching in connection with a 4S 2600 battery and an 8x6 “propeller.
As a further option, it is possible to activate the prepared tow coupling by installing a Hitec HS-65HB servo, despite the built-in electric motor and chassis!
This option offers maximum flight fun, making the Lentus the safest model for learning to fly, as it can be released immediately in a critical situation and the model is safely brought back to the starting point with the electric motor.
Due to the modern profile design, the model achieves a very wide range of performance and allows a dynamic flight style. The 4 flap surfaces allow precise landings (butterfly).

Features

  • Very good-natured circular flight characteristics for safe thermal flying
  • Prototype-like appearance of modern gliders
  • Clear canopy with a detailed cockpit
  • FES option (Front Electric Selflaunch) with optional retractable landing gear, 4S drive (4S 2600) and 8x6 "propeller - this means that the model can be started by itself
  • Prepared tow release (can also be used with the electric version)
  • TEK- Vario installation prepared (display of airspeed and Vario measurement data)
  • Stable, complex wing with double CFRP-ALU composite spars
  • Forced insertion of servo contacts with M6 high-current plugs in the wings
  • Removable rudder with concave hinges
  • Extremely stiff fuselage in M-Space Technology with Ø20mm profile tube
  • Rudder flaps reinforced with stainless steel tubes •
  • Generous, structured interior for battery, RC and telemetry
  • High-quality printed and plotted decor
  • Landing skid made of sturdy rockfall protection film
  • Noseband protection integrated in the decor
  • Matching model bag available for protected transport
  • Developed and manufactured in Germany

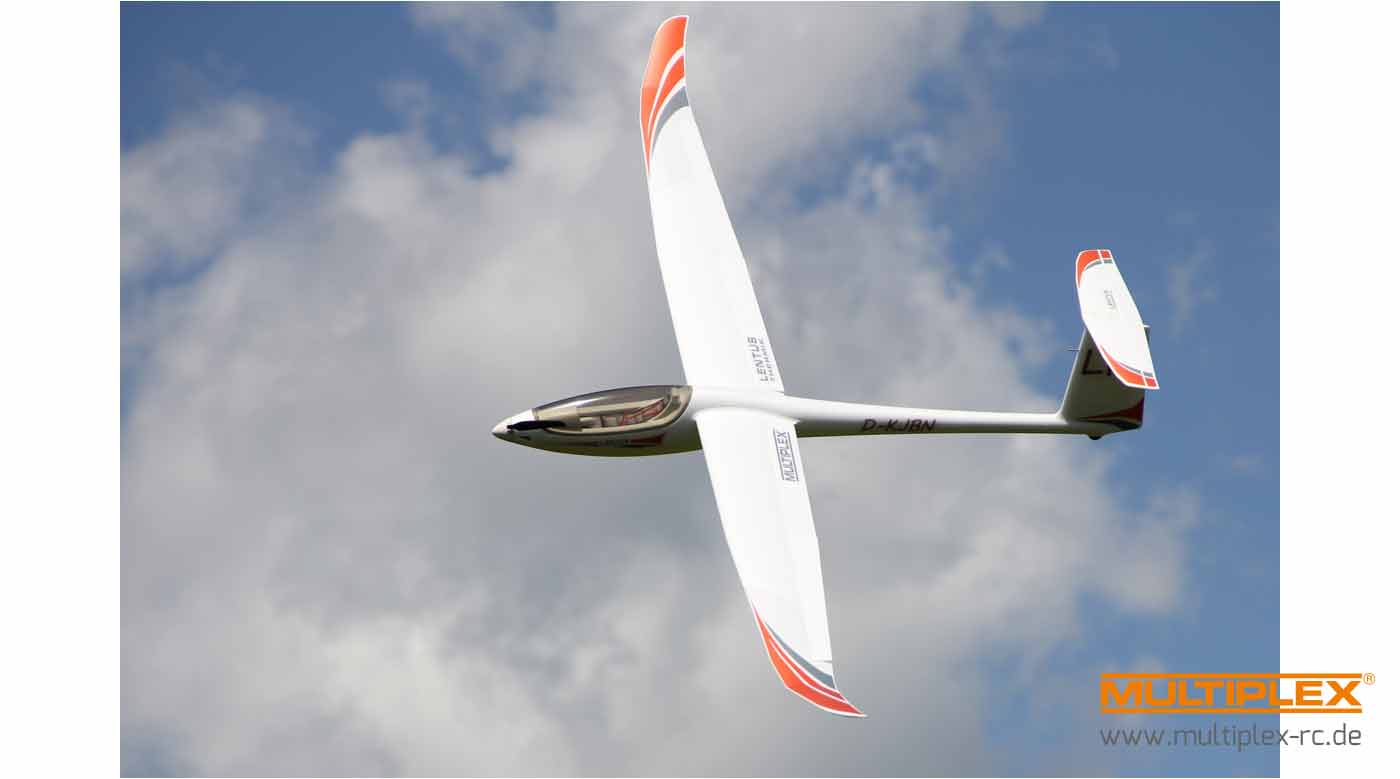

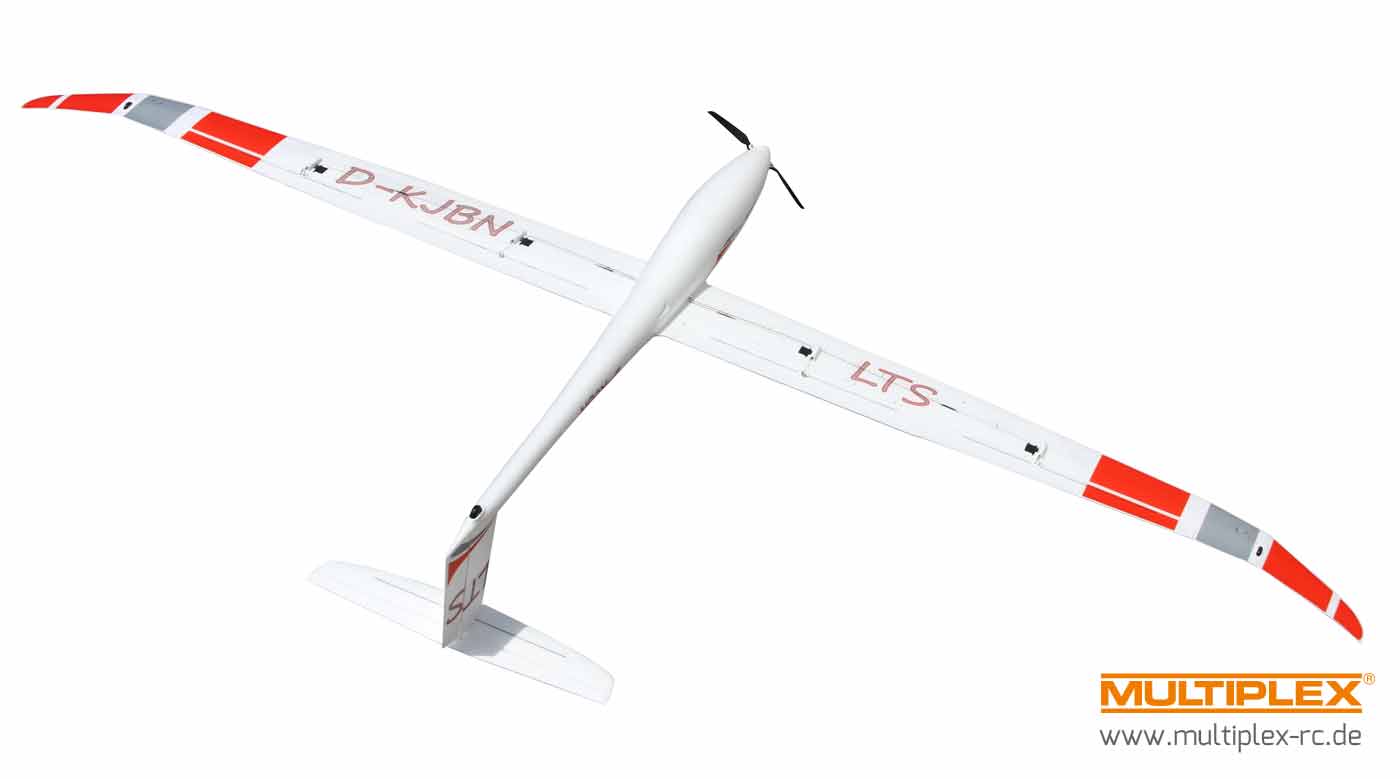

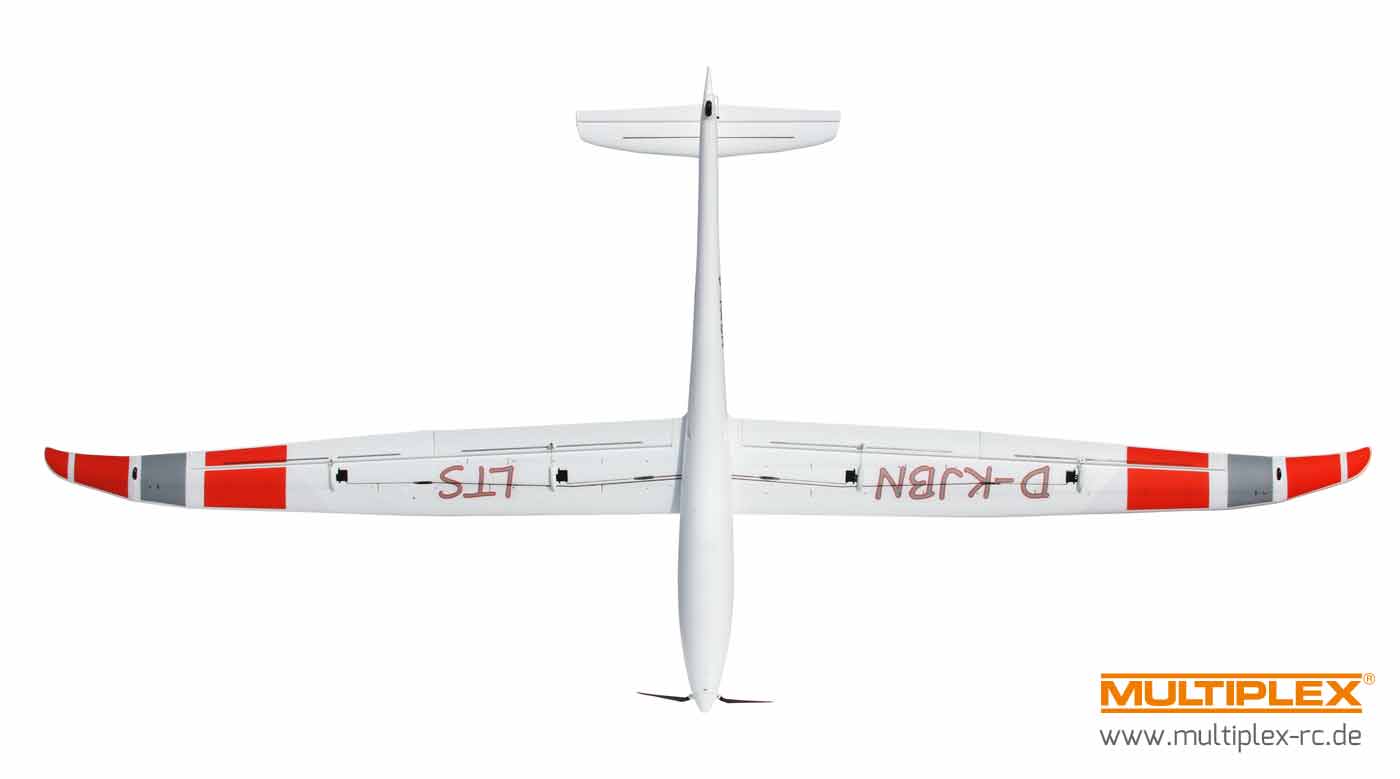

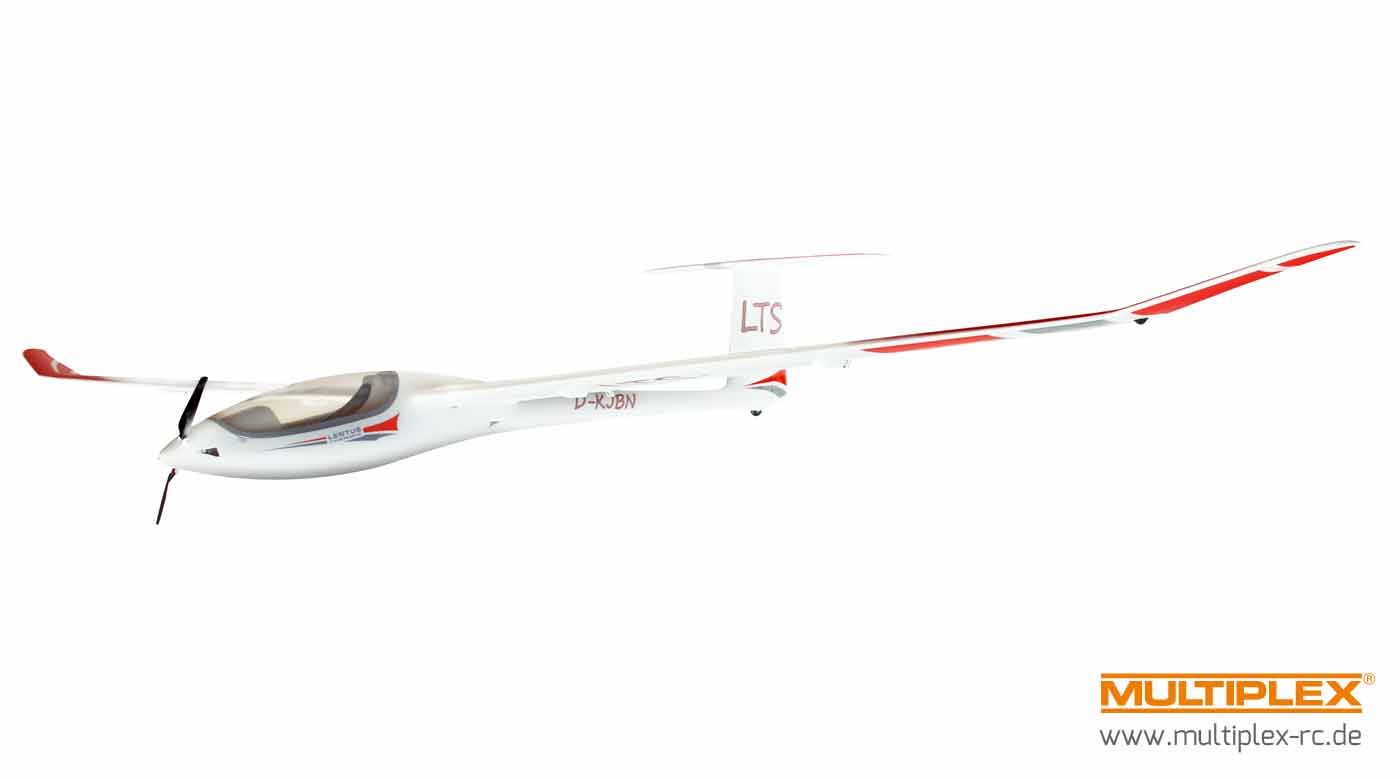

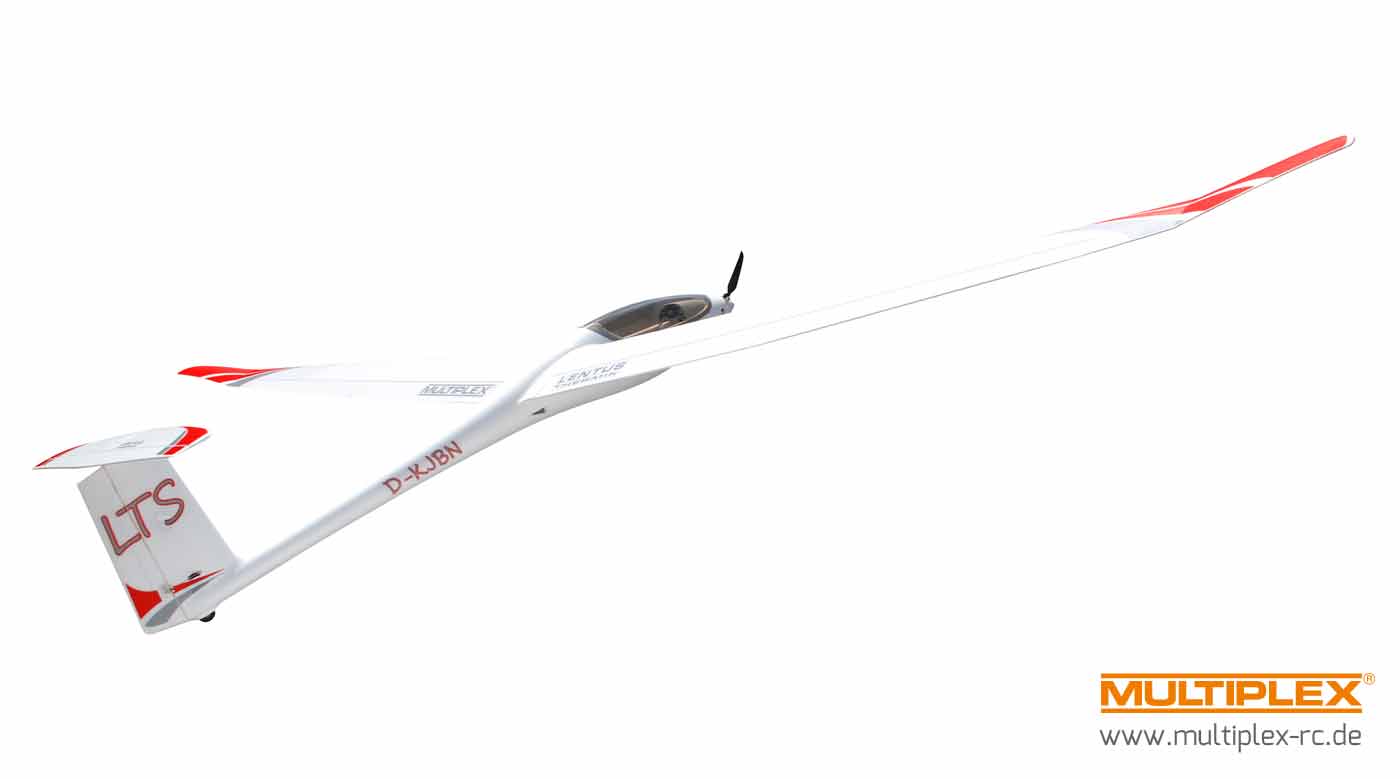

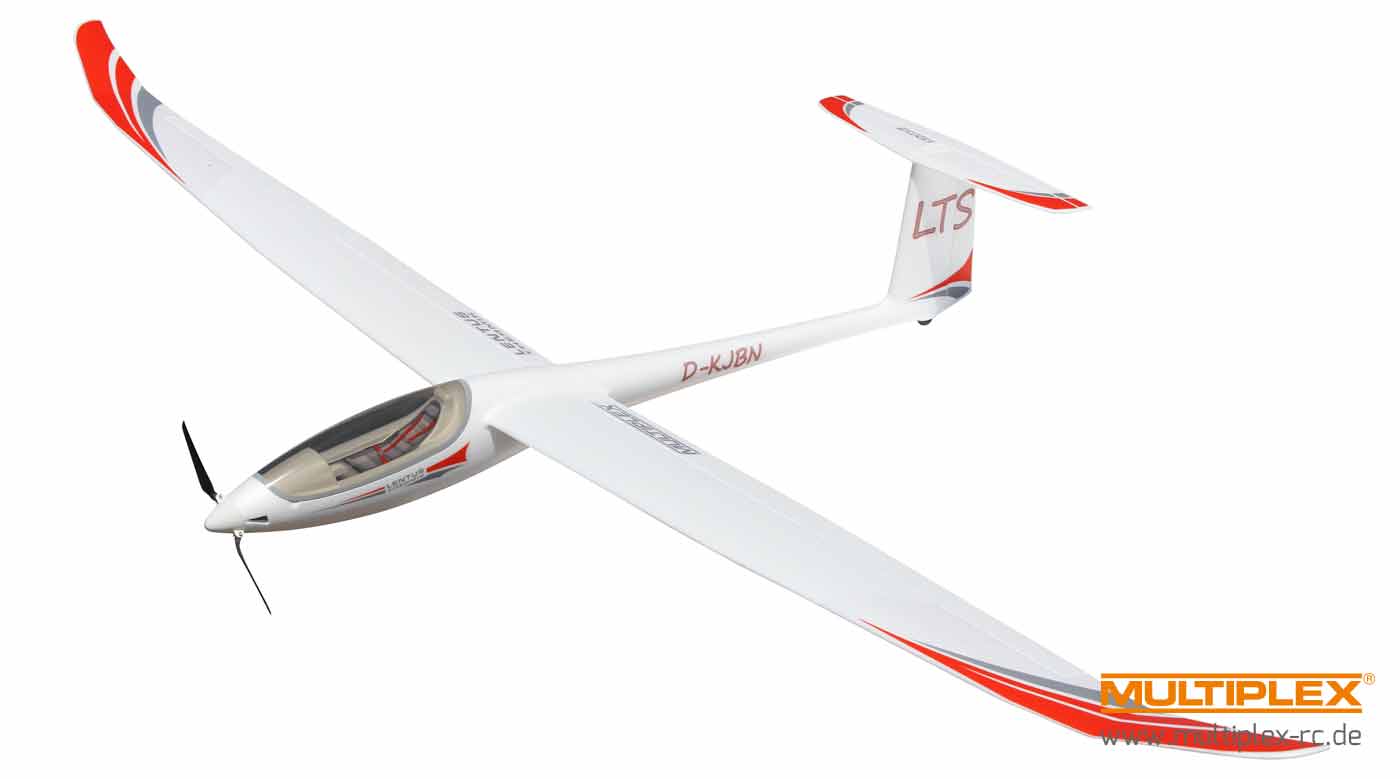

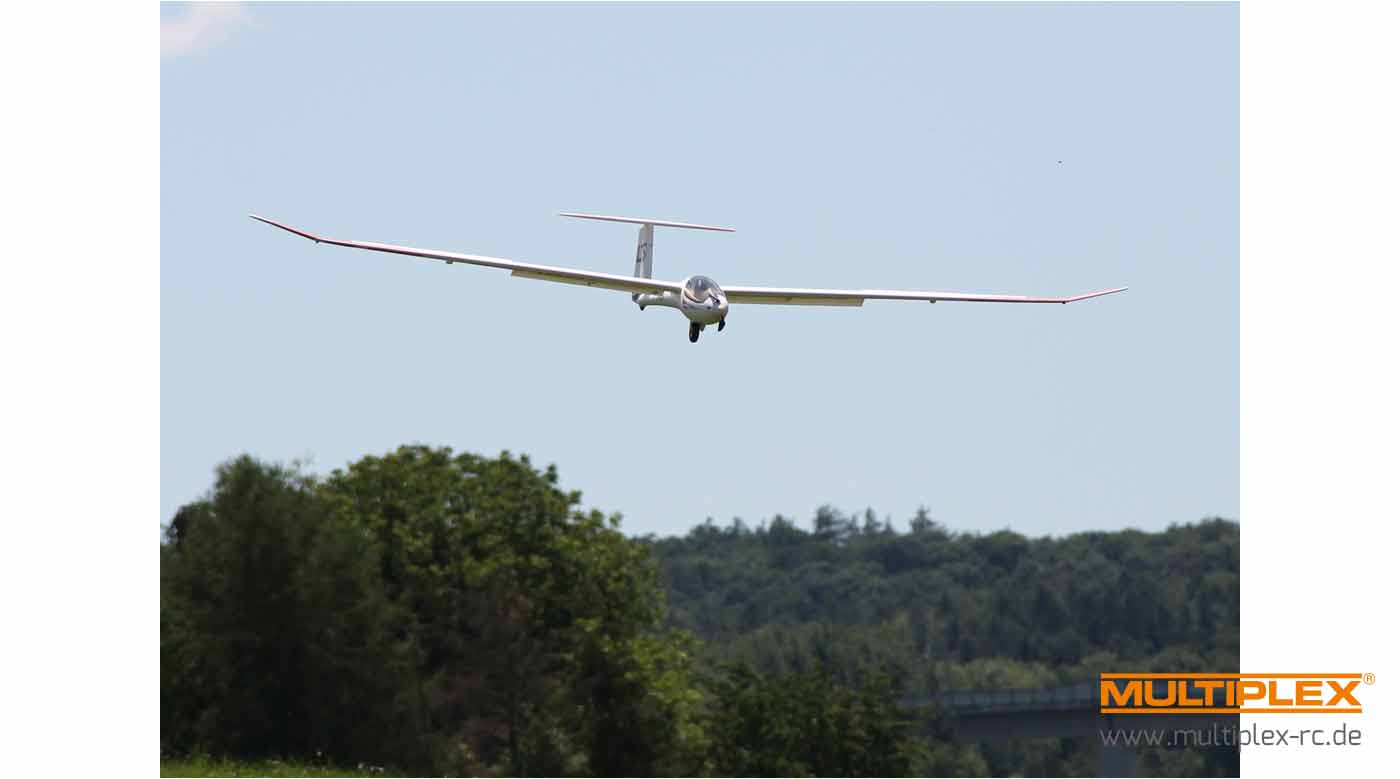

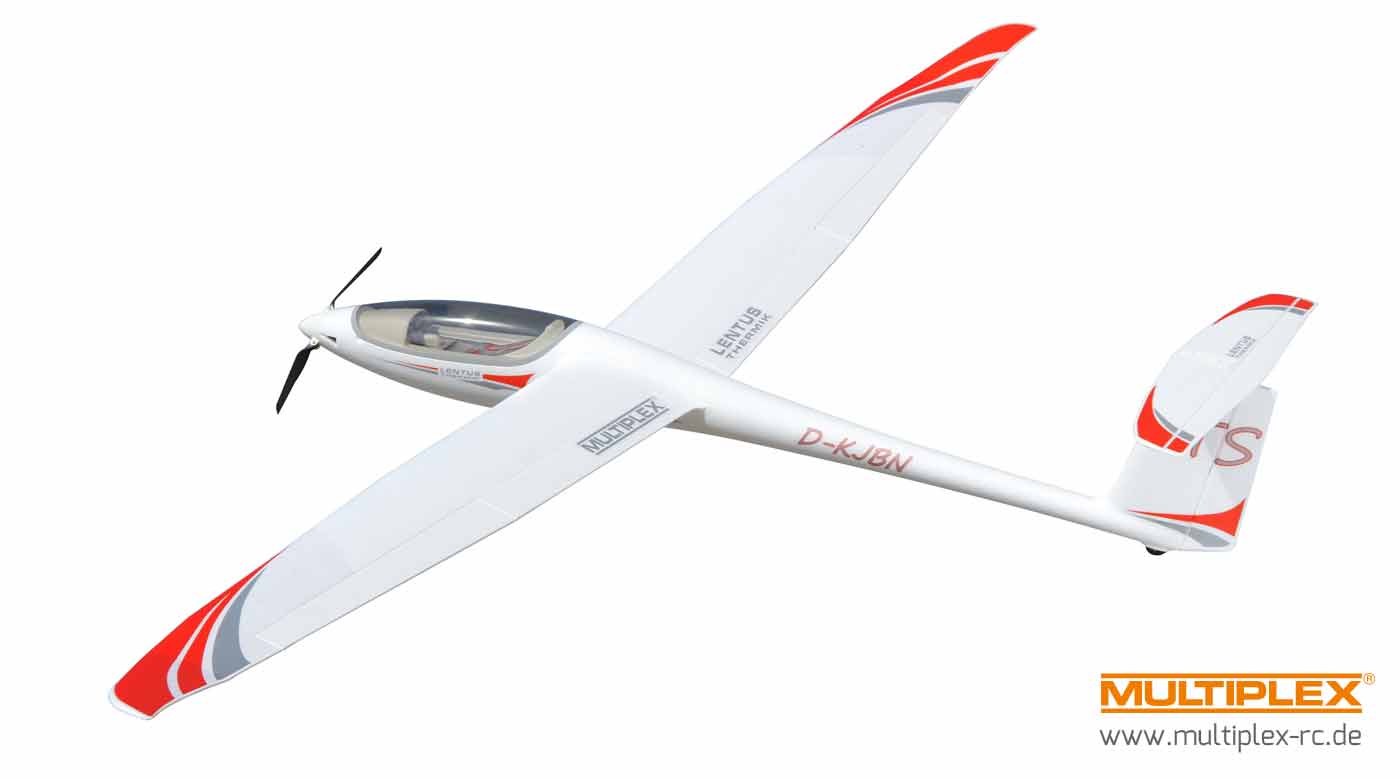

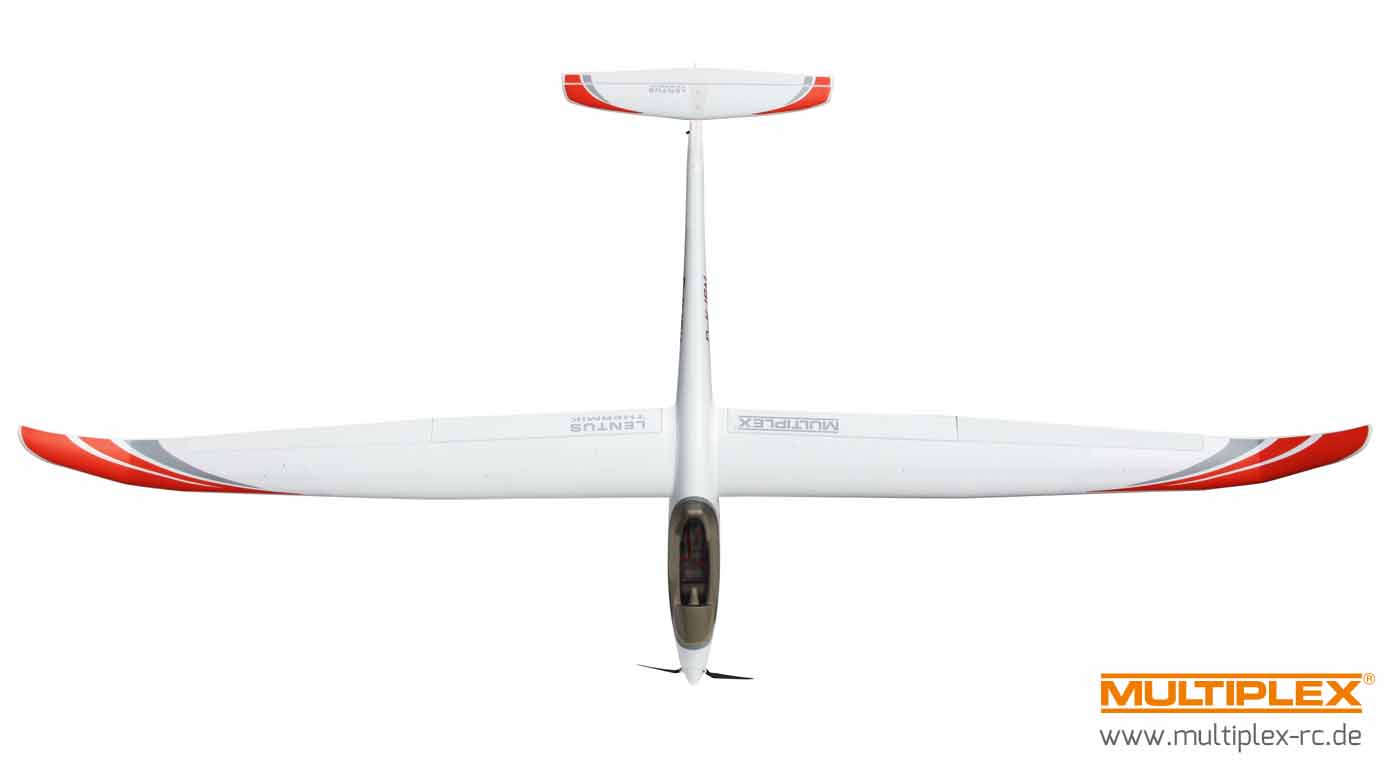

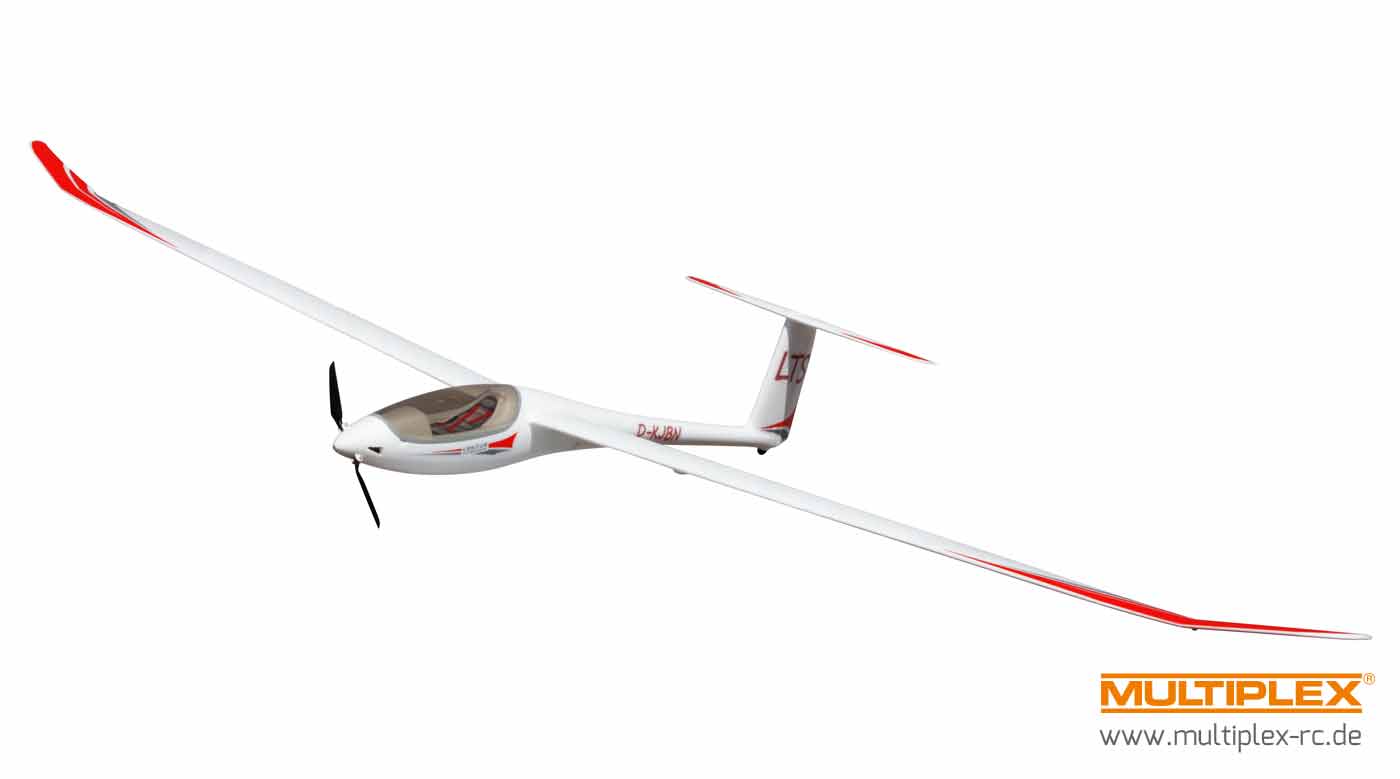

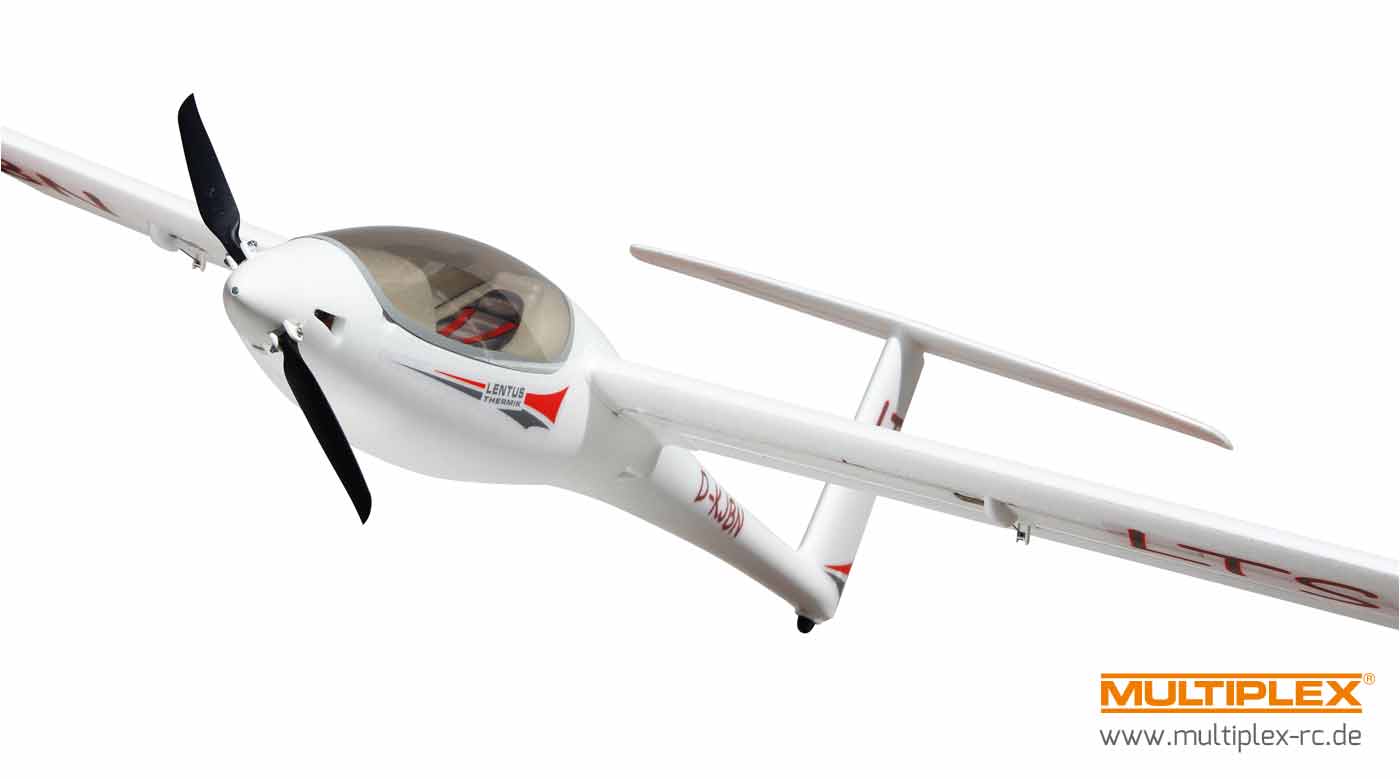

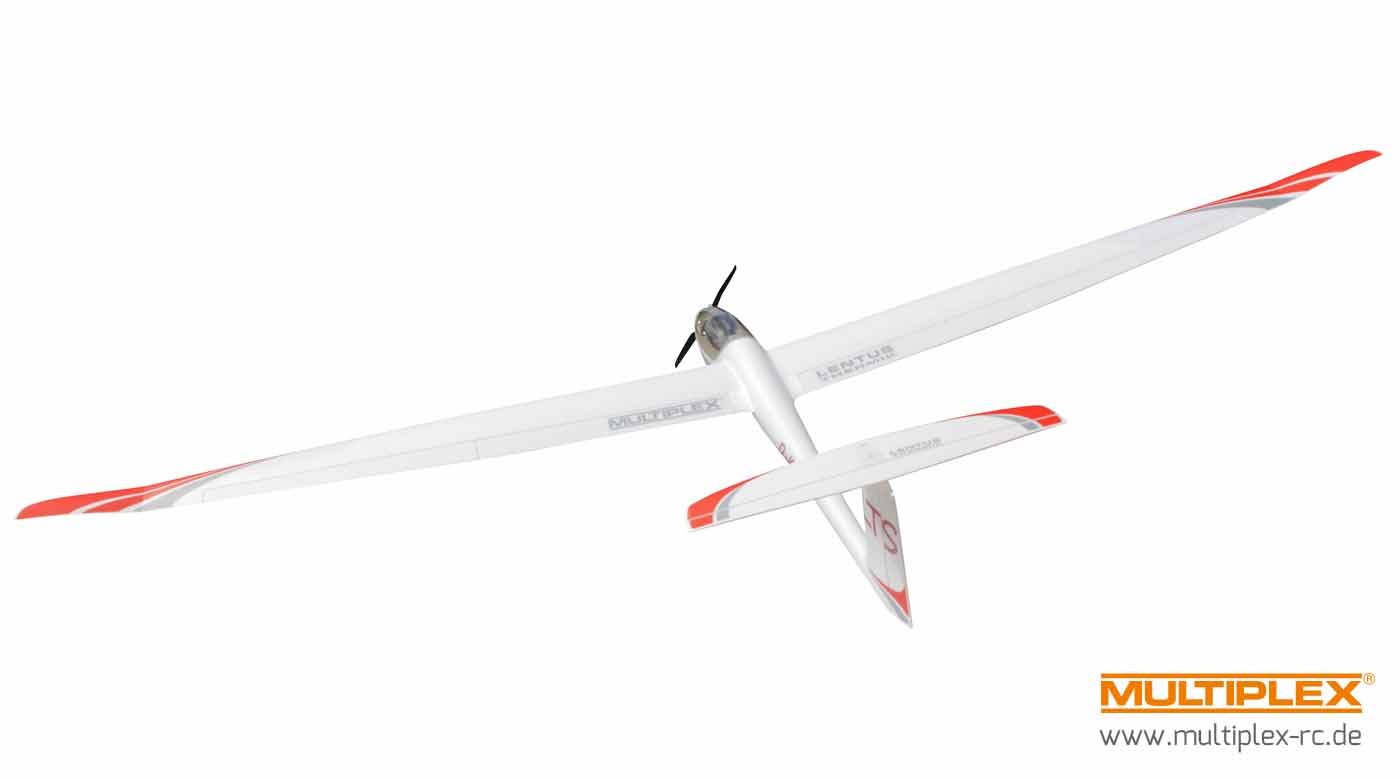

Pictures

Manual

Radio icons

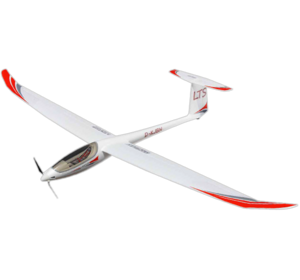

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Lentus in particular but at least we know they do distribute Multiplex.
Wingspan: 3000mm (118.1 in)
Length: 1410mm (55.5 in)

Weight: 2600 g (5.7 lbs)
  • Wingspan: 3000 mm
  • Overall length: 1410 mm
  • All-up weight:. 2300 - 2600 g
  • Total surface area: 52,6 dm²
  • Total surface area loading: 44 - 49 g/dm²
  • Control channels: Elevator, rudder, ailerons, flaps, throttle, optional retractable landing gear, tow coupling
  • Flight time: up to about 30 min. without thermal assistance
