Explorer BF from NAN Models

Details

High perfomance F5J competition glider. After extensive testing during 2016 competition season, we present new Explorer model.

Explorer is sharing airfoil with F3J model Xplorer 1. With new slimmer fuselage with removable nose, ballasting plane is much easier. Another advantage is possibility to use different motor setup for same model.

Wing is IDS friendly and wing servos are moved as close to the center of the wing to improve handling of the plane at low altitudes, when it matters the most to work out tight thermals. Weight savings are mostly achieved in construction of the wing and amount of material used. The model is suitable for F5J use only.

Searching for improvement and exploring the full potential a new version of the Explorer wing was born. The significantly wider surface of the flaps and ailerons make all the wingspans of the model much more agile and better performing in all weather and thermal conditions. The new version of the Explorer, offered in 3.5m, 3.8m and 4m is all the F5J pilot needs. The model is suitable for F5J use only.

The kit is supplied with:
Carbon fuselage

  • Fully molded composite wing panels
  • Fully molded composite tail
  • Full accessory pack

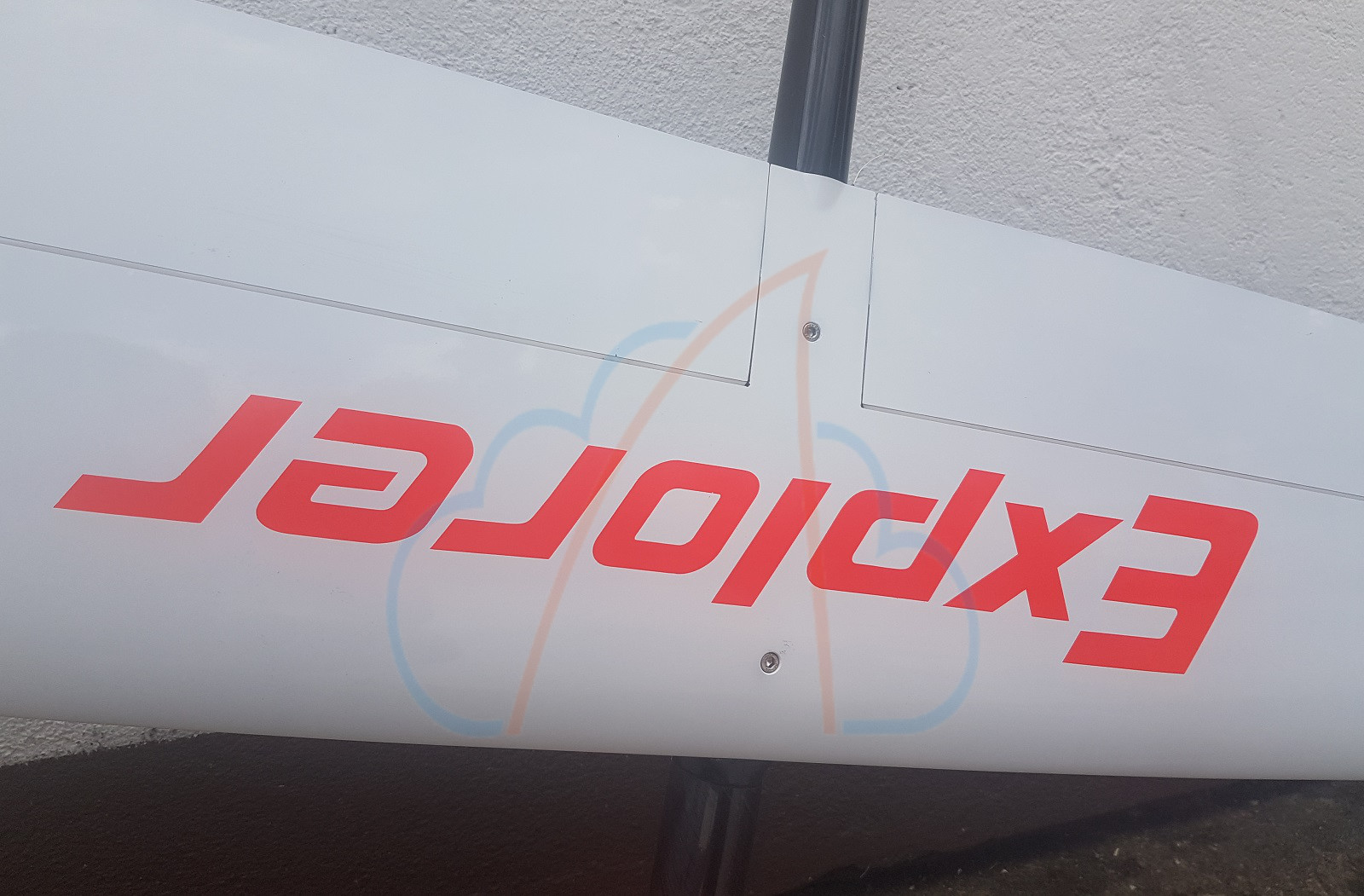

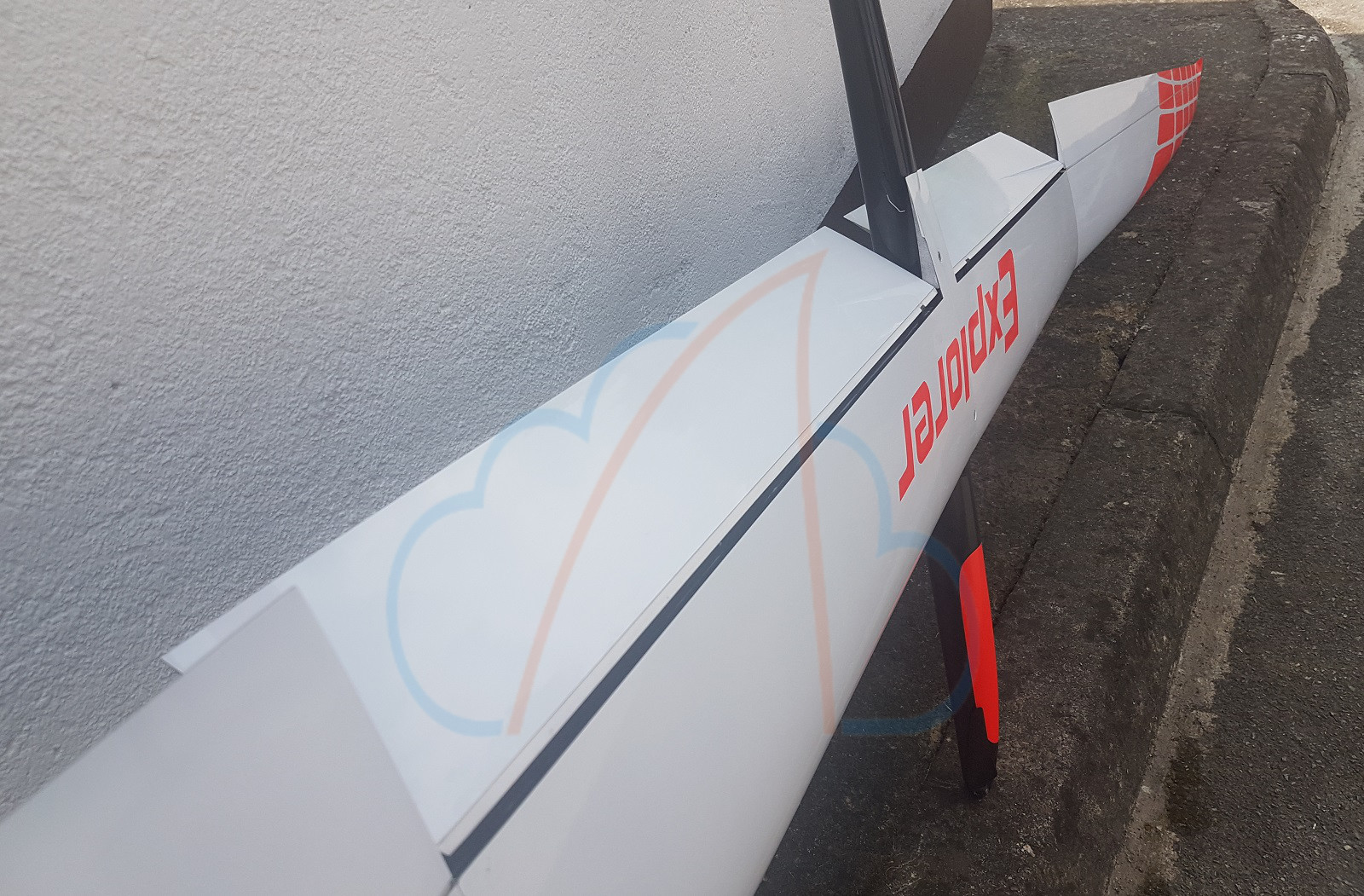

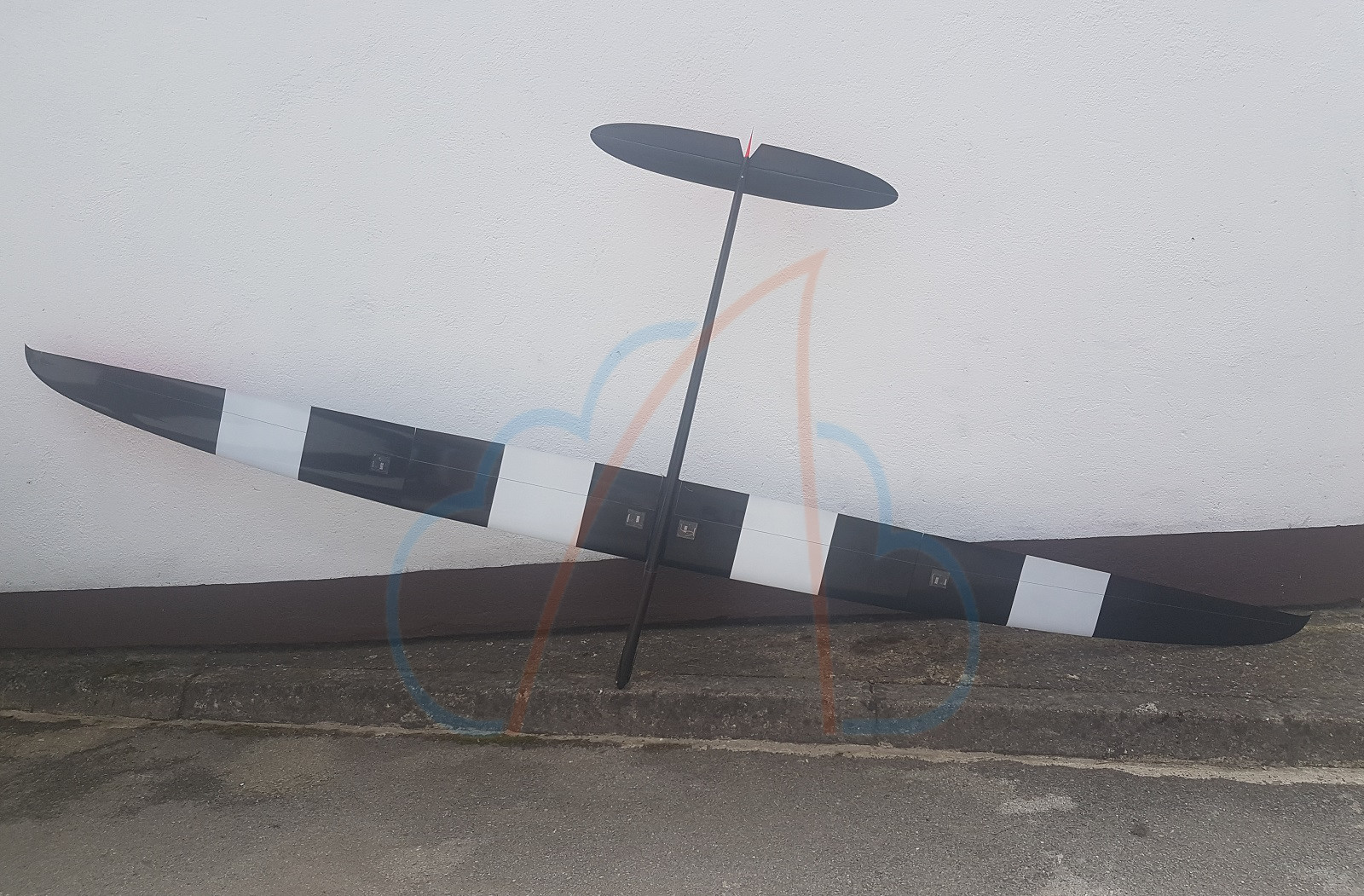

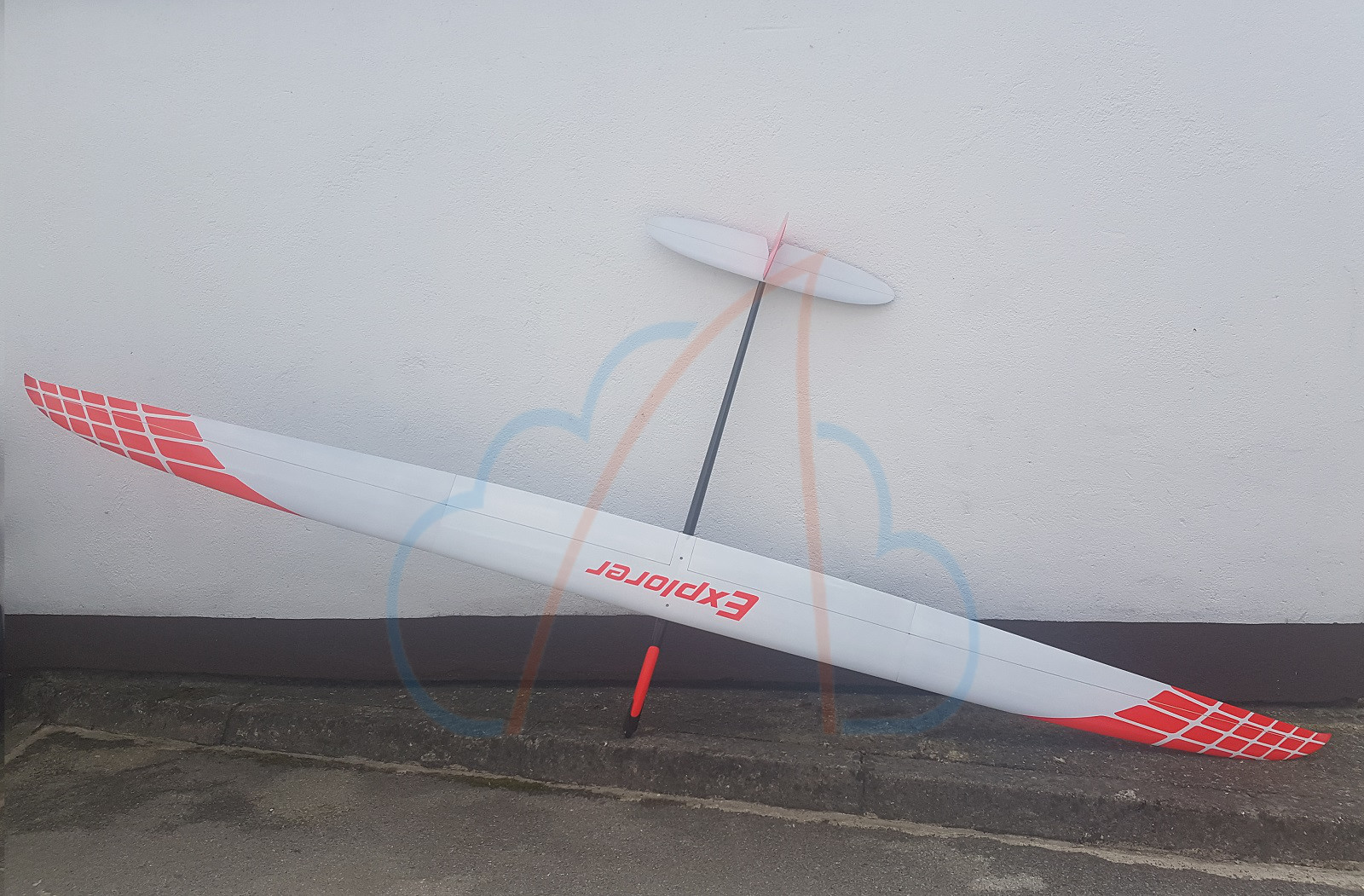

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Explorer BF in particular but at least we know they do distribute NAN Models.

Where to buy

Italy
ItalSoaring
check web site
Ship to: Italy
Switzerland
Leomotion
check web site
Ship to: Switzerland
France
Airtech
check web site
Ship to: Europe
USA
SoaringUSA
check web site
Ship to: USA
Germany
Cumulus Modellbau
check web site
Ship to: Germany
Croatia
TwisterModels
check web site
Ship to: Croatia
United Kingdom
ACE Model
check web site
Ship to: United Kingdom

Wingspan: 3800mm (149.6 in)
Length: 1550mm (61 in)

Weight: 880 g (1.9 lbs)
  3500 3800 4000
Wing span 3500 mm 3800 mm 4000 mm
Fuselage legth 1550 mm 1550 mm 1550 mm
Wing area 75,85 dm² 81,5 dm² 86,7 dm²
Airfoil NAN-F3J NAN-F3J NAN-F3J
Tail area 8,8 dm² 8,8 dm² 8,8 dm²
Empty weight ~820g ~880g ~920g



  Empty plane Ballasted
Center of gravity 131mm 125mm

Variants

X-BF
Explorer BF (White-orange)
