Shadow 2 from NAN Models

Details

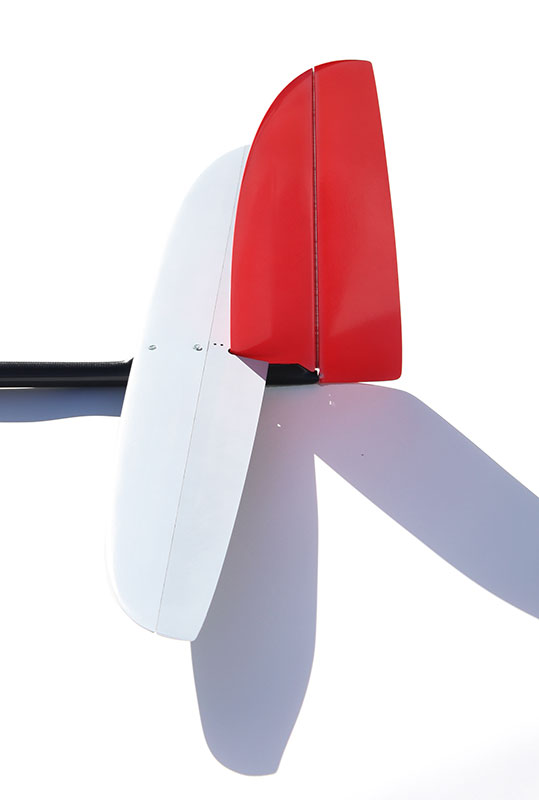

The fuselage, tailplane and fin have been completely re-designed for increased performance and handling. The fin and tailplane are removeable which makes it easier to transport. The fuselage allows for a ballast system so you can add weight easily should you need to.

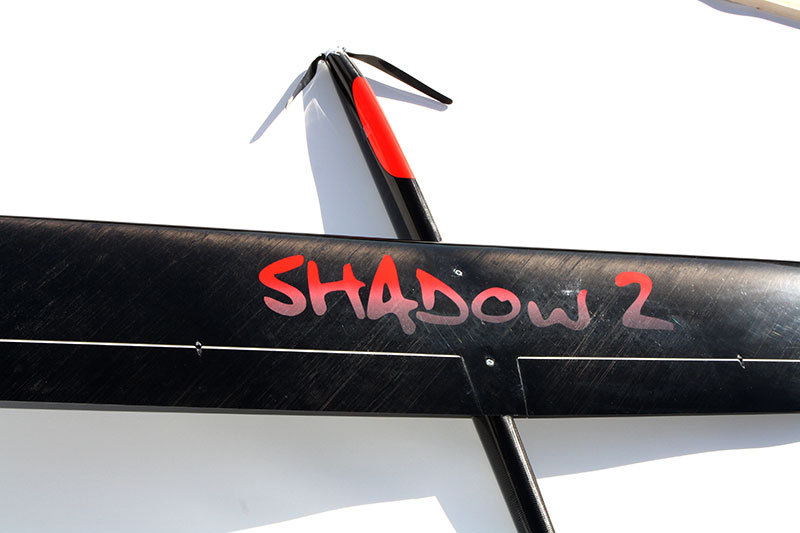

The 3 piece composite wing is constructed using NAN models new light weight Spread Tow Carbon. The wing profile remains the same NH507M1 which has great thermal duration and works well in windy conditions.

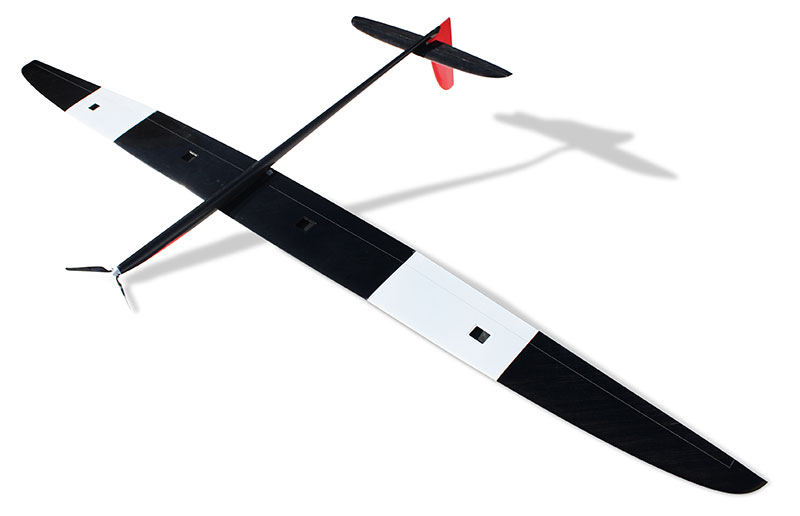

The Shadow has a wing span of 3.65m and an empty weight of 1000-1100g. The model is very easy to fly and has excellent handling characteristics.

Features:

  • Fully moulded carbon fuselage
  • Fully moulded carbon wing
  • Fully moulded composite carbon tailplane
  • Full hardware pack

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 3654mm (143.9 in)
Length: 1630mm (64.2 in)

Weight: 1100 g (2.4 lbs)

Wing Span: 3654 mm
Wing Profile: NH507M1
Wing Area: 73 dm²
Tail Area: 8.8 dm²
Fuselage Length: 1630 mm
Empty Weight ~1000g
Wing Loading: 22 dm²
Spinner Size 30mm
Motor/Gearbox Size: Max 27mm
