AcroBee65 BLV3 from NewBeeDrone

Details

Included in the AcroBee65 BLV3 are the improved BeeBrain BLV3 Flight controller and Gold Unibell 0802 18000KV Motors.

The latest iteration of the BeeBrain BL Flight Controller contains massive improvements to the performance of the built in FrSky Receiver and built in video transmitter.

In addition, the ESC MOSFETs were upgraded to support the power demands of micro toothpick drones.

The solder pads on each ESC were enlarged to enable custom builds! With plenty of surface area and spacing, you can now solder on any motor of your choosing.

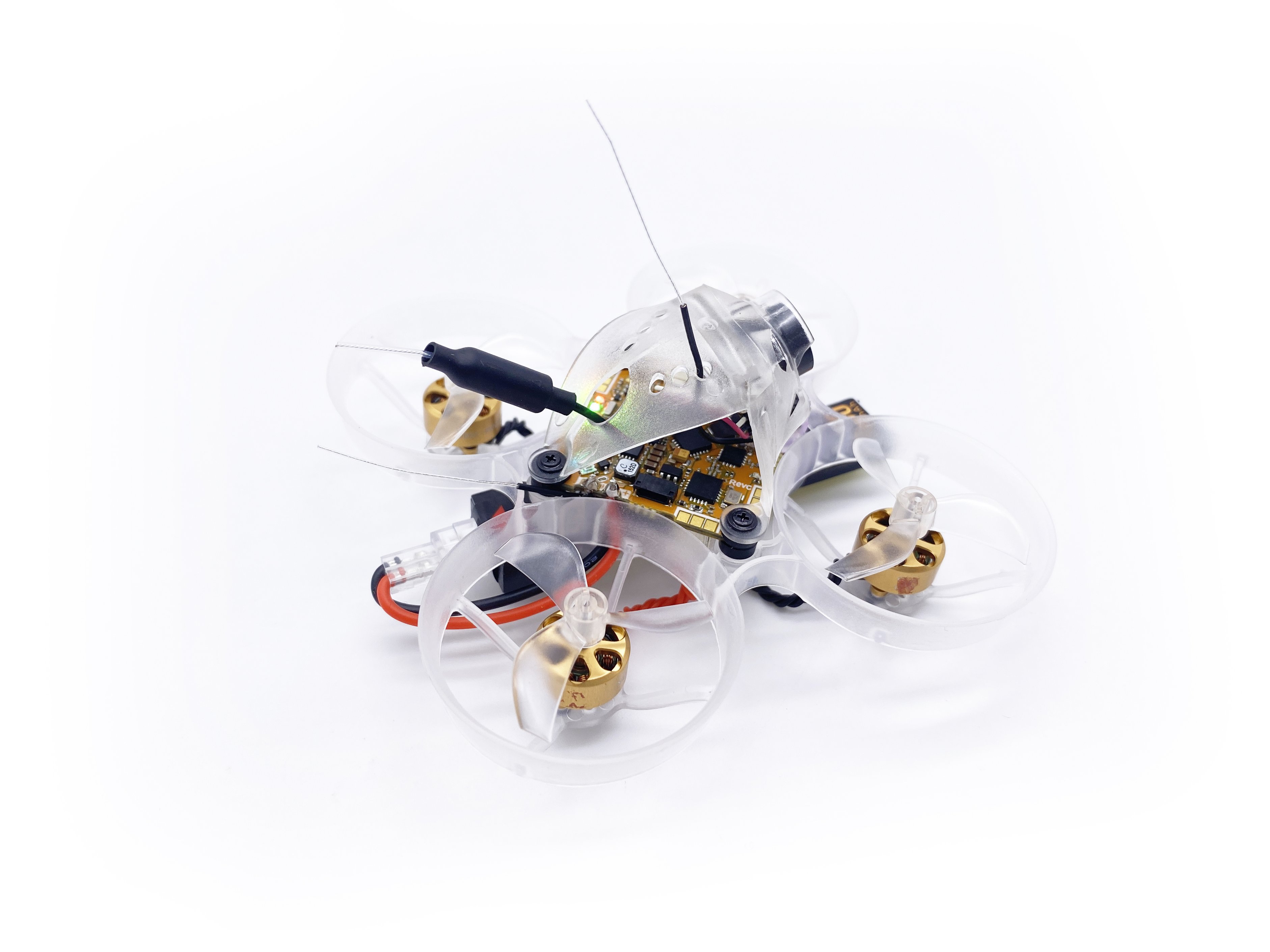

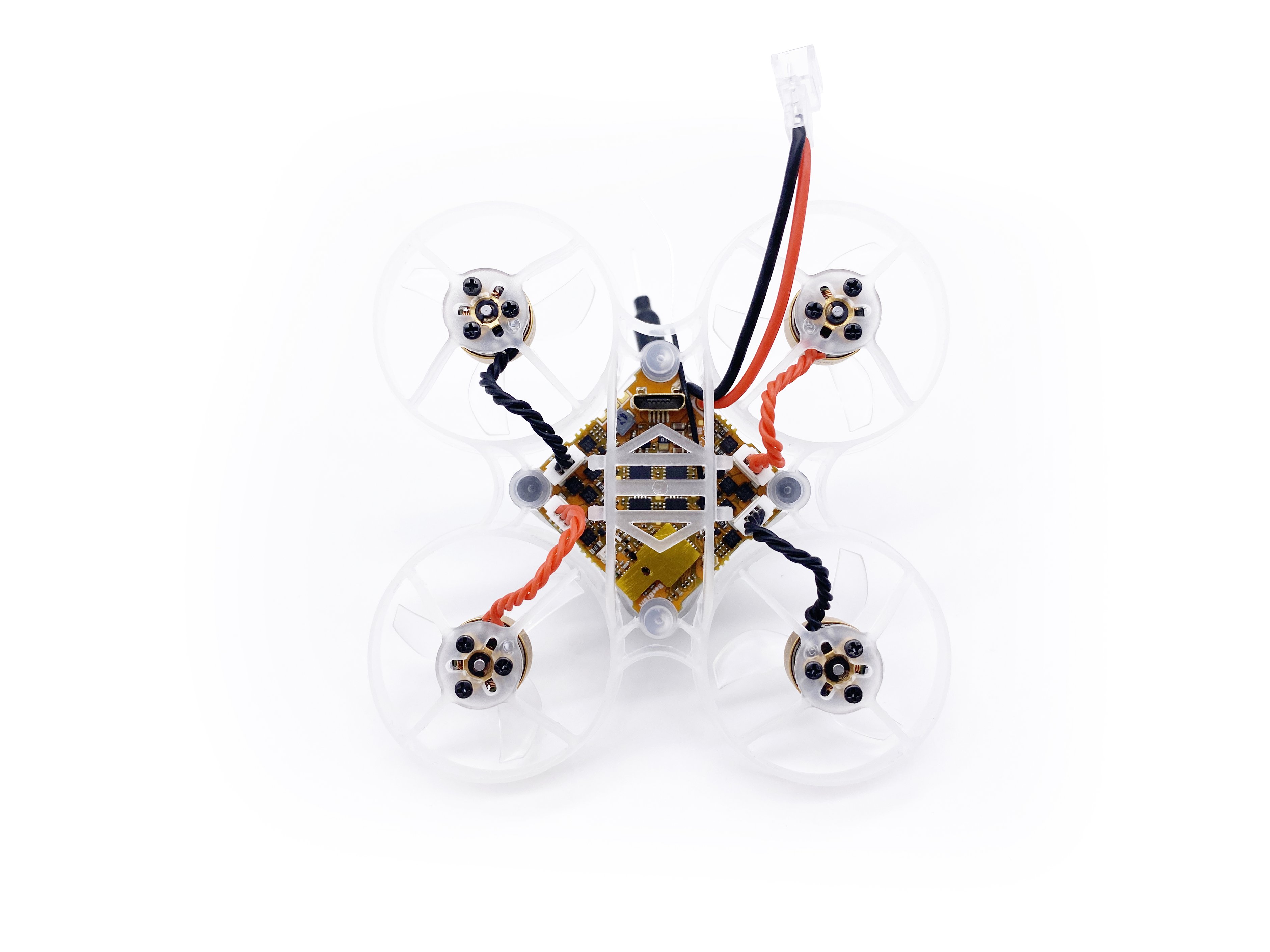

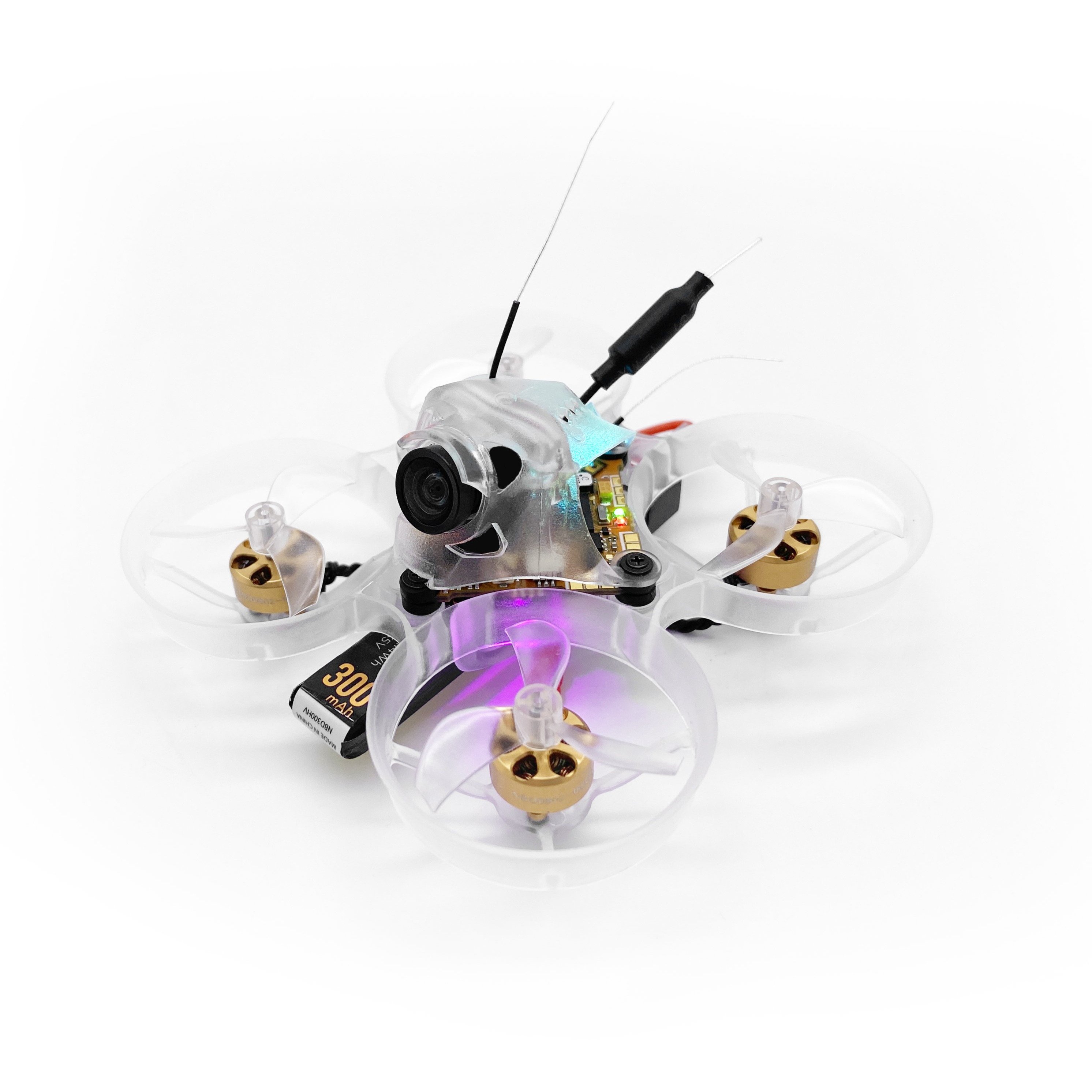

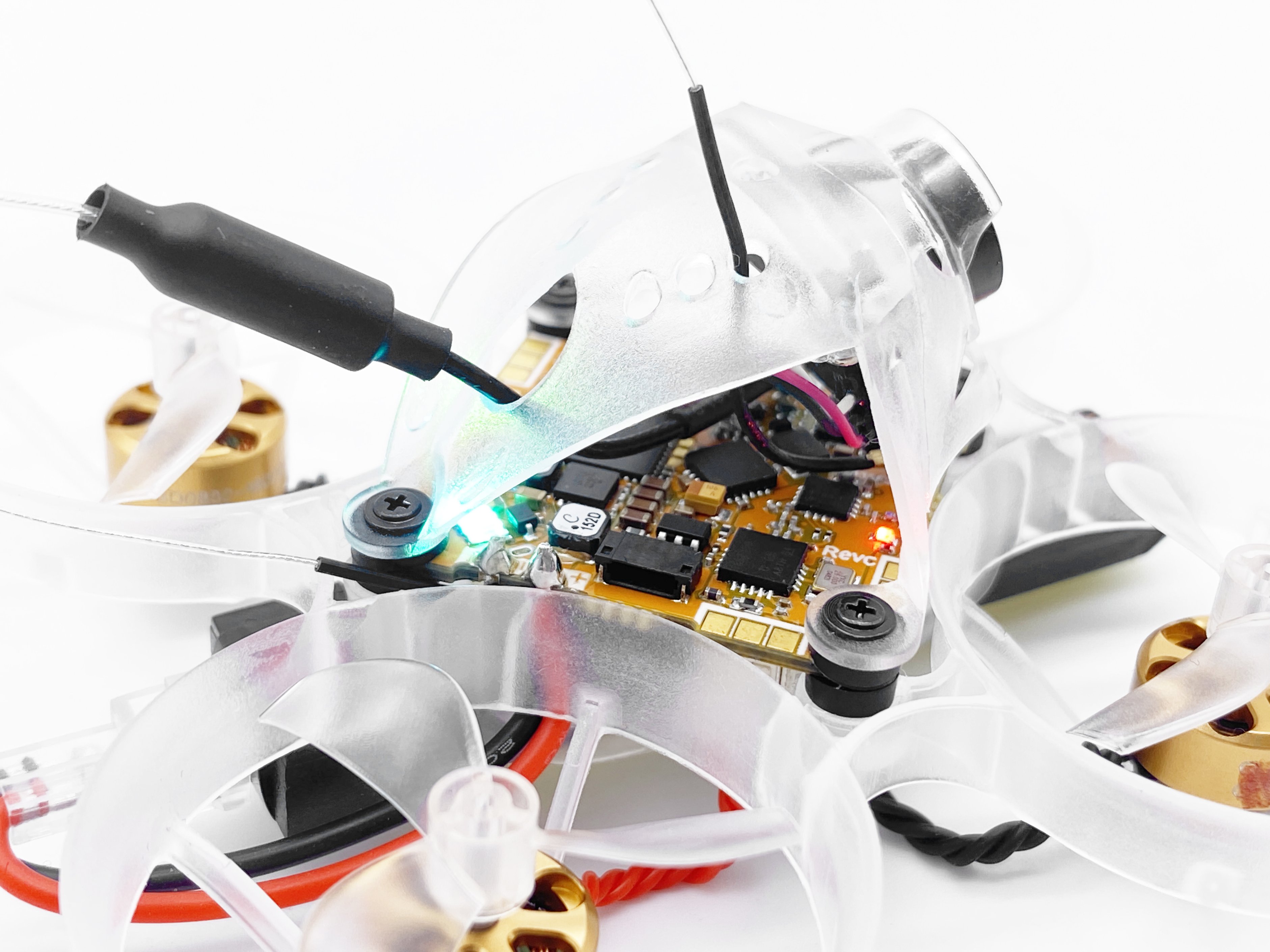

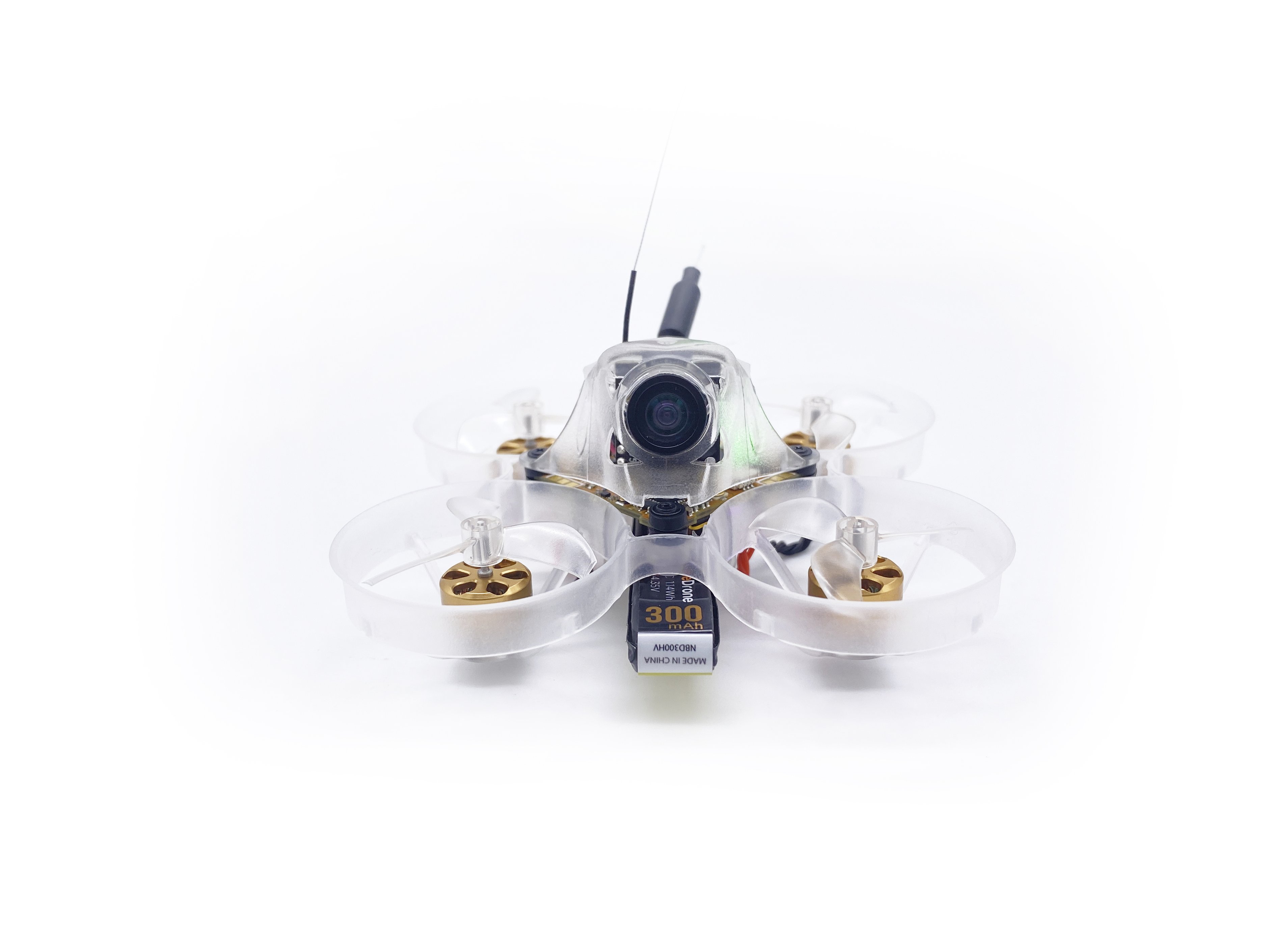

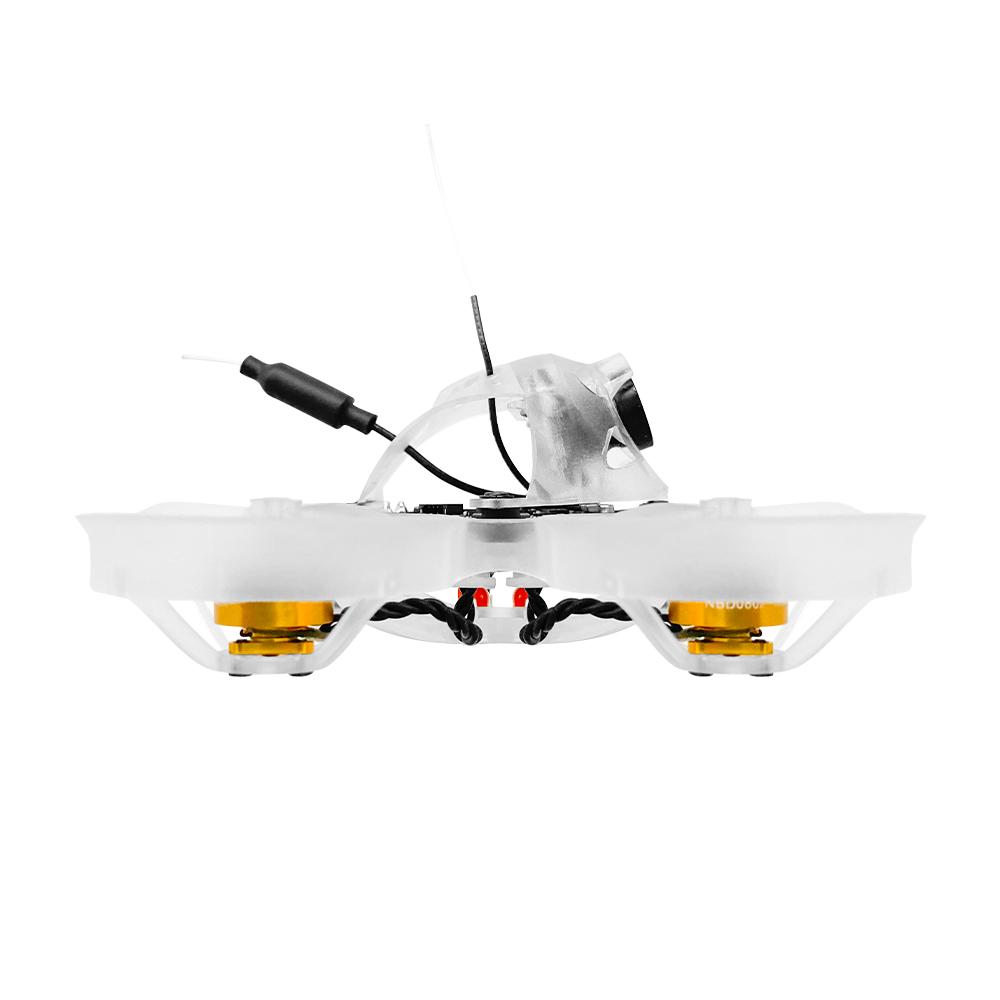

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the AcroBee65 BLV3 in particular but at least we know they do distribute NewBeeDrone.

Where to buy


Wingspan: 65mm (2.6 in)
Length: 65mm (2.6 in)

Weight: unknown

Build Components

  • Flight Controller: NewBeeDrone BeeBrain Brushless V3 AIO
  • Motors: NewBeeDrone 0802 18000kv Brushless Motors - Gold Edition (Unibell Version)
  • Propellers: NewBeeDrone Azi (Tri Blade) Micro Props - 31mm,1.0mm Shaft
  • Receiver: Integrated True Diversity SPI Receiver with LNA+PA, FrSky compatible (optional external receiver compatible)
  • Receiver Antenna: MHF3 2.4GHz Antenna
  • VTX: Onboard, up to 120mW
  • VTX Antenna
  • FPV Camera: NewBeeDrone BeeEye FPV Camera
  • Weight without Battery: 23 grams

BeeBrain BLV3 Flight Controller Specifications

  • STM32F411 MCU
  • ESC Firmware: Ships with JESC 48 KHz. BLHeli_s capable.
  • ESC Specifications: 4 channel 12A ESC
  • Weight: 6 grams (including antennas and battery connector)
  • Size: Outer dimensions 29 x 29 x 7.6 mm
  • Holes: 25.5 x 25.5 mm
  • Battery input: 1 – 2 S
  • UART2 TX and RX free for external receiver (un-inverted SBus signal only)

Variants

06AI01
AcroBee65 BLV3 (White)
