Fokker E3 from PICHLER

Details

The original: The Fokker E3 was originally developed and manufactured by Anthony Fokker for the German Air Force. A total of about 450 pieces were built in the period 1915 - 1916.

The model: special attention was paid to an appearance as faithful as possible to the original and to the best flight characteristics. Beautiful scale details perfectly complement the overall picture of this fantastic flight model.

Features:

  • ARF finished model in wood construction (laser cut)
  • Completely covered with canvas
  • Highest degree of prefabrication
  • Multi-part wings with stable connection
  • Scale landing gear and wheels
  • Painted cowling
  • Semi-model details
  • Accessory for R/C installation

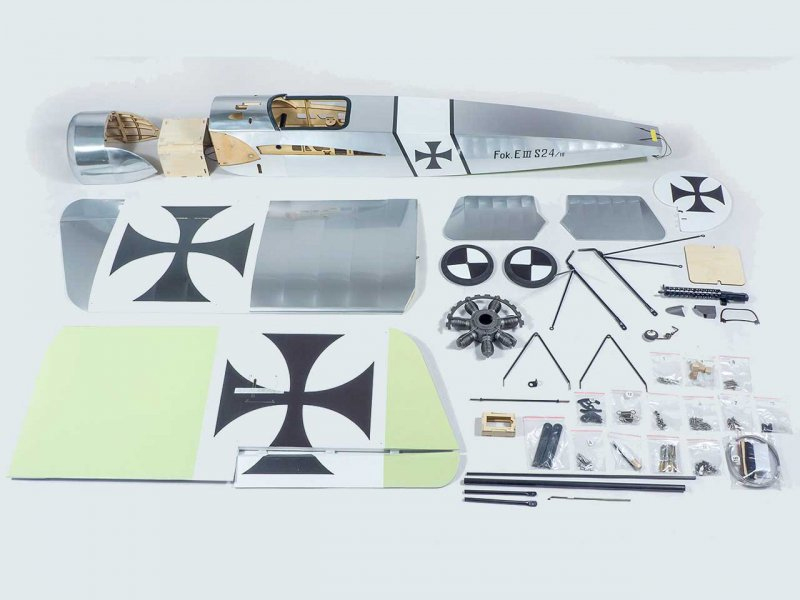

  • Wheels, linkages, small parts, illustrated instructions

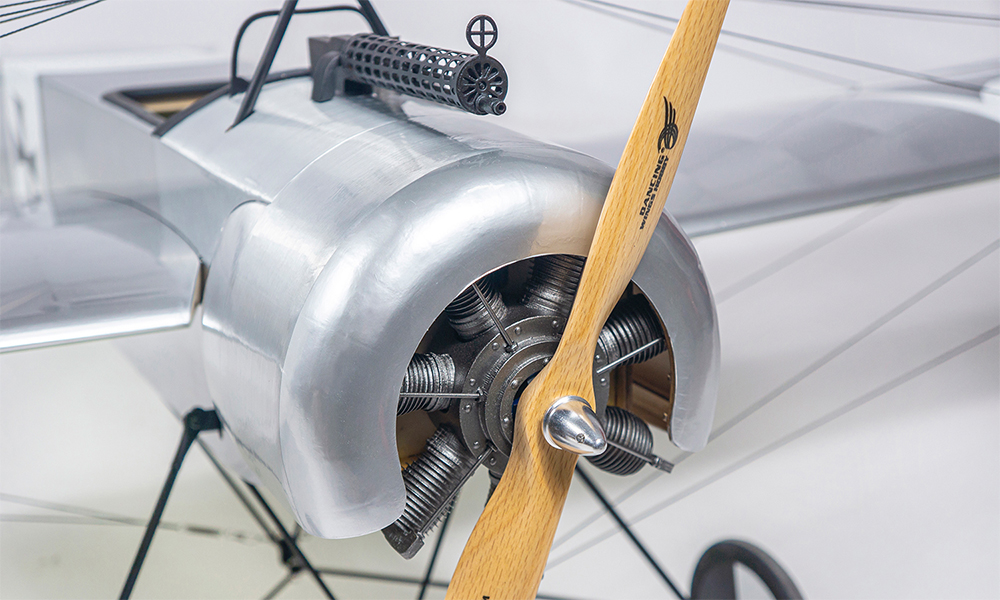

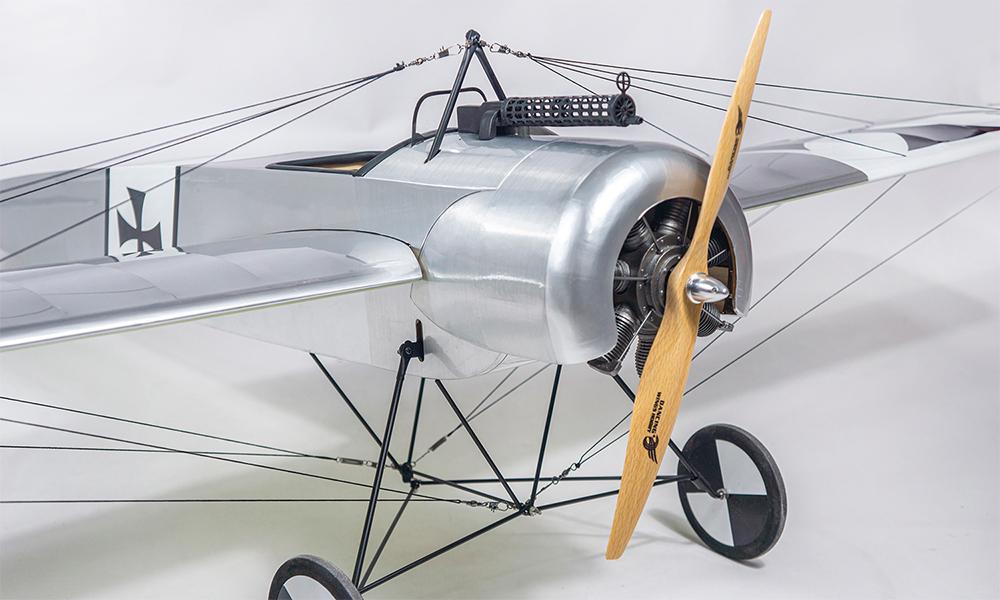

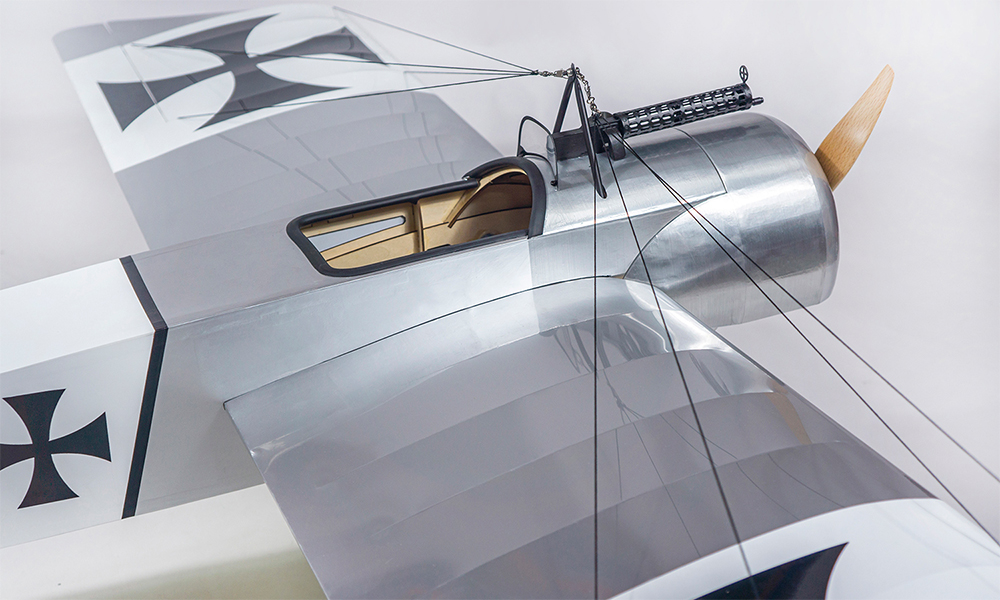

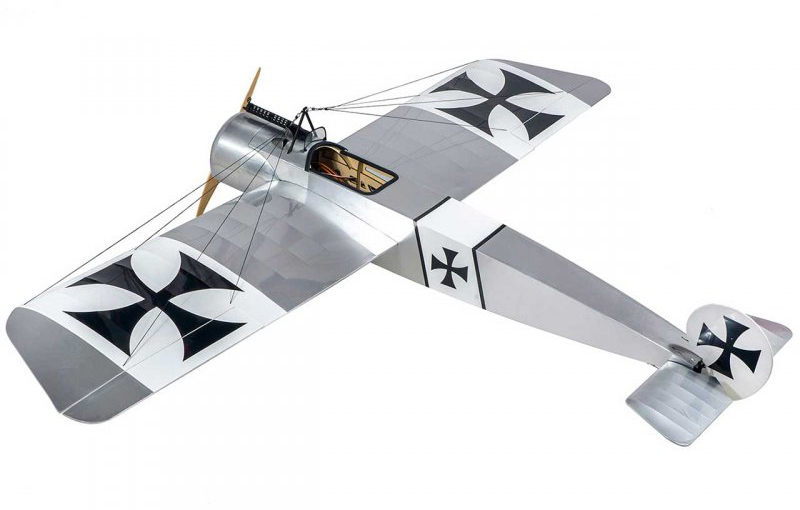

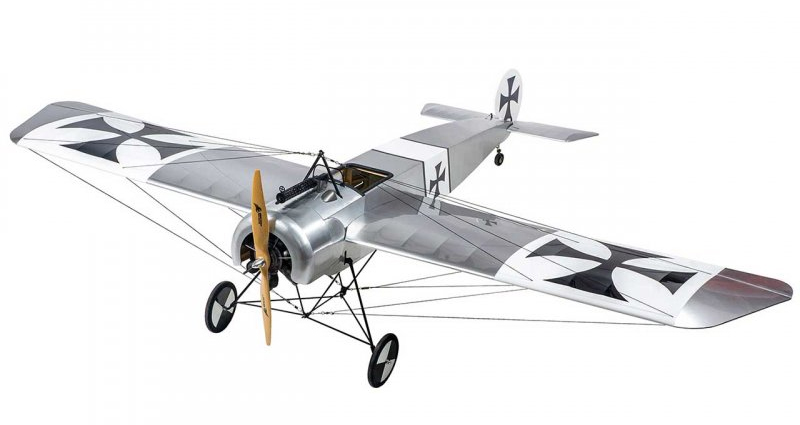

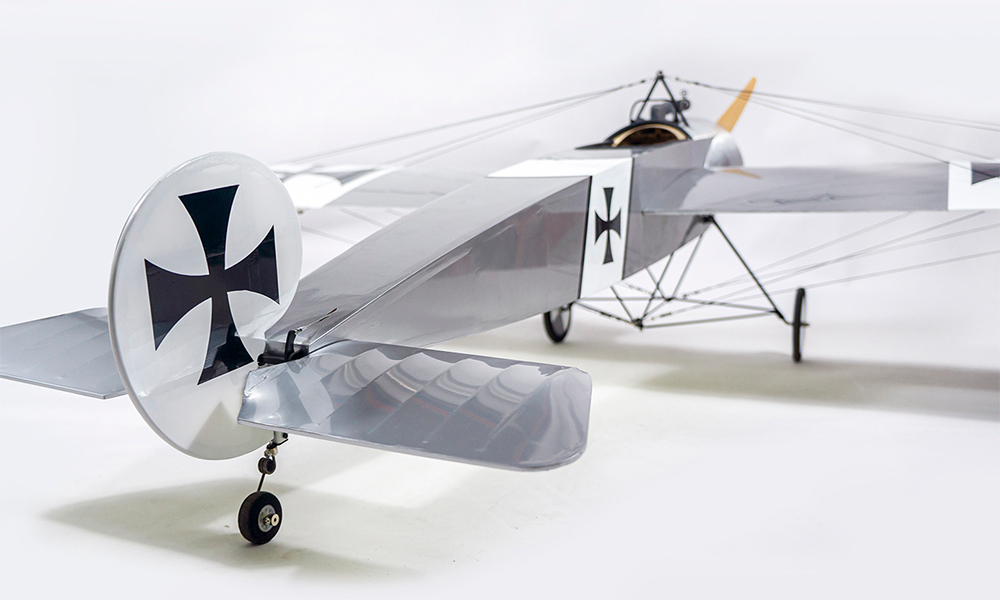

Pictures

Radio icons

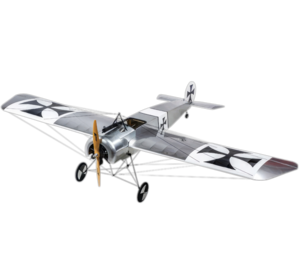

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1580mm (62.2 in)
Length: 1170mm (46.1 in)

Weight: 2500 g (5.5 lbs)
  • Wingspan: 1580 mm
  • Length: 1170 mm
  • Weight: 2500 g
  • Recommended motorization: Roxxy Brushless C35-42-05 1100kv
  • Functions: Ailerons, steering, elevator, motor
  • Nb of servos: 4
  • Radio control: 4 channels
  • Recommended drive: RO-CONTROL 60A 2-6S drive
  • Recommended battery type: 3S Lipo 3300mA
  • Type of fuselage construction: preassembled and covered with wood
  • Type of construction of the wings: wood, preassembled and covered with canvas
