Decathlon Mk2 from Phoenix Model

Details

Though the Decathlon went out of production within a decade of its introduction, this was not due to any fault in the design but rather to the slump in general aviation in the United States at the end of the 1970s and the beginning of the 1980s. Since its reintroduction, the Super Decathlon has sold steadily. Decathlons and Super Decathlons remain popular as aerobatic trainers, as beginning and intermediate aerobatic aircraft, and as personal aircraft.

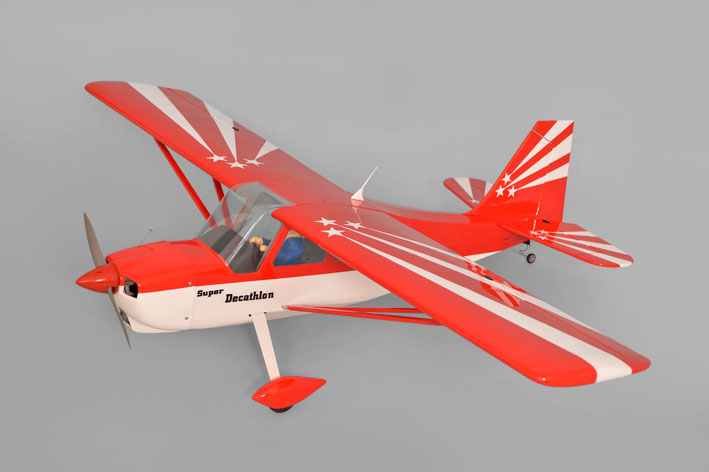

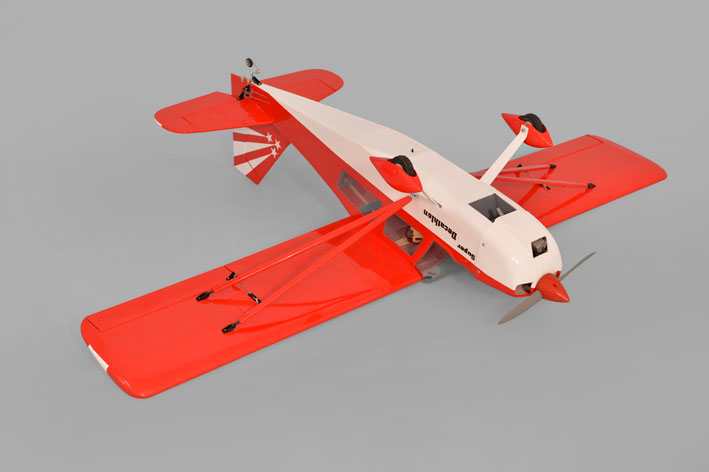

The Decathlon is all laser cut and is a great scale airplane. Featuring pre-covered fuselage and wings with great looking color scheme sure to catch the eye of everyone. The plane comes with fiberglass cowl,wheel pant… Simple assembly of pre-finished parts enable the model to be ready for fly in very short time. Just a few simple jobs installing radio gear, installing engine, etc and you will be flying. With a 4-stroke engine installed, the Decathlon will catch plenty of attention on and off the field!

Features:

  • Designed for compatibility with both GP and EP flight
  • Top quality balsa/light plywood construction

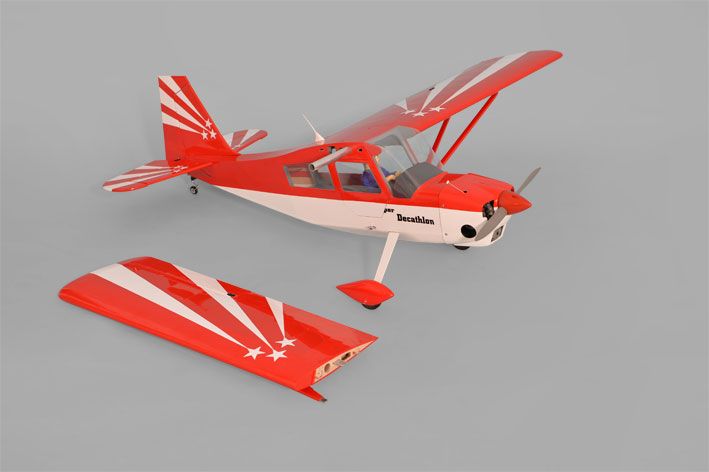

  • Bolt-on two-piece wing for easy transport and setup at the field

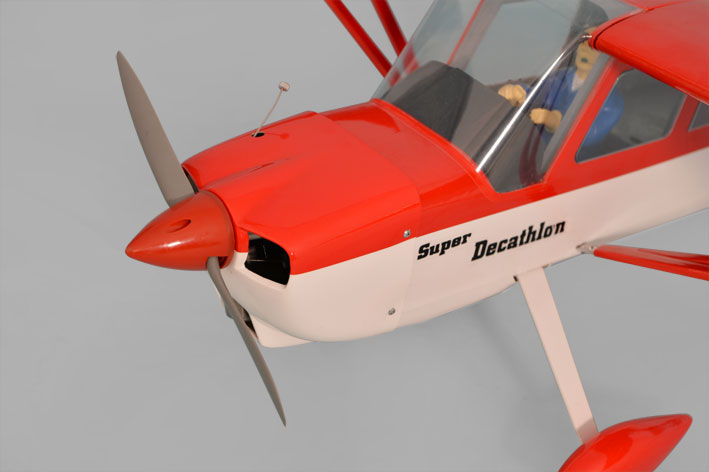

  • Scale outline is enhanced by the lightweight fiberglass cowl
  • High-quality hardware package included

Pictures

Manual

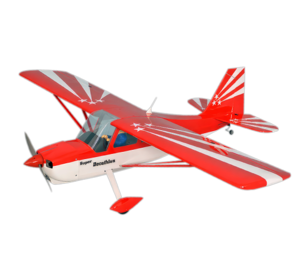

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1669mm (65.7 in)
Length: 1229mm (48.4 in)

Weight: 3400 g (7.5 lbs)
  • Wingspan: 1669mm (65.7in)
  • Length: 1229mm (48.43 in)
  • Flying weight: 3300-3400 gr
  • Wing area: 44.2 dm2
  • Wing loading: 67g/dm2
  • Wing type: Naca airfoils

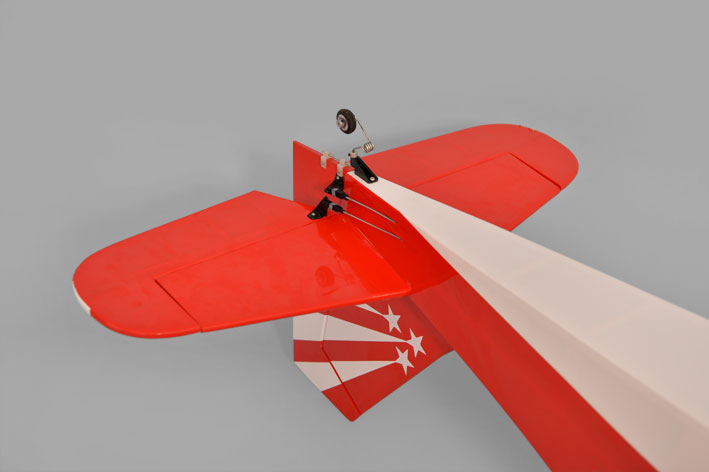

  • Gear type: Aluminum main gear and spring tail gear (included)
  • Spinner size: Plastic 58mm (included)
  • Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
  • Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
  • Servo mount: 21mm x 42 mm

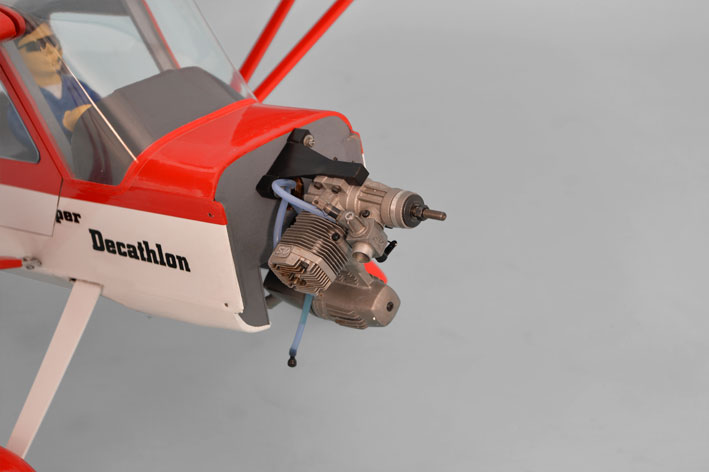

  • Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)

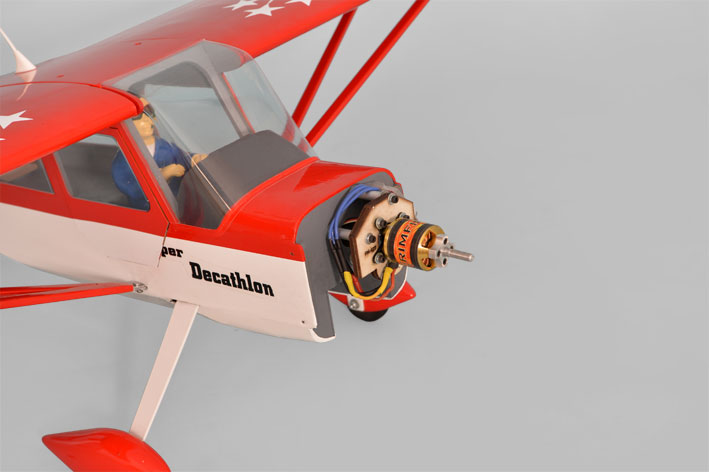

  • Motor: brushless outrunner 1000-1400 W, 480 KV (not included)

Recommended Motor and Battery setup:

  • Motor: RIMFIRE .46-.55 (not included)
  • Lipo cell: 6 cells / 4000 – 5500mAh (not included)
  • Esc: 50-80A (not included)
